Amana SCD25TW Manuale

Amana Technical Information³Refrigerator

December 1997 1 RT1300027 Rev. 0

SCD25TBW P1303517W SXD25S2W P1303513W

SCD25TW P1303516W SQD25VW P1314202W

•Due to a possibility of personal injury or property damage, always contact an authorized technician for servicing

or repair of this refrigerator.

•Refer to Service Manual RS1300003 for installation, operating, disassembly, ice maker, testing, and

troubleshooting information.

CAUTION

All safety information must be followed as provided in Service Manual RS1300003.

WARNING

To avoid risk of electrical shock, personal injury, or death, disconnect power to refrigerator before servicing,

unless testing requires power. Wires removed during disassembly must be replaced on proper terminals to

insure correct grounding and polarization.

Model SQD25VW

SXD25S2W

SMD25TW

SCD25TBW

Capacity 24.85 cu ft 24.6 cu ft

Electrical

requirements

separate circuit 115 VAC 60 Hz

15 amps 115 VAC 60 Hz

15 amps

Refrigerant

type

amount R134a

5.125 oz R134a

5.125 oz

Width

without side

extrusions

35.8



35.8



Depth

with handle 32.4



32.4



Height

including top

hinge cap

67.4



67.4



No Load Performance Controls in Normal Position

Kw/24hr



0.4 Percent Run Time



10% Cycles/24 hr



25%

Refrigerator Center

Compartment Food

Average

Temperature





Freezer

Compartment Food

Average

Temperature





Ambient



F65



110



110



110



110



110



25 Cu Ft 2 3 4 34 57 100 34 30 0 39 40 40 1 2 2

Temperature Relationship Test Chart

T-1 Outlet





F T-1 Inlet





F T-3 Suction Line





F Average Total

Wattage



10%

Suction

Pressure



2 PSIG Head Pressure



5 PSIG

Ambient



F65



25 Cu Ft -12 -12 -14 -13 67 93 171 177 1 1 85 135

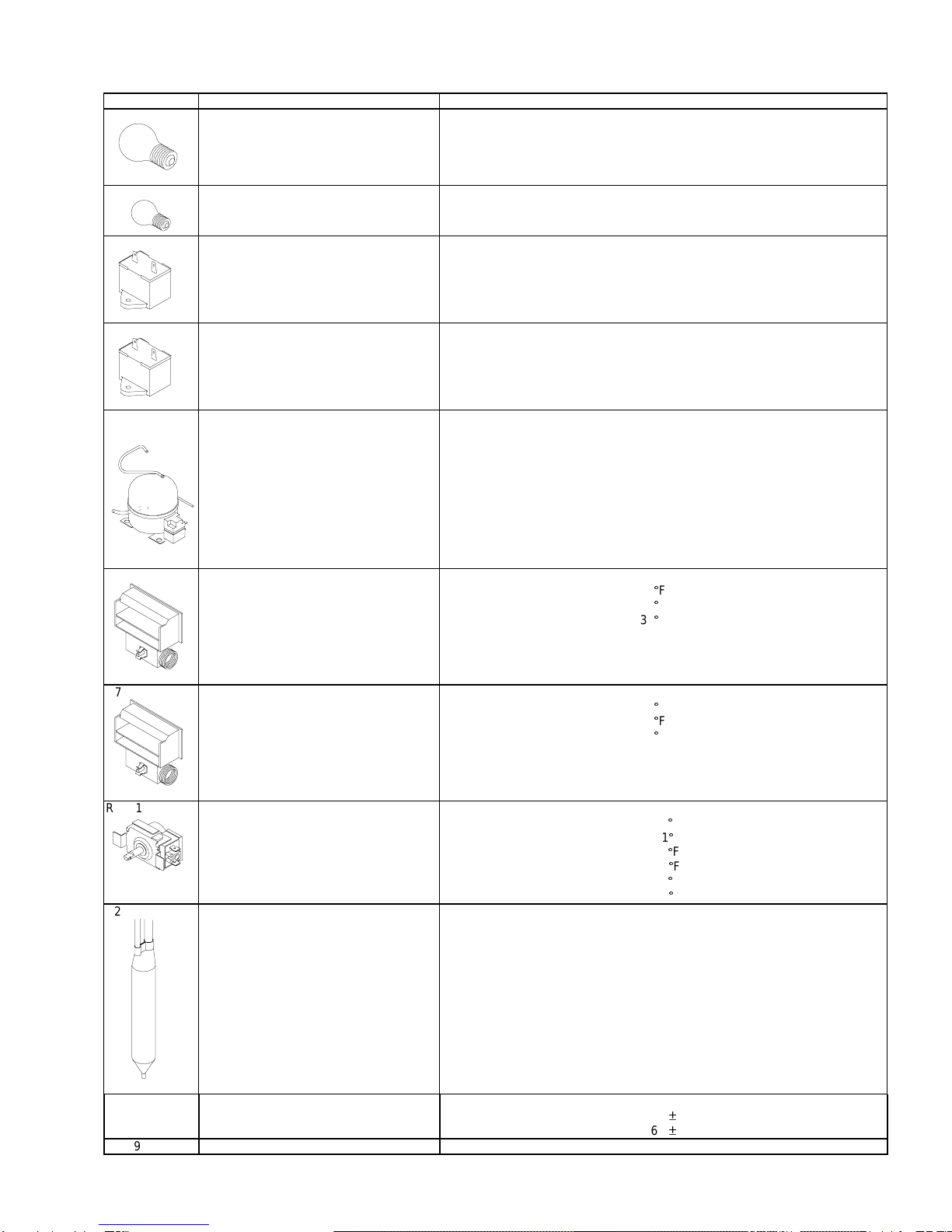

Component Specifications

RT1300027 Rev. 0 2 December 1997

Part Number Component Name Test Procedures

A0282803

Bulb Volt

Watt 115/125 VAC

40 watts

M0360001 Bulb Volt

Watt 115/125 VAC

6 watts

C8931604

Capacitor, compressor run Volt

Capacitance 220 VAC

15 Mfd +10%

-5%

C8931605

Capacitor, auger motor

Used on:

SCD25TBW

SQD25VW

Volt

Capacitance 220 VAC

17 Mfd +10%

-5%

12049702 Compressor Type

BTUH

Volt

Watt

Current

Lock rotor

Full load

Resistance

Run windings

Start windings

Fan cooled, R134a refrigerant

970 BTUH

115 VAC, 60 Hz

176 watts

21.3 amps

1.6 amps

2.60 ohms

4.35 ohms

D7547411

Control, damper Used on:

SQD25VW Settings

Closing temperatures



D7547412

Control, damper Used on:

SCD25TBW

SMD25TW

Settings

Closing temperatures



R0161092

Control, freezer temperature Settings

#1–in

#1–out

#4–in

#4–out

#7–in

#7–out

Temperatures



-11



-6



-5



B2150504

Drier Drier must be changed every time the system is opened for testing or

compressor replacement.

Desiccant (20) 8 x 12 4AXH - 7 M>S> -Grams

10882105 Heater, cavity Volt

Watt

Resistance

115 VAC

.667



7.5% watts

6.61



7.5% ohms

12049801 Heater, evaporator Volt 115 VAC

Component Specifications

December 1997 3 RT1300027 Rev. 0

Part Number Component Name Test Procedures

Wattage

Resistance 7



7.5% watts

1.89



7.5% Kohms

10114804

Motor, auger Used on:

SCD25TBW

SQD25W

Volt

Rotation (facing shaft)

RPM

Watt

Bimetal Cut-out

Opens

Closes

115 VAC, 60 Hz

Power to blue and white leads is clockwise

Power to white and orange leads is

counterclockwise

17 RPM

165

175 watts

266







185







10884501

Motor, condenser Volt

Rotation (facing end opposite

shaft)

RPM

Watt

Current

Resistance

115 VAC, 60 Hz

Clockwise

1300 RPM

10.0 watts

0.15 amps

220



10% ohms

10513803

Motor, evaporator fan Volt

Rotation (facing end opposite

shaft)

RPM

Watt

115 VAC, 60 Hz

Clockwise

2500 RPM



15% watts

10377015

Overload, 4TM Volt

Ult. trip amps @158°F (70°C)

Close temperature

Open temperature

Short time trip (seconds)

Short time trip amps @77°F (25°C)

115 VAC

3.51 amps

142°F (61°C) ±9°

257°F (125°C) ±5°

10 seconds



14 amps

10097202

3Relay, ptc Resistance

With power off check:

Across terminals 2 & 3

Shorted

Open

12 ohms

0 ohms

Very high or infinite ohms

10166101 Switch, cavity light Used on:

SCD25TBW

SQD25VW

Type

Volt

Current

SPST

250 VAC

4 amps

10166102 Switch, crushed/cubed ice

Used on:

SQD25VW

Type

Volt

Current

SPST

250 VAC

6 amps

10166103 Switch, crushed/cubed ice

Used on:

SCD25TBW

Type

Volt

Current

SPST

250 VAC

6 amps

C3680304

Switch, refrigerator light Type

Volt

Current

DPST NC

125/250 VAC

5/2.5 amps

Component Specifications

RT1300027 Rev. 0 4 December 1997

Part Number Component Name Test Procedures

C3680312

Switch, auger motor interlock/freezer light Type

Volt

Current

SPDT

125/250 VAC

5.0/5.0 amps

10533001

10533002 Switch, limit, cavity light, and dispensing

arms Type

Volt

Current

SPST, NO

125/250 VAC

10 amps

10533003 Switch, limit, cavity light, and dispensing

arms Used on:

SCD25TB

SQD25VW

Type

Volt

Current

SPST, NO

125/250 VAC

10 amps

12017823

Thermostat Volt

Watt

Current

Resistance across terminals

Above 48° ±5°F

Below 15° ±7°F

Between 48° ±5°F and

15° ±7°F

120/240 VAC

1000 watts

10/5 amps

Open

Closed

Will stay in current state (either open or

closed) until either 48° ±5°F or 15° ±7°F is

reached.

10530702 Timer, defrost Defrost period (minutes)

Defrost cycle (hours) 33



3.6

3142

DEFROST

OMPRESSOR CIRCUITRY

COMMON

LINE

12185504 Valve, water Volt

Watt

Water pressure (inlet)

Max

Min

Fill rate

120 VAC, 60 Hz

20 watts

120 PSI

20 PSI

140 ± 10 CC's at 7.5 seconds

Schematic Diagram

December 1997 5 RT1300027 Rev. 0

WARNING

To avoid risk of electrical shock, personal injury, or death, disconnect power to refrigerator before servicing,

unless testing requires it. Wires removed during disassembly must be replaced on proper terminals to insure

correct grounding and polarization.

CAUTION

High Voltage

SCD25TBW P1303517W SXD25S2W P1303513W

SCD25TW P1303516W SQD25VW P1314202W

Wiring Diagram

RT1300027 Rev. 0 6 December 1997

WARNING

To avoid risk of electrical shock, personal injury, or death, disconnect power to refrigerator before servicing,

unless testing requires it. Wires removed during disassembly must be replaced on proper terminals to insure

correct grounding and polarization.

SCD25TBW P1303517W SXD25S2W P1303513W

SCD25TW P1303516W SQD25VW P1314202W
