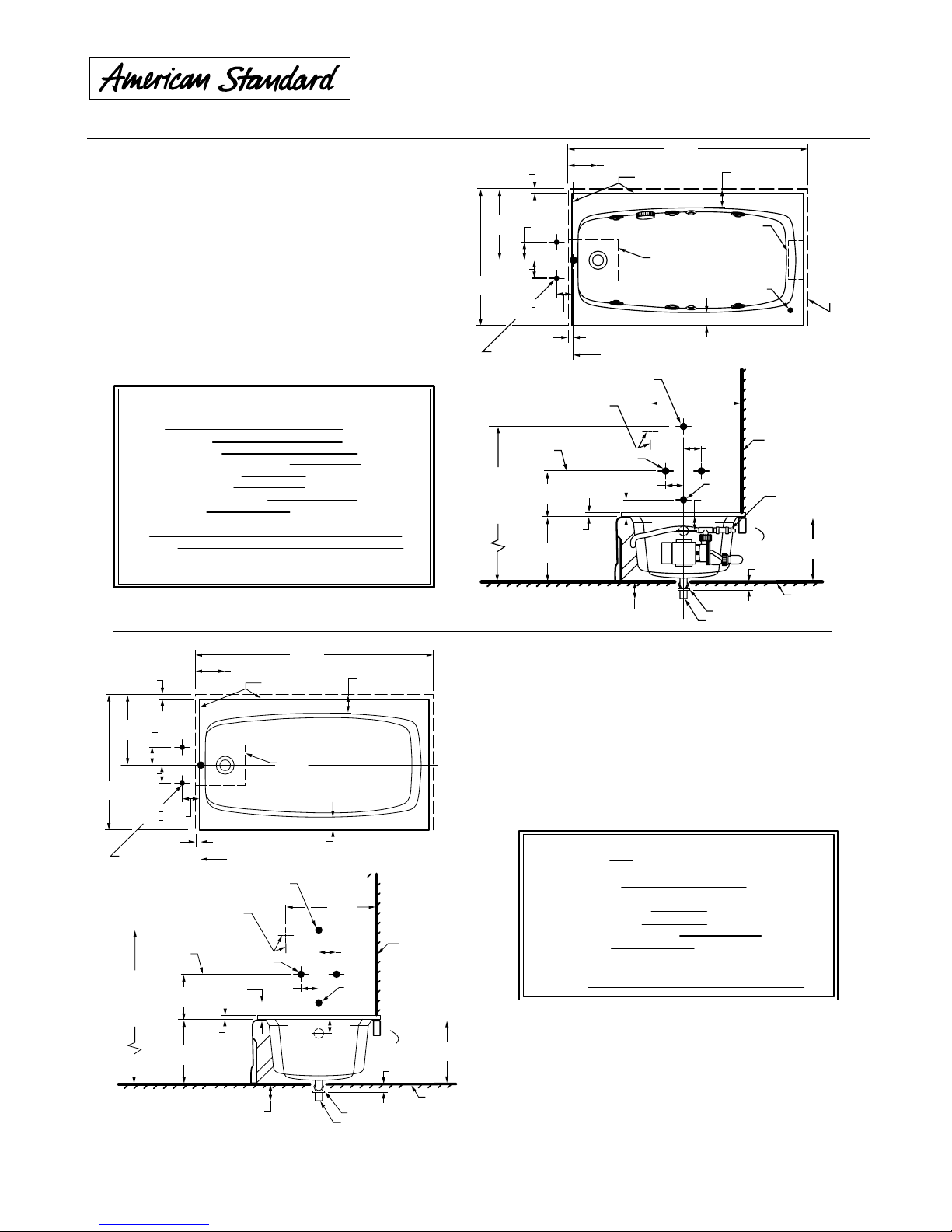

CAMBRIDGE™ 5'

WHIRLPOOL AND BATHING POOL

AMERICAST®BRAND ENGINEERED MATERIAL

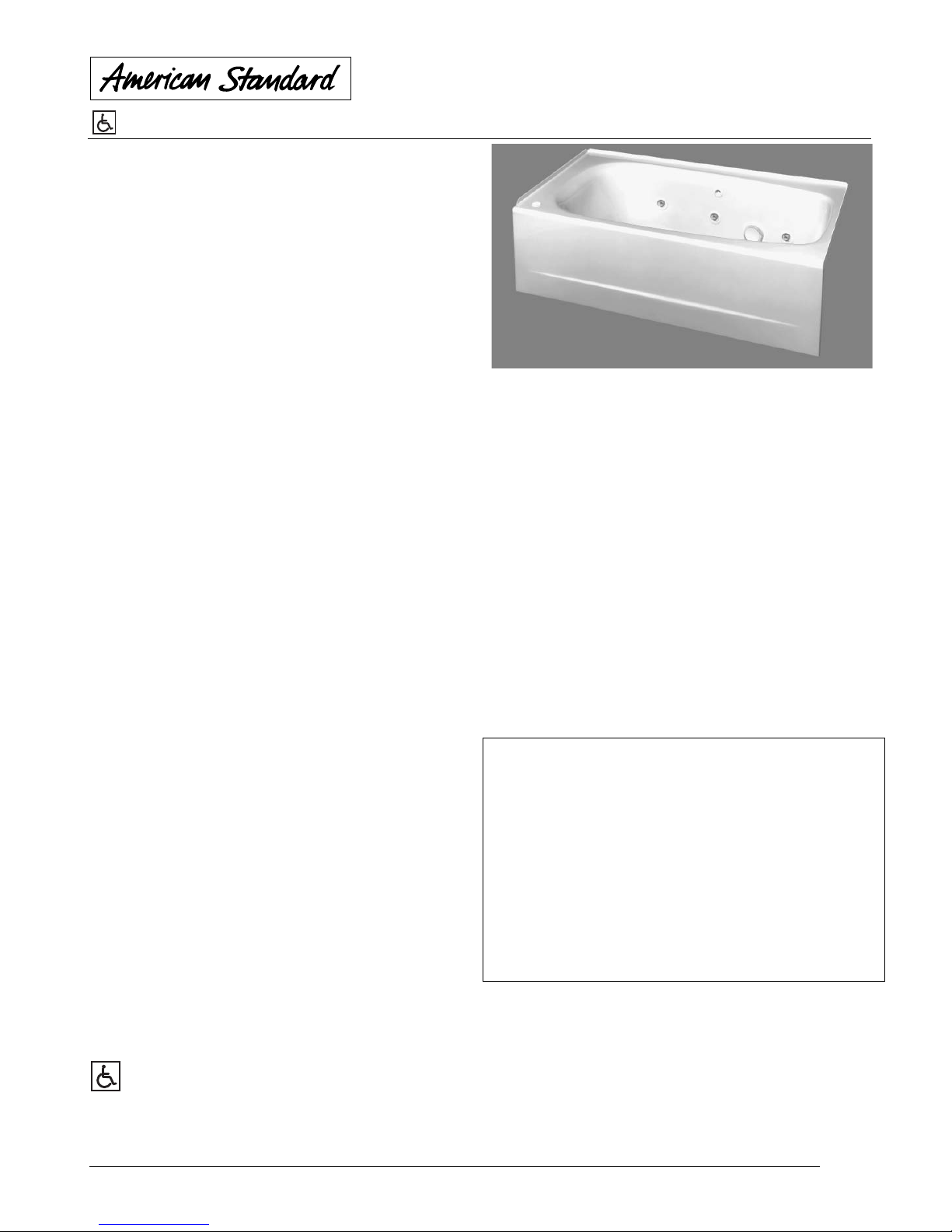

CAMBRIDGE 5' WHIRLPOOL AND BATHING POOL

❏2461.028W Whirlpool Featuring System I

Right Hand Drain Outlet

❏2460.028W Whirlpool Featuring System I

Left Hand Drain Outlet

• Americast®brand engineered material

• Acid-resistant porcelain finish

• Integral apron with integral 3-sided tile/water

retention flange

• Integral lumbar support with beveled headrest

• Full slip-resistant coverage

• 1.5 HP single speed, self-draining pump/motor

• Factory installed power cord and plug

• Six multi-directional and flow-adjustable jets

• Deck-mounted air switch On/Off

• Two silent air volume controls

• Quick Connect Safe-T-Heater connection system

• Factory installed and tested whirlpool system

Whirlpool Massage featuring System I

❏2461.128W Whirlpool Featuring System I

Right Hand Drain Outlet with Grab Bar Drilling

❏2460.128W Whirlpool Featuring System I

Left Hand Drain Outlet with Grab Bar Drilling

• Same as above except with grab bar drilling

(grab bar must be ordered separately)

StayClean™ Whirlpool Massage featuring System I

❏2461.028WC Whirlpool Featuring System I

Right Hand Drain Outlet

❏2460.028WC Whirlpool Featuring System I

Left Hand Drain Outlet

• Same as 2460/2461.028W except with the

StayClean™ whirlpool system featuring

Antimicrobial AlphaSan®

StayClean™ Whirlpool Massage featuring System I

and Grab Bar Drilling

❏2461.128WC Whirlpool Featuring System I

Right Hand Drain Outlet with Grab Bar Drilling

❏2460.128WC Whirlpool Featuring System I

Left Hand Drain Outlet with Grab Bar Drilling

• Same as 2460/2461.028W except with the

StayClean™ whirlpool system featuring

Antimicrobial AlphaSan®and grab bar

drilling (grab bar must be ordered separately)

NOTE: Roughing-in dimensions shown on reverse side of page.

BV-37

Rev. 01/06

Bathing Pool:

❏2461.002 Bathing Pool Right Hand Drain Outlet

❏2460.002 Bathing Pool Left Hand Drain Outlet

Bathing Pool with Grab Bar Drilling:

❏2461.102 Bathing Pool Right Hand Drain Outlet

❏2460.102 Bathing Pool Left Hand Drain Outlet

Nominal Dimensions: 1524 x 813 x 451mm

(60" x 32" x 17-3/4")

Bathing Well Dimensions: 1372 x 660 x 432mm

(54" x 26" x 17")

Americast®brand engineered material is a

composition of porcelain bonded to enameling

grade metal, bonded to a patented structural

composite.

To Be Specified - Required:

❏Color:

❏Bath Faucet: (specify finish)

❏Bath Drain: 1583.470 (specify finish)

To Be Specified - Optional:

❏Safe-T-Heater*: 9075.120

❏Bath Caddie: 9533.100 (in Chrome only)

❏Jet Trim Ring Kit: 9860.200-two per kit (specify finish)

for Body Massage Jets only

For color/finish availability and other faucet choices,

please see the Product Selector and Pricing Guide.

* NOTE: the Safe-T-Heater is designed to maintain water

temperature during operation. It will not heat cold water to

desired bathing temperature.

BARRIER FREE

MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES

AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND

USEABLE BUILDING FACILITIES-CHECK LOCAL CODES.

Install with seat at head end.

CAMBRIDGE™ 5'

WHIRLPOOL AND BATHING POOL

AMERICAST®BRAND ENGINEERED MATERIAL

1-1/2 N.P.T. THREADS

1-1/2 O.D. TAILPIECE

441mm

(17-3/8)

70mm

(2-3/4)

117mm

(4-5/8)

ROUGH

FLOOR

102mm

(4)

451mm

(17-3/4)

24mm

(15/16)

406mm

(16)

OPTIONAL

TO FLOOR

USUALLY

BETWEEN

1651 & 1981mm

(65 & 78)

711mm

(28)

C/L OF CURTAIN ROD

USUALLY 1930mm(76) FROM

FINISHED FLOOR

C/L OF

VALVES

102mm

(4)

102mm

(4)

SPOUT-

1/2 N.P.T.

FINISHED

WALL

SHOWER ARM- 1/2 N.P.T.

32mm(1-1/4) DIA. HOLE

SEE

NOTE

■

76mm

(3)

813mm

(32)

1524mm

(60)

19mm

(3/4)

70mm

(2-3/4)

203mm

(8) FINISHED

WALL

102mm

(4)

102mm

(4)

C/L OF 1/2

SUPPLIES

AS REQ'D

C/L OF

DRAIN

229mm x 305mm

(9 x 12)

FLOOR

CUTOUT

PUMP

406mm

(16)

PROVIDE ACCESS TO PUMP FOR

SERVICING ON ALL INSTALLATIONS

ON / OFF

SWITCH

64mm

(2-1/2)

25mm

(1)

(2) 54mm(2-1/8)

DIA. HOLES

60mm 13mm

(2-3/8) (1/2)

SAFE-T-HEATER

REMOVABLE BLANK

C/L OF 1/2

SUPPLIES

AS REQ'D

(2) 54mm(2-1/8)

DIA. HOLES

60mm 13mm

(2-3/8) (1/2)

1-1/2 N.P.T. THREADS

1-1/2 O.D. TAILPIECE

441mm

(17-3/8)

70mm

(2-3/4)

117mm

(4-5/8)

ROUGH

FLOOR

102mm

(4)

451mm

(17-3/4)

24mm

(15/16)

406mm

(16)

OPTIONAL

TO FLOOR

USUALLY

BETWEEN

1651 & 1981mm

(65 & 78)

711mm

(28)

C/L OF CURTAIN ROD

USUALLY 1930mm(76) FROM

FINISHED FLOOR

C/L OF

VALVES

102mm

(4)

102mm

(4)

SPOUT-

1/2 N.P.T.

FINISHED

WALL

SHOWER ARM- 1/2 N.P.T.

32mm(1-1/4) DIA. HOLE

SEE

NOTE

■

76mm

(3)

813mm

(32)

1524mm

(60)

19mm

(3/4)

70mm

(2-3/4)

203mm

(8) FINISHED

WALL

102mm

(4)

102mm

(4)

C/L OF

DRAIN

229mm x 305mm

(9 x 12)

FLOOR

CUTOUT

406mm

(16)

64mm

(2-1/2)

25mm

(1)

Dimensions of fixtures are nominal and may vary within the

range of tolerances established by ANSI Standard A112.19.4

These measurements are subject to change or cancellation.

No responsibility is assumed for use of superseded or voided

leaflet.

IMPORTANT:

REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH

WHIRLPOOL

FOR ADDITIONAL INFORMATION.

SHOWN WITH 8620. SERIES AMARILIS BATH/SHOWER FITTING

AND POP-UP C.D. & O.

LEFT HAND OUTLET SHOWN, RIGHT HAND REVERSE DIMEN-

SIONS (2461).

CONCEALED PIPING NOT FURNISHED.

FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.

PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUP-

PORTS.

■

NOTES:

GENERAL SPECIFICATIONS FOR 2460/2461 WHIRLPOOL

WHIRLPOOL ELECTRICAL SPECIFICATIONS

SYSTEM I PUMP 1.6 HP, 9.7 AMPS,120V.

60 x 32 x 17-3/4 In. (1524 x 813 x 451mm)

190 Lbs. (86 Kg.)

607 Lbs. (273 Kg.)

50 Gal. (190 L)

39 Gal. (148 L)

41 x 20 In. (1041 x 508mm)

54 x 26 In. (1372 x 660mm)

14 In. (356mm)

46 Lbs./Sq.Ft. (220 Kgs./Sq.m)

13.9

30.9

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

GAL. TO OVERFLOW

WHIRLPOOL MIN. OPERATING VOL.

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)

PTS.

CUBE (FT3)

GENERAL SPECIFICATIONS FOR 2460/2461 BATHING POOL

60 x 32 x 17-3/4 In. (1524 x 813 x 451mm)

161 Lbs. (72 Kg.)

578 Lbs. (260 Kg.)

50 Gal. (190 L)

41 x 20 In. (1041 x 508mm)

54 x 26 In. (1372 x 660mm)

14 In. (356mm)

43 Lbs./Sq.Ft. (208 Kgs./Sq.m)

13.9

30.9

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

GAL. TO OVERFLOW

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)

PTS.

CUBE (FT3)

Compliance Certifications -

Meets or Exceeds the Following Specifications:

• Underwriters Laboratories - Hydromassage

Bathtubs UL 1795

• ASME A112.19.7M for Whirlpool Appliances

• ASME A112.19.4M for Americast Fixtures

• ASTM F-462 for Slip-resistant Bathing Facilities

• ASTM E162 for Flammability

• NFPA 258 for Smoke Density
