Installation and Operation Manual

Part # H004663

Rev. 2

July 2013

Wireless Remote Transmitter

Wireless Remote Transmitter Installation Manual

The SiteSync IQ Remote Transmitter is furnished with a wireless transmitter. In the USA, these Radio Frequency (RF) transmitters operate

in the licensed UHF business band at 450 to 470 MHz. The SiteSync IQ Remote Transmitter needs to be licensed. For USA customers,

American Time offers the use of a shared nationwide FCC license, call sign WQFW336. In the USA and its territories, this allows nationwide

wireless system operation on the following 5 frequencies up to 100 watts of power, except near the Canadian border*:

464.600 MHz 464.625 MHz 464.650 MHz 464.675 MHz 464.700 MHz

If you wish to use an existing license in the 450-470 MHz band, or obtain a xed license for your site, please contact American Time at 866-

748-3796.

*This shared nationwide license is limited to 5 watts power North of Line A and East of Line C, as dened by a treaty with Canada. Please

check the FCC label on the back of your remote transmitter to determine the 5W transmitter FCC ID.

FCC Conformity (USA only)

Safety Precautions

FCC Licensing

All electrical power and signal wiring connected to the SiteSync IQ Remote Transmitter, secondary clocks, signaling devices and antennas

must be installed by qualied persons in conformance with applicable national and local electrical codes. Improper installation of this

equipment can result in lethal electrical shock and re.

The SiteSync IQ Remote Transmitter should be installed in a secure location protected from:

• Physical damage

• Water, including condensation

• Direct sunlight

• Operation by untrained personnel

Injury From Radio Frequency Transmissions: Do not operate the SiteSync IQ Remote Transmitter when somebody is either touching the

transmitting antenna or standing within 2-3 ft. (60-90 cm) of it, to avoid the possibility of radio frequency burns or related physical injury. Do

not allow children to operate or play with or near the transmitting equipment.

Dynamite Blasting Caps: Operating the SiteSync IQ Remote Transmitter within 500 ft. (150 m) of dynamite blasting caps may cause them

to explode. Turn OFF these units when in an area where blasting is in progress.

FCC Warning: This equipment may generate or use radio frequency energy. Changes or modications to this equipment may cause harmful

interference unless the modications are expressly approved in the instruction manual. The user could lose the authority to operate this

equipment if an unauthorized change or modication is made.

The above warning list is not intended to include all hazards that may be encountered when using this equipment.

SiteSync IQ Equipment Transmitter FCC ID Industry Canada

Transmitter ID

Industry Canada

Receiver ID

Remote Transmitter 5 & 10W AIERIT33-46009 1084A-RIT3346009 8306A-SSIQ

Remote Transmitter 25 & 40W ABZ99FT4048 109AB-99FT4048 8306A-SSIQ

Secondary Wall Clocks N/A N/A 8306A-SSIQ

FCC and Industry Canada Approvals

Changes or modications not expressly approved by American Time could void the user's authority to operate the equipment.

Responsible Party: American Time, 140 3rd St. S., PO Box 707, Dassel, MN 55325-0707 USA

TEL: 320-275-2101, declares that the product(s):

SiteSync IQ Remote Transmitter and Analog Clocks

Comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference

(2) This device must accept any interference received, including interference that may cause undesired operation

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Call the dealer or an experienced radio/TV technician for help

Wireless Remote Transmitter Installation Manual Table of Contents

Introduction

Remote Transmitter Features................................................................................................................................. 3

Optional Remote Transmitter Features ................................................................................................................... 4

Analog Clock Features...........................................................................................................................................4

Digital Clock Features............................................................................................................................................4

Installation Instructions for Remote Transmitter

Remote Transmitter and Antenna Installation ..................................................................................................... 5-8

System Setup................................................................................................................................................... 9-11

Remote Transmitter Connect Web Interface ....................................................................................................12-20

Installation Instructions for Clocks

Analog AA, AA with Battery Pack and AC Clocks..................................................................................................21

Digital Clocks .................................................................................................................................................22-24

Troubleshooting

Remote Transmitter ............................................................................................................................................. 25

Ethernet ..............................................................................................................................................................26

Remote Transmitter Connect ...............................................................................................................................27

Analog Clocks...................................................................................................................................................... 28

Digital Clocks ......................................................................................................................................................29

Appendix A: Ethernet Timekeeping - Known Good Internet Time Servers................................................................................. 31

Appendix B: Supported Time Zones.........................................................................................................................................32

Appendix C: Checking IQ Remote Transmitter Status Information ............................................................................................33

Appendix D: Port Diagram .......................................................................................................................................................34

Appendix E: Maintenance Guide..............................................................................................................................................35

Appendix F: Quiet Mode..........................................................................................................................................................36

Glossary........... ......................................................................................................................................................................37-38

Wireless Remote Transmitter Installation Manual

Glossary Appendix

Troubleshooting

Clock

Installation

Transmitter and

System Setup

Introduction

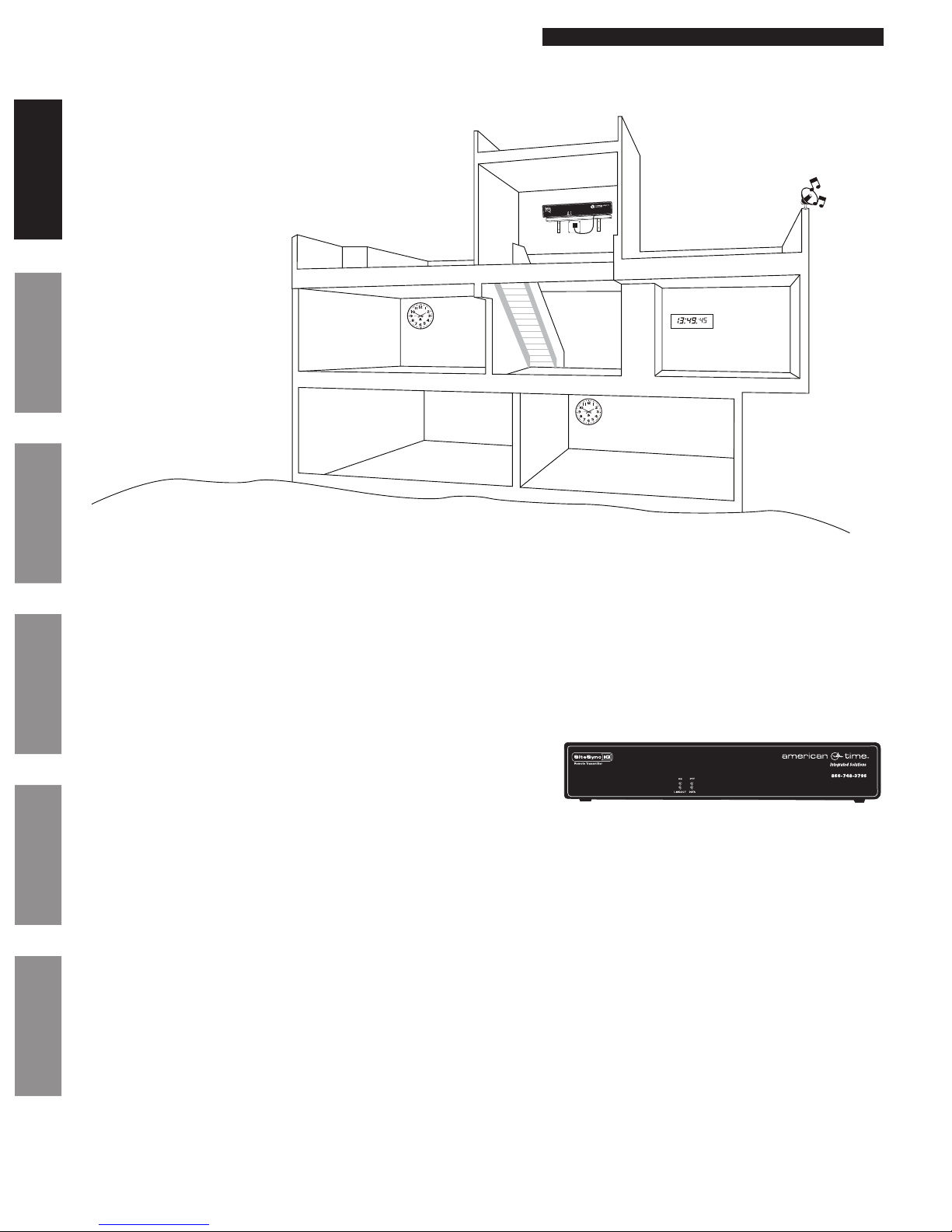

The American Time SiteSync IQ Remote Transmitter offers the latest and most innovative way to incorporate synchronized time

throughout your facility, providing you with improved productivity and punctuality.

SiteSync IQ Remote Transmitter Standard Features

The SiteSync IQ Remote Transmitter provides synchronized control of system clocks and electrical circuits such as those for

controlling signaling devices and lights. Standard features include:

• Internal clock accuracy of ±1 minute per year (without synchronization)

• Two level password security

• Automatic Daylight Saving Time and Leap Year correction

• Programmable Custom and Automatic Daylight Saving Time

• Support for time zone clocks (up to eight unique time zones)

• Support for 5, 10, 25 and 40 watt internal transmitters

SiteSync IQ Wireless Remote Transmitter Specications

Physical Dimensions:............2.8"h x 16.625"w x 13.08"d

Temperature Range: .............32˚-140˚F (0˚-60˚C)

Mounting: ............................. Desktop or rack mount

Communication:....................Ethernet

Shipping Weight:...................15.2 - 25.3lbs. (conguration

dependent)

Signal Circuits: .....................0 or 6 (optional)

RF frequency range: .............450-470 MHz

Channel Spacing:..................12.5kHz

Input Voltage: .......................100-240vac, 50/60 Hz

Peak Input Power:.................50W-SSQRTM-05; 65W-SSQRTM-10

120W-SSQRTM-25; 160W-SSQRTM-40

Nominal Power: ....................24W-SSQRTM-05; 26W-SSQRTM-10

39W-SSQRTM-25; 45W-SSQRTM-40

Fuse: (Input Power)...............5 amps, 250vac, Subminiature

Standby Timekeeping: ..........10 years

Memory/Time Backup: .........CR2032 lithium battery,

240 mAh capacity

Timekeeping Accuracy:.........±1 minute/year without correction

from Ethernet time reference

Program Retention:........................Unlimited

Programmable Events:..................9,999 events total

Schedules:......................................99 maximum

Signal Duration:....................Programmable 1-9 seconds or

continuous On

abcdefghijklmn

Wireless Remote Transmitter Installation Manual

GlossaryAppendix

Troubleshooting

Clock

Installation

Transmitter and

System Setup

Introduction

The American Time SiteSync IQ wireless clock series offers a selection of clocks to match a wide variety of application

requirements. Plastic case, steel case, analog and digital styles will provide years of maintenance-free service.

SiteSync IQ Wireless Analog Clock Features

• Wireless time synchronization

• Built-in ultra-sensitive UHF receiver for facility wide signal reception

• Plug and play installation with no manual adjustments

• Battery clocks use four or six AA lithium batteries (included)

• Electric clocks - 120vac and 24vac (operate up to one hour during power interruption)

• Plastic case clocks are high-impact resistant with a shatter-resistant polycarbonate crystal

• Metal case clocks are durable steel, with powder-coat nish and convex glass crystal

SiteSync IQ Wireless Digital Clock Features

• Super-bright red LED for high readability

• Non-glare lens

• Selectable 12 or 24-hour format (except American series digital clocks, which use the time format display of system controller)

• ±1 second accuracy to master

• Black anodized aluminum frame (except American series digital clocks use steel enclosures)

• Visibility: 1.8 inches=75 ft.; 2.5 inches=150 ft.; 4 inches=250 ft.

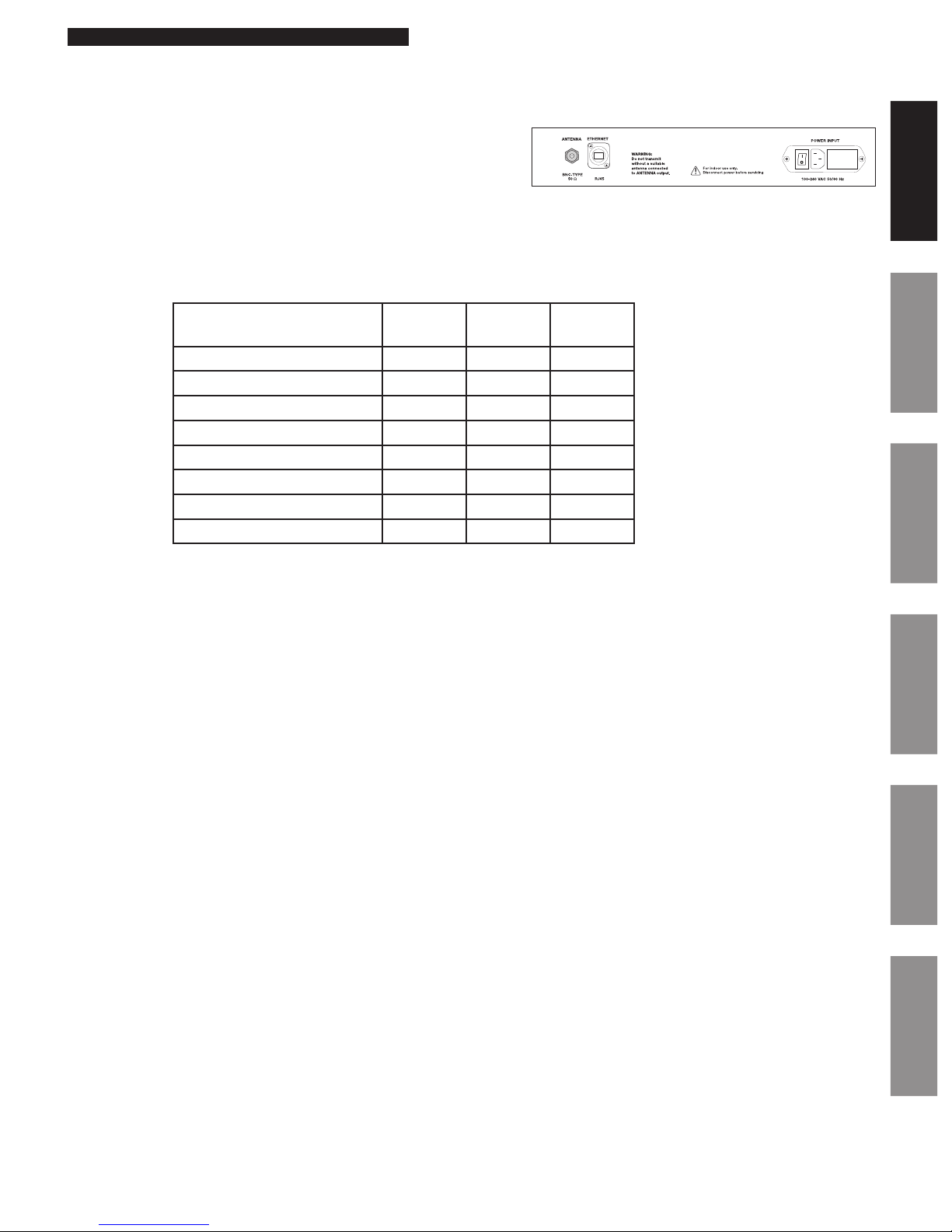

Model No. Ethernet 0 Signal

Circuits

6 Signal

Circuits

SSQRTM-05A0E X X

SSQRTM-10A0E X X

SSQRTM-25A0E X X

SSQRTM-40A0E X X

SSQRTM-05A6E X X

SSQRTM-10A6E X X

SSQRTM-25A6E X X

SSQRTM-40A6E X X

Examples: SSQRTM-05N0E has 0 signal circuits with a 5 watt transmitter and magnetic mount antenna

SSQRTM-40X6E has 6 signal circuits with a 40 watt transmitter and a campus antenna

SiteSync IQ Remote Transmitter Optional Features

• Automatic time synchronization with Ethernet

• Flexible control of 6 signal circuits, including manual operation

• Remote Transmitter Connect web interface mode for event and

circuit programming from a remote location

The following table shows the options included with each model number. The two digits following the dash in the model number

indicate the power of the transmitter (05=5 watt, 10=10 watt, 25=25 watt and 40=40 watt). The A in the model number

designates the transmitter antenna type. Note: Change to an X for campus antenna and and N for mag mount antenna.

Wireless Remote Transmitter Installation Manual

Glossary Appendix

Troubleshooting

Clock

Installation

Transmitter and

System Setup

Introduction

Back- UPS ES 550

SurgeProtection

PowerOn

ReplaceBattery

Battery Backup+

Surge Protection

Remote Transmitter

Installation

server rack

Shown with optional rack mount

kit, Part No. H004137

Remote Transmitter with Magnetic Mount Antenna

The Magnetic Mount antenna can be used with any of the models and is specied when ordering.

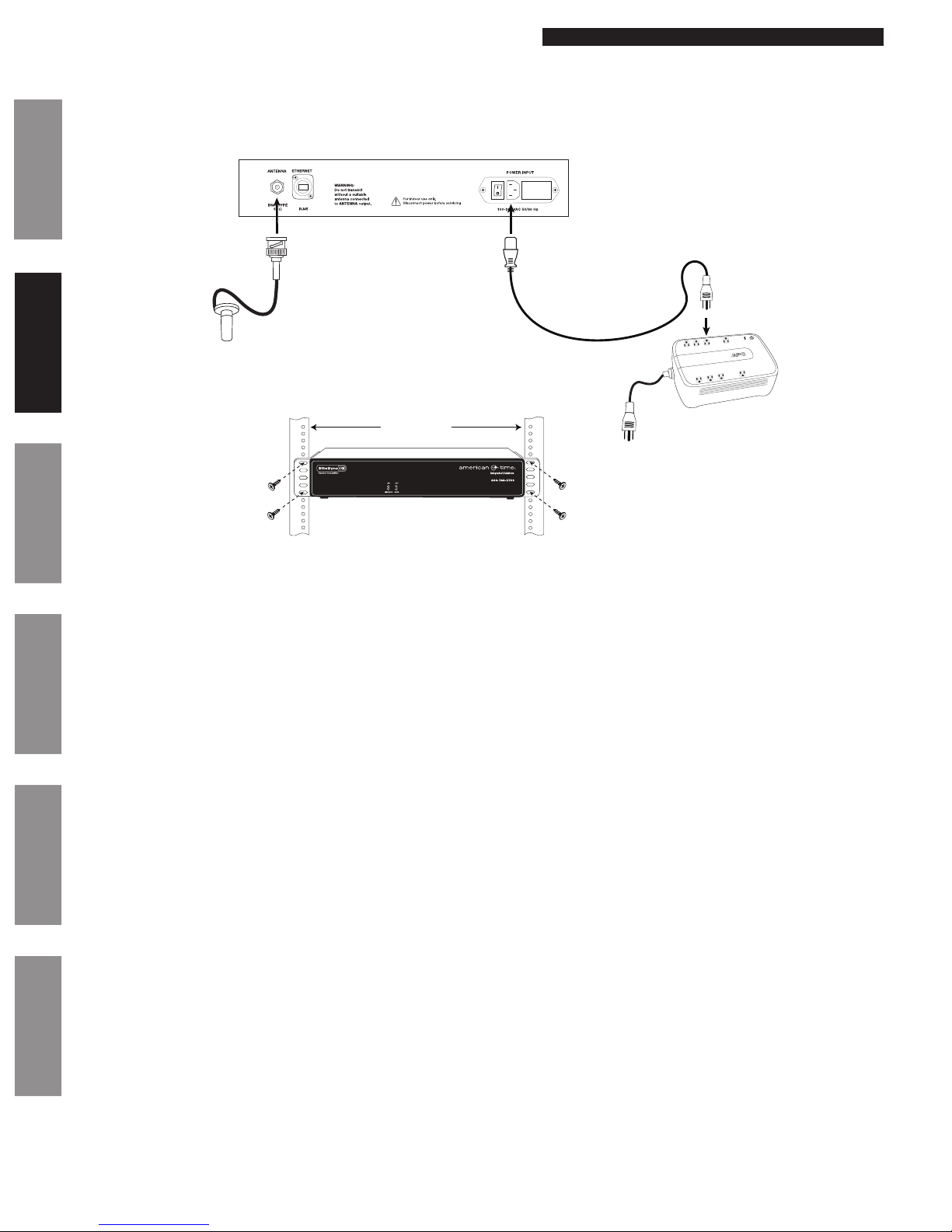

1. Choose a suitable location for the Remote Transmitter, following the safety precautions on Page 1:

a. Place the Remote Transmitter indoors.

b. Locate within 10 ft. of planned location for antenna.

c. Locate near an electrical outlet (120vac).

d. Rack or shelf mount.

e. Locate in an area with a network drop, or run a Ethernet data cable to the unit from a network switch or hub.

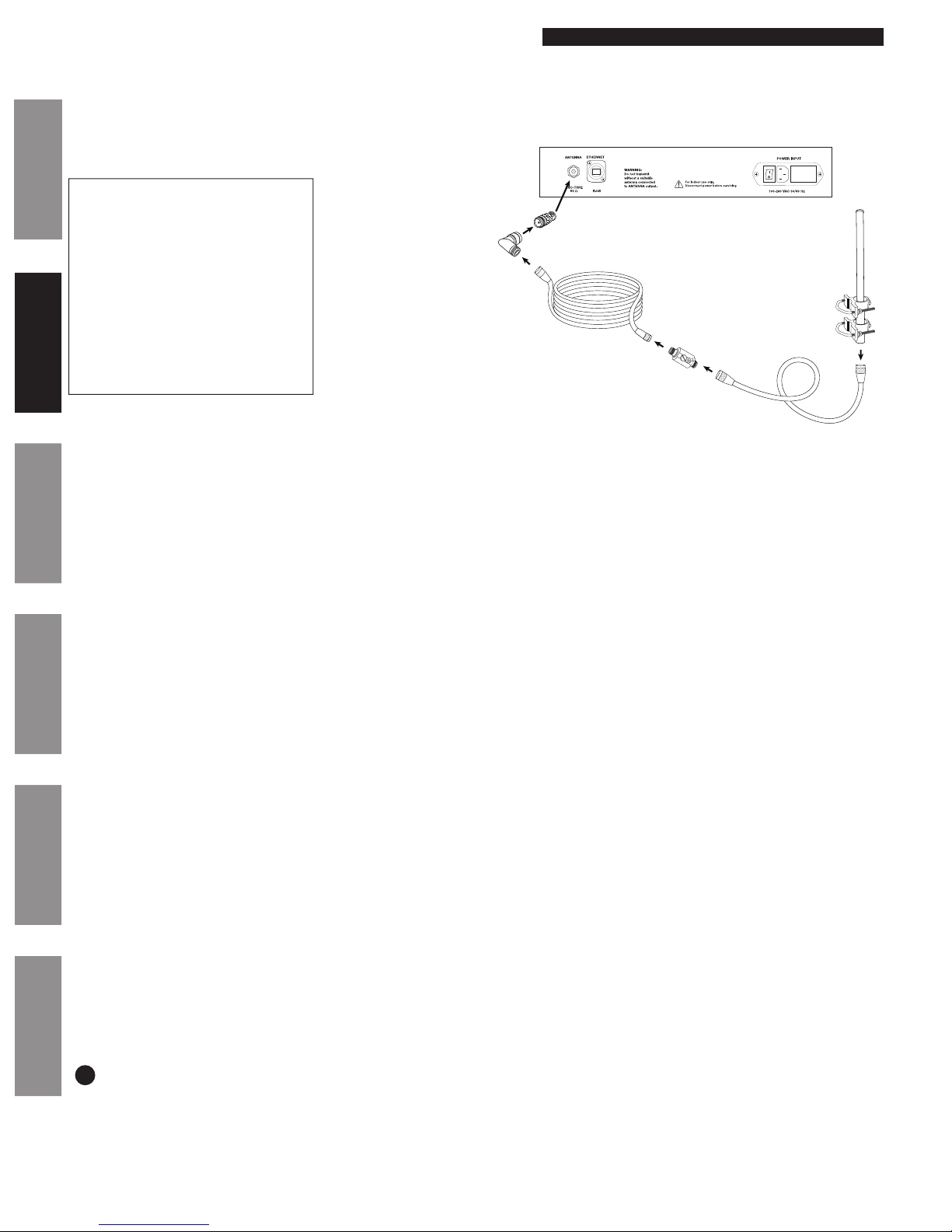

2. Install the magnetic mount antenna per the instructions on Page 6.

3. Connect the cables to the Remote Transmitter:

a. Connect the antenna cable to the Antenna port.

b. Connect the power cord to the Remote Transmitter.

c. Connect the power cord to 110v electrical supply (American Time recommends using surge protector/battery

backup Part # H002717A shown).

4. Turn on the power to the Remote Transmitter:

a. Place the rocker switch on the back of the unit to the ON position as shown above.

b. Conrm that the red ON LED on the front of the unit is lit.

Part #H002717A

Wireless Remote Transmitter Installation Manual

GlossaryAppendix

Troubleshooting

Clock

Installation

Transmitter and

System Setup

Introduction

Magnetic Mount Transmitting

Antenna Installation

Not recommended

installation.

Component Location & Mounting Guidelines

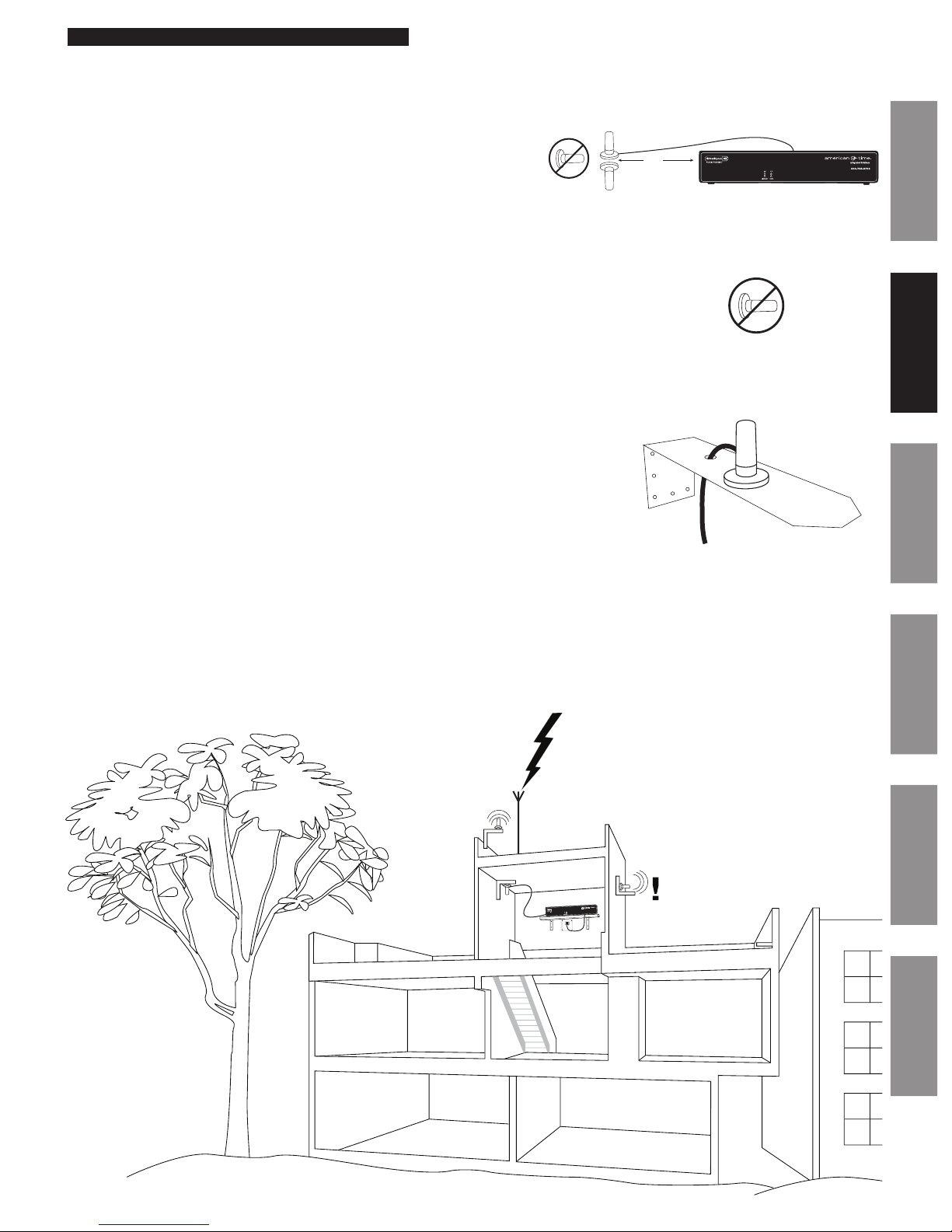

uChoose a suitable location for the SiteSync IQ magnetic mount antenna:

a. Locate the antenna at least 4 ft. away from the Remote Transmitter or

other electronic equipment to minimize the potential for interference

caused by the radio frequency energy emitted from the antenna.

b. Locate the antenna within approximately 10 ft. of the Remote Transmitter (

the antenna includes 12 ft. of cable and should not be extended).

c. Place the antenna indoors or outside at a central location on the highest

level of the facility (a rooftop penthouse usually works well, for

example).

d. When installed outdoors, the location should be lower than other

nearby building features or lightning rods to reduce the potential for

lightning strikes.

e. Place the antenna in an area that is easily accessible for maintenance

and inspection.

f. Avoid placing the antenna in an area where snow or ice may build up

and possibly damage the antenna or cable.

g. Avoid placing the antenna in an area where people will touch it or come

within 3 ft. of it during operation of the Remote Transmitter.

h. Avoid placing the antenna in an area surrounded by large metal objects

that could block the radio signal and reduce signal coverage.

vMount the magnetic mount antenna vertically up or down (never horizontally):

a. On a metal object such as the underside of a ceiling beam or air duct.

Be sure to test the pull strength of the magnetic base to make sure it is

safely mounted.

b. On top of a mounting bracket, installed on the side of the building or

other structure. You can use American Time Part #H001233

(shown at right).

4 ft

minimum

4 ft

minimum

Note: Install a lightning

rod higher than antenna.

Shown mounted on bracket

Part #H001233

Wireless Remote Transmitter Installation Manual

Glossary Appendix

Troubleshooting

Clock

Installation

Transmitter and

System Setup

Introduction

Component Location & Mounting Guidelines

Campus Transmitting

Antenna Installation

The Campus Antenna kit is recommended for outdoor antenna installations and improved signal coverage. It can be used with any of the

models and is specied when ordering.

The Campus Kit includes:

A. Heavy-duty, outdoor type 26 inch

berglass antenna

B. 10 ft. COAX cable

C. Lightning arrestor

D. 50 ft. COAX cable

E. N female to N male right angle

adapter

F. N female to BNC male adapter

(only for direct connection to IQ

Remote Transmitter)

G. Mounting kit

American Time recommends installing the Campus Antenna on a mast at an elevated location outdoors.

nWARNING: The SiteSync IQ Remote Transmitter should remain powered off until installation of the Campus Antenna is complete.

u

Select a suitable location for the SiteSync IQ Remote Transmitter and the Campus Antenna.

a. Locate the antenna at least 4 ft. away from the Remote Transmitter and other electronic equipment to minimize the potential for

interference caused by the radio frequency energy emitted from the antenna.

b. Place the antenna indoors or outside at a central location on the highest level of the facility (a rooftop penthouse usually works well,

for example).

c. Place the antenna in an area that is easily accessible for maintenance and inspection.

d. Avoid placing the antenna in an area where people will touch it or come within 3 ft. of it during operation of the Remote

Transmitter.

e. Avoid placing the antenna in an area surrounded by large metal objects that could block the radio signal and reduce signal coverage.

f. When installed outdoors, the location of the antenna should be lower than other nearby building features or lightning rods to reduce

the potential for lightning strikes.

g. Identify a location in the proximity of a suitable means for grounding the lightning arrester.

nNote: Cable lengths should be considered when selecting locations for both the Remote Transmitter and Campus Antenna.

v

Install the Campus Antenna mast (not included) vertically. Mast should be circular and approximately 2 inches in diameter, and should be

made of a non-rusting or rust-resistant rigid material.

w

Attach Campus Antenna (A) to 10 ft. cable (B) at mast end.

x

Attach mounting kit (G) to mast at Campus Antenna location.

y

Insert Campus Antenna into mounting kit and fasten set screws.

z

Route the 10 ft. cable (B) from mast to location of Remote Transmitter. Secure cable with cable ties or other suitable method.

nNote: Do not bend cable beyond original packaged coil bend.



Connect lightning arrestor (C) to the 10 ft. cable (B) and to the ground rod (not included).



Connect the 50 ft. cable (D) to the lightning arrestor (C). If the lightning arrestor is outdoors, seal it and the attached COAX connectors to

prevent moisture from entering.



Connect the N female to N male right angle adapter (E) to the 50 ft. cable (D).



A. When connecting the Campus Antenna to the Remote Transmitter, use the BNC male connector (F). Connect the N female to N male

right angle adapter (E) to the N female to BNC male adapter (F), and connect this adapter to the Remote Transmitter.

Ground the lightning arrestor (C) per the National Electrical Code and any applicable local codes. Seal the COAX connections around the

arrestor to prevent moisture from entering. nNote: This lightning arrester is not designed to withstand a direct lightning strike. However,

it can survive lightning strikes in the general area. See Troubleshooting section for information if you suspect the system has been struck

by lightning.

Wireless Remote Transmitter Installation Manual

GlossaryAppendix

Troubleshooting

Clock

Installation

Transmitter and

System Setup

Introduction

Ethernet Conguration

Connecting Ethernet and Conguring Network Time Synchronization

nNote: This option automatically syncs once per hour at

a time preset at the factory.

Ethernet requires:

1. TCP/IP Network with Internet access or

connection to a Network Time Server.

2. Cat 5 or above patch cable (not included).

3. Host Name:

*Record last six digits of S/N. S/N is located on

bottom of Remote Transmitter. The Host Name is

used to identify the Remote Transmitter on the

network.

4. Optional Static IP

Address from

Network Administrator:

5. Optional Gateway IP

Address:

6. Optional Subnet Mask:

nNote: The default ethernet setting has DHCP enabled

to automatically obtain an IP address from a DHCP server.

If no DHCP address is received, the device will default to

192.168.10.10.

7. Firewall Port 123 for SNTP or 13 for Daytime

Protocol open:

8. SNTP Server Address:

Alternate SNTP Server Address:

See Appendix A for a list of Internet Time Server addresses

(or use the address of a server on your local network)

9. Continue to system setup section.

nImportant Note: Time Servers provide time sync for UTC

Time, but do not set Time Zone or DST settings.

This is the required setup to provide time synchronization via Simple Network Time Protocol (SNTP) or Daytime Protocol from Internet Time

Servers or an internal Network Time Server.

Timeserver on the Internet

supporting SNTP

or Daytime Protocol

Public

Internet

Computers on the Local Area Network

Remote Transmitter

Firewall with Port

123 or 13 open

Gateway

Outside the

facility

Inside the facility

Local Area

Network Server

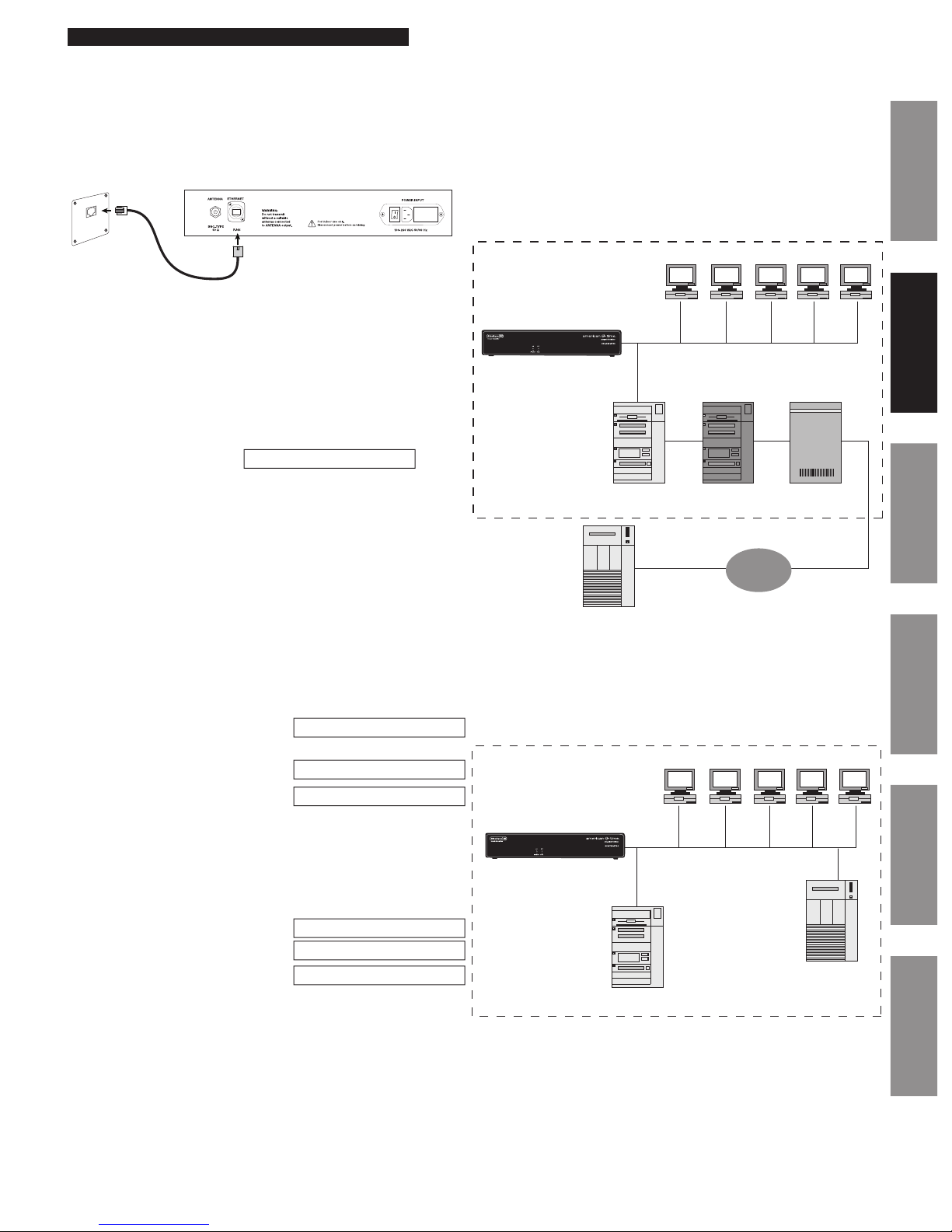

Configuration 1: Receive Time Sync via the Internet

(SNTP or Daytime Protocol)

Computers on the Local Area Network

Timeserver on the

LAN supporting

SNTP Protocol

Local Area

Network Server

Outside the facility

Inside the facility

Configuration 2: Receive Time Sync via the Internal

Network (SNTP)

sqrt*

Product Label Example

Wireless Remote Transmitter Installation Manual

Glossary Appendix

Troubleshooting

Clock

Installation

Transmitter and

System Setup

Introduction

System Setup

All conguration and control of the Remote Transmitter is performed through the Remote Transmitter Connect Web interface utility via a

web browser. This includes Event and Circuit programming, manual circuit activation, time/date settings and other system congurations.

Note: Java SE Runtime Environment (JRE) 7 Update 7 will need to be installed to run the Events Applet.

–This should be downloaded at http://www.java.com/en/

–Ensure that you have the most current web browser (ie. Firefox, Internet Explorer, Chrome)

To access Remote Transmitter Connect:

1. Ensure that the SiteSync IQ Remote Transmitter installation has been performed (pages 5-8). The default Ethernet setting

has DHCP enabled to automatically obtain an IP address from a DHCP server.

2. Open a web browser. Enter the Host Name from page 8 as http://sqrtxxxxxx/ in the web browser’s Address eld (Figure 1).

Press the Enter key.

Figure 1

nNote: If the Remote Transmitter is on a network without a DHCP server, the default address of the Remote Transmitter will be

192.168.10.10. In this situation, directly connect an Ethernet patch cable from the Remote Transmitter to a computer that is on

the same Subnet. Example: Set the connecting computer IP address to 192.168.10.11. See your Network Administrator if you do

not know how to do this.

3. A User Login window, (Figure 2) will appear. There are two available user names, uclock and sclock, which represent the user

and service access levels. The user security level allows access to everything but the Conguration Tab.

User Level Access:

Enter uclock in lowercase letters in the User Name eld and uclock in the Password eld. This is a user login which will allow

access to time/date and event menus.

Service Level Access:

Enter sclock in lowercase letters in the User Name eld and sclock in the Password eld. This is a service login which will

allow access to all menus.

**Passwords may be changed in the Conguration Tab.

Then, click the Login button.

Figure 2

4. The Remote Transmitter Connect utility will appear with the General tab selected. The tabs displayed may differ depending on

the conguration of the unit.

Figure 3

For more details on the features of Remote Transmitter Connect, click on the Support link in the upper right-hand corner of the utility

(Figure 3).

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali American Time Trasmettitore

American Time

American Time SiteSync IQ Manuale di istruzioni

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
