Ameriwood HOME 1822196COM Manuale utente

B341822196COM00GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

1822196COM

Fireplace TV stand

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Helpful Hints

Tube

You

ameriwoodhome.com

Quick

Tip

Assembly

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

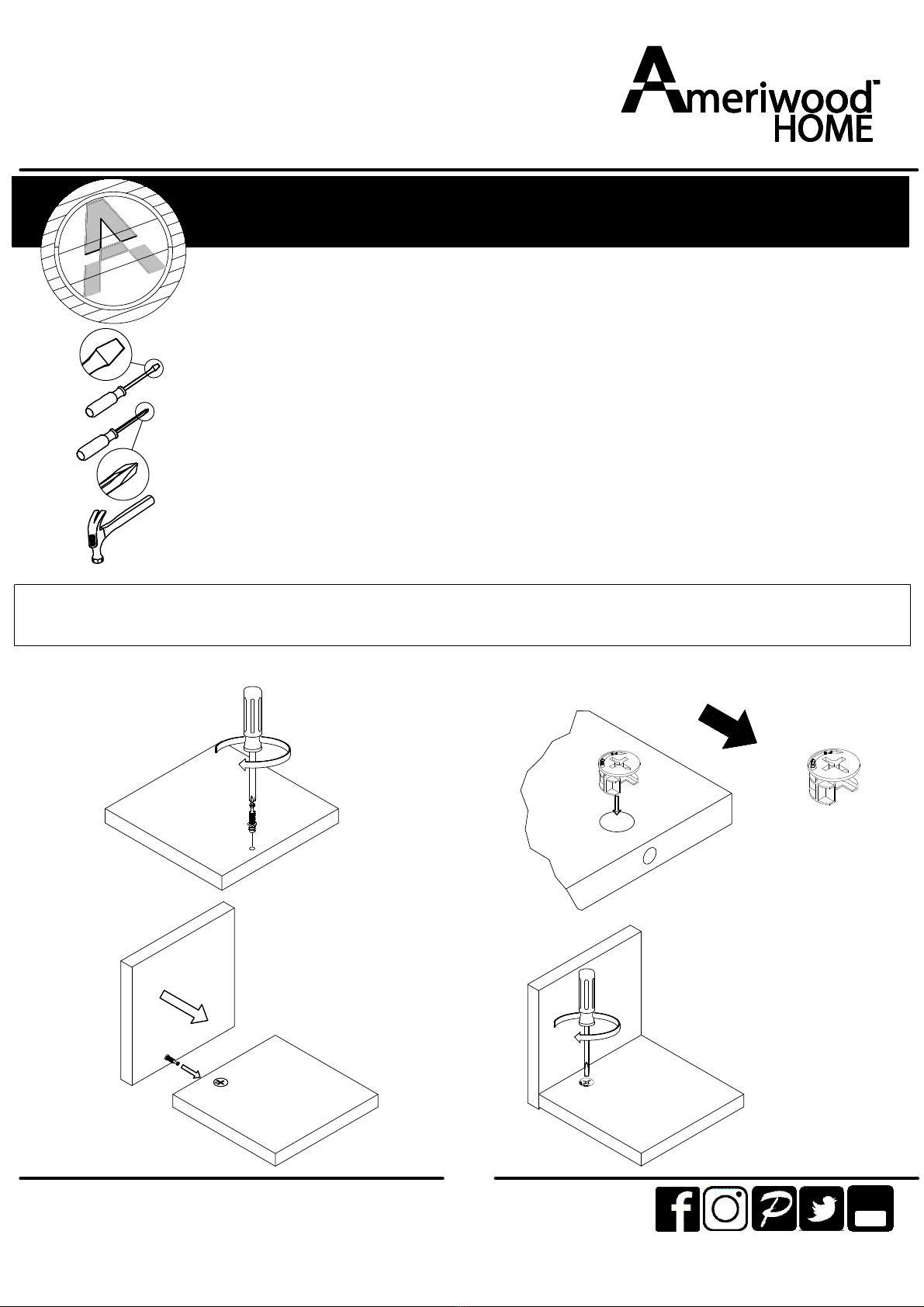

Before You Start

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

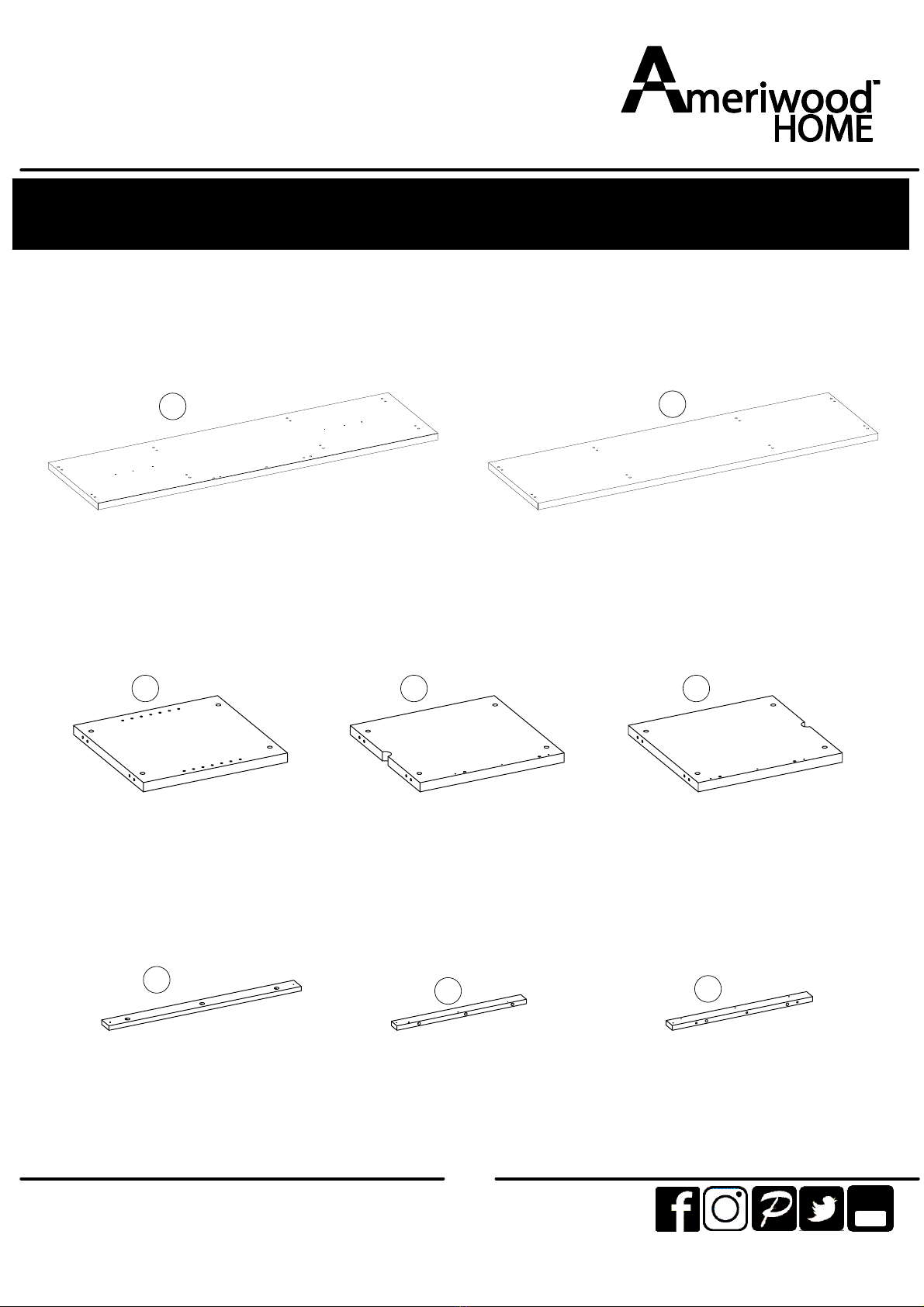

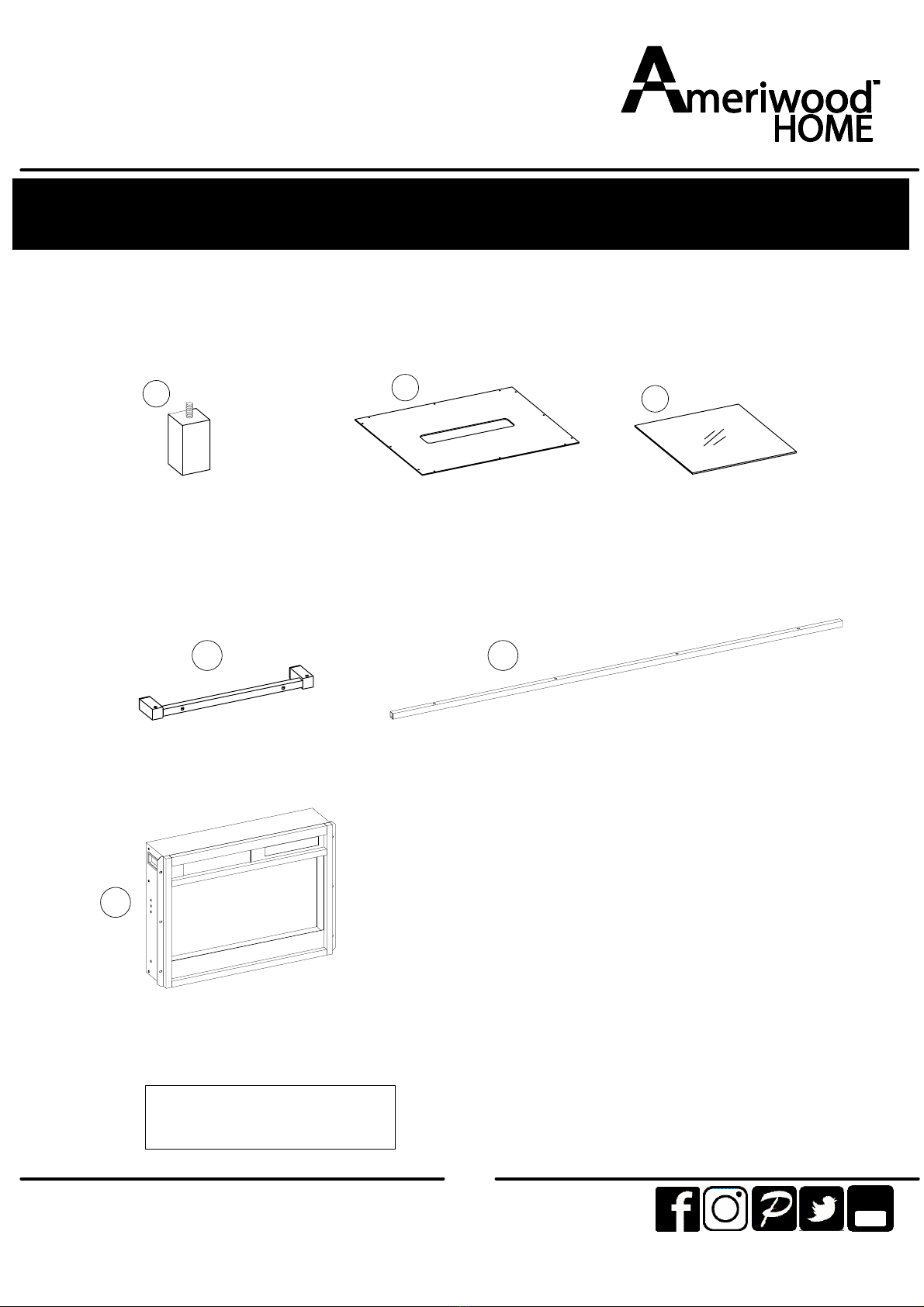

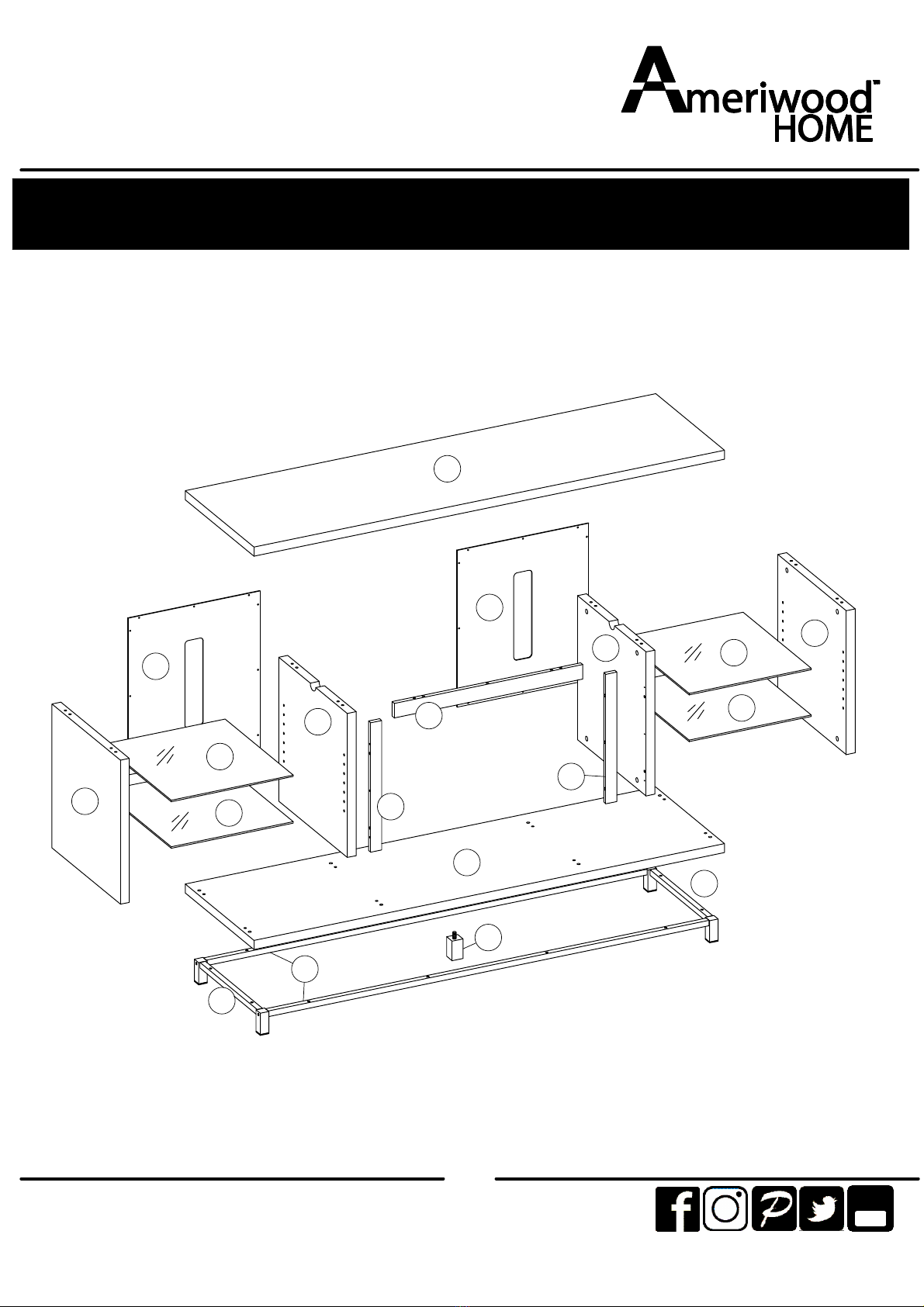

Board Identification

Not actual size

ameriwoodhome.com

TOP SHELF

T1822196010GO

QTY: 1 PC

BOTTOM PANEL

T1822196020GO

QTY: 1 PC

SIDE PANEL

T1822196030GO

QTY: 2 PCS

Tube

You

TOP SHELF APRON

T1822196060GO

QTY: 1 PC

D E

LEFT PARTITION

T1822196040GO

QTY: 1 PC

RIGHT PARTITION

T1822196050GO

QTY: 1 PC

LEFT SIDE RAIL

T1822196070GO

QTY: 1 PC

RIGHT SIDE RAIL

T1822196080GO

QTY: 1 PC

Board Identification

Not actual size

ameriwoodhome.com

FOOT

T1822196090GO

QTY: 1 PC

Tube

You

METAL FOOT FRAME

T1822196120GO

QTY: 2PCS

BACK PANEL

T1822196100GO

QTY: 2PCS

GLASS SHELF

T1822196110GO

QTY: 4PCS

JKL

SUPPORT TUBE

T1822196130GO

QTY: 2PCS

FIREPLACE

FA23V60L-C8

QTY: 1PC

Remote control FA23V60L-C801

Acrylic crystal FA23V60L-C802

LED light bar (2) FA23V60L-C803

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

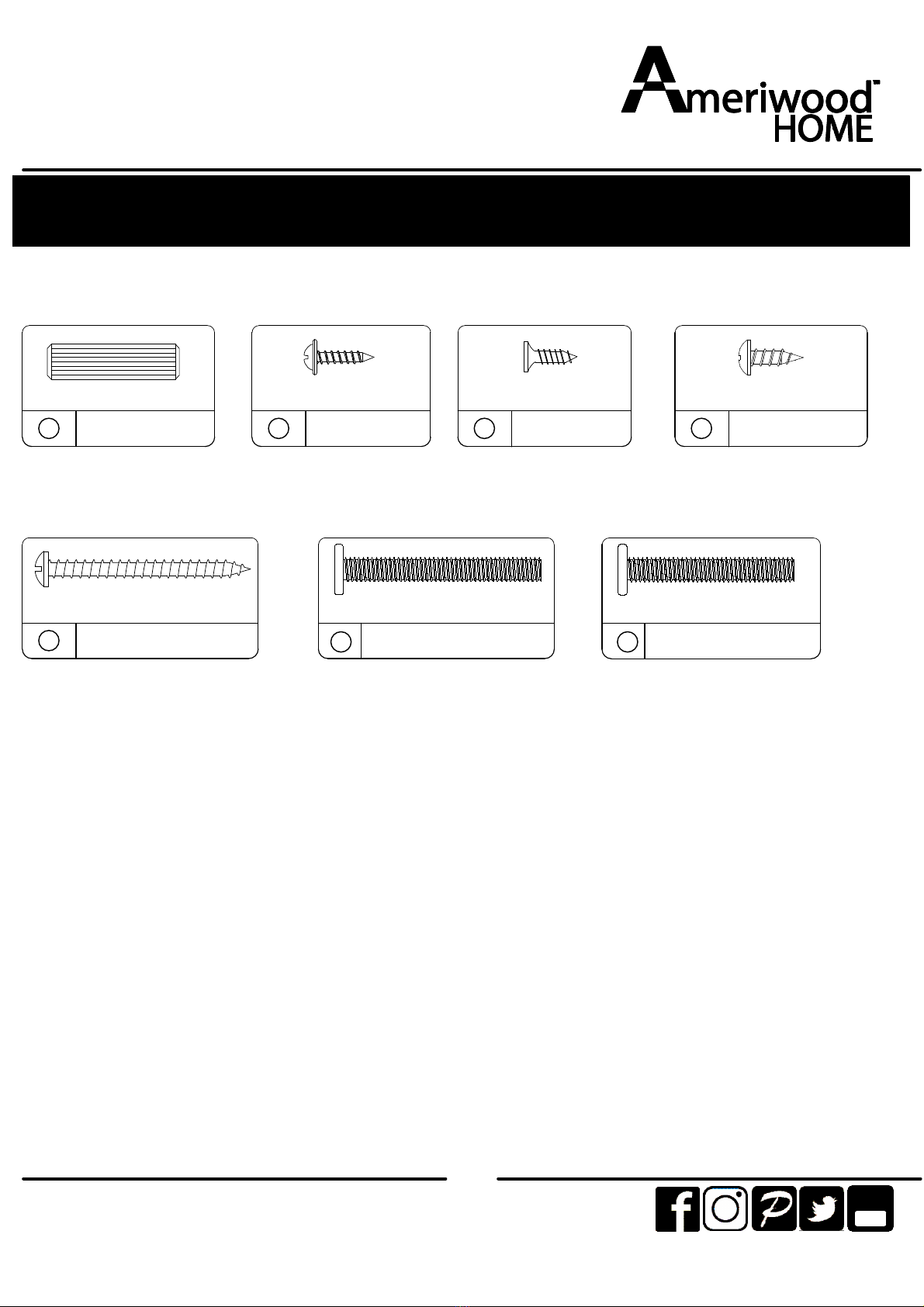

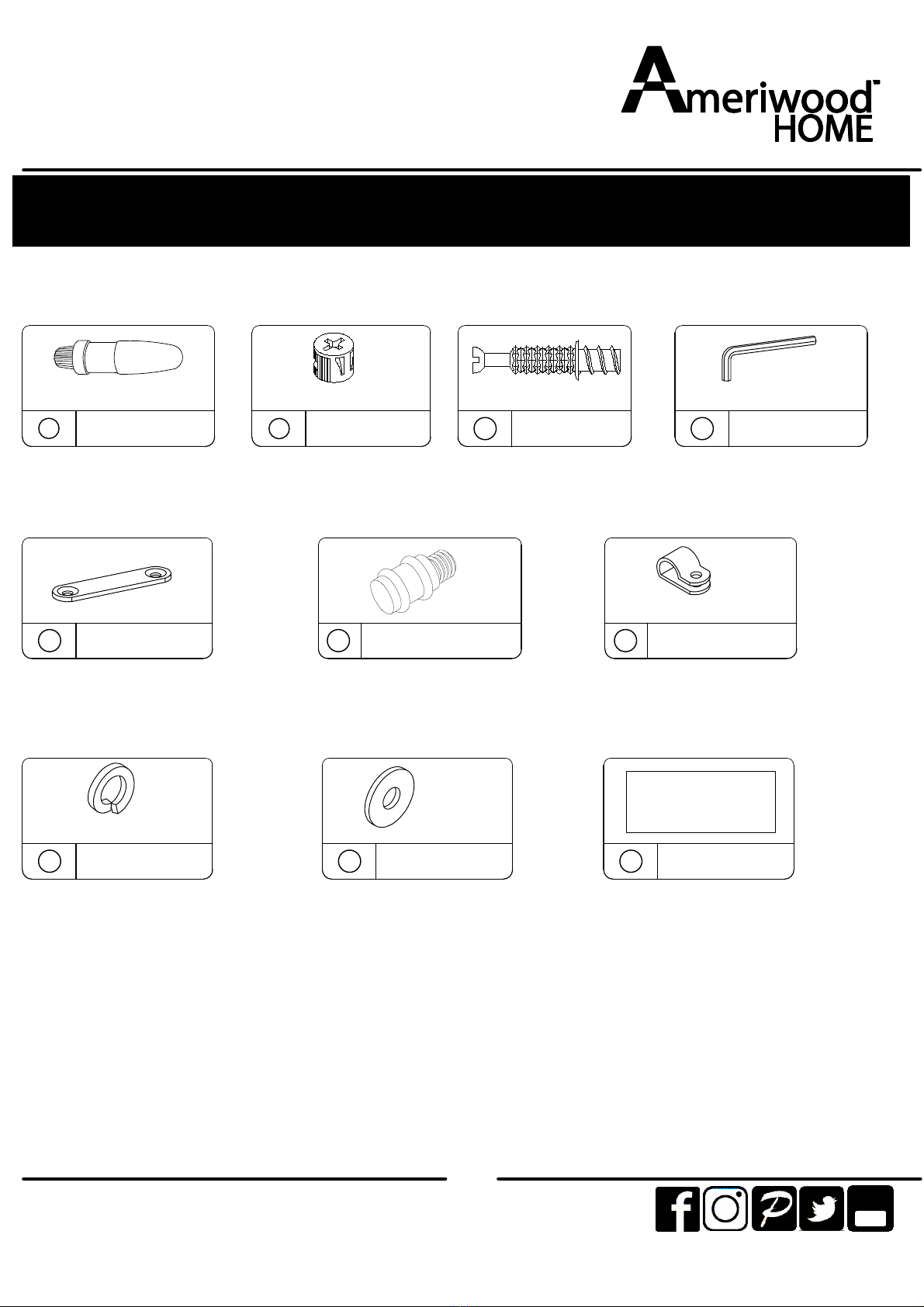

Part List

ameriwoodhome.com

Hardware Bag Reference number:

21822196COM0GO

Actual Size

×22 ×10

SCREW

TGO1007

Ø3.5 x 12mm

Ø8 x 30mm

Tube

You

×6

WOOD DOWEL

TGO2900

SCREW

TGO1013

×24

Ø3 x 12mm

SCREW

TGO1301

Ø4.2 x 45mm

×6

SCREW

TGO1323

Ø4 x 12mm

134

Ø1/4 x 45mm

BOLT

TGO1623W

6 x12

Ø1/4 x 38mm

BOLT

TGO1630W



Part List

ameriwoodhome.com

Hardware Bag Reference number:

21822196COM0GO

No Actual Size

×1 ×19

CAM BOLT

TGO2001

Ø6 x 25mm

Tube

You

×2

GLUE

TGO9001

METAL PLATE

TGO3525

×19

Ø15 x 12mm

CAM LOCK

TGO2101

×1

HEX KEY

TGO7001

M4 x 57mm

x16

SHELF SUPPORT

TGO2811

WIRE CLIP

TGO9093

9 10 11

12 13 14

×16

SPRING WASHER

TGO4606W

15 ×16

WASHER

TGO4604W

16 ×1

WARNING LABEL

TGO1822

WARNING

ADVERTENCIA

AVERTISSEMENT

11*Ø6.5 16*Ø6.5

ameriwoodhome.com

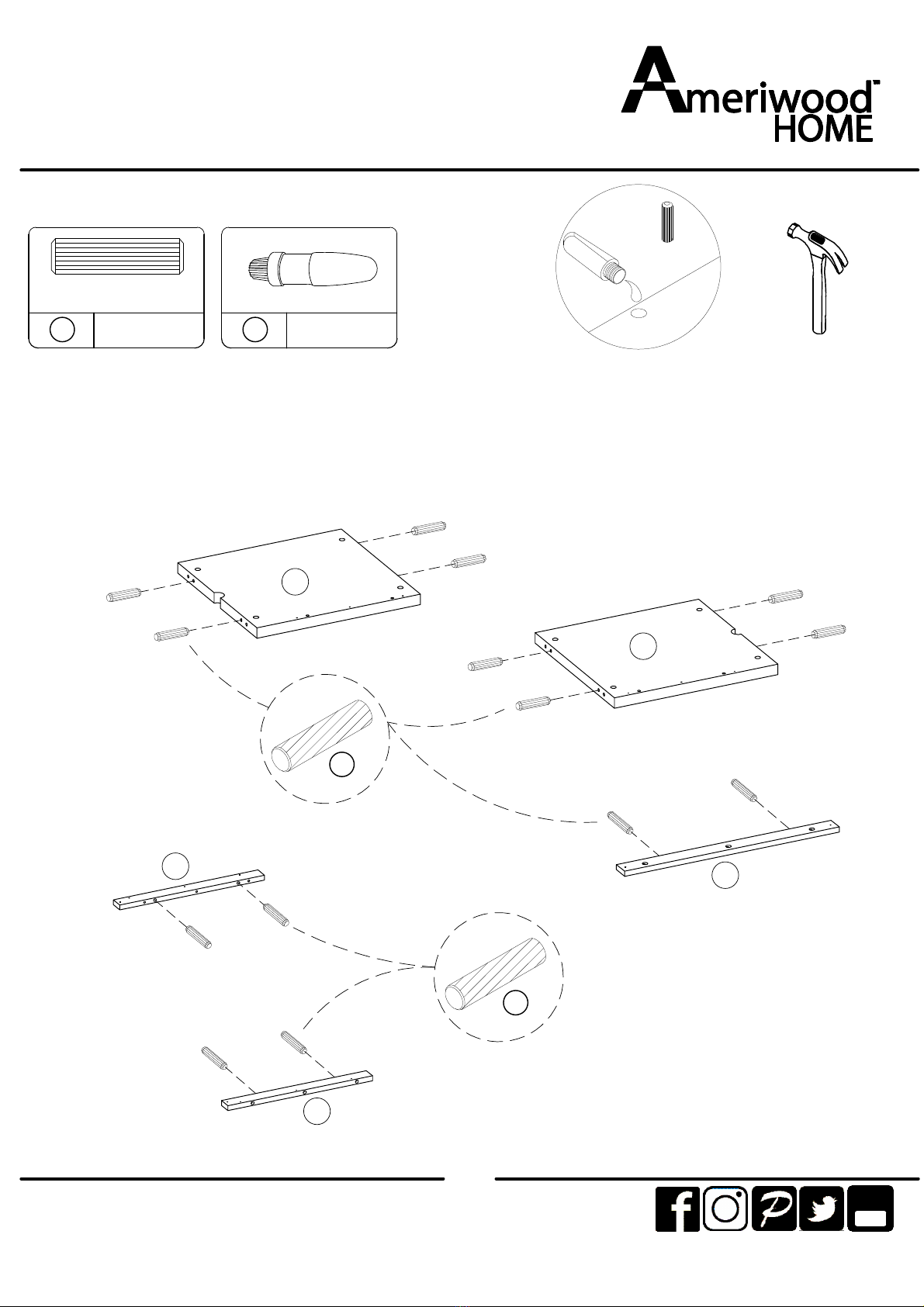

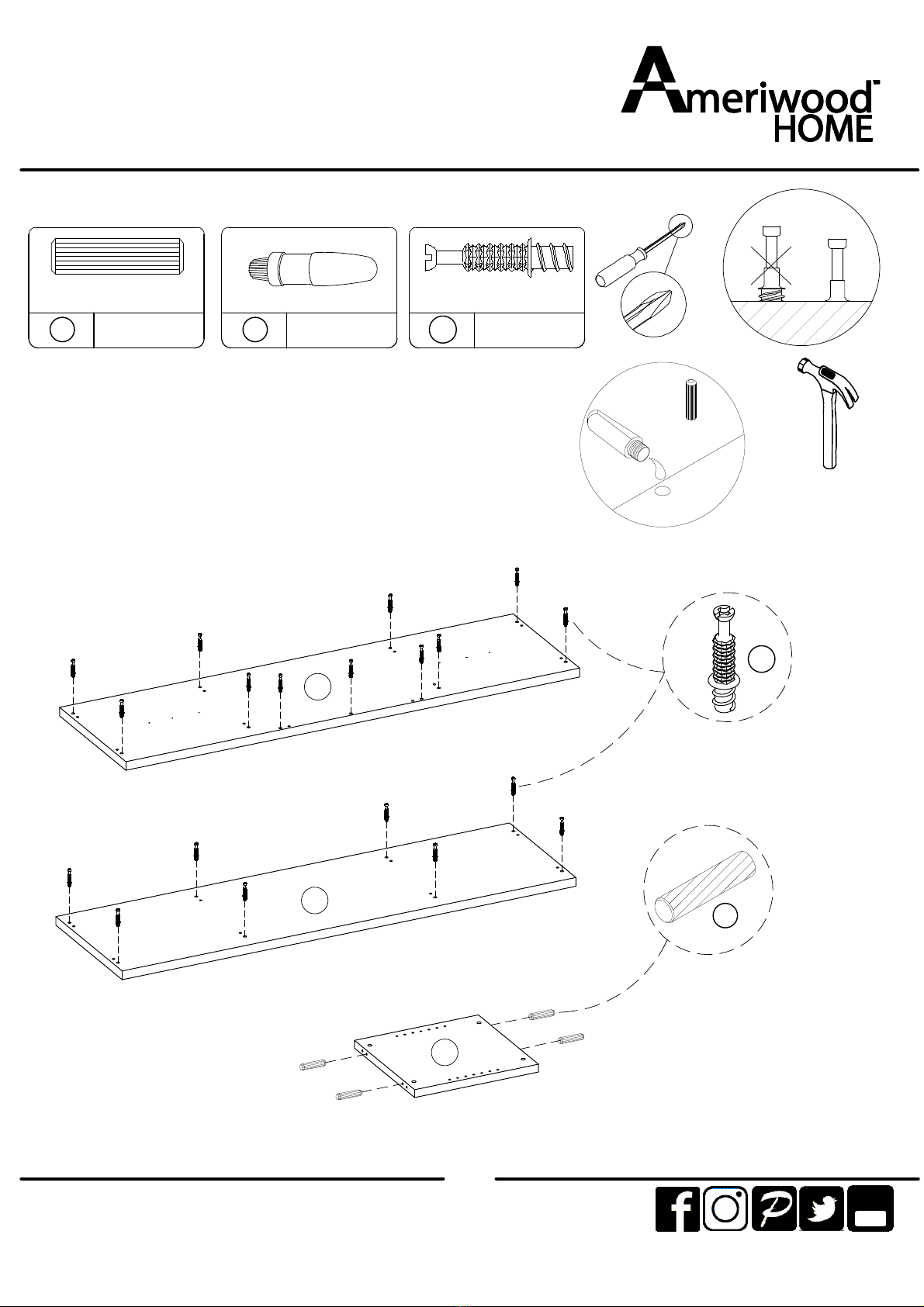

STEP

1.1 Cam bolt (10) into (A), (B) as illustrated.

1.2 Insert (1) into (C) x 2 as illustrated.

×8

Tube

You

Ø8 x 30mm

8 ×19

Ø6 x 25mm

x 2

Wooden Dowel

Hole for wooden dowel

Use one drop of glue in dowel hole.

Glue

ameriwoodhome.com

STEP

2.1 Insert (1) into (D), (E), (H), (F) and (G) as illustrated.

Tube

You

×141

Ø8 x 30mm

Wooden Dowel

Hole for wooden dowel

Use one drop of glue in dowel hole.

Glue
