Ameriwood HOME 2940807COM Manuale utente

B342940000COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from tipping furniture.

WARNING: Manufacturer assumes no liability

for improper installation or excessive loads

placed on screws or bracket. This wall anchor

is not a substitute for proper adult supervision.

2940807COM WITH PINK BINS

2940810COM WITH BLUE BINS

2940811COM WITH GREEN BINS

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Parts are labeled on the surface or edge of the part

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Before You Start

Quick

Assembly

Tip

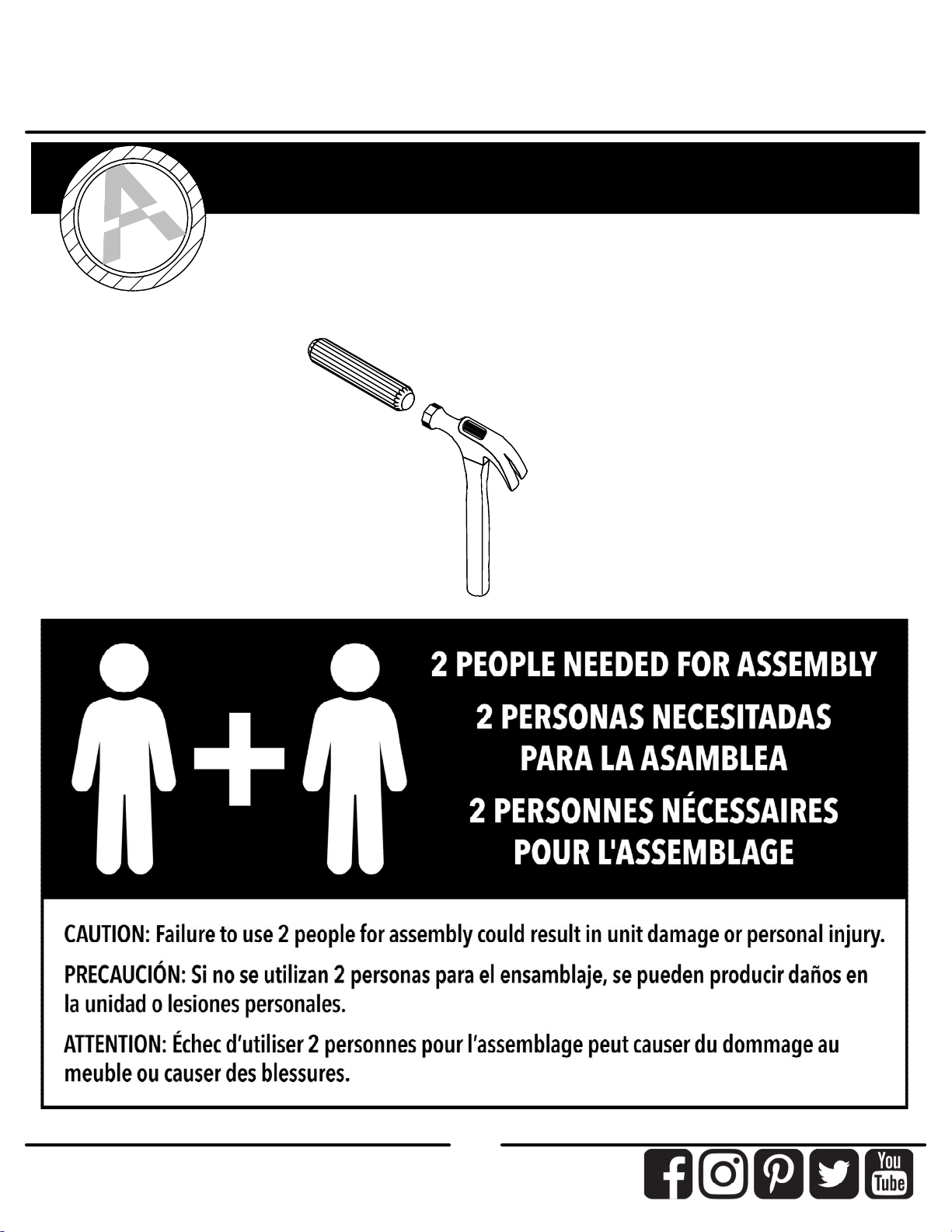

Please Note:

You may need to lightly tap the wood dowels into the holes during

your assembly process.

ameriwoodhome.com

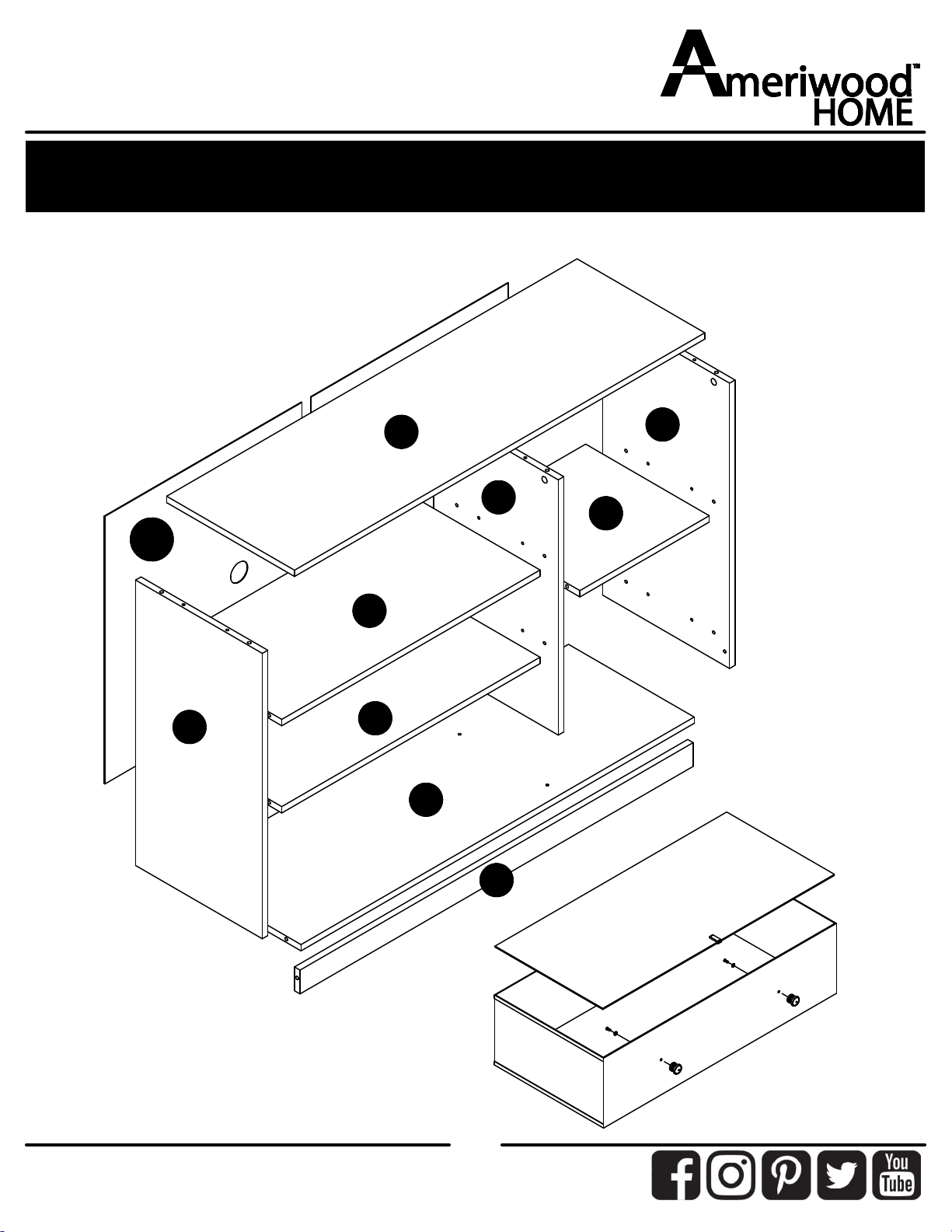

Board Identification

Not actual size

Left Panel

32940015010 Right Panel

32940015020 Partition

32940015030

Top

32940015040

Bottom

32940015050 (x2)

Left Shelf

32940015060

Right Shelf

32940015070

Kick

32940015080

This piece is paperboard

construction. It is not made

from wood, but is required

for the assembly of your

unit.

Back Panel

K294001500

BACK

PNL

ameriwoodhome.com

Board Identification

Not actual size

BACK

PNL

Fabric Bin

ameriwoodhome.com

Part List

Actual Size

(x24)

#A22610

cam bolt

(x24)

#A22620

cam lock

(x22)

#A21670

wood dowel

(x2)

#A53510

angle bracket

(x4)

#A12120

7/16" pan head

(x32)

#A21110

nail

(x1)

#A84050

safety bracket

(x6)

#A51712 (Pink)

#A51710 (Blue)

#A51711 (Green)

knob

(x3)

#A91660 (Pink)

#A91650 (Blue)

#A91640 (Green)

fabric bin

Note: You will only have 1 color of the fabric bin and knob

depending on the purchased model number.

Not Actual Size

(x32)

#A21110

nail

ameriwoodhome.com

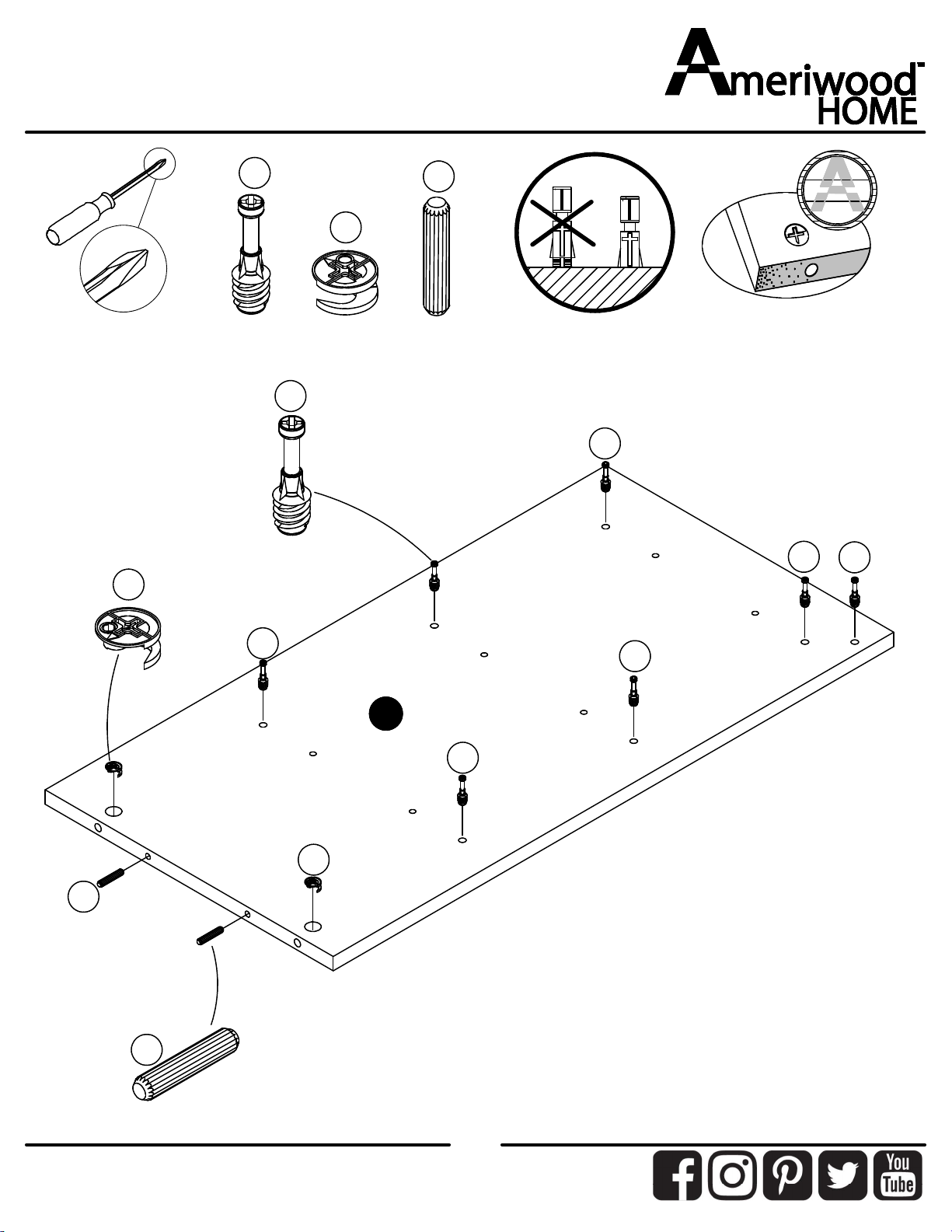

STEP1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x7) (x2) (x2)

ameriwoodhome.com

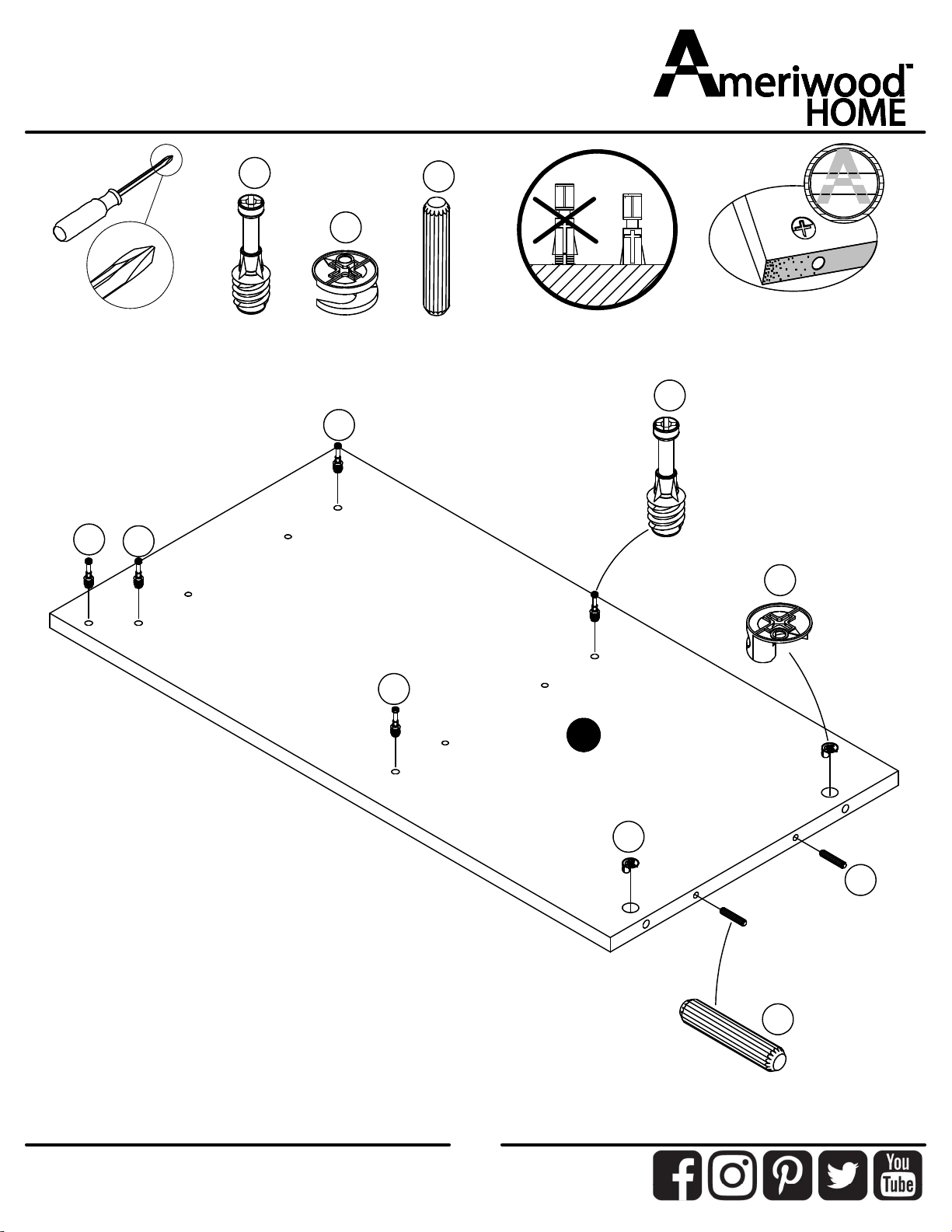

STEP2

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x5) (x2) (x2)

ameriwoodhome.com

STEP3

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x6) (x2) (x2)

"Left Surface" "Right Surface"
