Ameriwood HOME 3389903COM Manuale utente

3389903COM

Beverage Cabinet

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B343389903COM00SF

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Follow Ameriwood Home

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

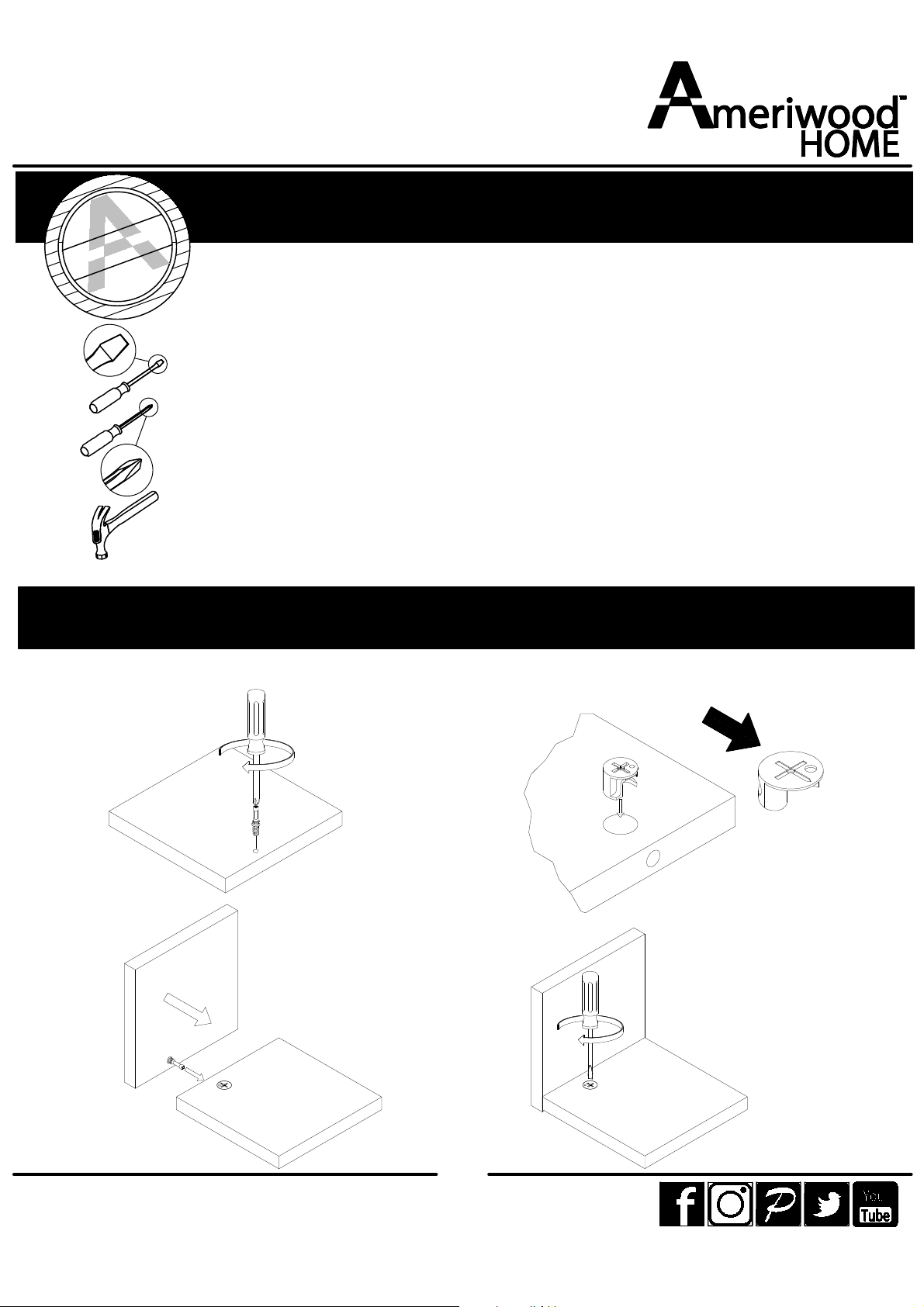

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

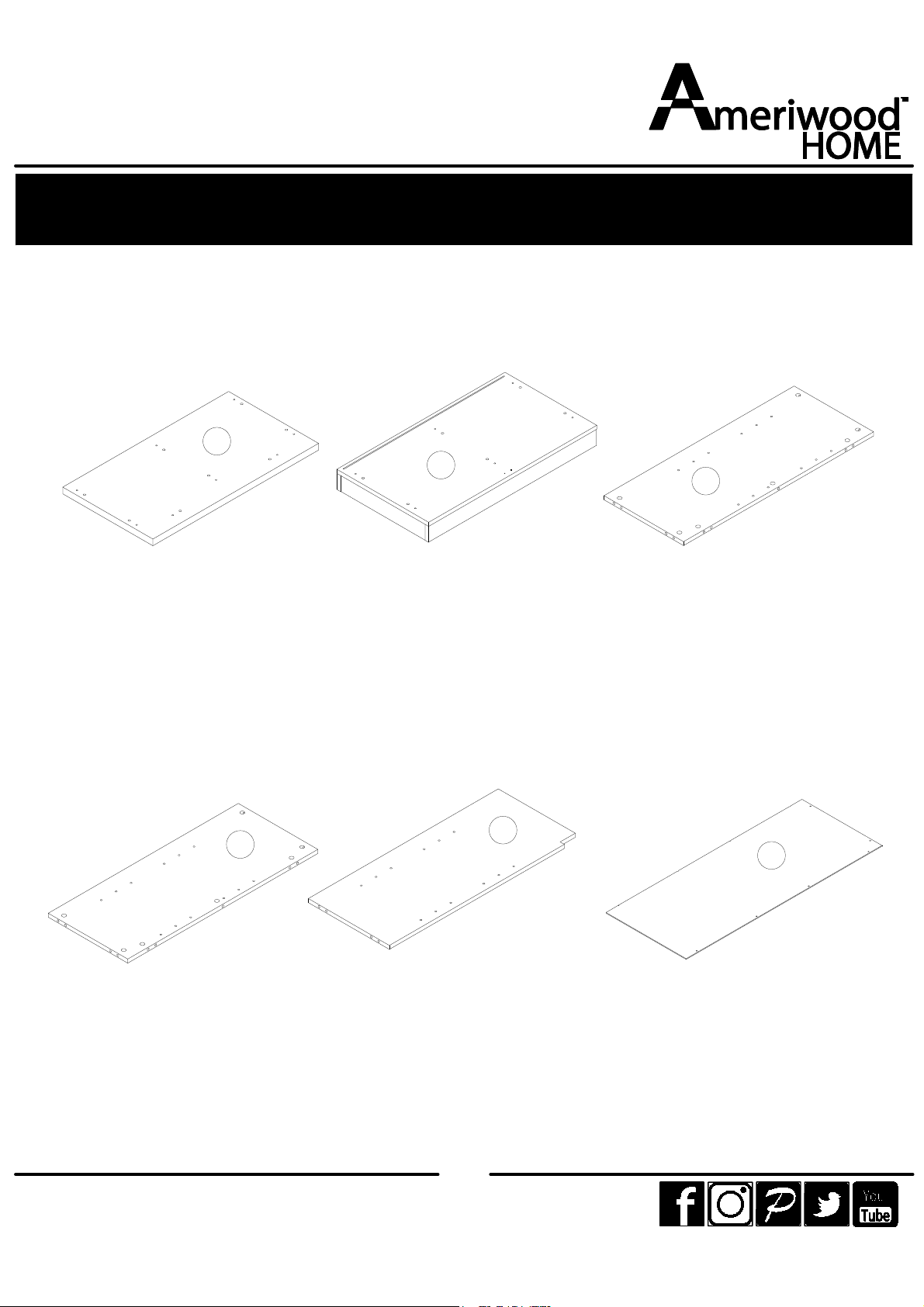

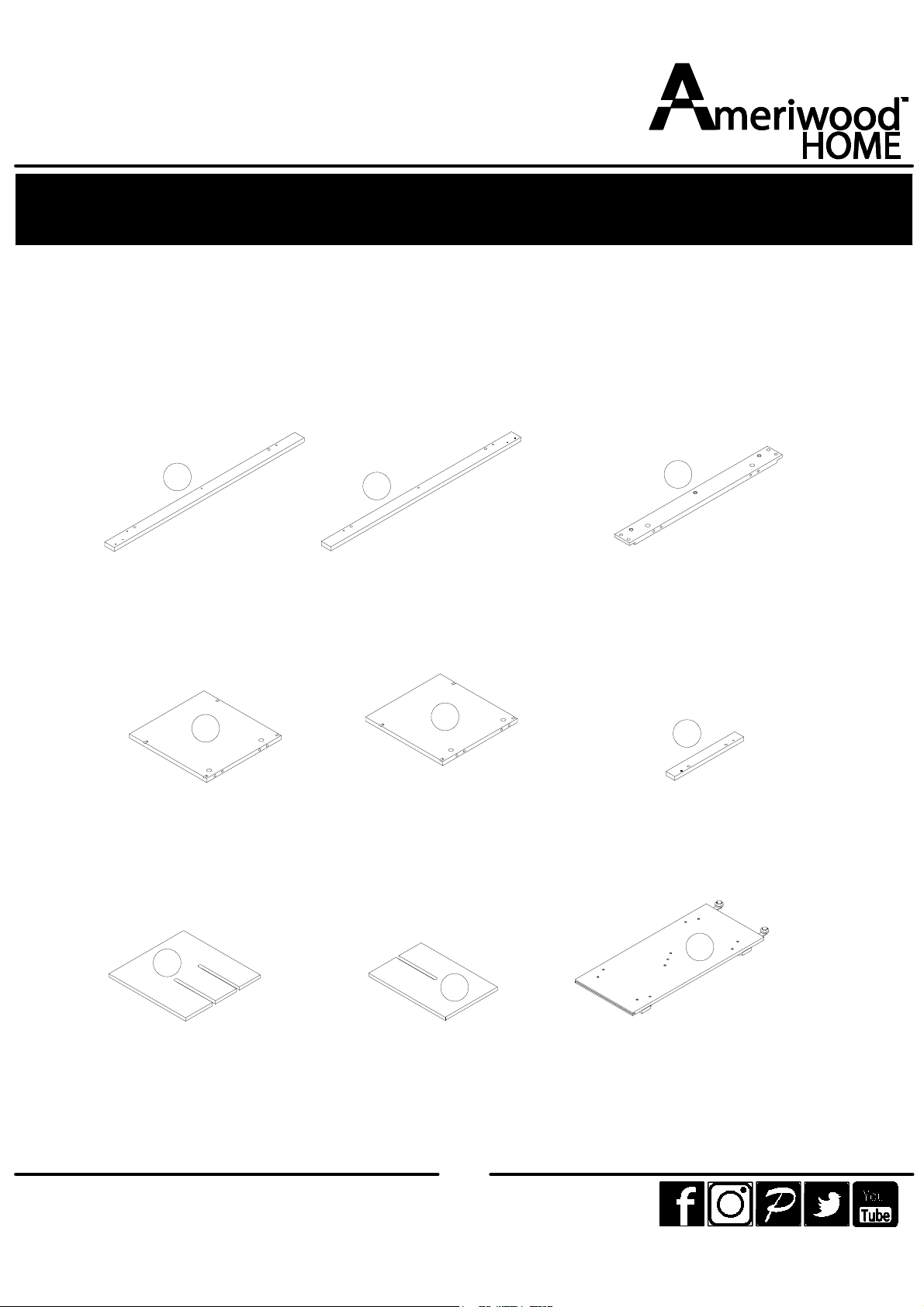

Board Identification

Not Actual Size

Top panel

T3389903010SF

Bottom frame

T3389903020SF

Left side panel

T3389903030SF

Right side panel

T3389903040SF

Partition

T3389903050SF

Back panel

T3389903060SF

QTY: 2 PCS

Board Identification

Not Actual Size

Left side panel rail

T3389903070SF

Right side panel rail

T3389903080SF

Door track

T3389903090SF

Right adjustable shelf

T3389903110SF

QTY: 2 PCS

Adjustable shelf rail

T3389903120SF

QTY: 4 PCS

Shelf

T3389903130SF

QTY: 2 PCS

Divider

T3389903140SF

QTY: 4 PCS

GHI

JKL

Sliding door

T3389903150SF

QTY: 1 PC

Left adjustable shelf

T3389903100SF

QTY: 2 PCS

ameriwoodhome.com

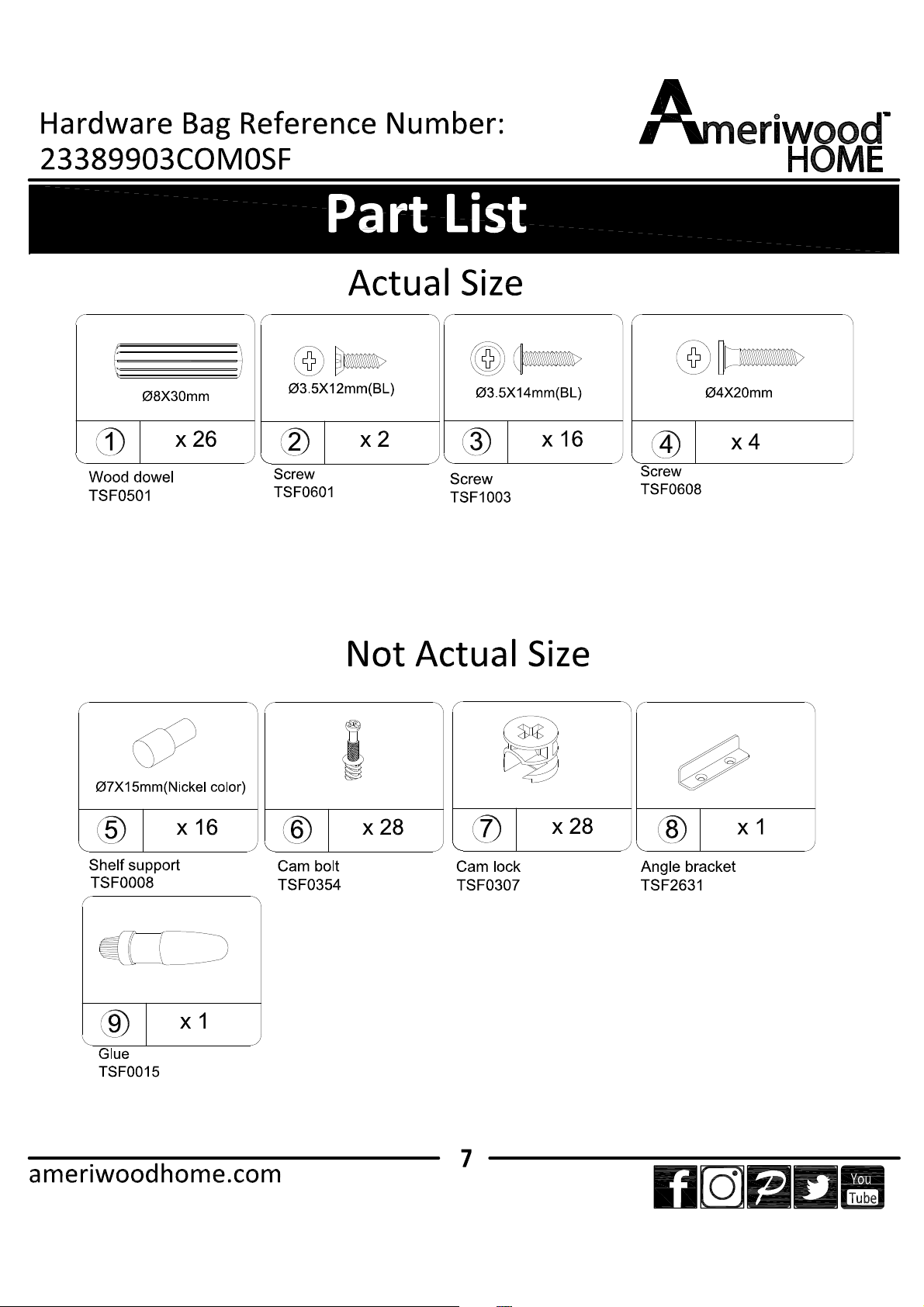

Board Identification

Not Actual Size

ameriwoodhome.com

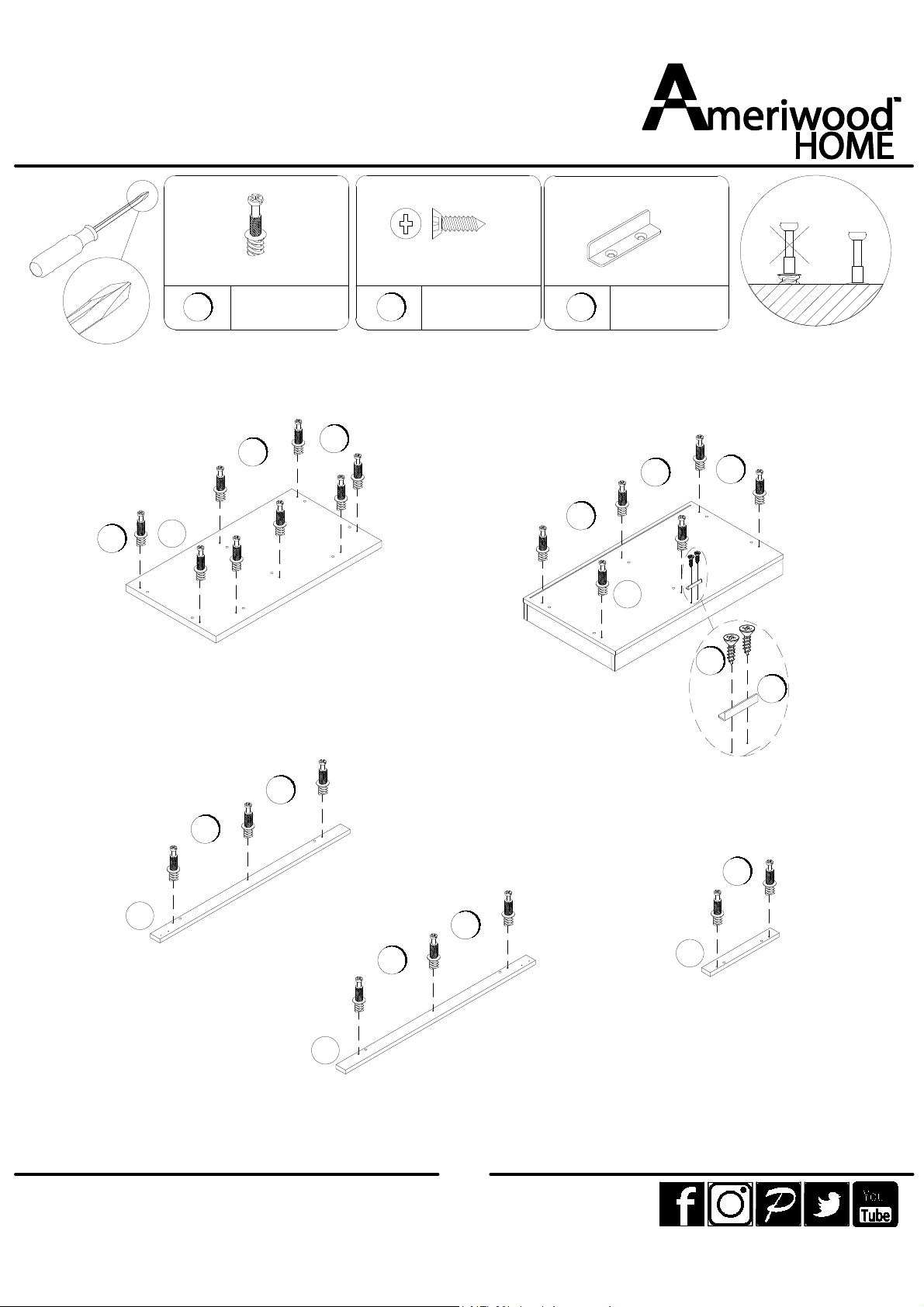

STEP

x 28

6x 2

Ø3.5X12mm(BL)

8x 1

x 4

ameriwoodhome.com

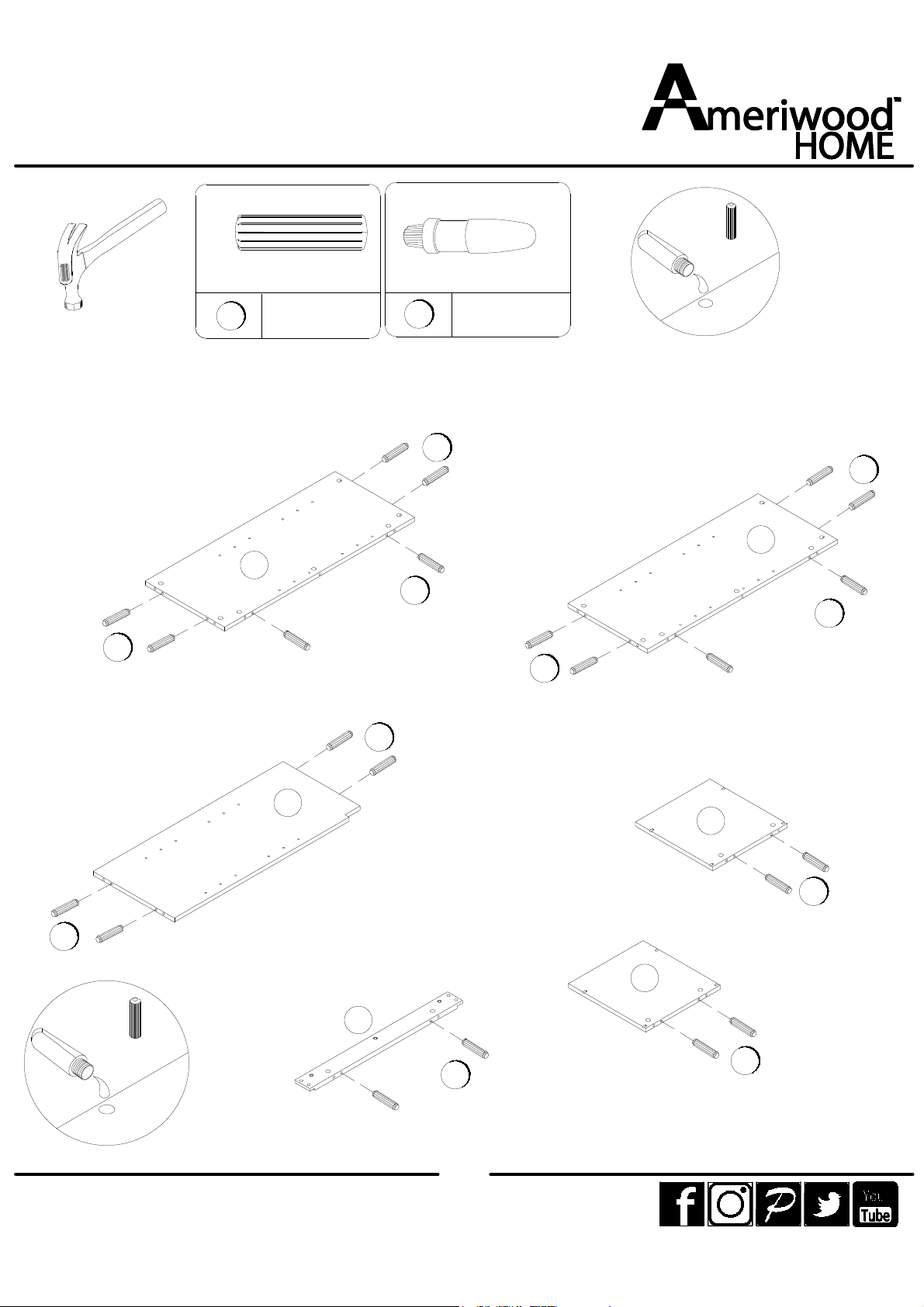

STEP

x 26

Ø8X30mm

lue

Pegamento

Colle

Wooden Dowel

Clavija de Madera

Goujon en bois

Hole for wooden dowel

Agujero para clavija de madera

Trou pour cheville en bois

Use one drop of glue in dowel hole.

Use una gota de pegamento en el agujero de clavija.

Utilisez une goutte de colle dans le trou de la cheville

x 2

lue

Wooden Dowel

Hole for wooden dowel

Use one drop of glue in dowel hole.

ameriwoodhome.com

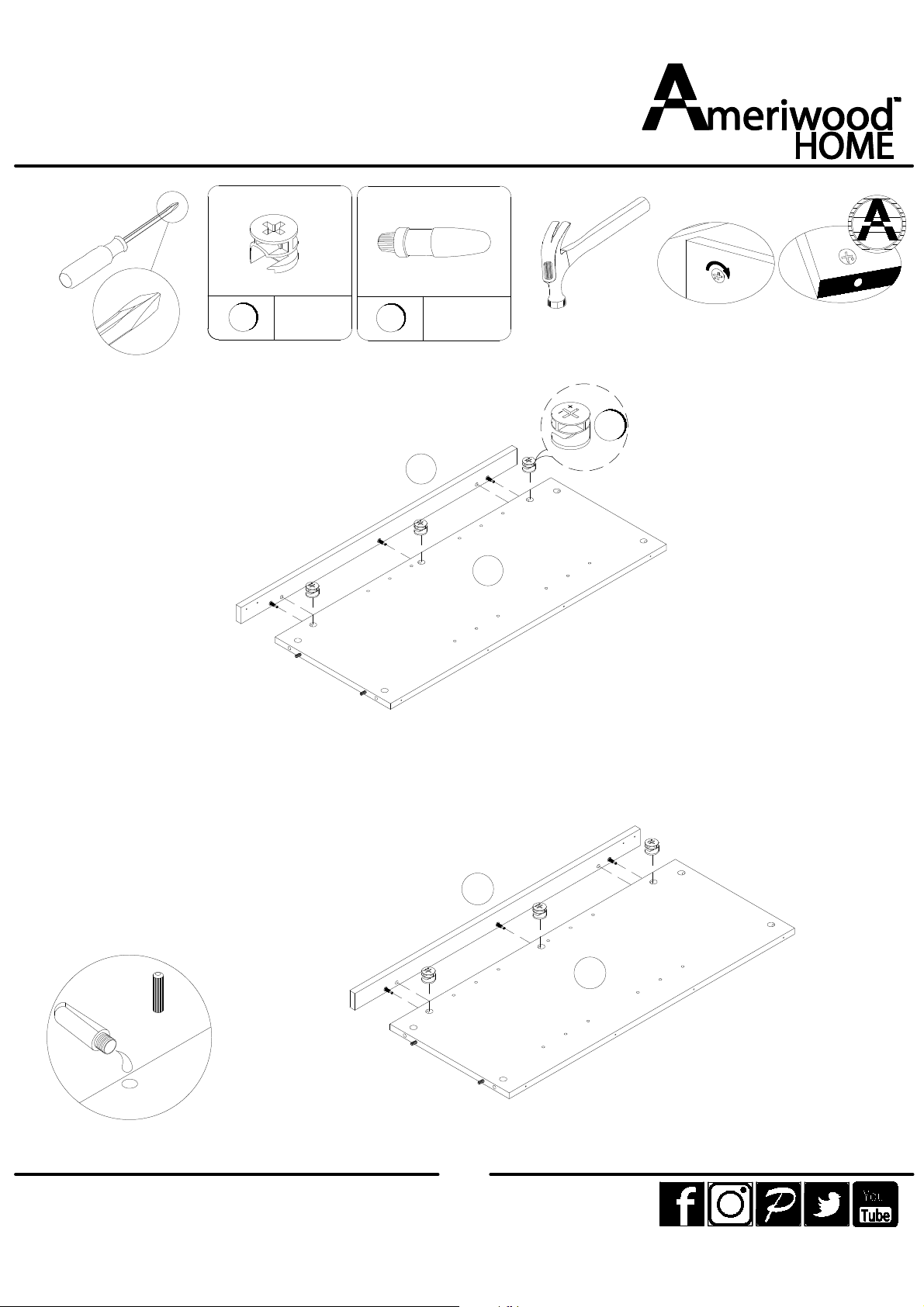

STEP

7x 6 Proper orientation of CAM LOCK

Tip

Quick

Assembly

UNLOCK

LOCK

lue

Wooden Dowel

Hole for wooden dowel

Use one drop of glue in dowel hole.
