Carver End Table

Date of Purchase: ____/____/_____

Lot Number:

B345046196PCOM00YX

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help ﬁrst

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Easy Tough

Assembly Diﬃculty Meter

WARNING

Follow Ameriwood Home

–Unit can tip over causing severe injury or death.

–Anchor unit to stud in wall (if instructed to)

–Do not allow children climb on unit

–Put heavy items on lower shelves or drawers

Do NOT return this product!

Call us!

Assembly Tips

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Helpful Hints

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

- Open your item in the area you plan to keep it for less heavy lifting

- Identify, sort and count the parts before attempting assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R (right) and L (left) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back Panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

ameriwoodhome.com

Contact our friendly customer service team ﬁrst for help

Before You Start

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

ameriwoodhome.com

Board Identiﬁcation

Not actual size

T5046196010YX

TOP PANEL

T5046196020YX

BOTTOM PANEL

T5046196030YX

LEG

T5046196040YX

UPPER SUPPORT PANEL

T5046196050YX

LOWER SUPPORT PANEL

T5046196060YX

FOOT

ameriwoodhome.com

Hardware Bag Reference Number:

25046196PCOM0YX

Part List

Actual Size

x32

TYX0001

Cam Bolt

x32

TYX0002

Cam Lock

15-12

TYX0030

DOWEL 6 X 30

TYX0029

BOLT M6 X 70

ameriwoodhome.com

Step 1

x32

TYX0001

TYX0030

* raw edges are shaded

ameriwoodhome.com

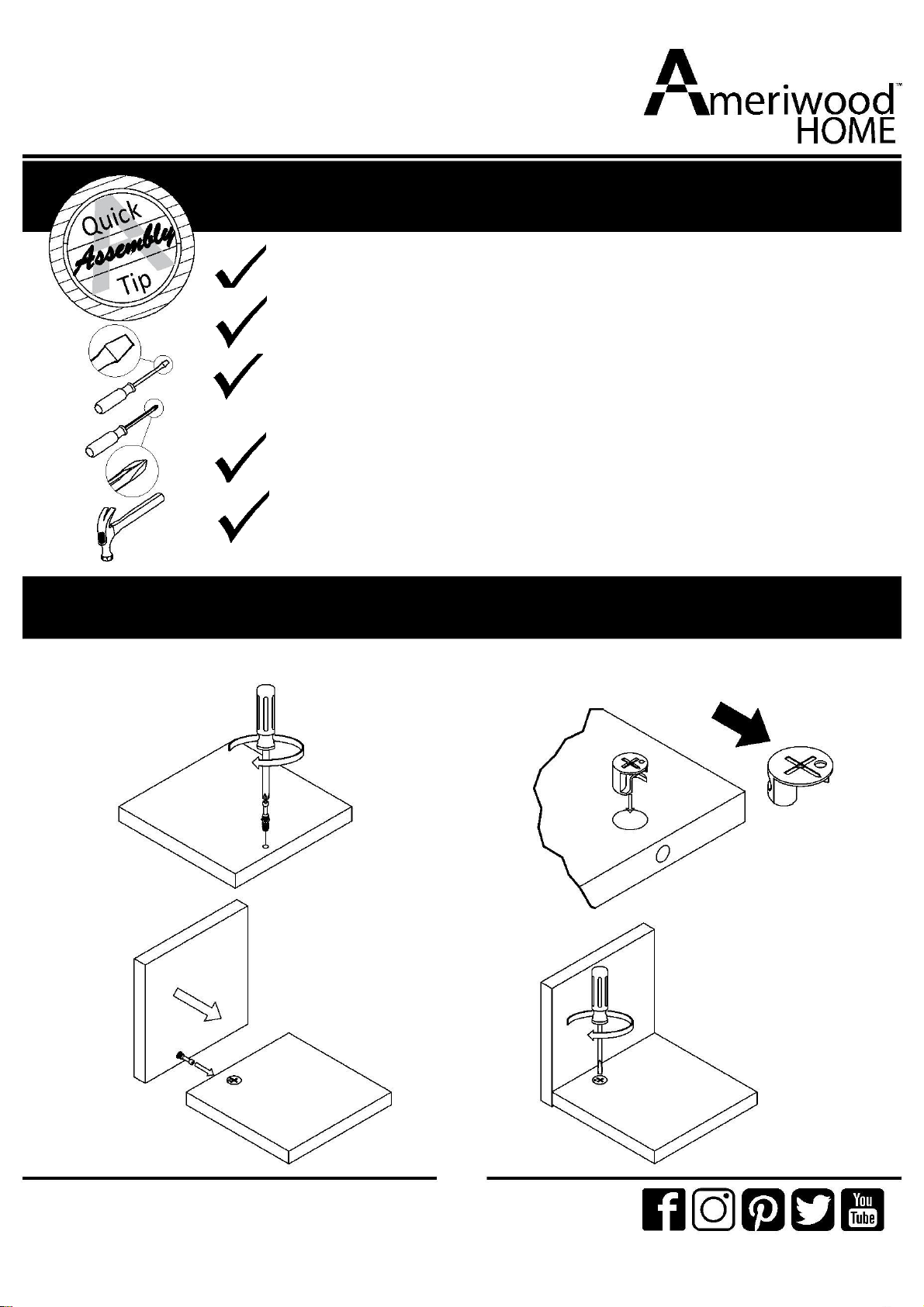

Step 2

Quick

Assembly

Tip

x24

TYX0002

Proper orientation of CAM LOCK

* raw edges are shaded

ameriwoodhome.com

Step 3

Quick

Assembly

Tip

TYX0002

TYX0029

Proper orientation of CAM LOCK

* raw edges are shaded

ameriwoodhome.com

Maximum Loads

This unit has been designed to support the maximum loads shown. Exceeding these load limits

could cause sagging, instability, product collapse, and/or serious injury.

Warning: Risk of serious injury to person - do not place a television on this furniture. This furniture

is not approved for use with a television.

Certiﬁcate of Conﬁrmity

1. This certiﬁcate applies to Dorel Home Furnishings, Inc. product idencﬁed by this instruction manual.

2. This certiﬁcate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint ( 16 CFR 1303).

3. This product is distributed by: Dorel Home Furnishings, Inc.

410 East First Street South,

Wright City, MO 63390

636-745-3351

4. Site of Manufacturer: Muar, Malaysia.

5. See front page of instruction manual for date of manufacturer.

ameriwoodhome.com

* New trend details -sneak peek on what's new

* Surveys -have a voice within our community

* Exclusive deals and discount codes

* Quick and easy replacement part service

To register your product, visit

To register your product, visit Ameriwoodhome.com

Visit your local retailer's website, rate your purchased

product and leave us some feedback!

We would like to extend a big “Thank You” to all

of our customers for taking the time to assemble

this Ameriwood Home product, and to give us your

valuable feedback

ameriwoodhome.com
