Ameriwood HOME 7916348COM Manuale utente

B347916348COM00GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

7916348COM

Augusta Fireplace TV Stand

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 1.5 HOUR

Helpful Hints

Tube

You

ameriwoodhome.com

Quick

Tip

Assembly

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

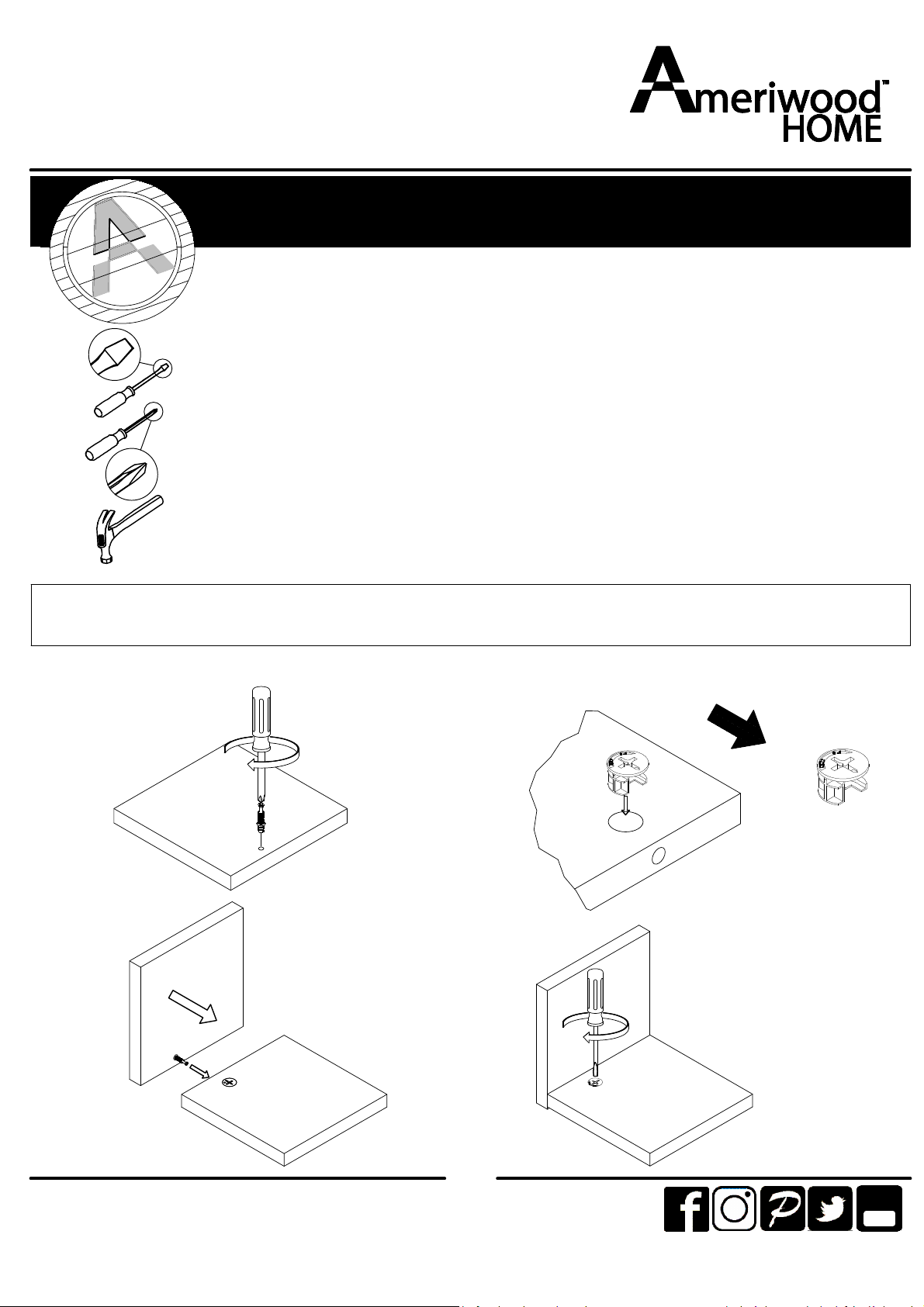

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

ameriwoodhome.com

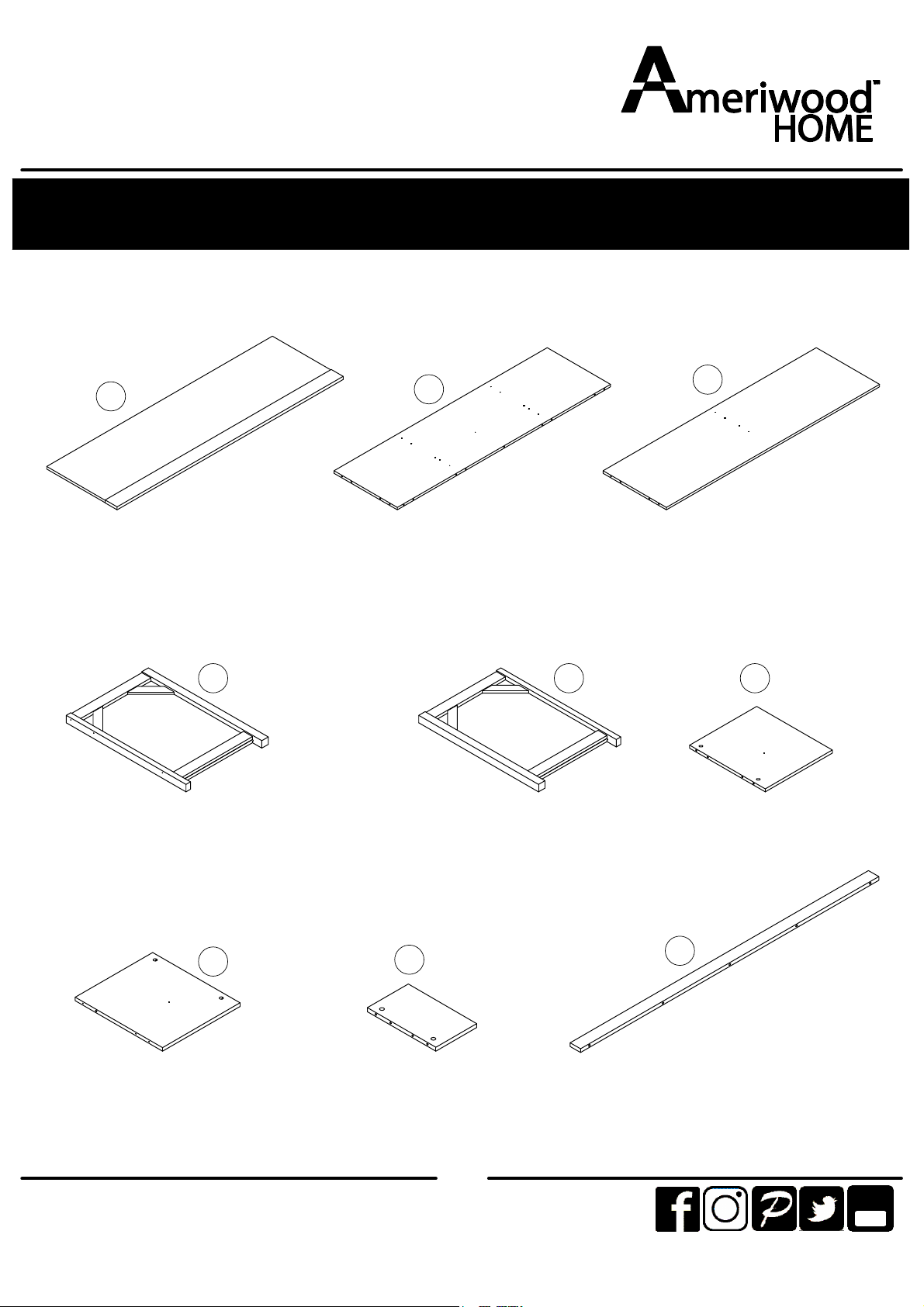

Board Identification

Not actual size

TOP

T7916348010GO

QTY: 1 PC

Tube

You

BOTTOM

T7916348020GO

QTY: 1 PC

FIXED SHELF

T7916348030GO

QTY: 1 PC

LEFT SIDE FRAME

T7916348040GO

QTY: 1 PC

RIGHT SIDE FRAME

T7916348050GO

QTY: 1 PC

LEFT PARTITION

T7916348060GO

QTY: 1 PC

RIGHT PARTITION

T7916348070GO

QTY: 1 PC

UPPER PARTITION

T7916348080GO

QTY: 1 PC

TOP RAIL

T7916348090GO

QTY: 1 PC

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

Remote control

L-BRACKET (3)

BOTTOM RAIL

T7916348100GO

QTY: 1 PC

ADJ SHELF

T7916348110GO

QTY: 2 PCS

DOOR

T7916348120GO

QTY: 2 PCS

UPPER BACK PANEL

T7916348130GO

QTY: 1 PC

BACK PANEL

T7916348140GO

QTY: 2 PCS

LEGS

T7916348150GO

QTY: 2 PCS

FIREPLACE

RV23V80S-1

QTY: 1 PC

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

ameriwoodhome.com

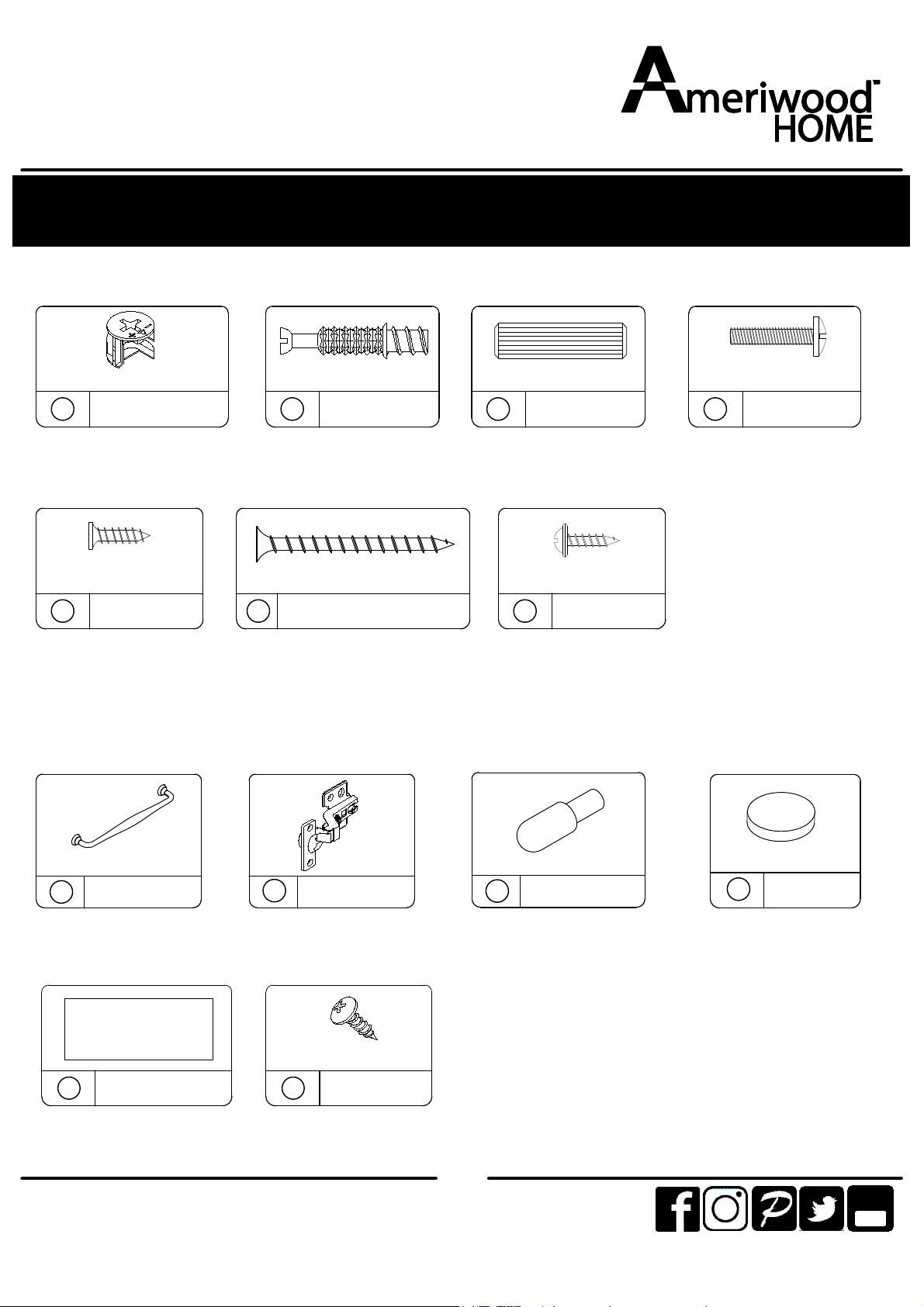

Part List

Hardware Bag Reference number:

27916348COM0GO

Actual Size

×23 ×32

WOOD DOWEL

TGO2900

Ø8 x 30mm

Ø15 x 12mm

Tube

You

CAM LOCK

TGO2102

×4

BOLT

TGO1608

No Actual Size

×23

CAM BOLT

TGO2002

Ø6 x 25mm

M4 x 19mm

×2

HANDLE

TGO5518

210*35*18 mm

×24

SCREW

TGO1005

Ø3.5 x 14mm

×11

Ø4.2 x 45mm

SCREW

TGO1008

×44

SCREW

TGO1301

Ø3 x 12mm

×4

HINGE

TGO4311

×4

PAD

TGO6514

8911

×8

SHELF SUPPORT

TGO2810

ameriwoodhome.com

×1

WARNING LABEL

TGO6595

WARNING

ADVERTENCIA

AVERTISSEMENT

×3

SCREW

TGO1323

Ø4 x 12mm

ameriwoodhome.com

STEP 1

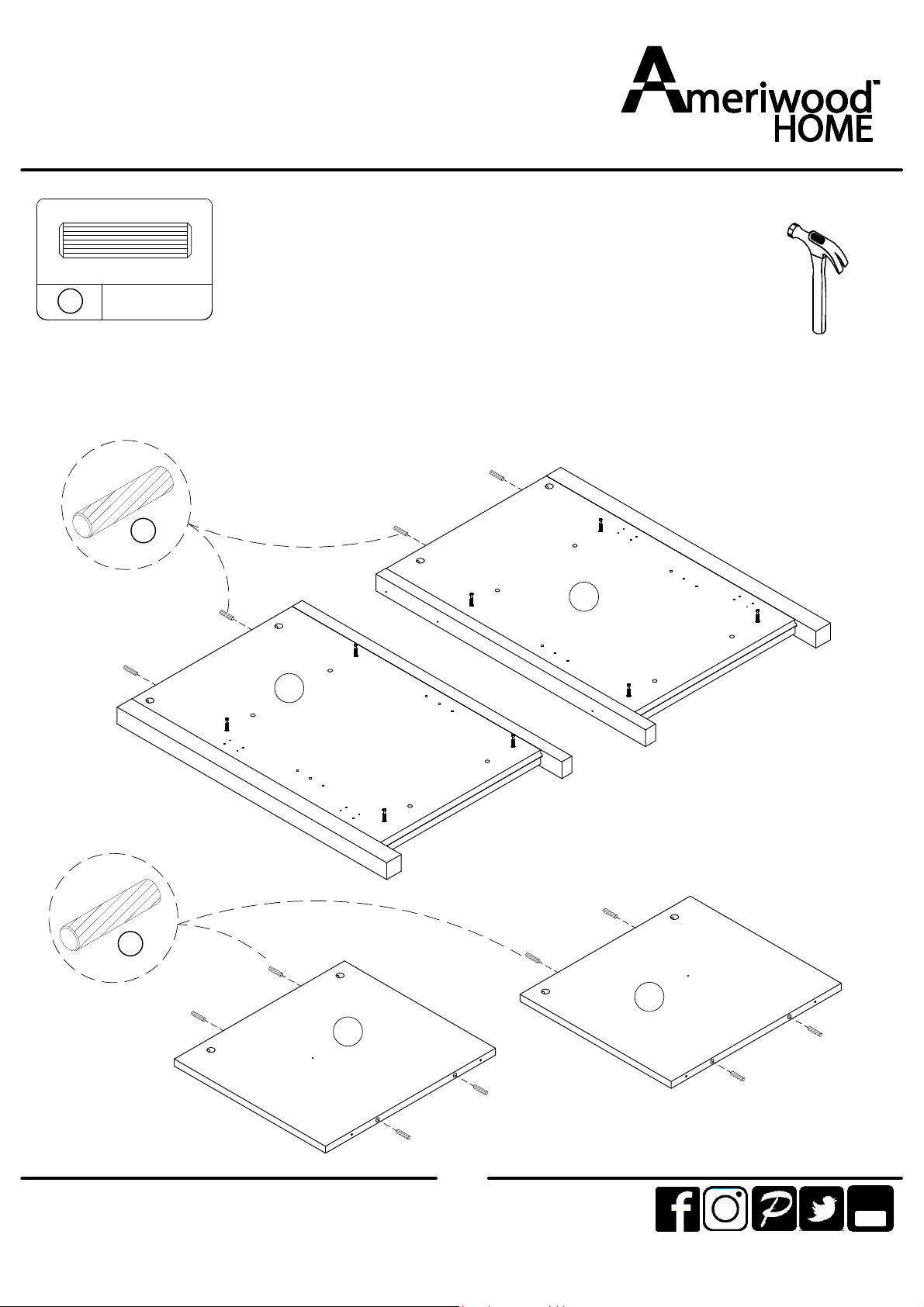

1.1 Cam bolt (2) into (A), (C), (D), (E) and (K) as illustrated.

×23

Tube

You

2.1 Insert (3) into (B), (C), (H) and (J) as illustrated.

Tube

You

×20

ameriwoodhome.com

STEP 2

3.1 Insert (3) into (D), (E), (F) and (G) as illustrated.

Tube

You

×12

ameriwoodhome.com

STEP 3
