Ameriwood HOME TYLER 2795013COM Manuale utente

B342795013COM

00GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

2795013COM

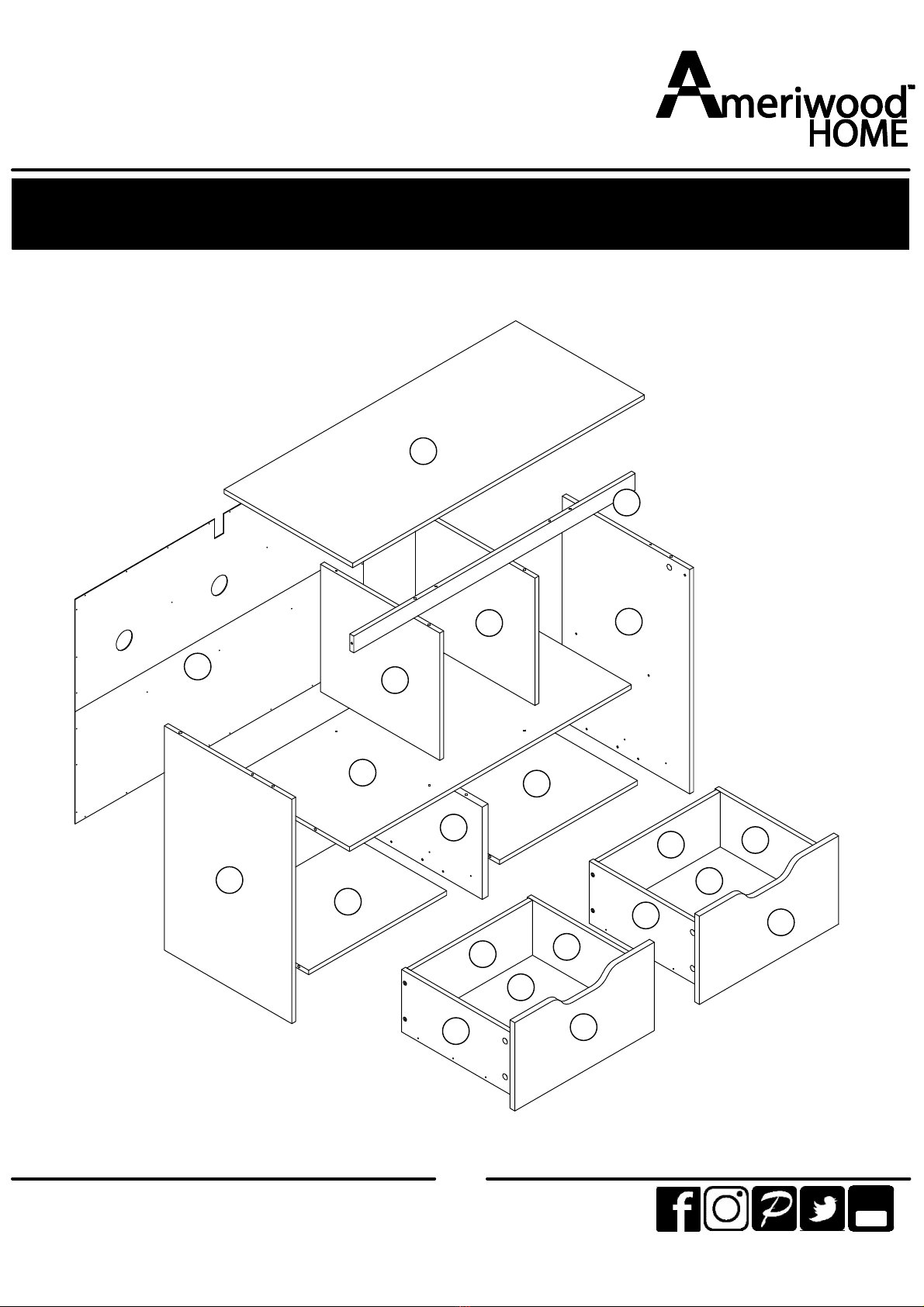

TYLER TOY STORAGE WITH DRAWERS

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

ameriwoodhome.com

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 0.5-1 HOUR

Helpful Hints

Tube

You

Quick

Tip

Assembly

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

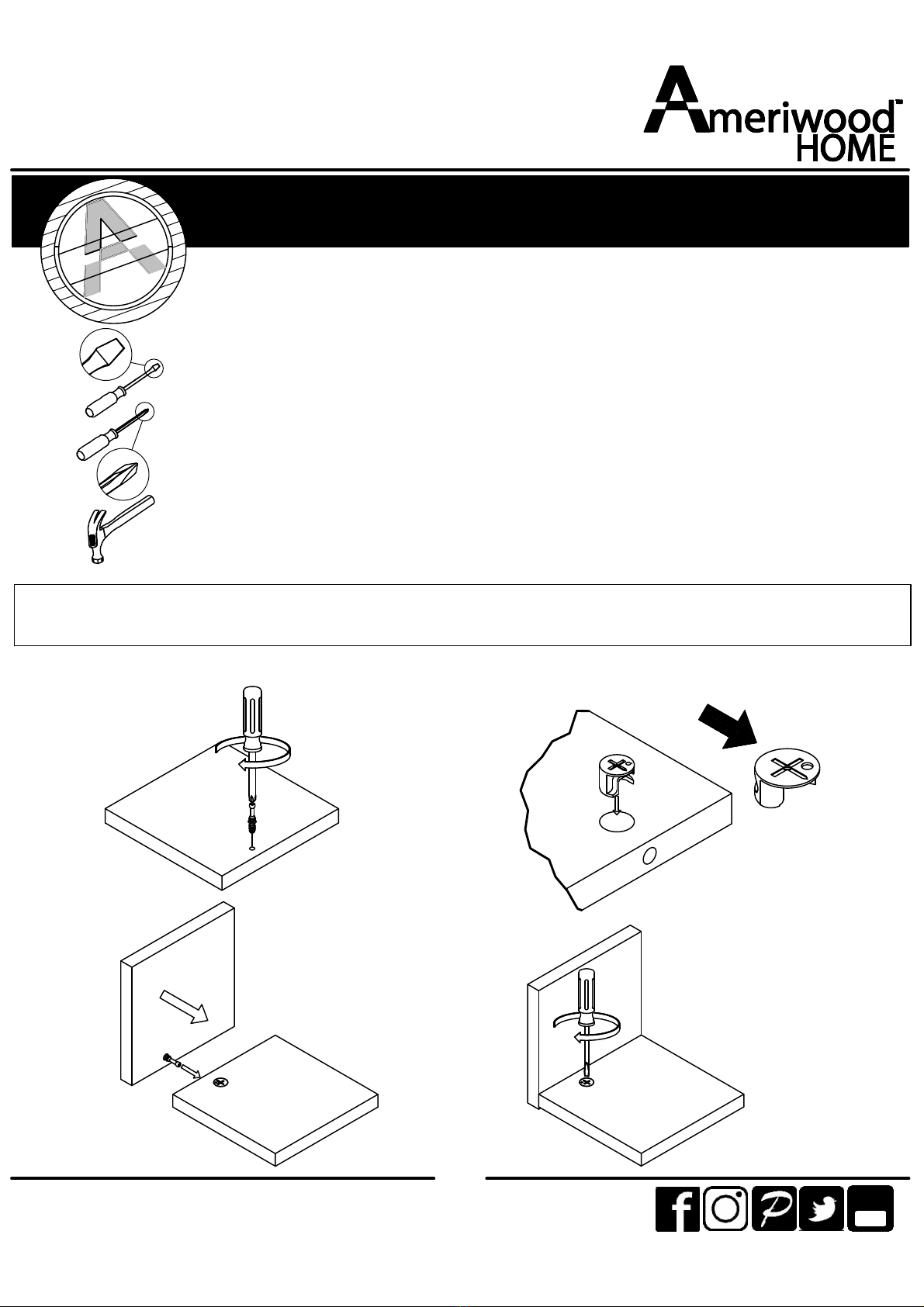

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

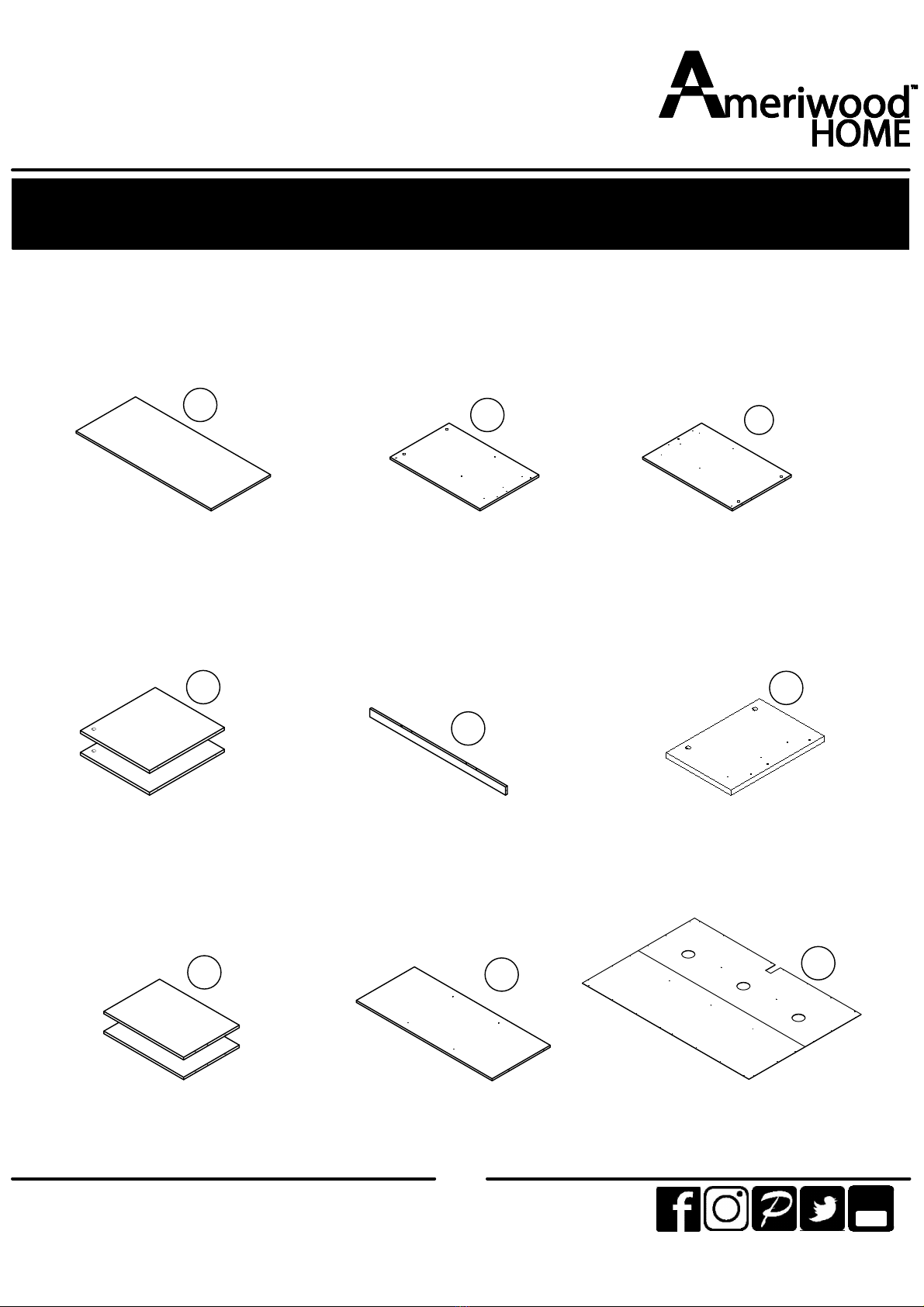

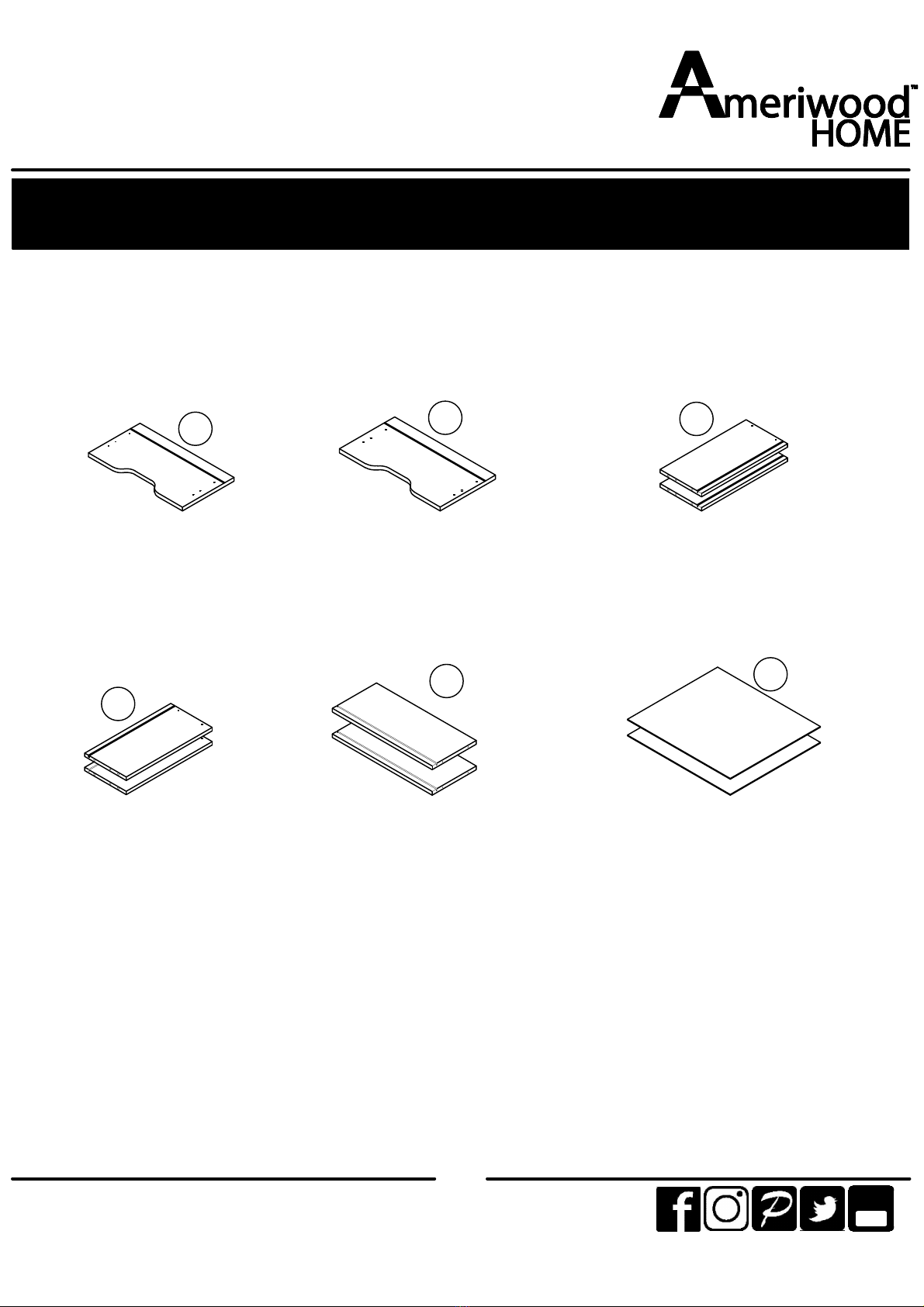

Board Identification

Not actual size

ameriwoodhome.com

LEFT SIDE PANEL

T2795013020GO

QTY: 1 PC

RIGHT SIDE PANEL

T2795013030GO

QTY: 1 PC

TOP

T2795013010GO

QTY: 1 PC

PARTITION

T2795013040GO

QTY: 2 PCS

RAIL

T2795013050GO

QTY: 1 PC

LOWER PARTITION

T2795013060GO

QTY: 1 PC

BOTTOM

T2795013070GO

QTY: 2 PCS

CENTER SHELF

T2795013080GO

QTY: 1 PC

BACK PANEL

T2795013090GO

QTY: 1 PC

Tube

You

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

LEFT FRONT DRAWER

T2795013100GO

QTY: 1 PC

RIGHT FRONT DRAWER

T2795013110GO

QTY: 1 PC

LEFT SIDE DRAWER

T2795013120GO

QTY: 2 PCS

RIGHT SIDE DRAWER

T2795013130GO

QTY: 2 PCS

BACK PANEL DRAWER

T2795013140GO

QTY: 2 PCS

BOTTOM PANEL DRAWER

T2795013150GO

QTY: 2 PCS

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

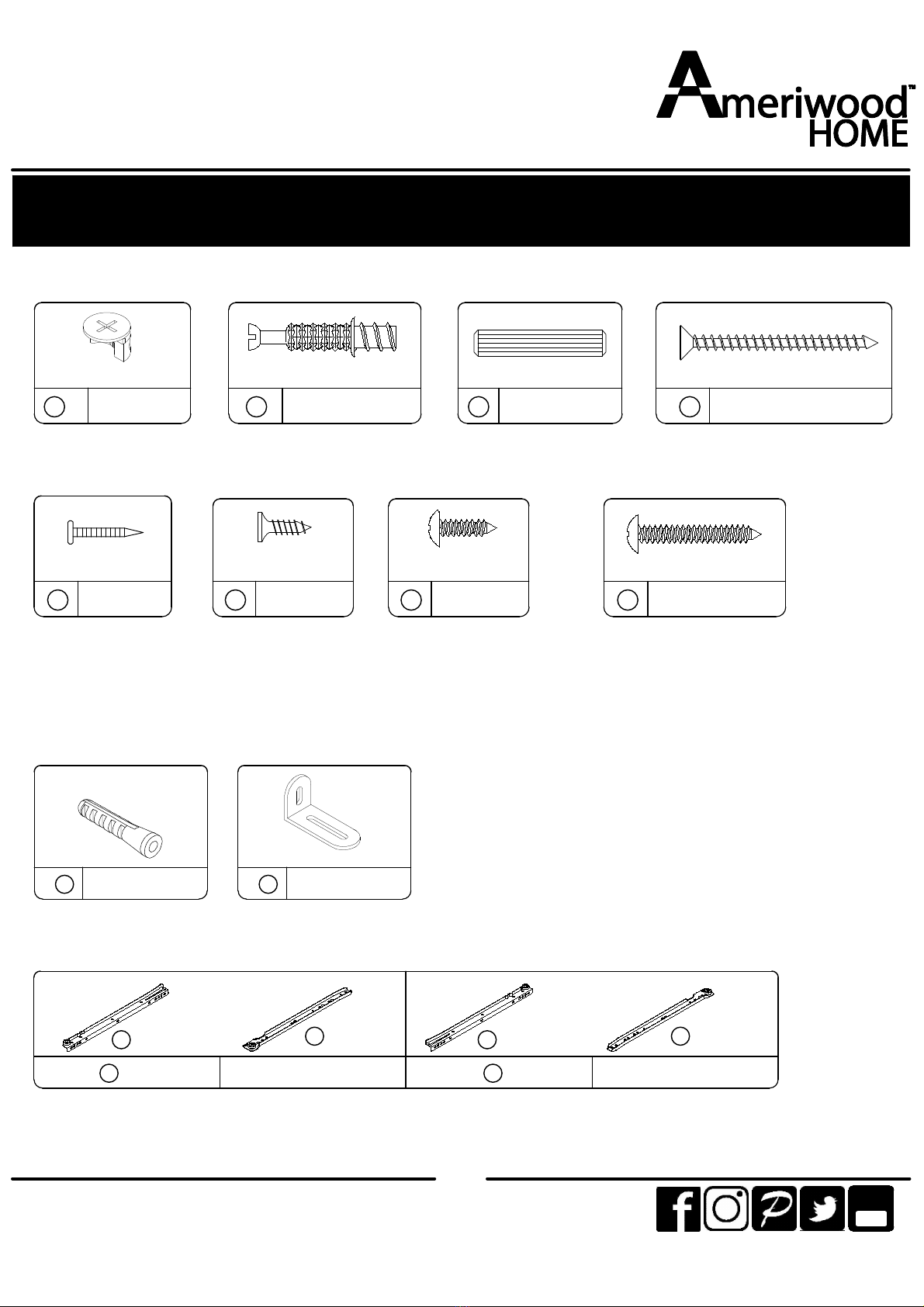

Part List

ameriwoodhome.com

Hardware Bag Reference number:

22795013COM0GO

Actual Size

×30 ×16 ×12

CAM LOCK

TGO2100

WOOD DOWEL

TGO2903 SCREW

TGO1008

Ø1.7 x 18mm

×33

NAIL

TGO6517

Ø6 x 30mm

Ø15 x 10mm

Tube

You

×30

Ø6 x 25mm

CAM BOLT

TGO2001

Ø4.2 x 13mm

SCREW

TGO1304

×1

SCREW

TGO1314

Ø4.2 x 28mm

Not Actual Size

×1

WALL ANCHOR

TGO6501

Ø6 x 30mm

×1

WALL BRACKET

TGO3502

30x50x20mm

Ø4.2 x 45mm

x24

Ø3.5 x 12mm

SCREW

TGO1007

6 7 8

×2 set

14"

11-1 11-2

left cabinet member

left drawer member

12 ×2 set

12-1 12-2

right cabinet member

right drawer member

METAL SLIDE

TGO4514

14"

ameriwoodhome.com

STEP

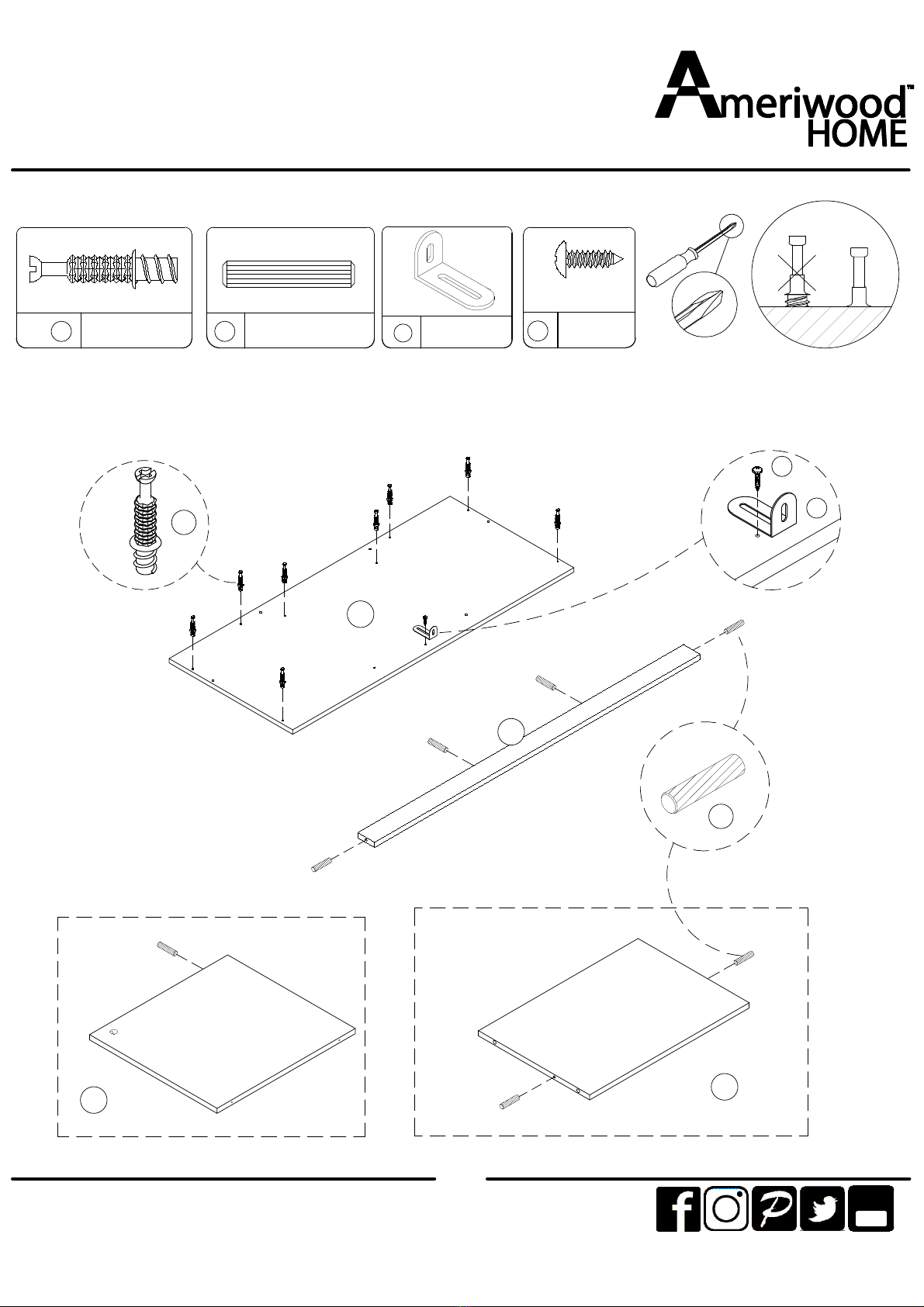

1.1 Cam bolt (2) into (A) as illustrated.

1.2 Insert (3) into (D), (E) and (G) as illustrated.

1.3 Attach (10) into (A) with (7) as illustrated.

Tube

You

×8

23 ×10 ×1 7

×1

D x 2 G x 2

ameriwoodhome.com

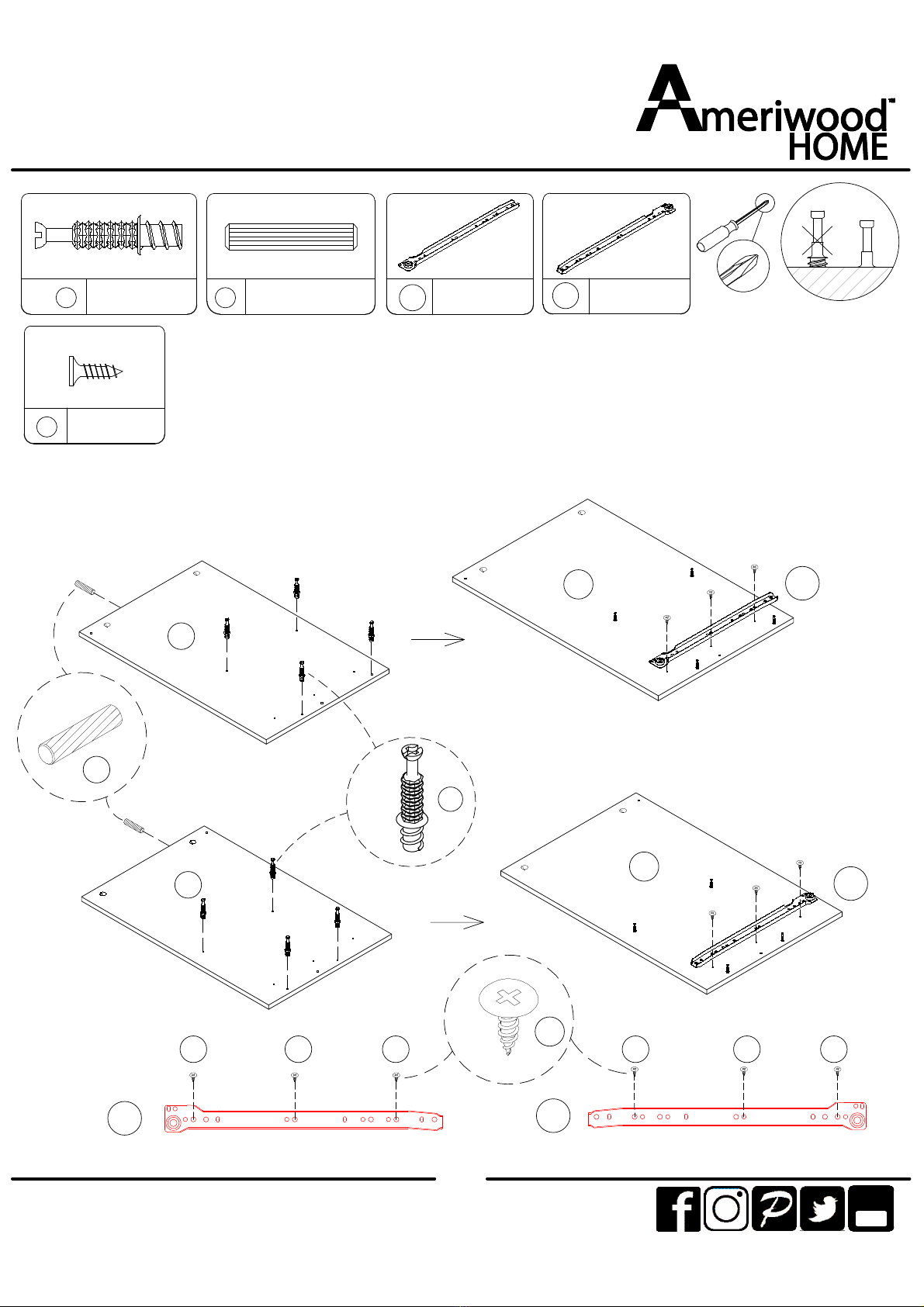

STEP

3.1 Insert (3) into (B), (C) as illustrated.

3.2 Cam bolt (2) into (B), (C) as illustrated.

3.3 Attach (11-2) into (B) with (6) as illustrated.

3.4 Attach (12-2) into (C) with (6) as illustrated.

Tube

You

×8

23 ×2

×1

11-2 12-2

11-2

12-2

11-2

6 6 6 6 6 6

ameriwoodhome.com

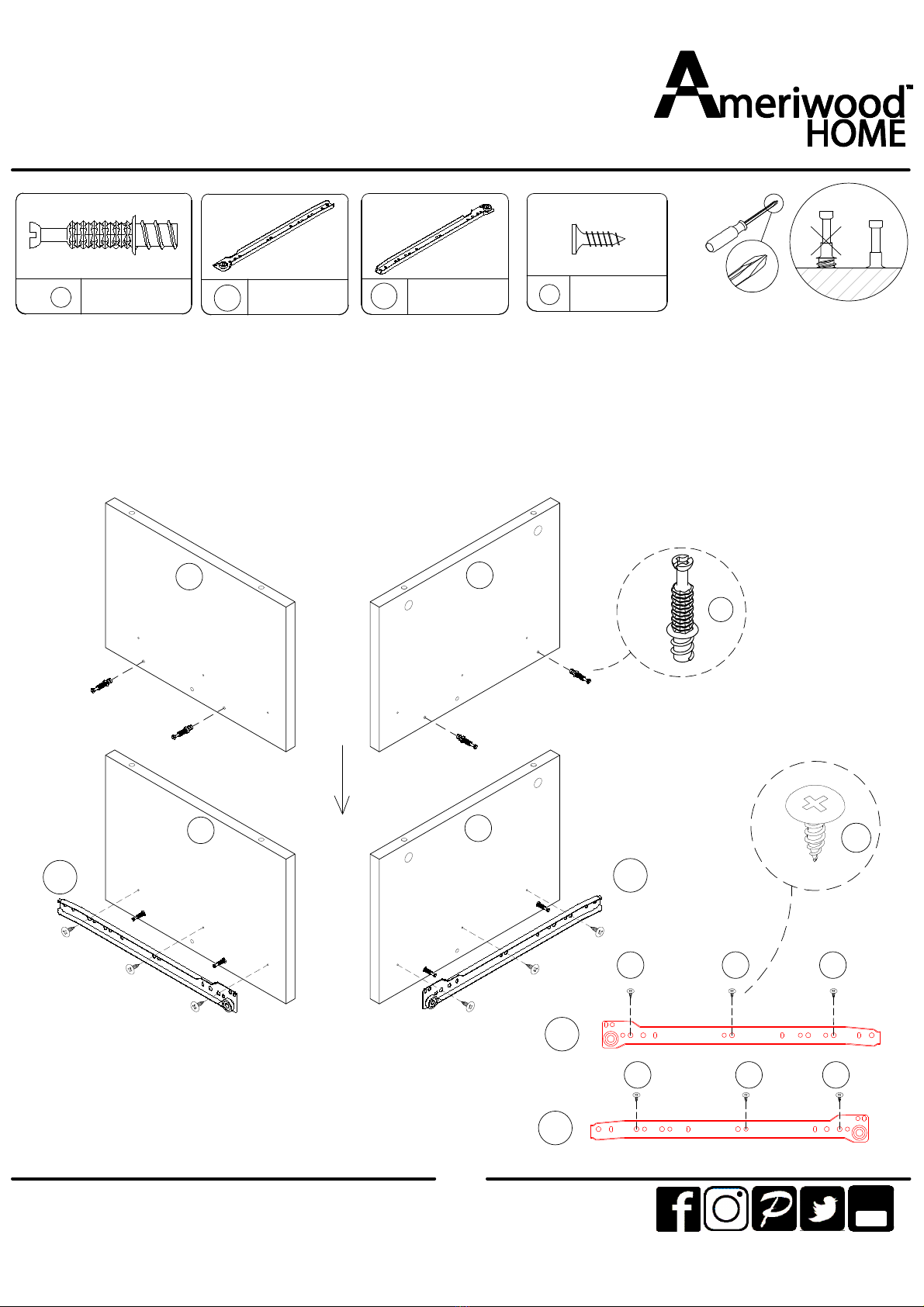

STEP

2.1 Cam bolt (2) into (F) as illustrated.

2.2 Attach (11-2), (12-2) into (F) with (6) as illustrated.

Tube

You

×4

Left

surface

Right surface

Left

surface

Right surface

12-2

11-2

6 6 6

11-2

12-2

×1

11-2 12-2 x6
