Ameriwood HOME 8297335COM Manuale utente

8297335COM

2DoorStorage

B348297335COM0

THISINSTRUCTIONBOOKLETCONTAINS

IMPORTANT

SAFETYINFORMATION.PLEASEREADANDKEEPFORFUTUREREFERENCE.

FollowAmeriwoodHome

Tube

You

DateofPurchase___/___/___

LotNumber:

DoNotReturnThisProduct!

Contactourcustomerserviceteamforhelpfirst.

Call:1‐800‐489‐3351(tollfree)

Monday‐Friday9am‐5pmCST

Visit:www.ameriwoodhome.com

AssemblyDifficultyMeter

Easy Tough

SecureYourFurniture

Keepyourhomeandfamilysafe

withthewallanchorkitthatis

includedwiththeproduct.



Seriousorfatalcrushinginjuriescan

occurfromtippingfurniture.

WARNING:Manufacturerassumesnoliability

forimproperinstallationorexcessiveloads

placedonscrewsorbracket.Thiswallanchor

isnotasubstituteforproperadultsupervision.

ContactUs!

HelpfulHints

2

ameriwoodhome.com

DoNOTreturnthisproduct!

Contactourfriendlycustomerserviceteamfirstforhelp.

Callus!

1‐800‐489‐3351

Monday‐Friday

9am‐5pmCST

Visitameriwoodhome.comtoviewthe

limitedwarrantyvalidintheU.S.andCanada.

AssemblyTips

‐Openyouritemintheareayouplantokeepittoavoidexcessiveheavylifting.



‐Identify,sortandcountthepartsbeforeattemptingassembly.



‐Compressiondowelsarelightlytappedinwithahammer.



‐Slidesarelabeledwitha

(right)and

L

(left)forproperplacement.



‐MakesuretoalwaysfacethepointonthetopoftheCamLocktowardsthe

outeredge.



‐Useallthenailsprovidedforthebackpanelandspreadthemoutequally.



‐Backpanelmustbeusedtomakesureyourunitissturdy.



‐DoNOTuseharshchemicalsorabrasivecleanersonthisitem.



‐Neverpush,pull,ordragyourfurniture.

Tube

You

PEOPLENEEDEDFORASSEMBLY:1‐2

3

ameriwoodhome.com

BeforeYouStart



Quick

Tip

Assembly



CamLockFasteningSystem

ThisCamLockFasteningSystemwillbeusedthroughouttheassemblyprocess.

Readthrougheachstepcarefullyandfollowtheproperorder



Separateandcountallyourpartsandhardware

Partsarelabeledonthesurfaceoredgeofthepart



Giveyourselfenoughroomfortheassemblyprocess



Havethefollowingtools:FlatHeadScrewdriver,#2PhillipsHead

ScrewdriverandHammer

Caution:Ifusingapowerdrillorpowerscrewdriverforscrewing,

pleasebeawaretoslowdownandstopwhenscrewistight.

Failuretodosomayresultinstrippingthescrew.



4

ameriwoodhome.com

BeforeYouStart

Quick

Assembly

Tip

PleaseNote:

Youmayneedtolightlytapthewooddowelsintotheholesduring

yourassemblyprocess.

5

ameriwoodhome.com

BoardIdentification

Notactualsize

LeftPanel

38297335010

RightPanel

38297335020

Top

36252335030

Bottom

38297335040

Shelf

36252335050

FrontRail

36252335060

Kick

36252335070

UpperBack

36252335080

LowerBack(x2)

33312335090

AdjustableShelf

38297335100

LeftDoor

38297335110

RightDoor

38297335120

GHIJ

6

ameriwoodhome.com

BoardIdentification

Notactualsize

7

ameriwoodhome.com

PartList

ActualSize

(x2)

#A89020

plastic stop

(x12)

#A22570

camlock

(x12)

#A22510

cambolt

(x10)

#A21670

wooddowel

(x4)

#A22810

connectorbolt

(x4)

#A22820

connector

(x16)

#A21960

hiddenfastener

(x4)

#A80250

shelf support

(x2)

#A17400

7/8" bolt

(x2)

#A50265

knob

234

(x2)

#A11170

5/8" pan head

7810

(x1)

#A84000

safety strap kit

Notactualsize

(x4)

#A65640

hinge

13a 13b 13c 13d 13e

8

ameriwoodhome.com

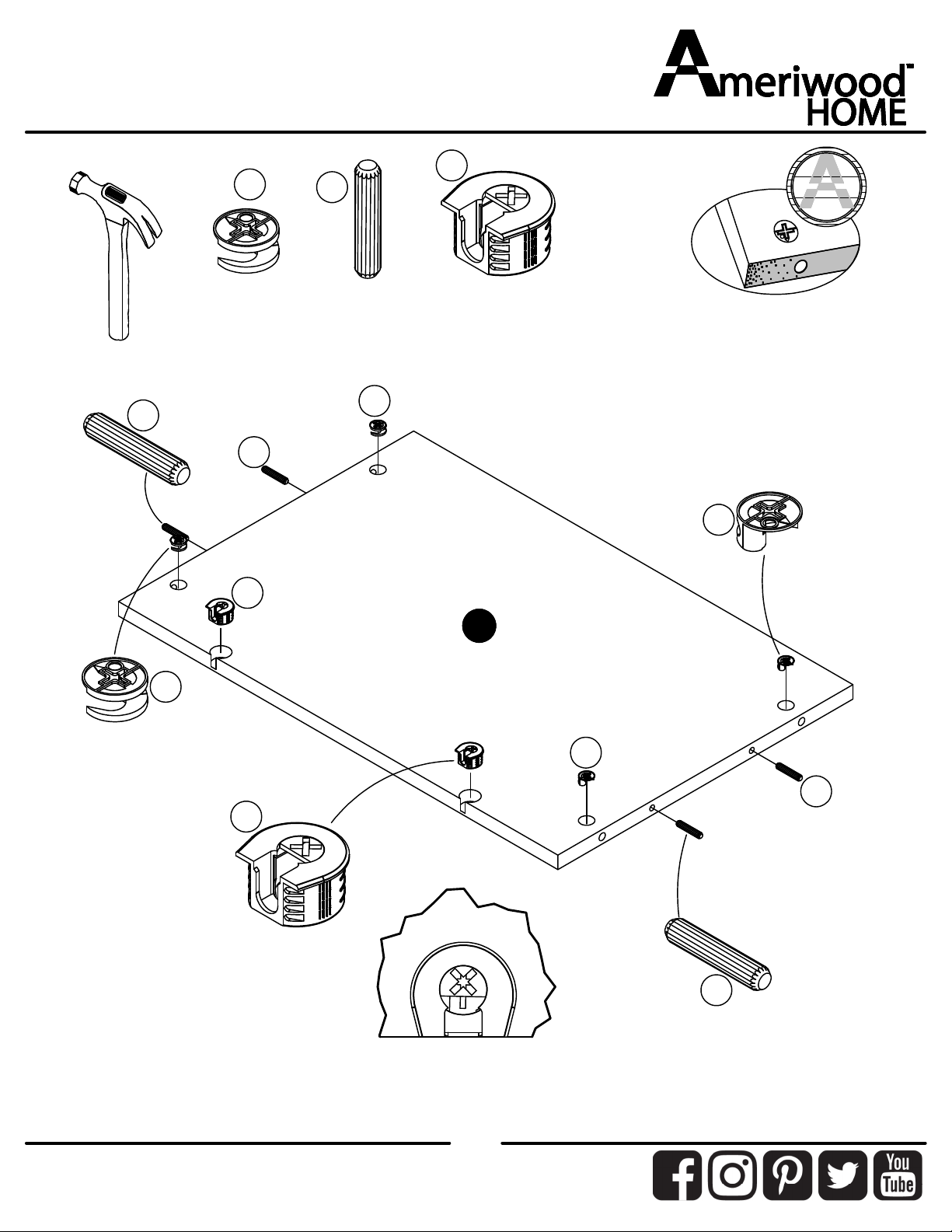

STEP1

(x2)

(x4) (x1) (x8)

Proper orientation of CAM LOCK

Tip

Assembly

Quick

9

ameriwoodhome.com

STEP2

(x2) (x4) (x1) (x8)

Proper orientation of CAM LOCK

Tip

Assembly

Quick

10

ameriwoodhome.com

STEP3

(x4) (x4) (x2)

Besureconnector(4)ispositioned

asshownbeforeinsertingintohole.

Tapwithahammertofullyinsert.

Proper orientation of CAM LOCK

Tip

Assembly

Quick
