Ameriwood HOME Mr.kate 2613013COM Manuale utente

2613013COM

Wide dresser-White

WARNING

DoNot ReturnThisProduct!

Contact our customer service teamfor help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday9am-5pmCST

Visit: www.ameriwoodhome.com

Date of Purchase ___ / ___ / ___

Lot Number:

AssemblyDifficultyMeter

Easy Tough

ContactUs!

ameriwoodhome.com

PEOPLENEEDED FORASSEMBLY: 2

ESTIMATED ASSEMBLYTIME: 1.5HOUR

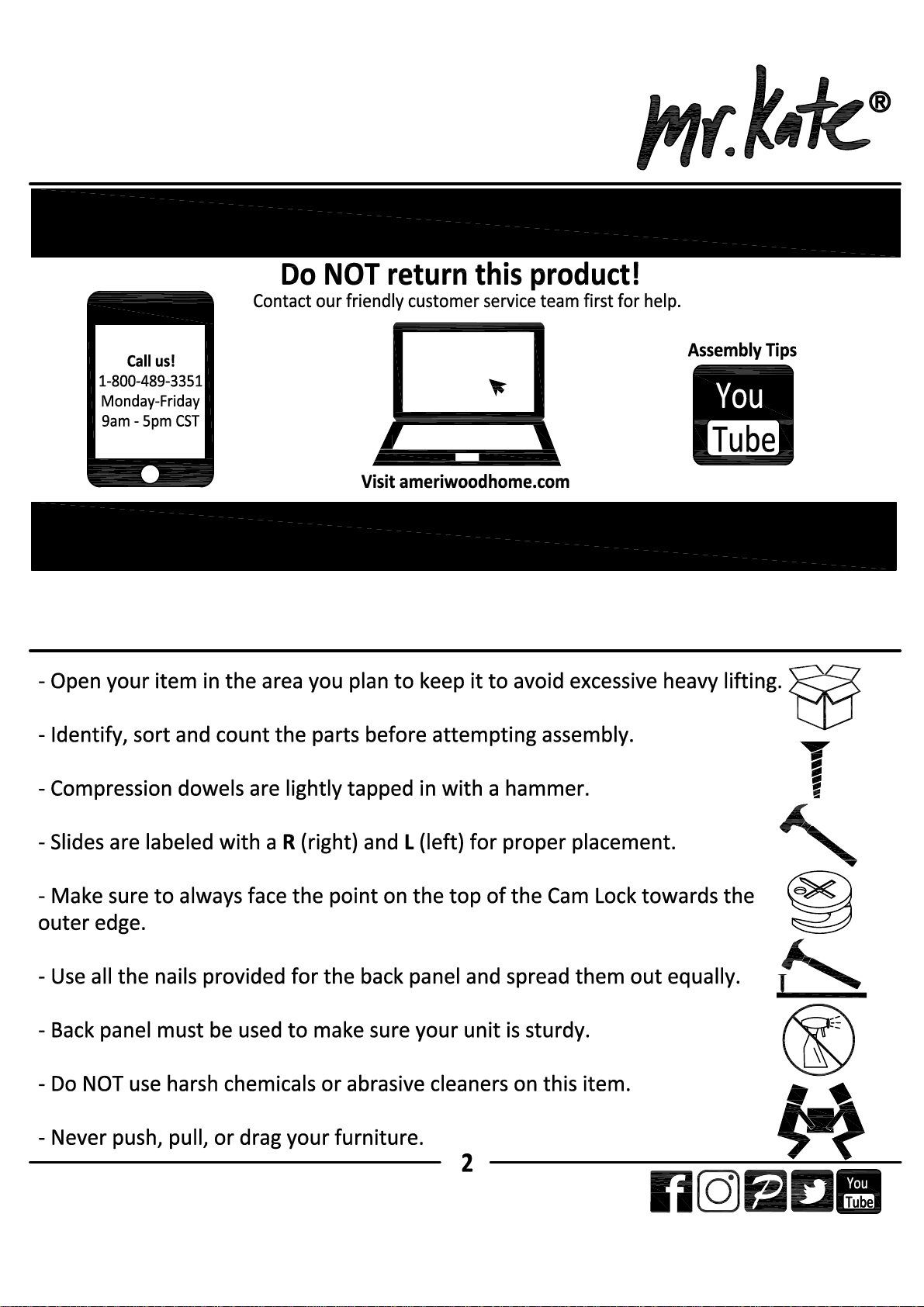

HelpfulHints

Before YouStart

ameriwoodhome.com

Readthrougheach stepcarefully andfollowtheproper order

Separateandcount allyourpartsand hardware

Giveyourselfenoughroom fortheassembly process

Havethefollowing tools:FlatHead Screwdriver,#2Phillips Head

Screwdriver and Hammer

Caution:Ifusingapowerdrill orpowerscrewdriverfor screwing,

pleasebeawaretoslowdownandstop whenscrewistight. Failure

todosomayresultinstripping the screw.

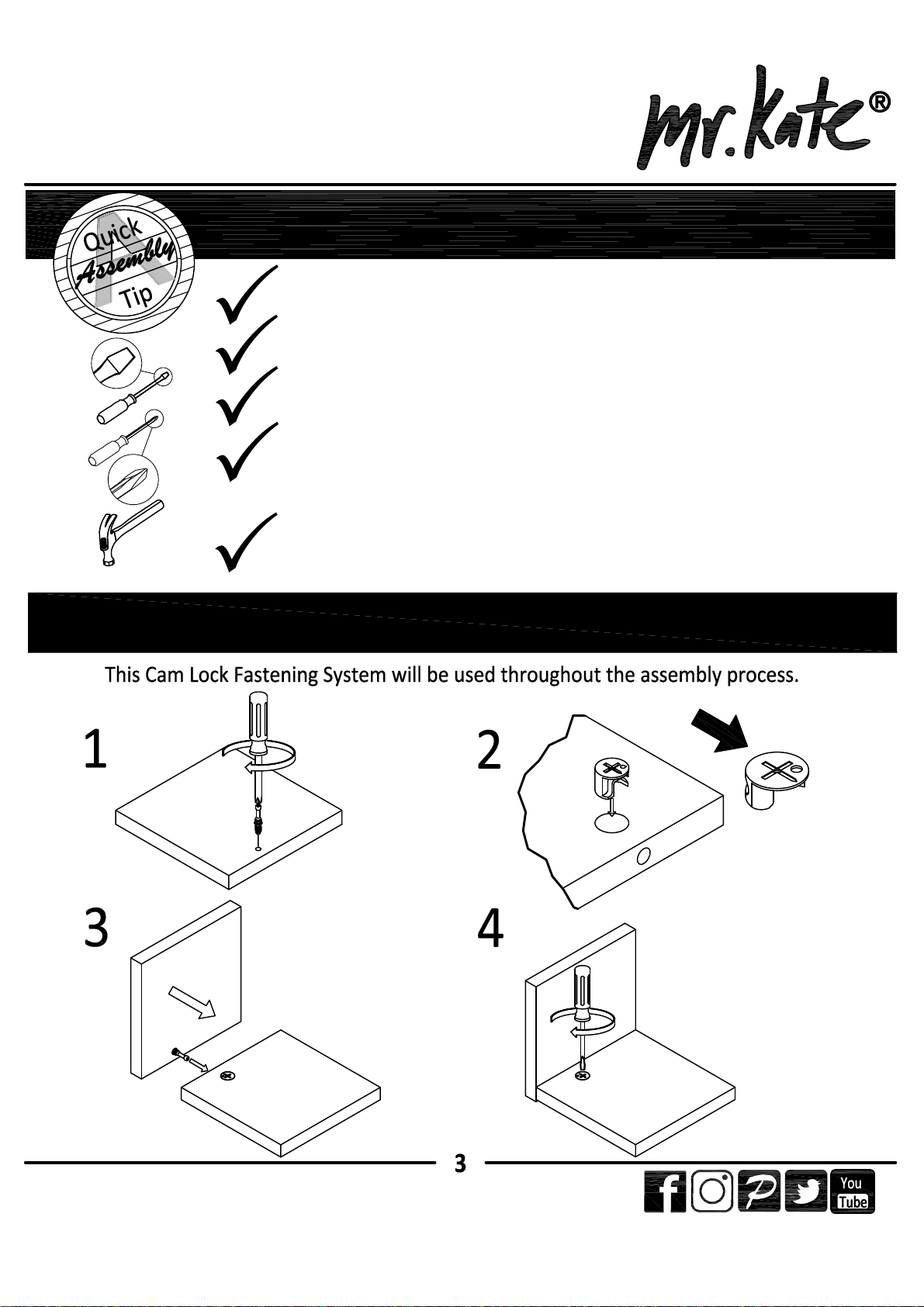

CamLockFasteningSystem

ameriwoodhome.com

Board Identification

NotActualSize

Top panel

T2613013010KX

Left side panel

T2613013020KX

Right side panel

T2613013030KX

Partition

T2613013040KX

Bottom panel

T2613013050KX

Upper front rail

T2613013060KX

Fixed shelf

T2613013070KX

Adjustableshelf

T2613013090KX

Fixed shelf

T2613013080KX

Preassembled parts

Partition T2613013041KX

Left slide track TKX1176-2

Right slide track(3) TKX1177-2

Screw 3.5*12(12) TKX1021

ameriwoodhome.com

Board Identification

NotActualSize

Door

T2613013100KX

Back panel

T2613013110KX

Drawer front

T2613013120KX

QTY:3PCS

Drawer front

T2613013130KX

Left drawer side

T2613013140KX

QTY:4PCS

Right drawer side

T2613013150KX

QTY:4PCS

Drawerback

T2613013160KX

QTY:3PCS

Drawer bottom

T2613013180KX

QTY:3PCS

Drawerback

T2613013170KX

ameriwoodhome.com

Board Identification

NotActualSize

Drawer bottom

T2613013190KX

Drawer bottomsupport

T2613013200KX

QTY:4PCS

Leg

T2613013210KX

QTY:4PCS

Center leg

T2613013220KX

Preassembled parts

Leg(4) T2613013211KX

Adjustablefoot 19(4)TKX1130

Preassembled parts

Center leg T2613013221KX

Iron TKX1393

Adjustablefoot 19TKX1130

Screw 4*25(4) TKX1394

ameriwoodhome.com

Board Identification

NotActualSize

PartList

ameriwoodhome.com

Actual Size

HardwareBag ReferenceNumber:

22613013COM0KX

×6 ×32

6X30mm

×8

Wooddowel

TKX1006

8X30mm

×14

Wooddowel

TKX1005

2×8

Bolt

TKX1288

1/4"X50mm

4X38mm

Screw

TKX1409

×29

3.5X25 mm

Screw

TKX1155

4X14mm

×12

Screw

TKX1374 Screw

TKX1018

3.5X12 mm

×1 ×10

912

Screw

TKX1039

×1

Screw

TKX1037

×30

Screw

TKX1175 Screwbolt

TKX1386

4X30mm 4X12mm 3.5X12 mm 5/32"X25 mm

×18

Cambolt

TKX1270

M6X20mm

×2

3X12mm

Screw

TKX1329

×2

1/4"X12mm

Bolt

TKX1181

PartList

NotActual Size

15X12mm

×10 ×8

15X 9mm

Camlock

TKX1010 Camlock

TKX1011

×4

Camcover

TKX1063

×4

Shelfsupport

TKX1254

×8

Washer

TKX1390 Springwasher

TKX1391 Euro hinge

TKX1084

×8

Anglecode

TKX1313

15 16 17 18

1/4"X12mm 1/4"X12mm

×8

20 ×2

35 mm

×1

Glue

TKX1014 Handle

TKX1385 Hex key

TKX1140

×1

23 ×1

25 2624 ×5

Wall bracket

TKX1026

35*50*15mm

×1

8.5 ×30mm

Wall anchor

TKX1042

×1

Stop

TKX1408

ameriwoodhome.com

STEP 1

×1

4X12mm

×6

M6X20mm

×1

35*50*15mm

1.1Attach(26) to(A)with(10) asillustrated.

1.2Attach(13) to(A)asillustrated.
