Ameriwood HOME 5758341COM Manuale utente
5758341COM
6 Drawer Dresser
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
B345758341COM0
THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT
SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
WARNING
Follow Ameriwood Home
Tube
You
Date of Purchase ___ / ___ / ___
Lot Number:
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
Assembly Difficulty Meter
Easy Tough
Contact Us!
Helpful Hints
2
ameriwoodhome.com
Do NOT return this product!
Contact our friendly customer service team first for help.
Call us!
1-800-489-3351
Monday-Friday
9am - 5pm CST
Visit ameriwoodhome.com to view the
limited warranty valid in the U.S. and Canada.
Assembly Tips
- Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Identify, sort and count the parts before attempting assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with a
R
(right) and
L
(left) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- Use all the nails provided for the back panel and spread them out equally.
- Back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
Tube
You
Tube
You
PEOPLE NEEDED FOR ASSEMBLY: 1-2
ESTIMATED ASSEMBLY TIME: 2 HOUR
3
ameriwoodhome.com
Before You Start
P
Quick
Tip
Assembly
P
P
P

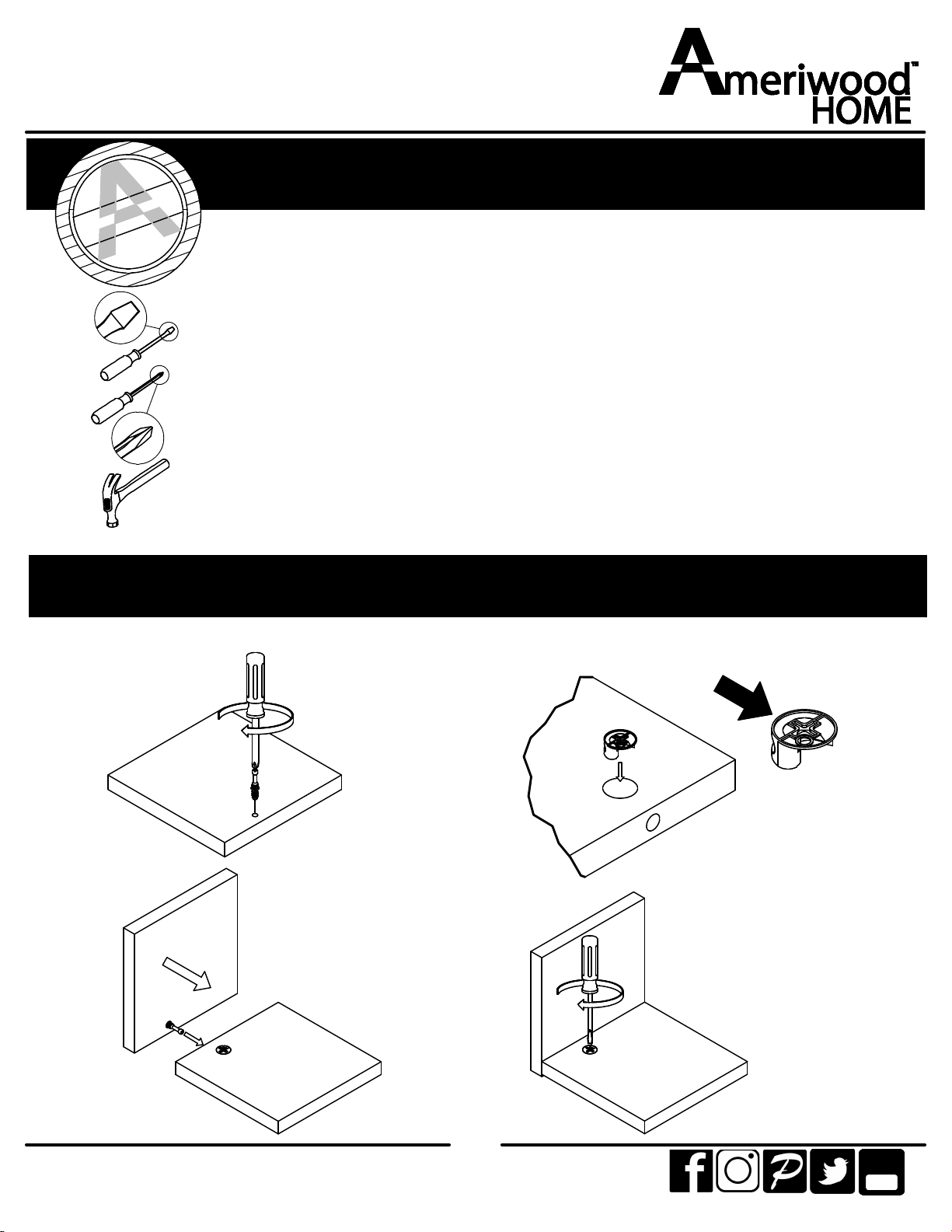

Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process.
1
3
2
4
Tube
You
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Caution: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is tight.
Failure to do so may result in stripping the screw.
P
4
ameriwoodhome.com

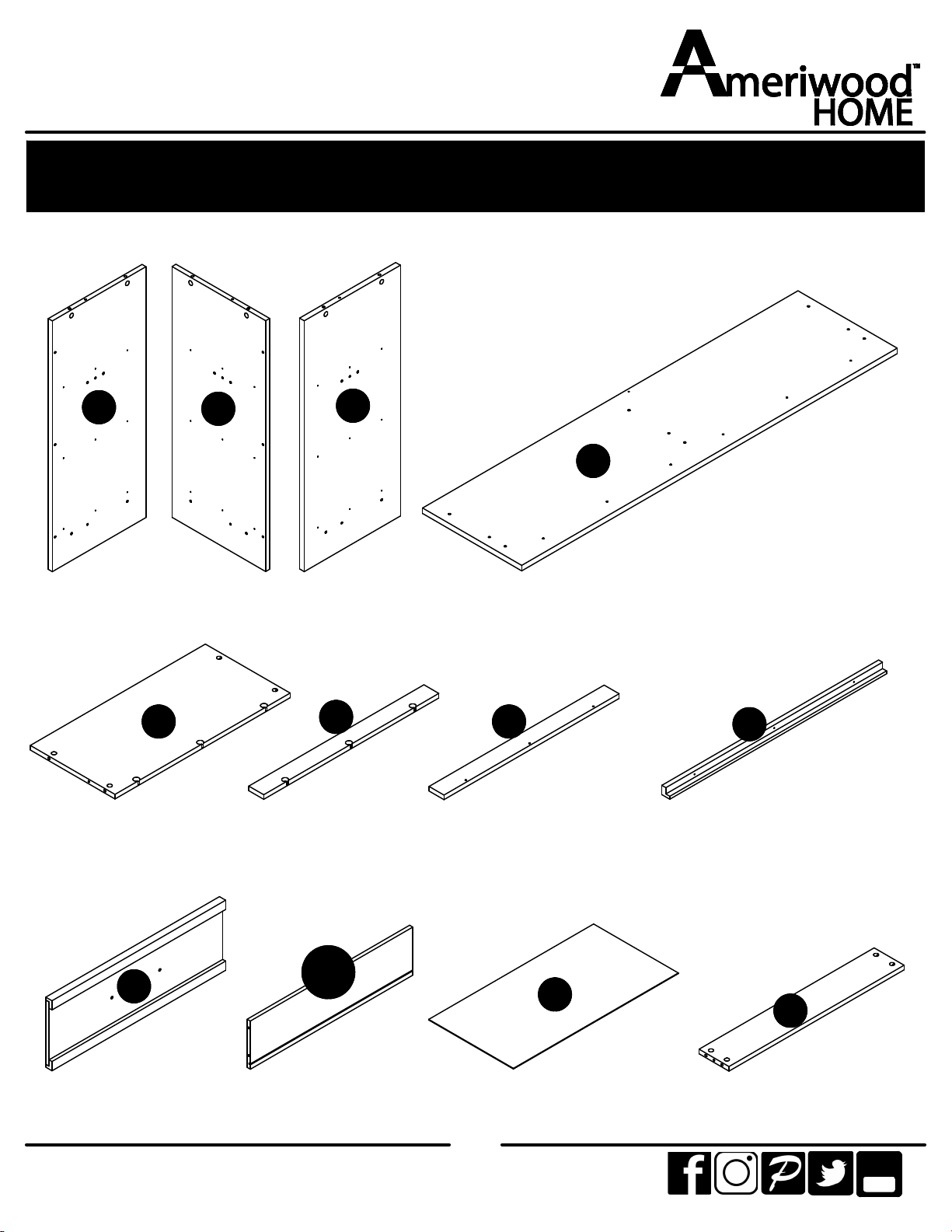

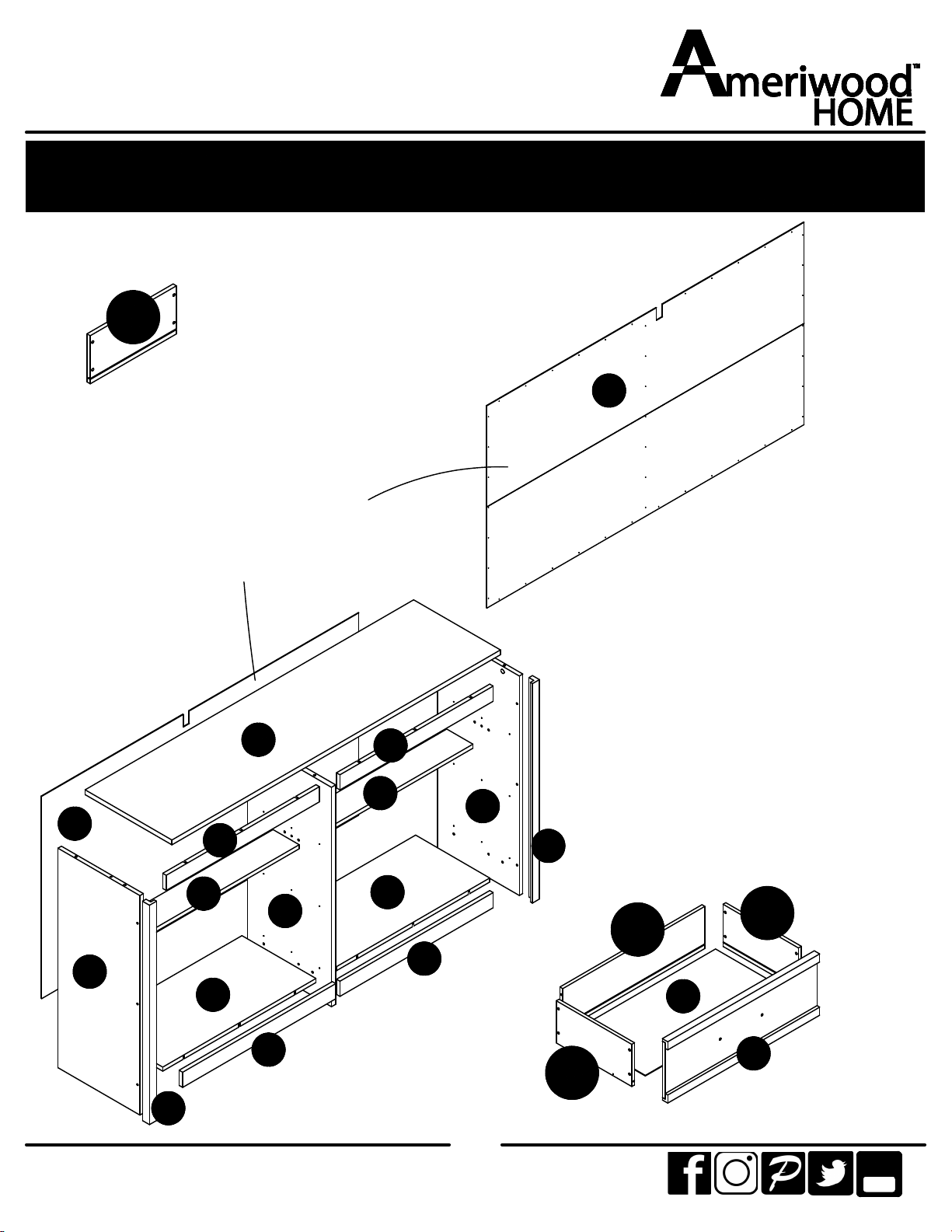

Board Identification
Not actual size
Tube
You
Left Panel
35758341010
Right Panel
35758341020
Partition
35758341030
Top
35758341040
x2
Bottom
35758341050
x2
Upper Rail
35757341060
x2
Lower Rail
35757341070
x2
Vertical Molding
35758341080
x6
Drawer Front
35757341091
x6
Drawer Back
39991167065240B
x6
Drawer Bottom
35757331110
x2
Support
35758000120
ABC
D
EFGH
I
KL
DWR
BACK
5
ameriwoodhome.com
Board Identification
Not actual size
Tube
You
x12
Drawer Side
39991167346200C
Back Panel
K575800000
S
This piece is paperboard
construction. It is not made
from wood, but is required for
the assembly of your unit.
S
A
B
C
D
E
E
F
F
G
G
H
H
I
K
L
L
DWR
SIDE
DWR
BACK
DWR
SIDE
DWR
SIDE
6
ameriwoodhome.com
Part List
Actual Size
Tube
You
Not Actual Size
1
23
456
710
11
9
13a
13b
13c
13d 14b
14a 14c
14d
15
16
(x22)
#A22620
cam lock
(x22)
#A22610
cam bolt
(x12)
#A22920
connector
(x12)
#A22910
connector bolt
(x11)
#A21660
wood dowel
(x48)
#A12120
7/16" pan head
(x60)
#A11080
7/16" flat head
(x24)
#A21970
drive fastener
(x6)
#A12955
1-1/8" flat head
(x12)
#A17100
7/16" bolt
(x44)
#A21110
nail
Left Cabinet Member
Right Cabinet Member
Left Drawer Member
Right Drawer Member
(x6)
#A56770
Drawer Slide Kit
(x1)
#A84050
Safety Bracket Kit
(x12)
#A54520
Drawer Bracket
(x6)
#A50515
Handle
8
(x2 sheets)
#J21341
Paste-ons
17
7
ameriwoodhome.com

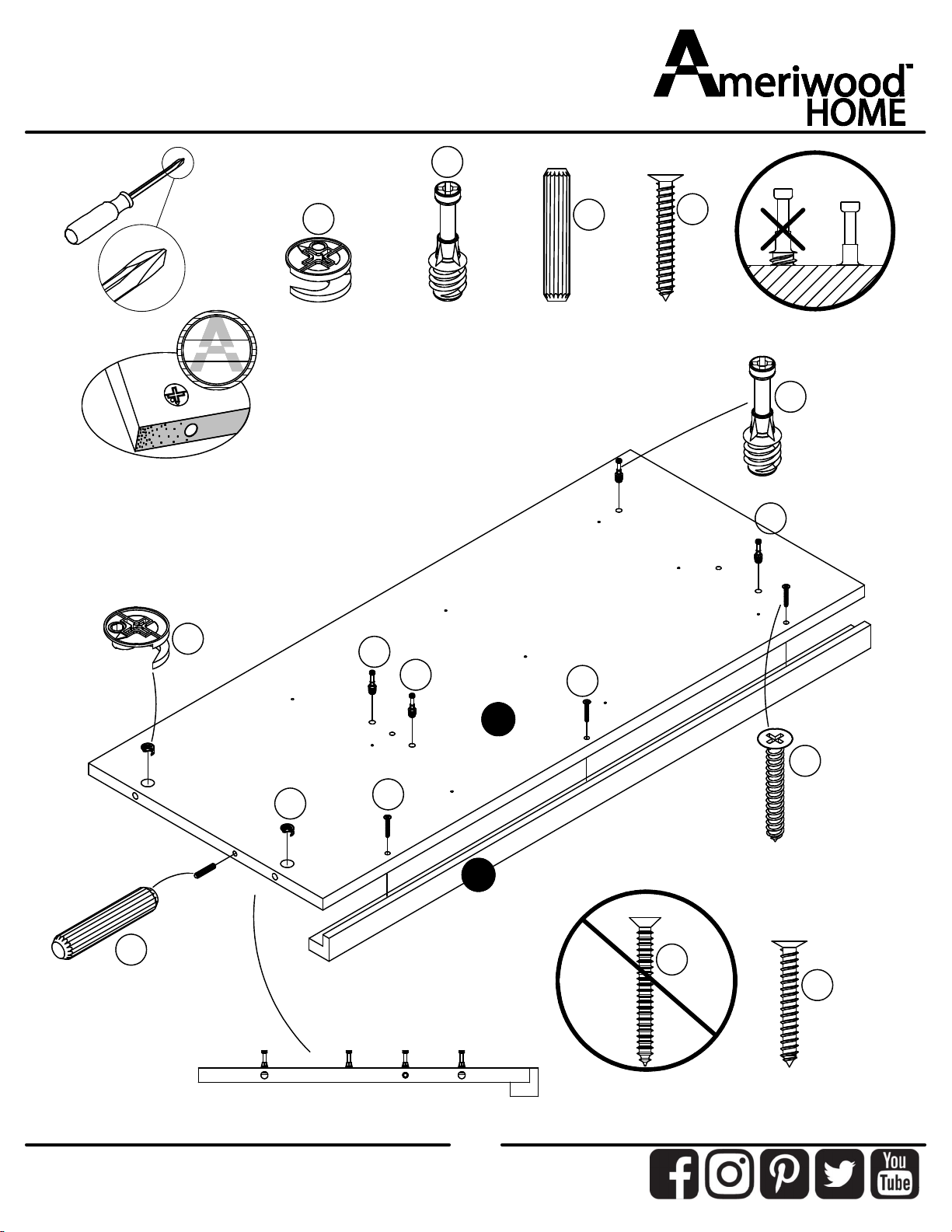

STEP1
1
2
59
2
9
5
(x2)
#A22620
(x4)
#A22510
(x1)
#A21660
(x3)
#A12955
Attach all hardware as shown. Using three screws
(9), attach the vertical molding (H) to the left panel
(A) as shown. Please note, there are three pilot
holes in the vertical molding (H) for
attachment.
end view
1
1
2
2
2
9
9
A
H
8
(x20)
#A11600
1-1/4" flat head
(x8)
#A12950
1-1/8" flat head
Do not get screws #8 & #9 mixed up. You
will use the shorter of the two in this step.
9
Proper orientation of CAM LOCK
Tip
Assembly
Quick
8
ameriwoodhome.com

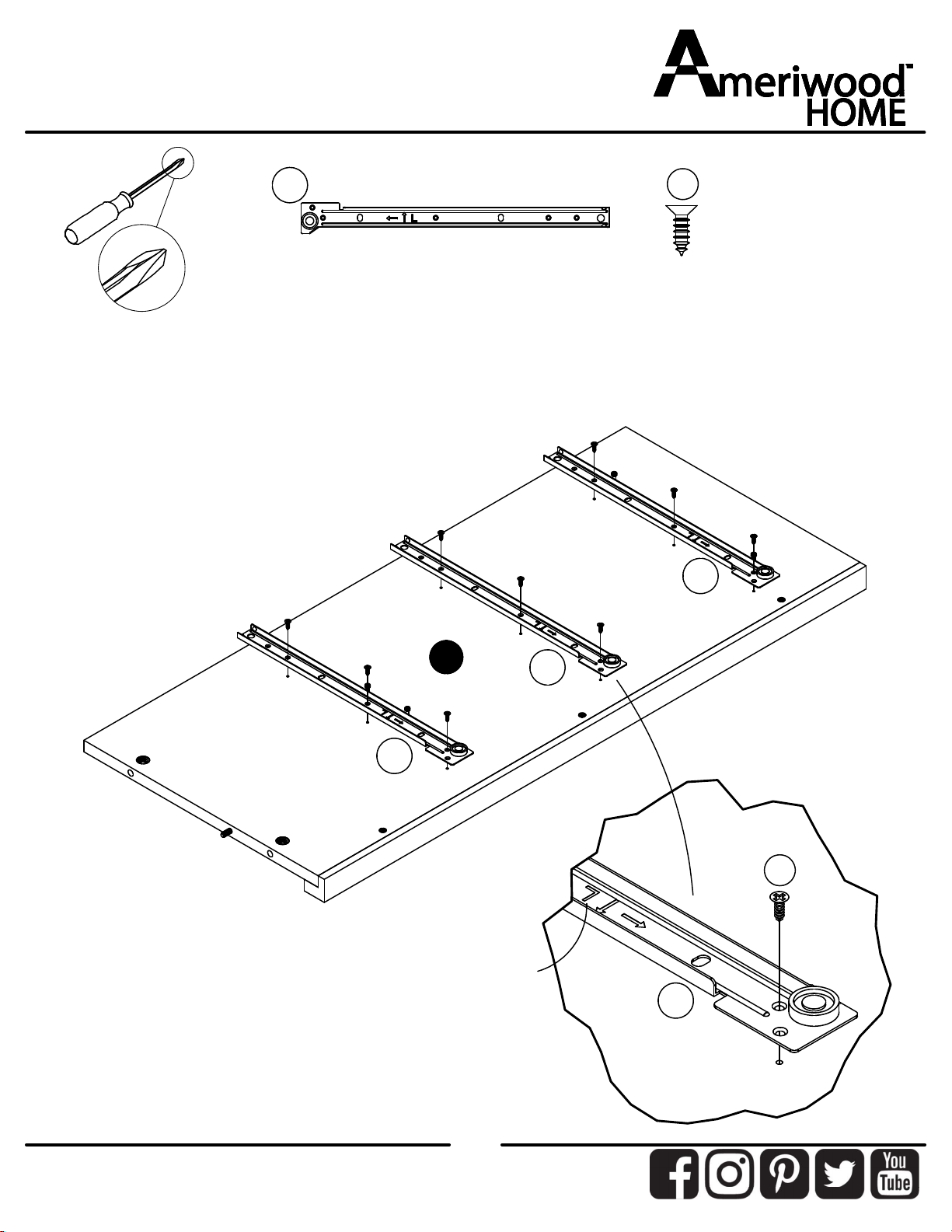

STEP2
7
(x3)
#A56770
Attached three left cabinet members (13a) to the left panel (A) with screws (7) as shown.
(x9)
#A11080
Marked with a "L".
Left Cabinet Member
13a
13a
13a
13a
A
13a
7
9
ameriwoodhome.com
STEP3
1
2
59
9
2
5
Attach all hardware as shown. Using three screws (9), attach the
vertical molding (H) to the right panel (B) as shown. Please note, there
are three pilot holes in the vertical molding (H) for attachment.
(x2)
#A22620
(x4)
#A22610
(x1)
#A21660
(x3)
#A12955
end view
1
1
2
22
9
9
B
H
8
(x20)
#A11600
1-1/4" flat head
(x8)
#A12950
1-1/8" flat head
Do not get screws #8 & #9 mixed
up. You will use the shorter of the
two in this step.
9
Proper orientation of CAM LOCK
Tip
Assembly
Quick
10
ameriwoodhome.com
STEP4
13b
7
Right Cabinet Member
(x3)
#A56770
Attach three right cabinet members (13b) to the right panel (B) with screws (7) as shown.
(x9)
#A11080
Marked with a "R".
13b
13b
13b
13b
7
B
