Ameriwood HOME FRANKLIN 7557815COM Manuale utente

B347557815COM00

Do Not Return This Product!

Contact our customer service team for help ﬁrst

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

–Unit can •p over causing severe injury or death.

–Anchor unit to stud in wall (if instructed to)

–Do not allow children climb on unit

–Put heavy items on lower shelves or drawers

FRANKLIN WALL CABINET

7557815COM

Date of Purchase: ____/____/_____

Lot Number:

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Easy Tough

Assembly Diﬃculty Meter

Follow Ameriwood Home

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team ﬁrst for help

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Visit ameriwoodhome.com

Assembly Tips

ameriwoodhome.com

- Open your item in the area you plan to keep it for less heavy li!ing

- Iden"fy, sort and count the parts before a#emp"ng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R (right) and L (le!) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back Panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

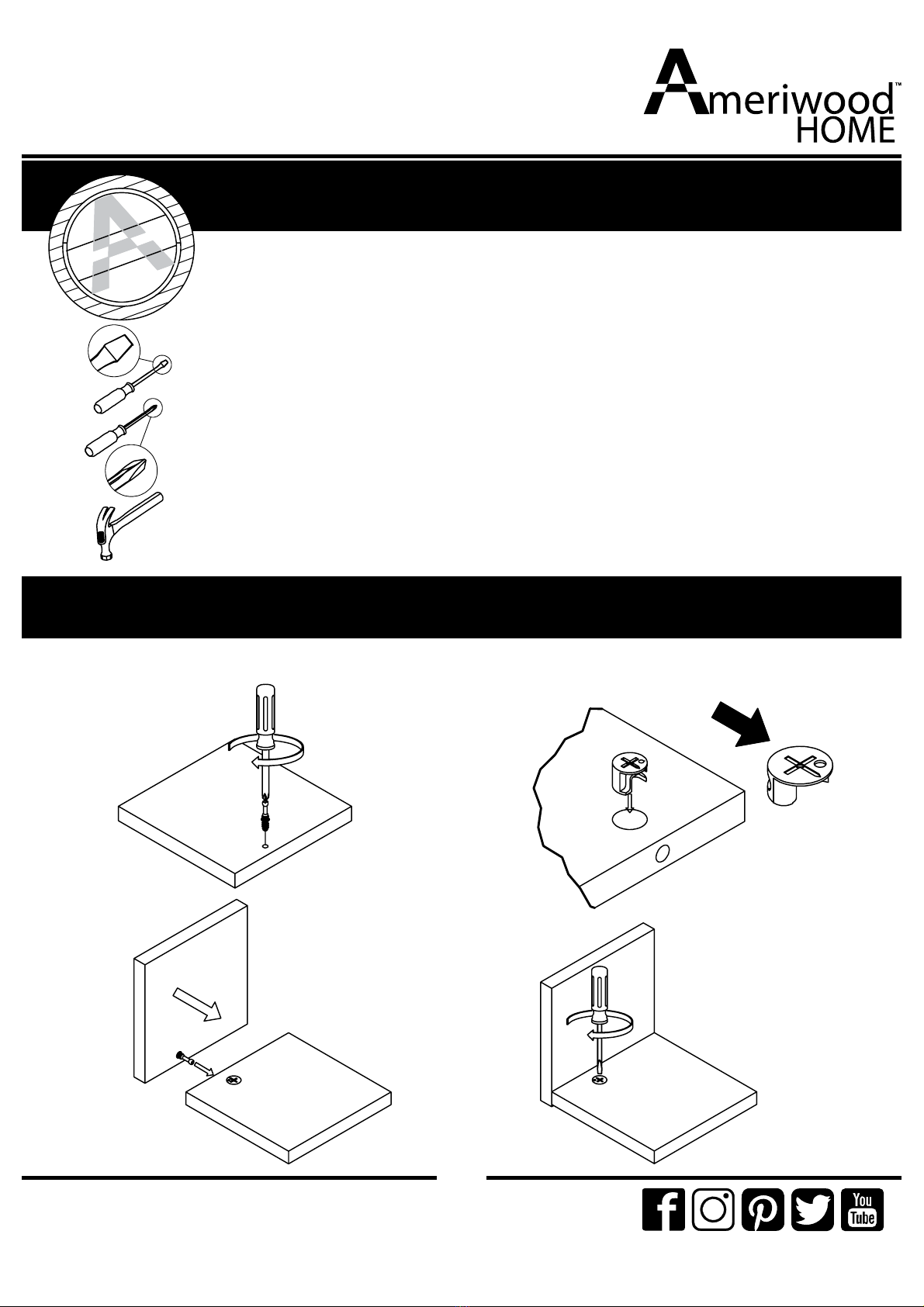

Before You Start

Cam Lock Fastening System

ameriwoodhome.com

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Cau!on: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is !ght.

Failure to do so may result in stripping the screw.

Quick

Tip

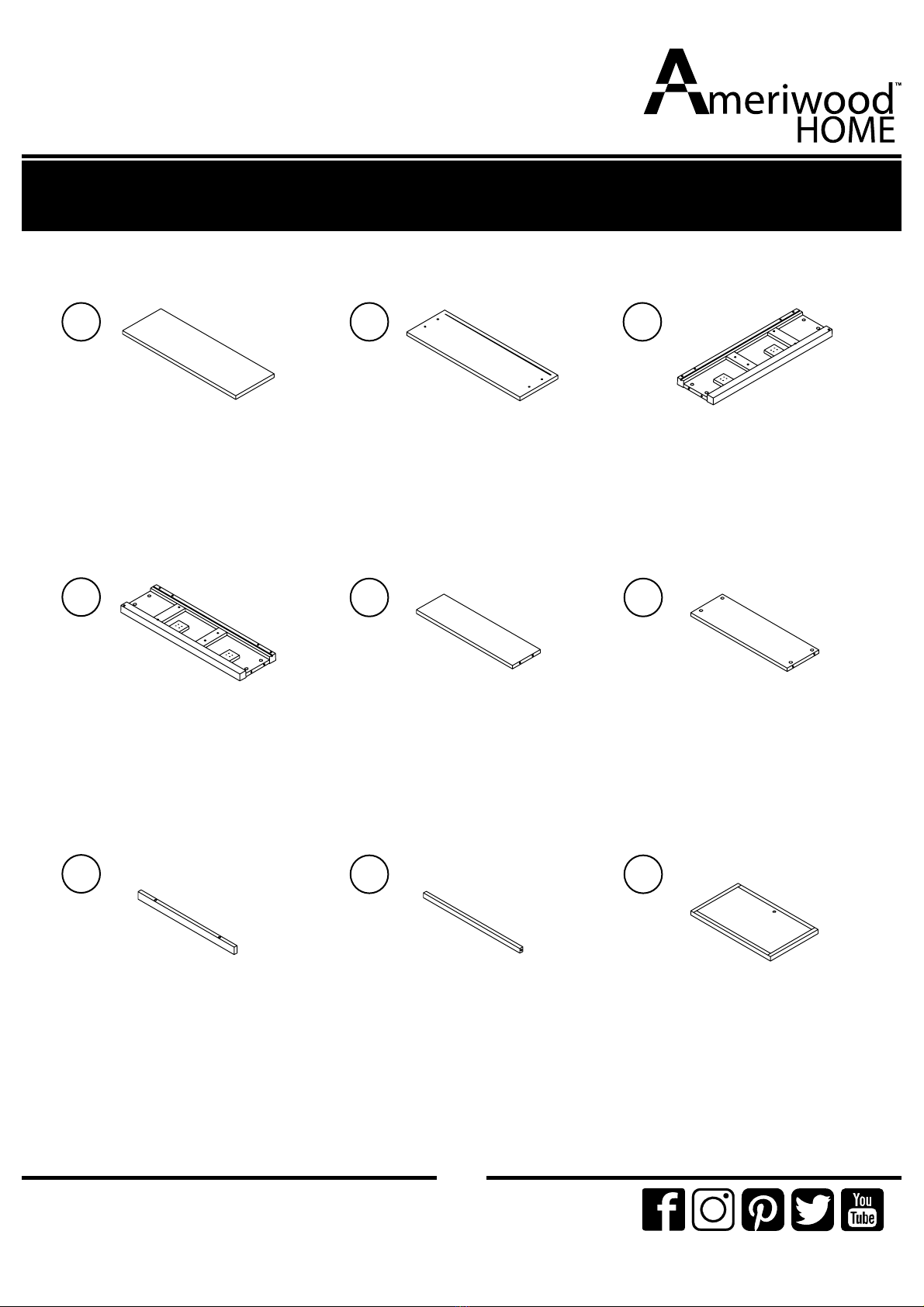

Assembly

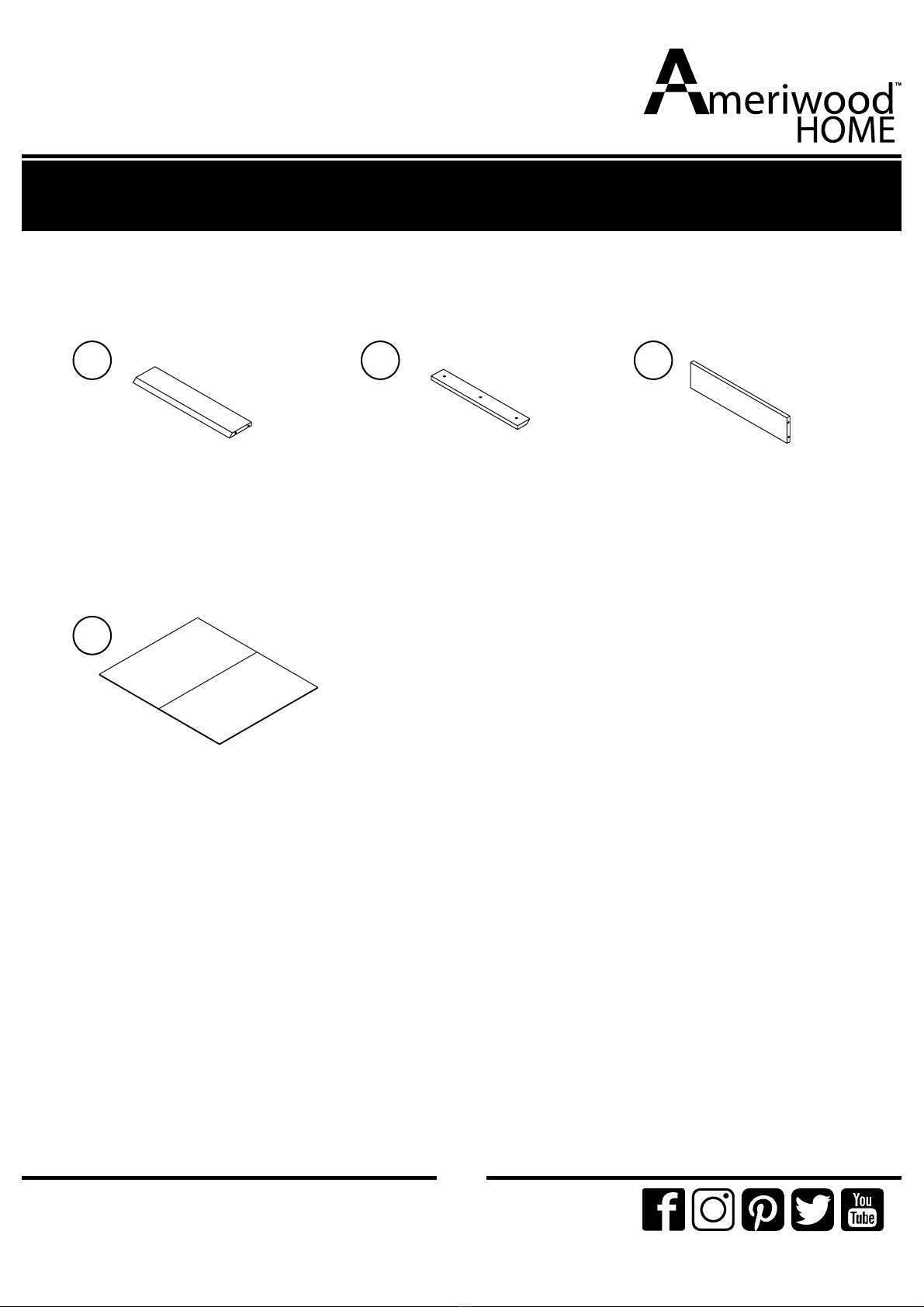

Board Iden•ﬁca•on

Not actual size

ameriwoodhome.com

T7557815010

TOP PANEL

T7557815020

BOTTOM PANEL

T7557815030

LEFT SIDE PANEL

T7557815040

RIGHT SIDE PANEL

T7557815070

UPPER FRONT RAIL

T7557815050

CENTER FIXED SHELF

T7557815080

LOWER FRONT RAIL

T7557815060

FIXED SHELF

T7557815090

DOOR

2 3

Board Iden•ﬁca•on

Not actual size

ameriwoodhome.com

T7557815100

CABINET HANGER

T7557815110

WALL HANGER

T7557815120

LOWER RAIL

T7557815130

BACK PANEL

10 11 12

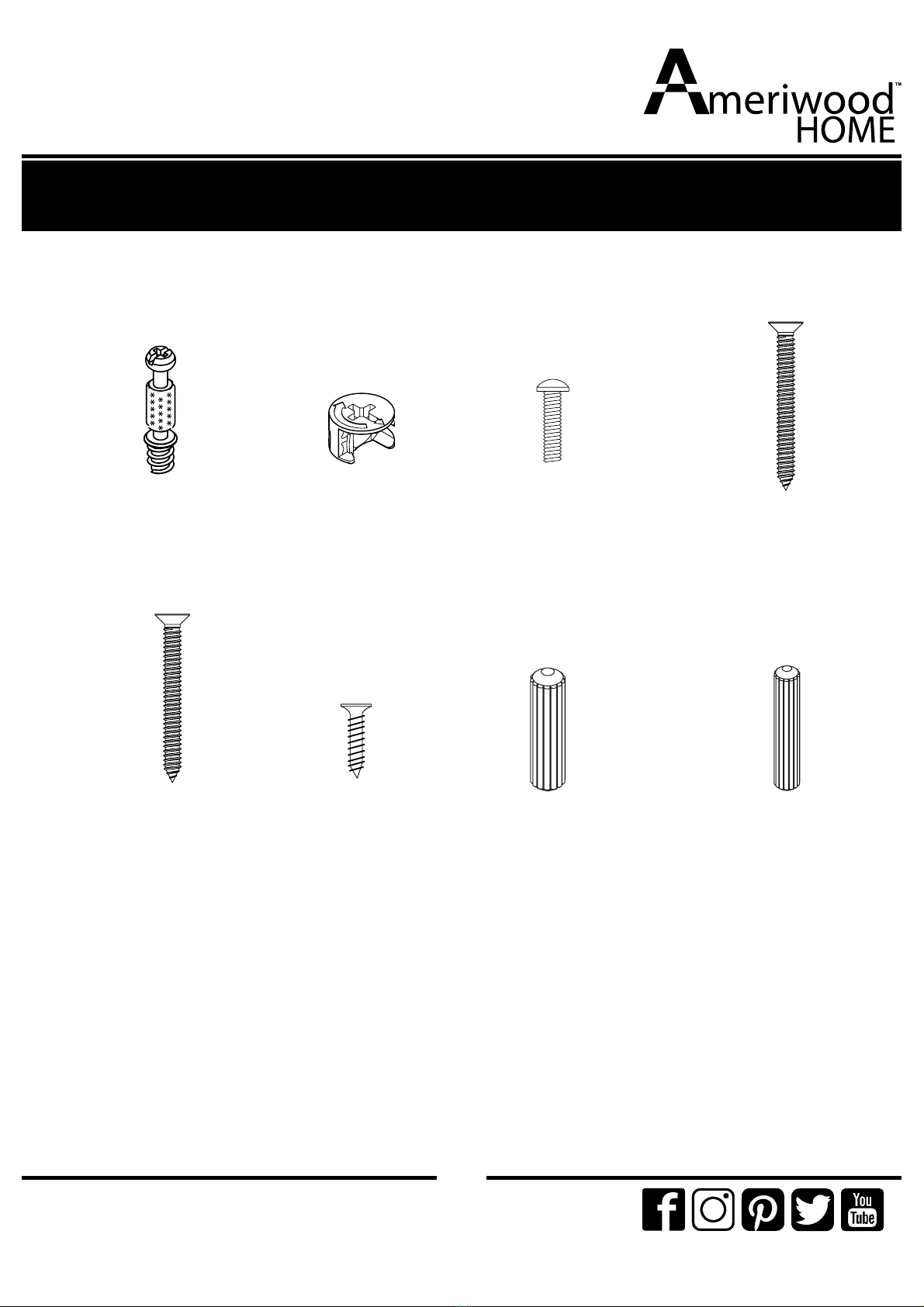

Part List

Actual Size

ameriwoodhome.com

x12

TUD0001

Cam Bolt

x12

TUD0002

Cam Lock

15-12

Hardware Bag Reference Number:

27557815COM0

x12

TUD0004

DOWEL M8 X 25

TUD0057

PH M4 X 16

x24

TUD0008

CBS 3.5 x 16

TUD0063

Wall Screw

#8 x 2”

TUD0009

CBS 4 x 38

TUD0005

DOWEL M6 X 25

ameriwoodhome.com

* raw edges are shaded

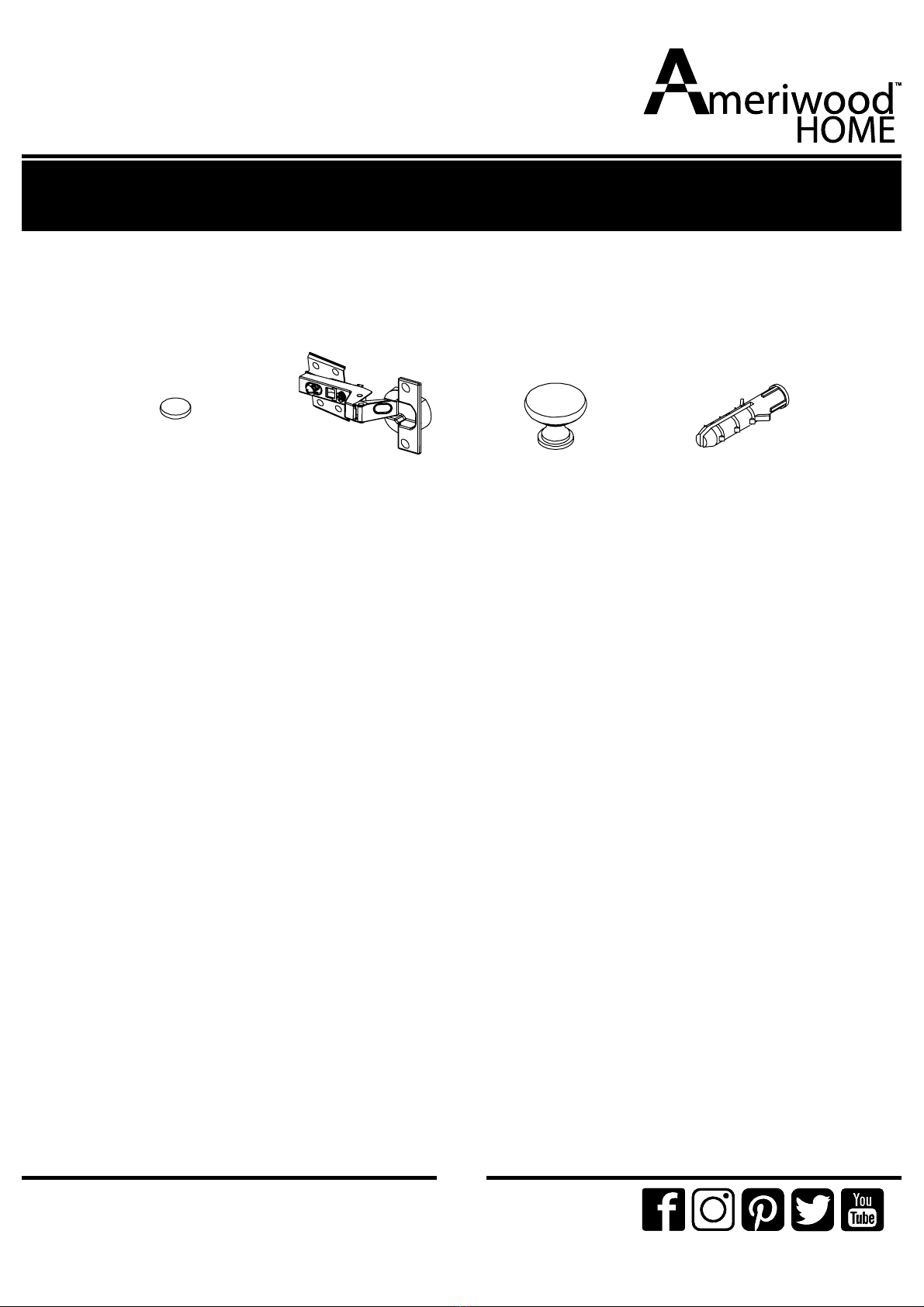

Part List

Not Actual Size

ameriwoodhome.com

Hardware Bag Reference Number:

27557815COM0

TUD0061

RUBBER PAD

TUD0037

HINGE Ø35

TUD0055

WALL ANCHOR

TUD0056

SMALL SILVER KNOB

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

* raw edges are shaded

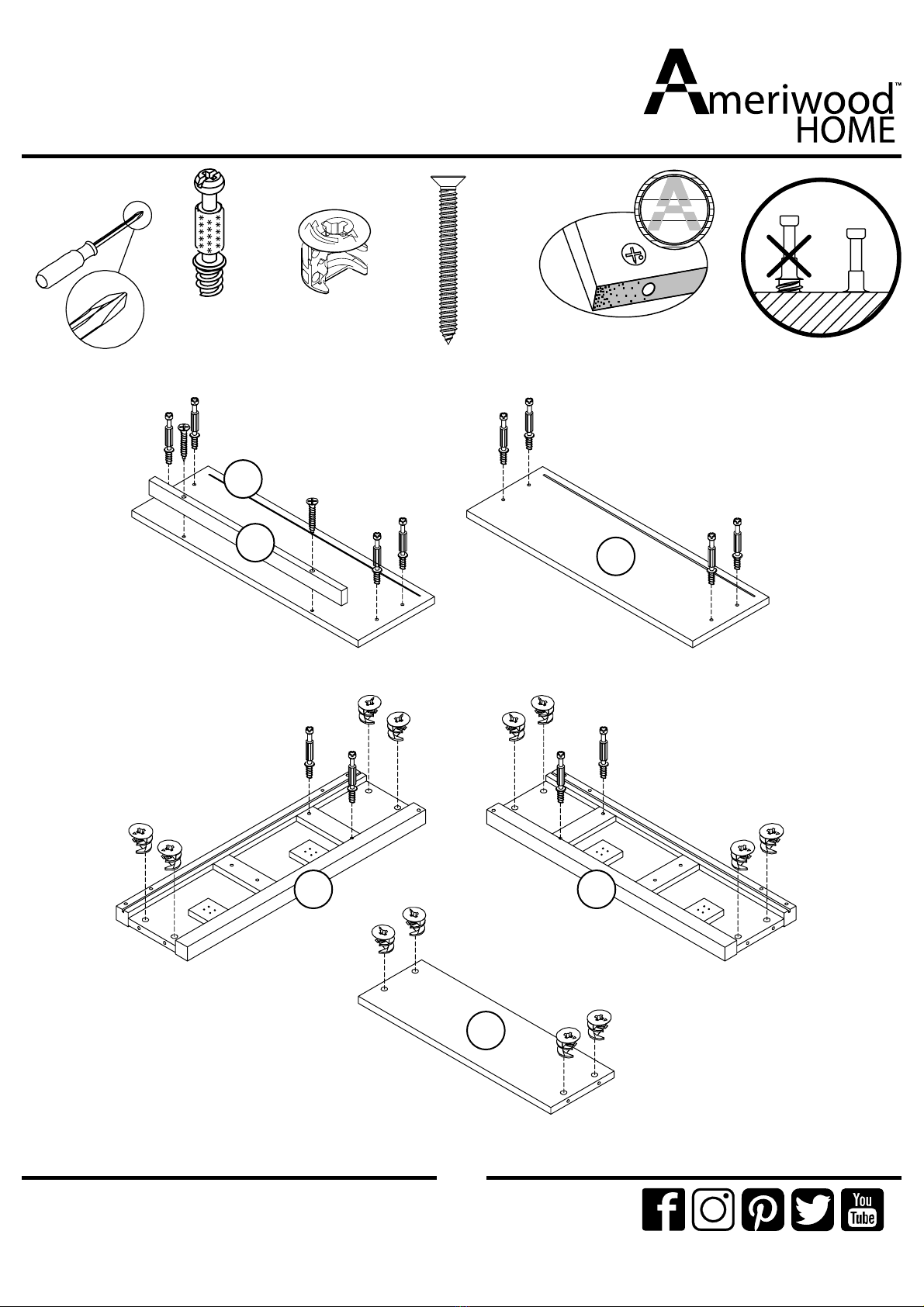

Step 1

x12

TUD0002

x12

TUD0001

3 4

TUD0009

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

* raw edges are shaded

TOP VIEW

UP SIDE

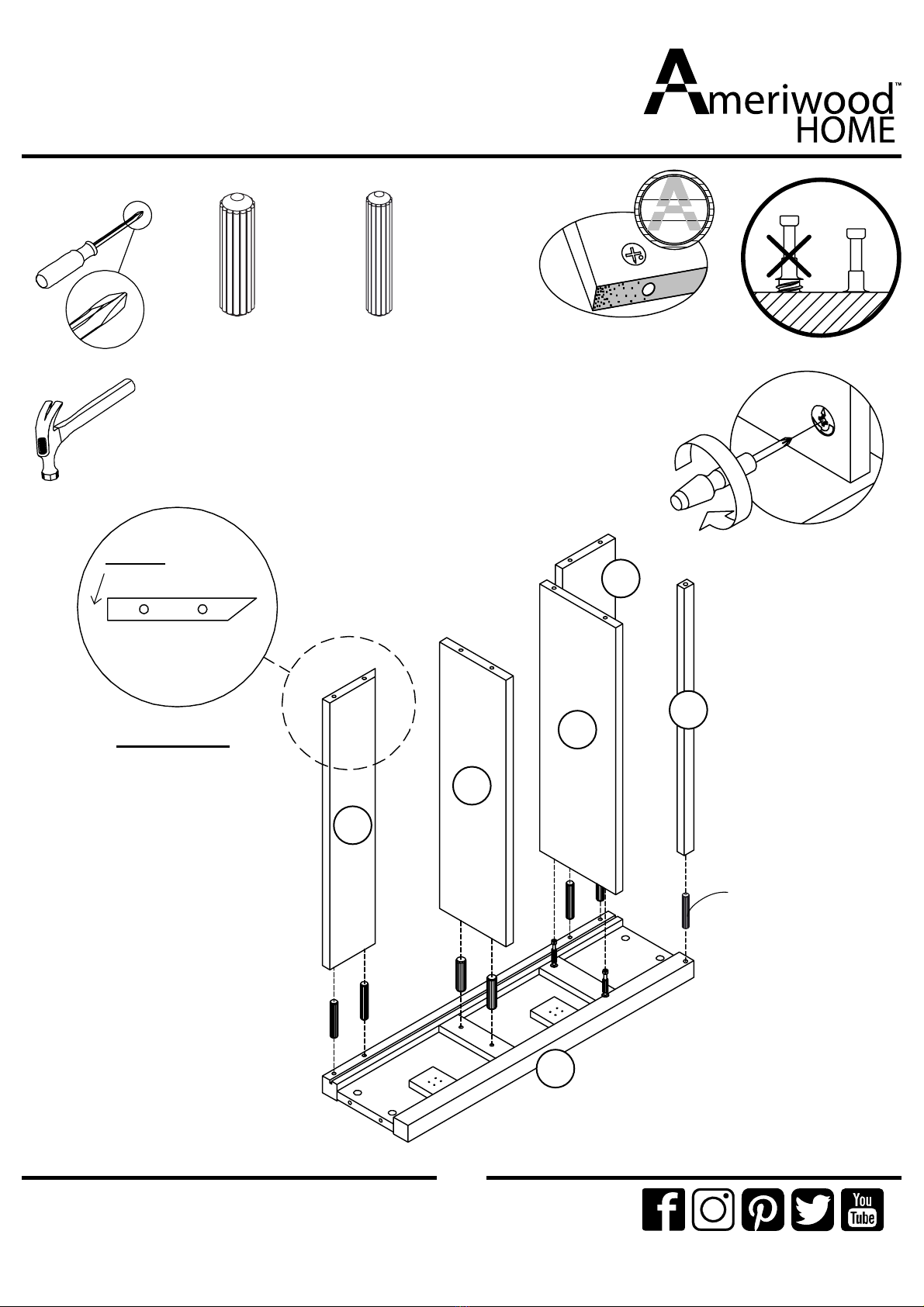

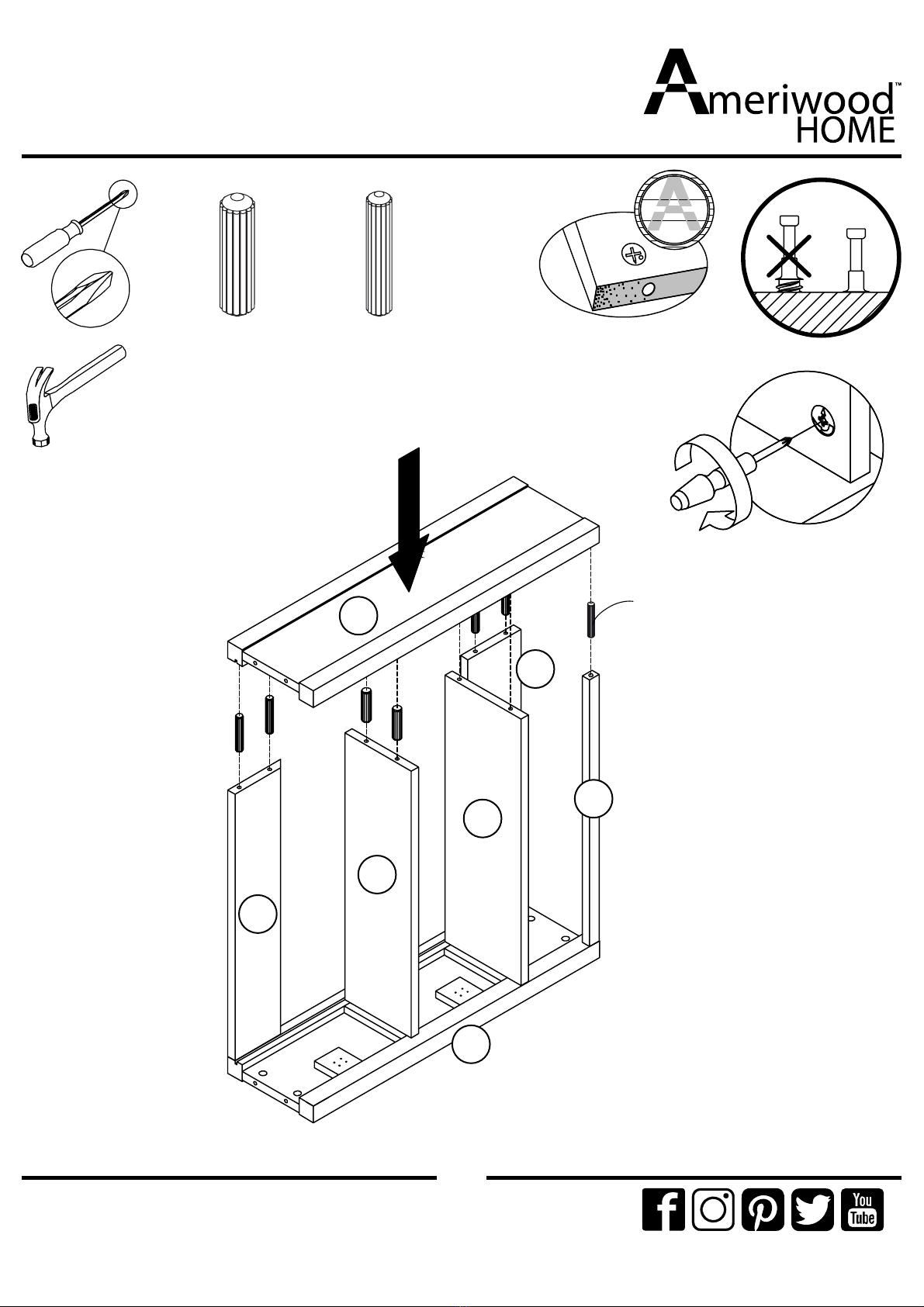

Step 2

TUD0004

TUD0005

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

* raw edges are shaded

Step 3

TUD0004

TUD0005
