Ameriwood HOME Colebrook 5555555COM Manuale utente

B345966500COM00

WARNING

ameriwoodhome.com

Follow Ameriwood Home

Colebrook Queen Headboard

5966500COM

Keep this Assembly Manual for future reference

Unit can p over causing severe injury or death.

- Anchor unit to stud in wall

- Do Not allow children to climb on unit

- Put heavy items on lower shelves or drawers

- Two people required for assembly

Warning

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team rst for help

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

ameriwoodhome.com

- Open your item in the area you plan to keep it for less heavy liing

- Idenfy, sort and count the parts before aempng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R (right) and L (le) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back Panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

Board Identfcaton

Not actual size

5966500COM

Colebrook Queen Headboard

ameriwoodhome.com

T5966500010

SIDE POST LEFT

T5966500020

SIDE POST RIGHT

T5966500030

TOP

T5966500040

BED SUPPORT

T5966500050

VERTICAL PANEL

T5966500060

UP RAIL

T5966500070

SLAT PANEL

5 6

2 3

Part List

Actual Size

Not Actual Size

5966500COM

Colebrook Queen Headboard

ameriwoodhome.com

TTA0001

Cam Bolt

TTA0003

Cam Lock

15-11.5

x24

TTA0010

CSK 4 x 32

x12

TTA0009

CSK 4 x 25

TTA0029

ALLEN KEY M4

TTA0034

SCREW JCBC

M6 X 70

TTA0035

HEX NUT M6

TTA0037

WASHER M6 X 20

Before You Start

Cam Lock Fastening System

5966500COM

Colebrook Queen Headboard

ameriwoodhome.com

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

Quick

Tip

Assembly

5966500COM

Colebrook Queen Headboard

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Step 1

TTA0001

5966500COM

Colebrook Queen Headboard

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

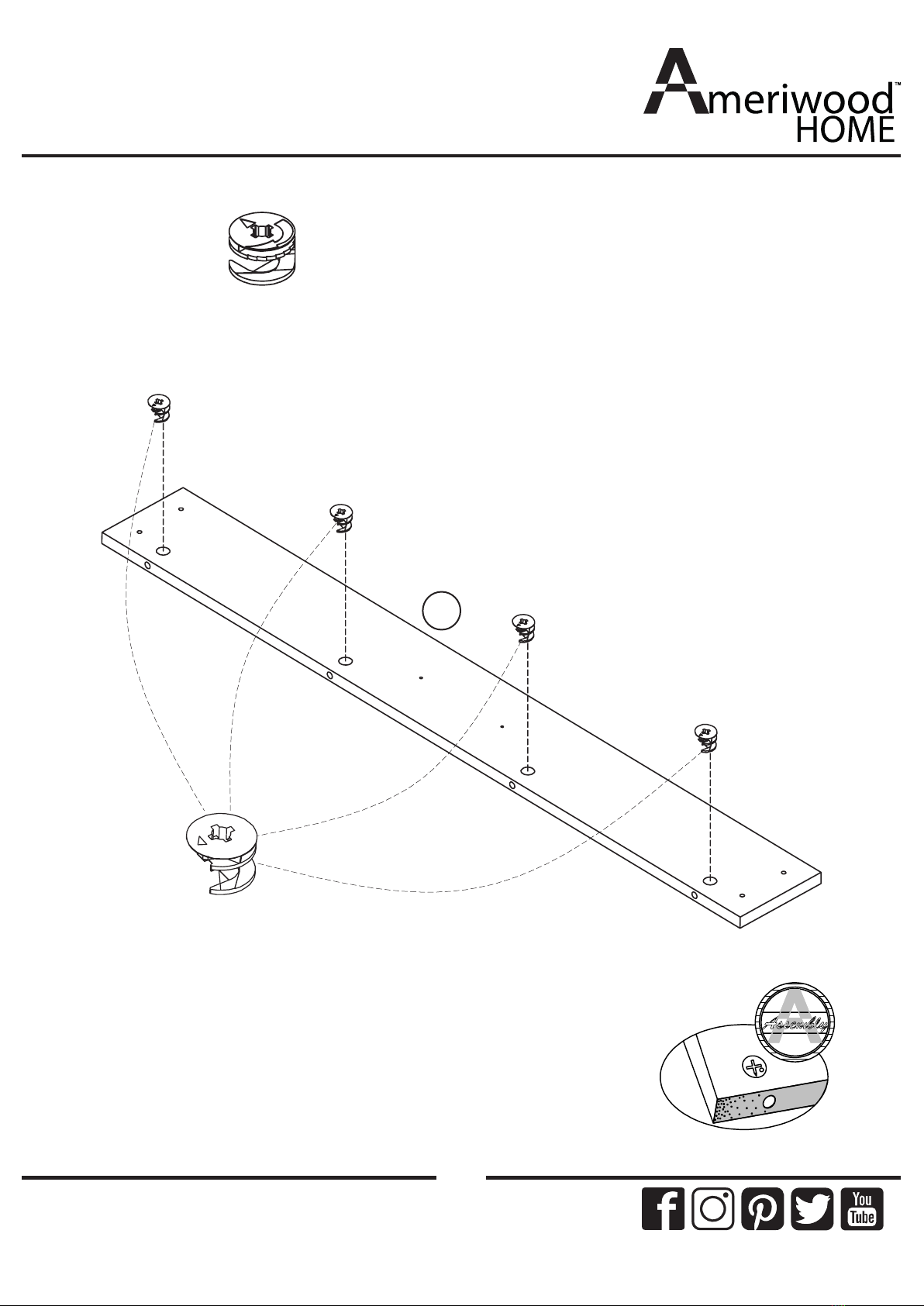

Step 2

TTA0003

5966500COM

Colebrook Queen Headboard

ameriwoodhome.com

Step 3

TTA0010

5966500COM

Colebrook Queen Headboard

ameriwoodhome.com

Step 4

TTA0010

5966500COM

Colebrook Queen Headboard

ameriwoodhome.com

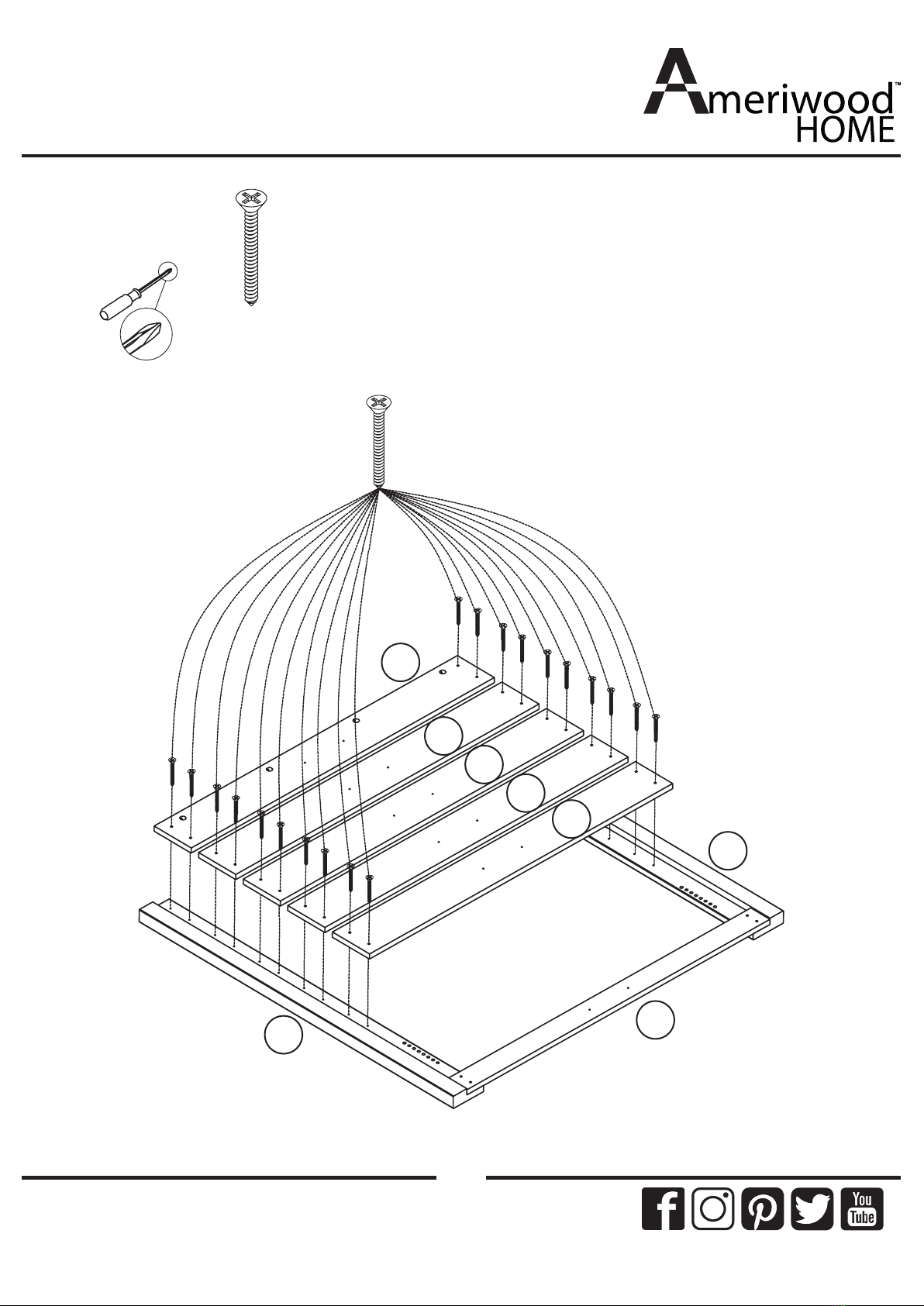

Step 5

x20

TTA0010
