WIDE NIGHTSTAND

B347965850COM00MP

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help rst.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Di culty Meter

Easy Tough

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from g furniture.

WARNING: Manufacturer assumes no liability

for improper on or excessive loads

placed on screws or bracket. This wall anchor

is not a subs tute for proper adult supervision.

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team t for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 45 MINUTES

- Compression dowels are lightly tapped in with a hammer.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

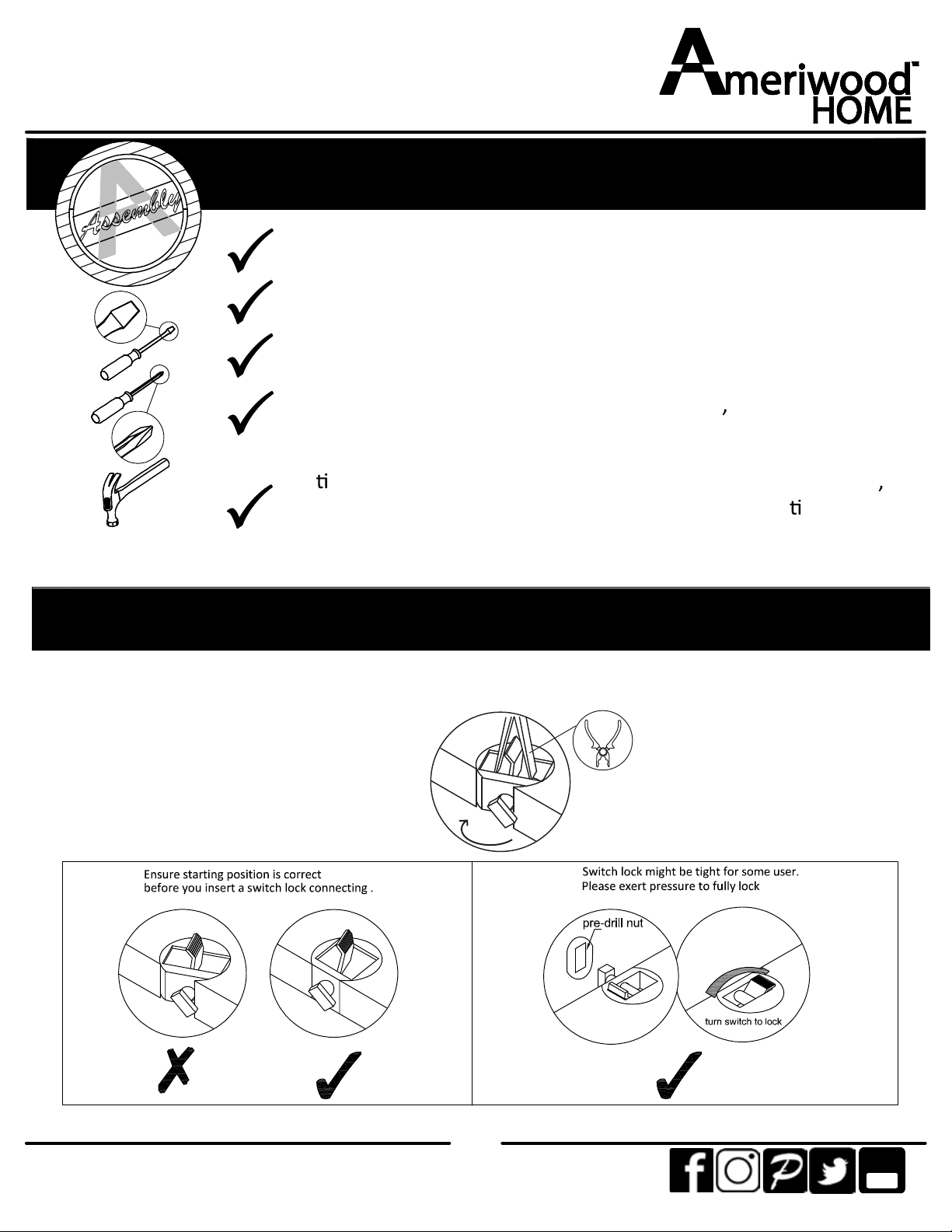

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver #2 Phillips Head

Screwdriver, Plier and Hammer.

Cau on: If using a power drill or power screwdriver for screwing

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

** If the pin position is oﬀset, use pliers

to hold the ﬂip switch in the upright

position and carefully turn the switchlock

to the center of the opening.

fit to 90°

adjust to

center

ameriwoodhome.com

Not actual size

TOP PANEL

T7965850010

PARTITION

T7965850050

RIGHT PANEL

T7965850040

(x2)

DRAWER BOTTOM

T7965850110

(x2)

DRAWER BACK

T7965850120

BACK PANEL

T7965850130

(x2)

DRAWER LEFT SIDE

T7965850090

(x2)

DRAWER FRONT

T7965850080

(x2)

DRAWER RIGHT SIDE

T7965850100

BRACE

T7965850060

ADJUSTABLE SHELF

T7965850070

BOTTOM PANEL

T7965850020

LEFT PANEL

T7965850030

This part is paperboard



wood, but is required for the

assembly of unit.

ameriwoodhome.com

Not actual size

This part is paperboard



wood, but is required for the

assembly of unit.

FRONT VIEW BACK VIEW

DRAWER

ameriwoodhome.com

Part List

Hardware Bag Reference number :

27965850COM0MP

Not actual size

(x8)

TMP2531

Cam Lock Cover

(x2)

TMP5101



(x2)

TMP22620



(x14)

TMP8002

Wood Dowel

(x4)

TMP54520

Drawer Bracket

(x16)

TMP12120

PWA Screw

(x8)

TMP21970

Drive Fastener

(x5)

TMP21201

Metal Leg

(x15)

TMP22109

Leg Screw

(x28)

TMP4703

Nail

(x4)

TMP6001

Shelf Support

1413

(x1)

TMP26709

Wireless Charger

12b

12c 12d

12a

(x1set)

TMP84050

Safety Bracket Kit

10a 10b

(x4Sets)

TMP40950

T Knob Handle Set

Ø4 x 11mm

1.6 x 20mm

Ø5 x 17mm

Ø4 x 16mm

Ø15 x 10mm 6 x 30mm7 x 34mm

ameriwoodhome.com

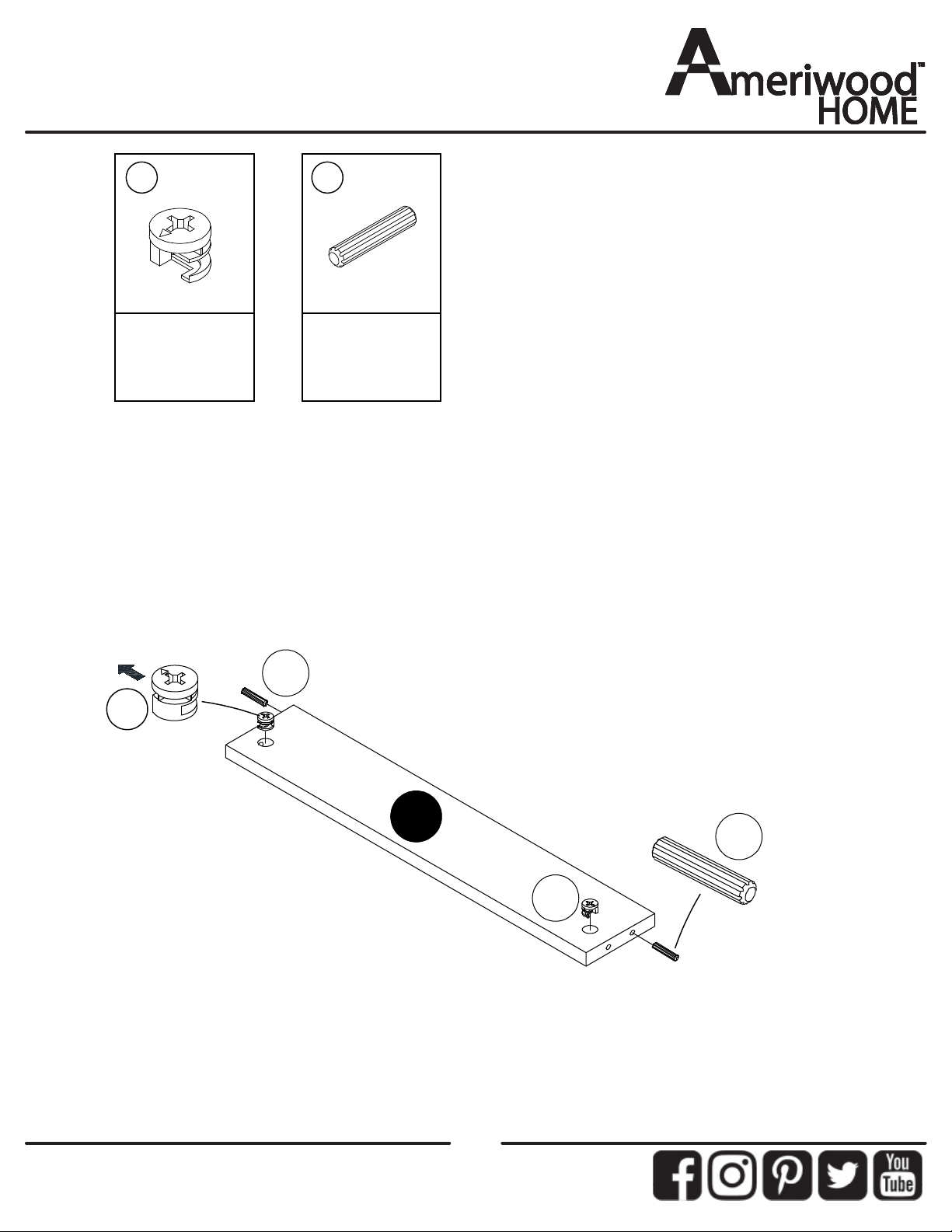

STEP 1



(x2)

TMP22620



(x2)

TMP8002

Wood Dowel

Arrow facing outward



as below shown.

ameriwoodhome.com

STEP2

(x2)

TMP5101



(x8)

TMP8002

Wood Dowel



ameriwoodhome.com

STEP3

(x4)

TMP8002

Wood Dowel

ameriwoodhome.com

STEP 4

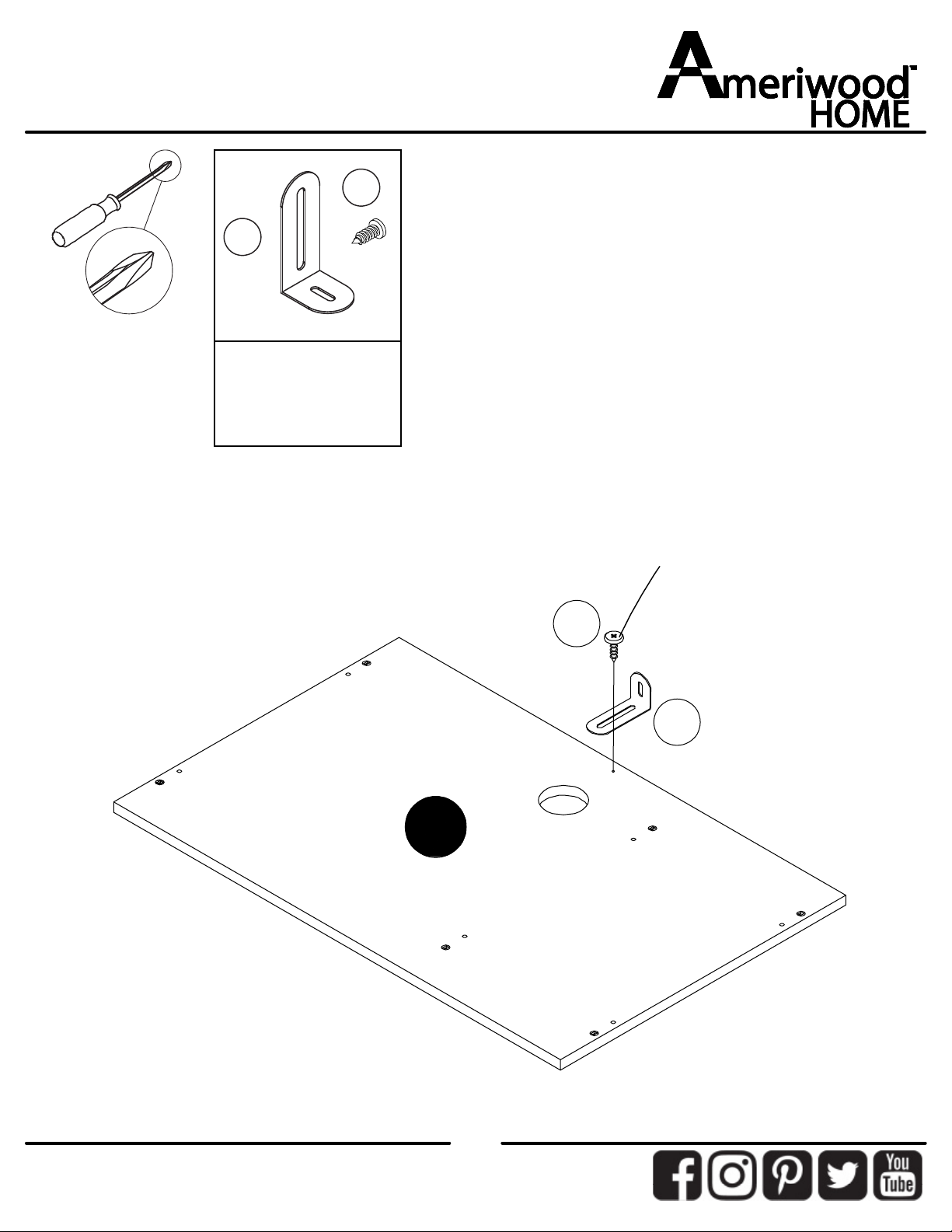

- Install Safety Bracket (12a) and (12b) to Top Panel (A) as show below.

12a

12b

**do not fully





12a

12b

(x1)

TMP84050

Safety Bracket Kit
