Ameriwood HOME Systembuild Evolution 1694015COM Manuale utente

1694015COM

3 Door Wardrobe

B341694015COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

For the latest information on SystemBuild products

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-866-452-4081 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.systembuild.com

Assembly Difficulty Meter

Easy Tough

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from tipping furniture.

WARNING: Manufacturer assumes no liability

for improper installation or excessive loads

placed on screws or bracket. This wall anchor

is not a substitute for proper adult supervision.

Helpful Hints

systembuild.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-866-452-4081

Monday-Friday

9am - 5pm CST

Visit systembuild.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

systembuild.com

Before You Start

Quick

Tip

Assembly

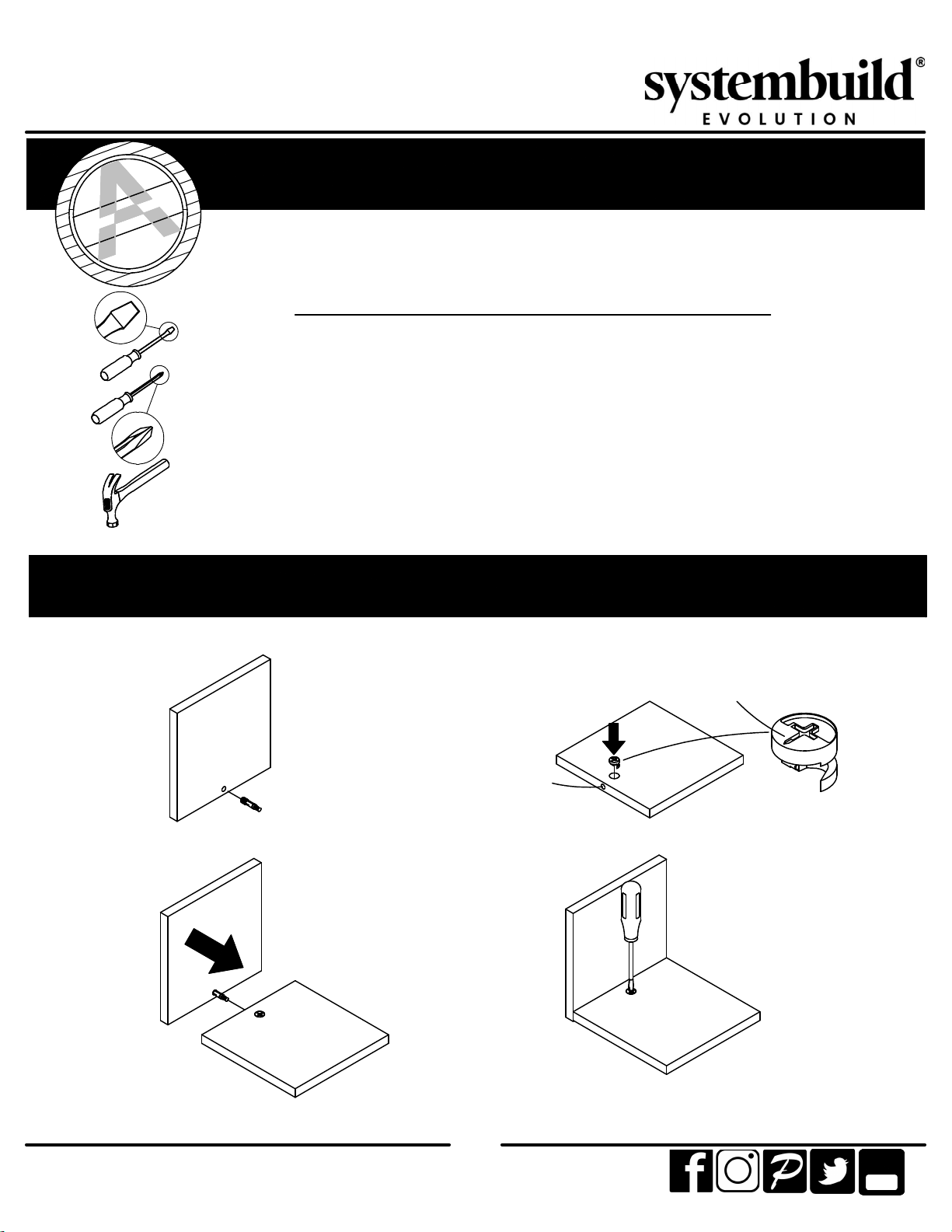

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Parts are labeled on the surface or edge of the part

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Press CAM BOLT into hole.

Press parts together so CAM BOLT inserts

into edge hole.

Using a screwdriver, turn the CAM LOCK clockwise to

lock the CAM LOCK and CAM BOLT into their holes

and fastening parts together.

Press CAM LOCK into hole.

End hole

Arrow to point towards end

hole in edge of part.

systembuild.com

Before You Start

Quick

Tip

Assembly

Tube

You

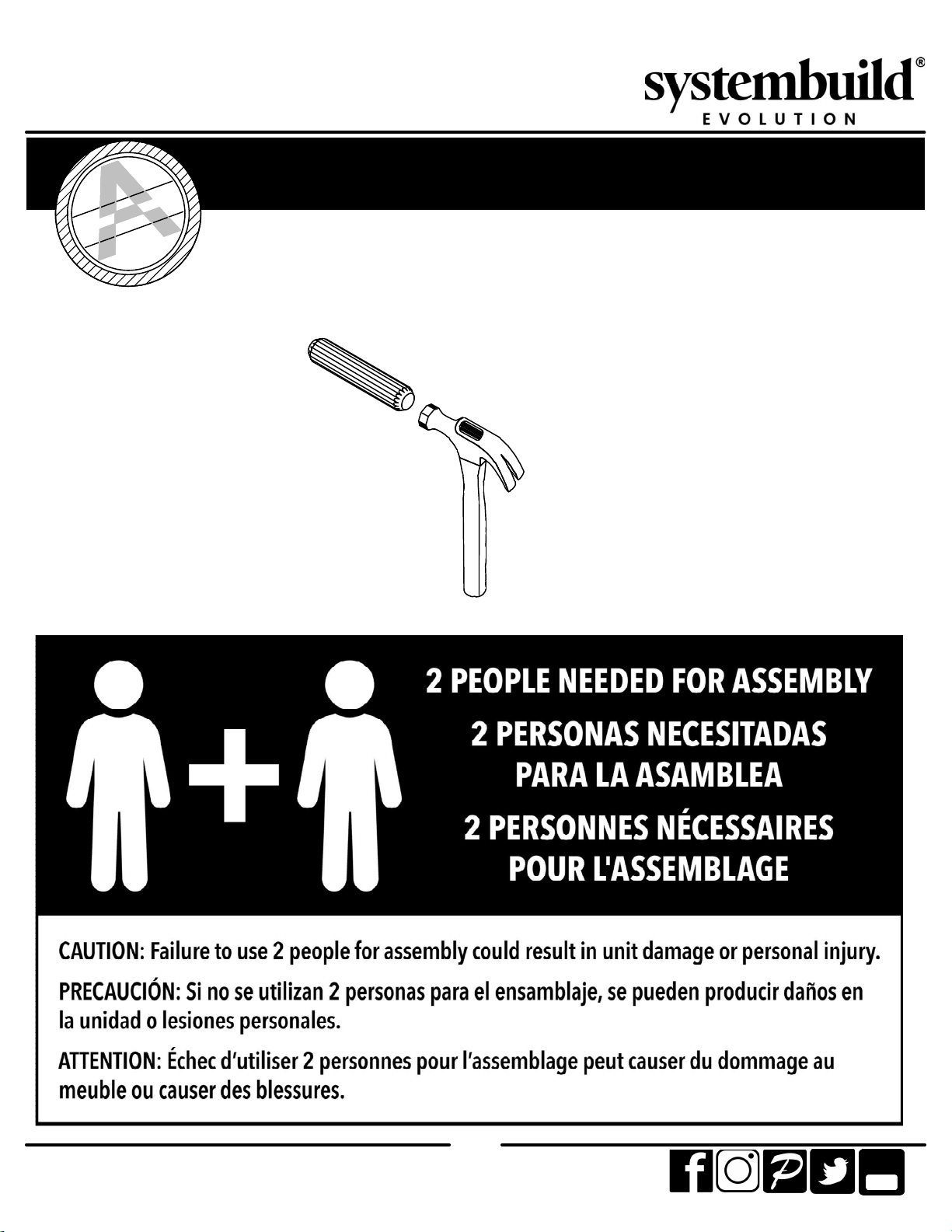

Please Note:

You may need to lightly tap the wood dowels into the holes during

your assembly process.

systembuild.com

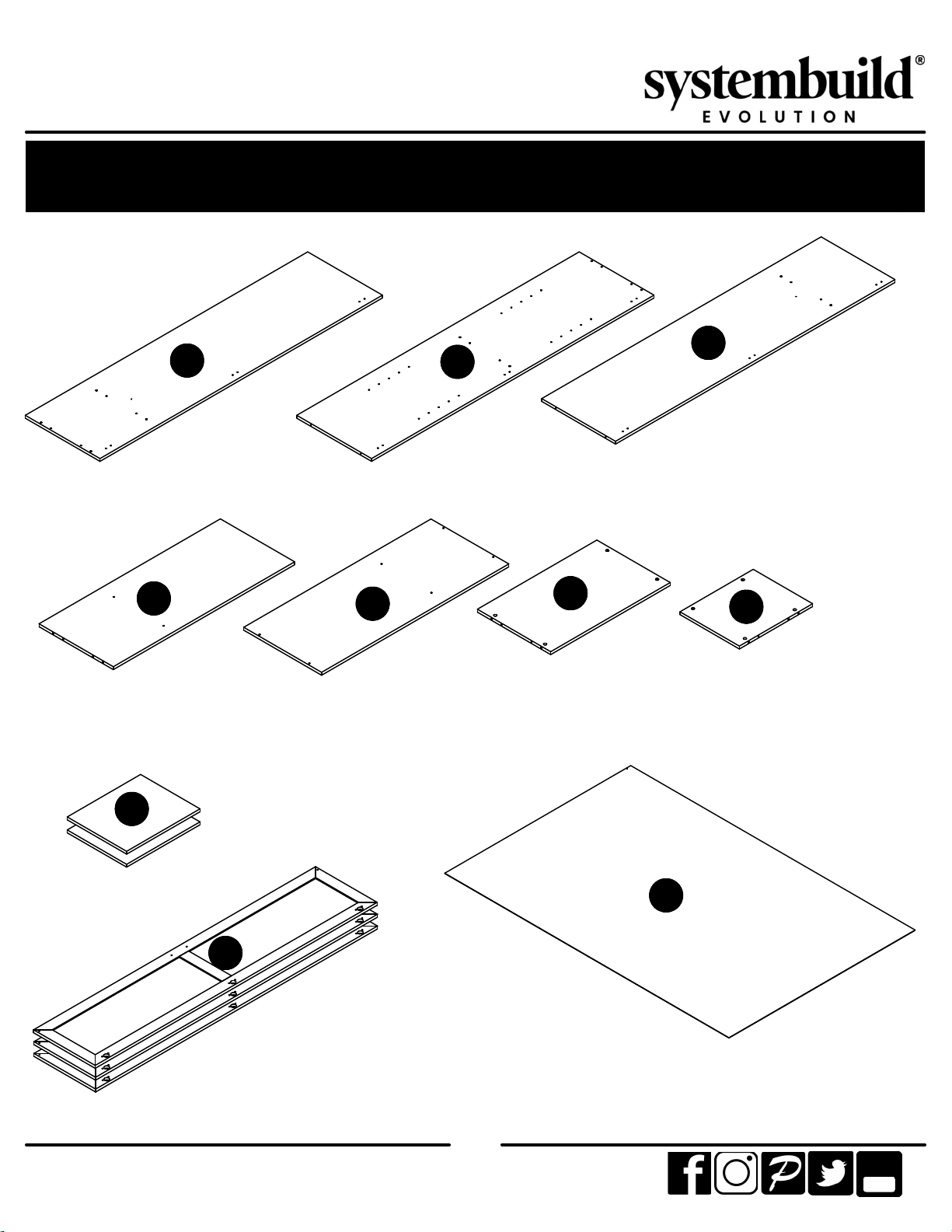

Board Identification

Not actual size

Tube

You

Left Panel

39304015010 Right Panel

39304015020

Partition

39304015030

Top

39304015040 Bottom

39304015050

ABC

DEFG

Left Shelf

39304015060

Door (x3)

31649015090

Right Shelf

39304015070

Adjustable Shelf (x2)

39304015080

Back Panel

K930401500

This piece is paperboard construction.

It is not made from wood, but is

required for the assembly of your unit.

systembuild.com

Board Identification

Not actual size

Tube

You

systembuild.com

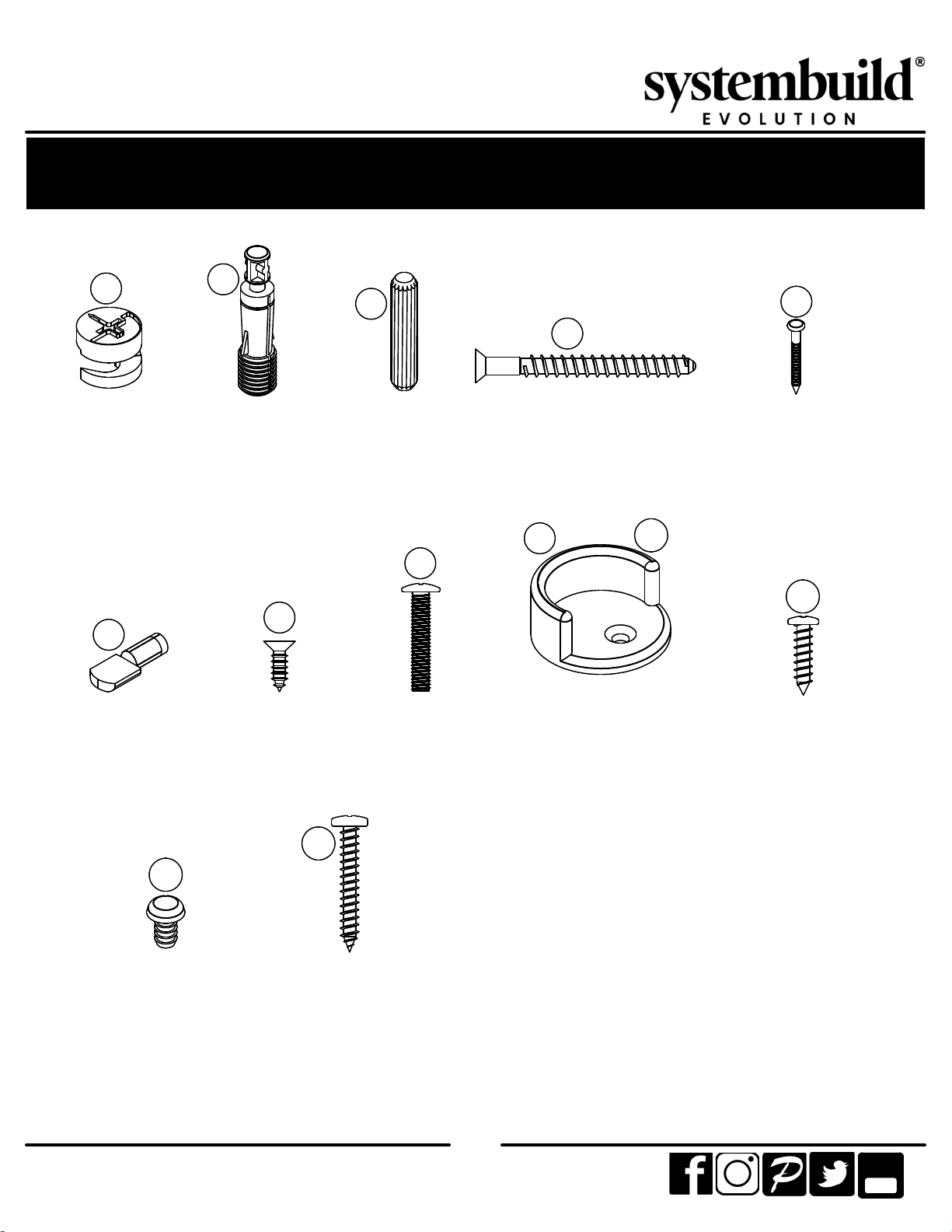

Part List

Actual Size

Tube

You

(x12)

#A22710

cam bolt

(x12)

#A22700

cam lock

(x12)

#A21670

wood dowel

(x8)

#A23030

confirmat screw

(x2)

#A11080

7/16" screw

(x12)

#A12420

5/8" screw

(x6)

#A12930

1-1/8" screw

(x48)

#A21110

nail

(x6)

#A17400

7/8" bolt

(x8)

#A80250

shelf support

(x2)

13 - #A82010 (white)

9 - #A82020 (black)

rod bracket

(x3)

#A89370

door bumper

systembuild.com

Part List

Not actual size

Tube

You

14b

14a

14d

14c

(x6)

#A44140

foot

(x9)

#A65615

hinge

(x3)

#A52395

handle

(x1)

#A84050

safety bracket

(x1)

#I20410

clothes rod

systembuild.com

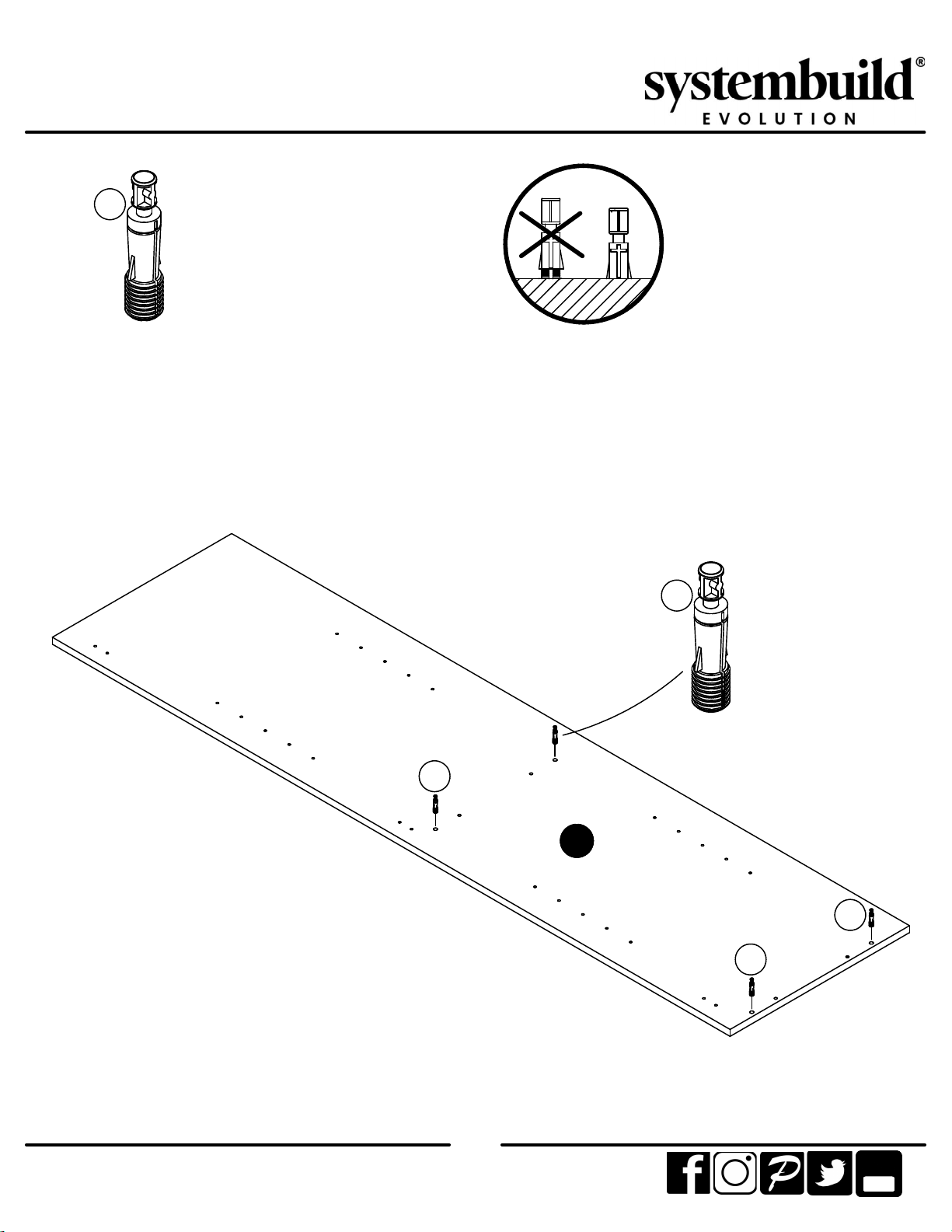

STEP1

Tube

You

(x4)

(x1)

systembuild.com

STEP2

Tube

You

(x4)
