AMG5802R
Instruction Manual
100BASE-TX Ethernet Media Converter Receive Unit for a
Multimode Fibre Link
The AMG5802R is a rackmount Ethernet Media Converter receive unit designed to provide 100BASE-
TX full duplex Ethernet connectivity over one singlemode fibre.
The AMG5802R is designed to plug into an AMG2009 or AMG2015 subrack, which in turn fits into a
19" rack system.
The AMG5802R is designed to operate with an AMG5801 standalone or AMG5801R rackmount
Ethernet data transmit unit in a point to point configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 2 of 8 AMG5802R Instruction Sheet D22051-
00.doc
Contents
Introduction 3
Unit Functional Schematic.................................................................................................................. 3
Optical Connection ............................................................................................................................. 3
Connections 4
Optical Connection Multimode............................................................................................................ 4
Power Connection .............................................................................................................................. 4
Ethernet Connection........................................................................................................................... 4
Front Panel Indicators 5
Power LED.......................................................................................................................................... 5
Ethernet Data LEDs............................................................................................................................ 5
Ethernet Operation 6
Physical Information 7
Dimensions ......................................................................................................................................... 7
Mounting Details................................................................................................................................. 7
Safety 7
Maintenance and Repair 7
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 3 of 8 AMG5802R Instruction Sheet D22051-
00.doc
Introduction
Unit Functional Schematic

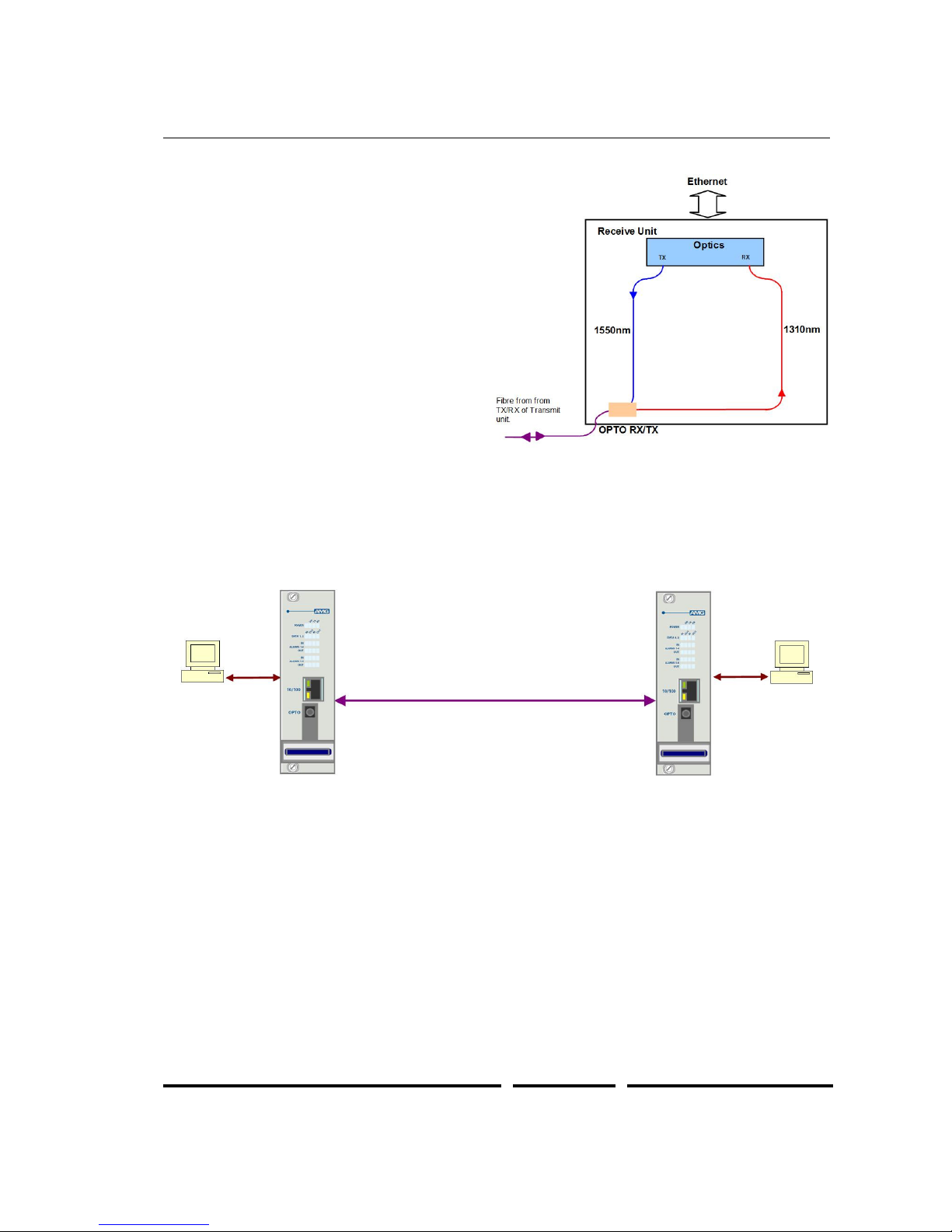

The AMG5802R transmits Ethernet data to
the AMG5801R transmit unit.
It also receives Ethernet data transmitted
from the AMG5801R.
Optical Connection
The AMG5802R connections are illustrated in the following example which shows an AMG5801R data
transmit unit together with an AMG5802R rackmount data receive unit configured as a point to point
system.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 4 of 8 AMG5802R Instruction Sheet D22051-
00.doc
Connections
Optical Connection Multimode
Optical Fibre ........................................Multimode 50/125 or 62.5/125**
Connector ............................................SC/PC
Minimum Optical Launch Power..........-10dBm
Transmit Wavelength...........................1550nm
Minimum Optical Sensitivity.................-30dBm
Receive Wavelength............................1310nm
Minimum Optical Dynamic Range .......20dB.
**Note: the transmission distance is limited by the bandwidth of the Multimode optical fibre. The optical
data rate is 155Mbits/s, which may restrict operation to a maximum fibre length of 7km, although in
most cases the units will operate successfully over longer fibre lengths. It is advisable however for
distances greater than 7km, to have the optical fibre tested.
Power Connection
Power supply .......................................From plug in connection on the AMG2009 or AMG2015 subrack
Power consumption .............................5 Watts max.
Ethernet Connection
Ethernet Data Connector ....................RJ45
Interface ...............................................Auto MDI/MDIX 100BASE-TX
Ethernet Data Rate ..............................Maximum 100Mb/s full duplex
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 5 of 8 AMG5802R Instruction Sheet D22051-
00.doc
Front Panel Indicators
Power LED
POWER ............................................... Green - Power is present
Off - Power is not present
VIDEO ............................................... Off - Not used
OPTO TX............................................. Green - Tx opto. present
Off - Tx opto. is not present
OPTO RX ............................................ Green - Rx opto. sync.
Off - Rx opto. is not sync.
Ethernet Data LEDs
Link not Present .................................. Yellow - Link not present
Off - Link is present
Link Integrity ........................................ Green - Link integrity is good, Idle state
GBlink - Data transfer
Off - Link not present
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 6 of 8 AMG5802R Instruction Sheet D22051-
00.doc
Ethernet Operation
The Ethernet interface supports "Auto-Negotiation" and will operate at either 10Mbits/s half duplex or
100Mbit/s full duplex. Data is transmitted from one port the other port with minimum delay or buffering.
The port also implements "Auto MDI/MDIX" i.e. it may be connected with aeither a straight-though or
cross-over cable to an appropriate device such as external switch, PC or other DCE/DTE.
Two LED indicators are provided adjacent to the RJ-45 port: Green indicates Link / Data transfer and
Yellow when in half-duplex mode.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 7 of 8 AMG5802R Instruction Sheet D22051-
00.doc

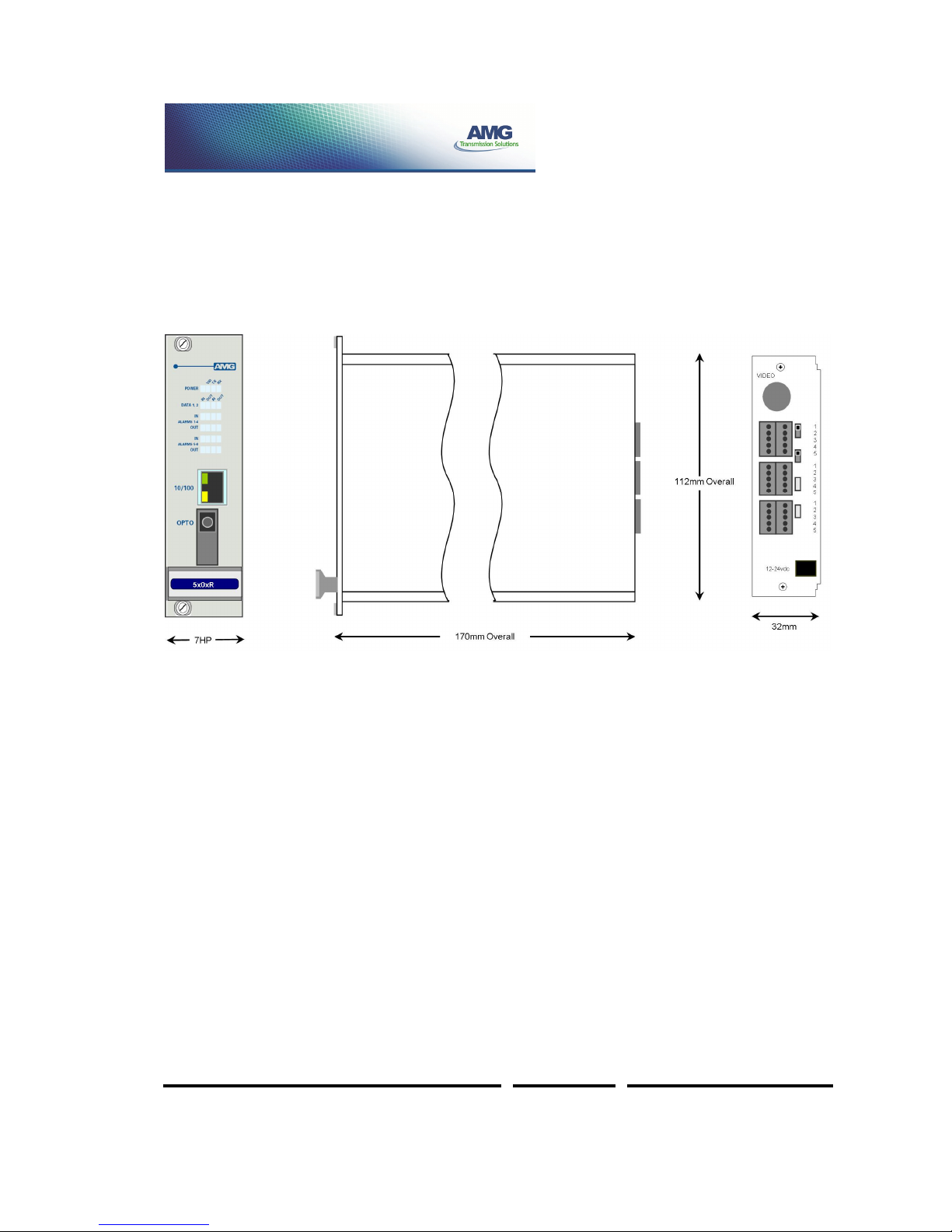

Physical Information
Dimensions
Height .................................................. 3U Plug-in
Width ................................................... 7HP
Depth ................................................... 170mm excluding connectors
Weight ................................................. 1000grams
Mounting Details
The unit is designed to be mounted within an AMG2009 or AMG2015 Subrack on standard card
guides.
Safety
AMG Optical Fibre Products use Class 1 laser systems in accordance with EN 60825-2:2000.
It is always advisable to follow good practice when working with optical fibre systems. This includes:
Do not stare with unprotected eyes or with any unapproved collimating device at fibre
ends or connector faces, or point them at other people.
Use only approved filtered or attenuating viewing aids
For other safety issues and advice on good practice associated with optical fibre systems, please see
EN 60825-2:2000 or your local safety officer.
Maintenance and Repair
There are no user serviceable parts within AMG products. See unit data sheet for full specification.
In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at
3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
Phone +44 (0) 1767 600 777
Technical Support +44 (0) 1767 604 491
