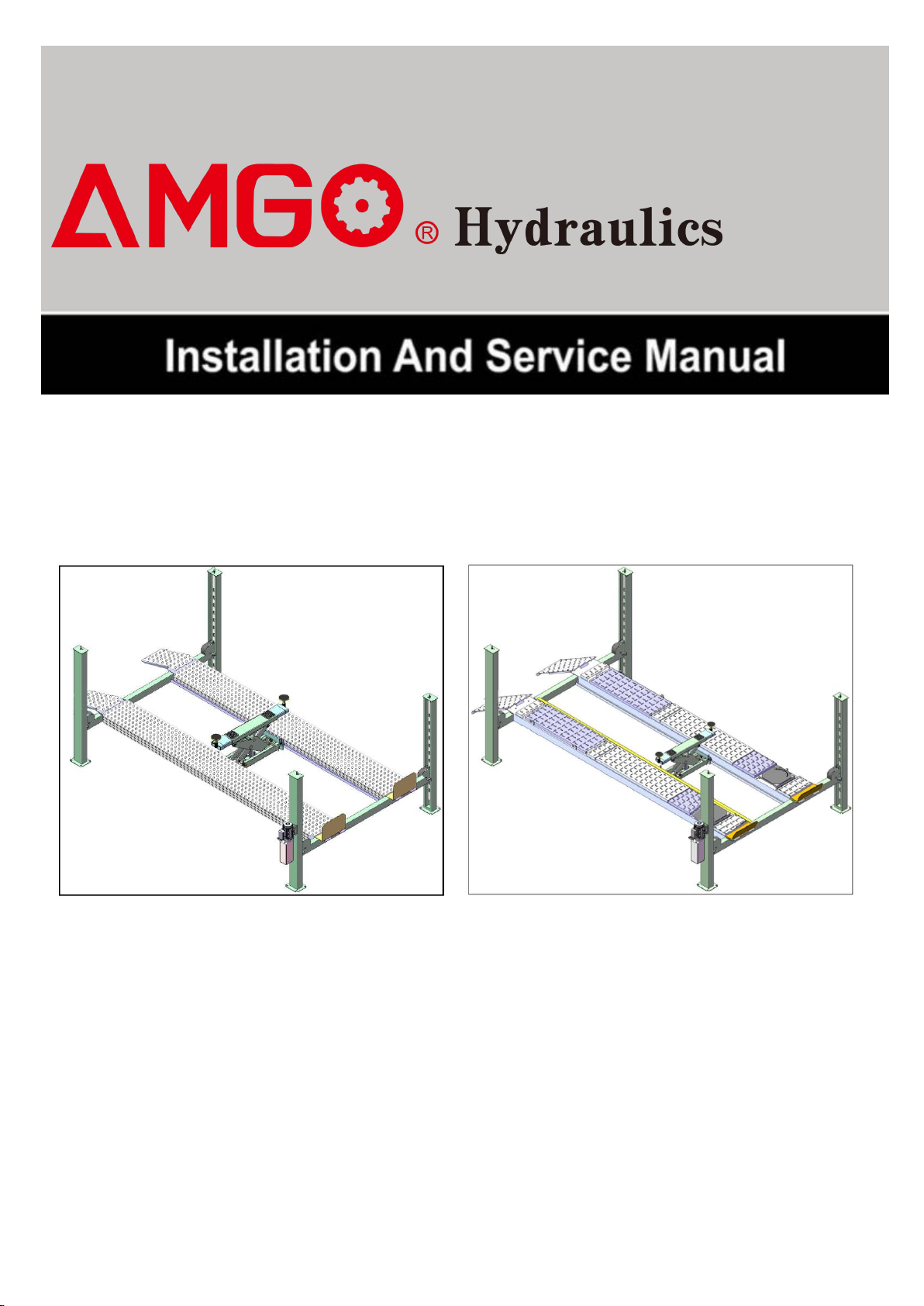

AMGO Hydraulics PRO-12 Manuale

Four-Post Lift

Model:

PRO-12, PRO-12A, PRO-12AX

Original

CONTENTS

Product Features and Specifications ..................................................... 1

Installation Requirement .................................................................... 2

Steps of Installation ........................................................................... 5

Exploded View ................................................................................. 23

Test Run .......................................................................................... 32

Operation Instruction ....................................................................... 33

Maintenance ................................................................................... 33

Trouble Shooting ............................................................................. 36

Lift Disposal......................................................................................36

I. PRODUCT FEATURES AND SPECIFICATIONS

FEATURES

· Manual control air-operated system.

· Mechanical self-lock and air-drived safety release.

· Manual hydraulic power system, cable-drived.

· Strengthen and Non-skid diamond platforms.

· Adjustable platform and adjustable safety lock ladders.

· Optional Jack:With hand pump/Air-operated hydraulic pump/Controlled by power

unit.

. Optional Turnplate：Alignment model only

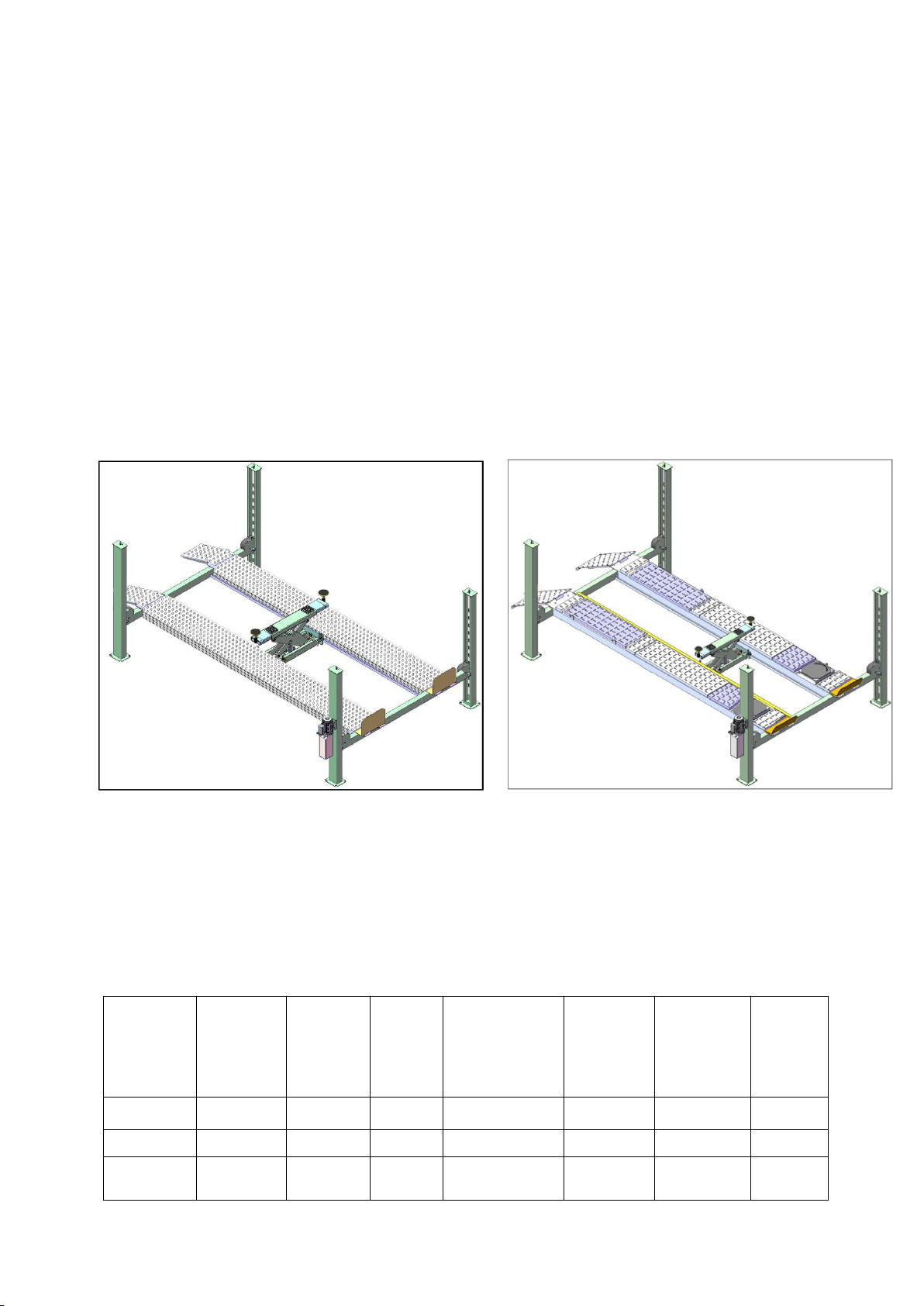

ALIGNMENT MODEL SPECIFICATIONS

Model

Lifting

Capacity

Lifting

Height

Lifting

Time

Overall

Length

(W/ Ramps)

Overall

Width

Between

Columns

Motor

PRO-12

12000lbs

73-1/2”

62S

236-3/4”

126-3/8”

112-3/8”

2.0HP

PRO-12A

12000lbs

75-3/8”

62S

236-3/4”

126-3/8”

112-3/8”

2.0HP

PRO-12AX

12000lbs

75-3/8”

62S

236-3/4”

132-1/8”

118-1/8”

2.0HP

PRO-12A,PRO-12AX

Fig.2

PRO-12

Fig.1

II. INSTALLATION REQUIREMEN

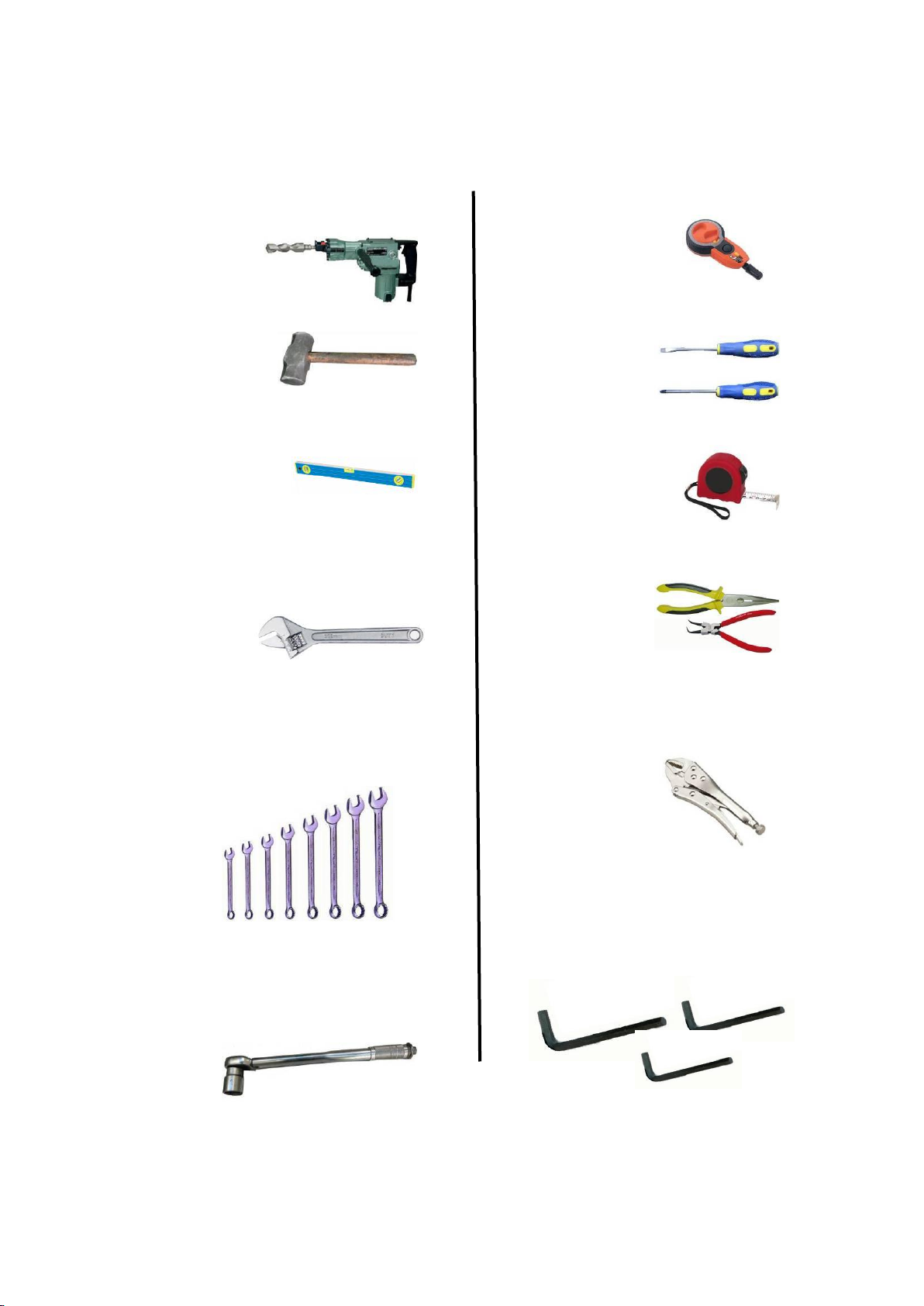

A. TOOLS REQUIRED

Rotary Hammer Drill (Φ19) Carpenter’s Chalk

Hammer Screw Sets

Level Bar Tape Measure (7.5m)

English Spanner (12”) Pliers



Wrench Set



Lock Wrench

(10#, 12#, 13#, 14#, 17#, 19#, 24#, 30#)



Ratchet Spanner with Socket (28#)

Socket Head Wrench

(3#, 5#, 6#)

Fig. 3

- 4 -

√

B. Equipment storage and installation requirements.

The equipment should be stored or installed in a shady, normal temperature,

ventilated and dry place.

C. The equipment should be unload and transfer by forklift.

D. SPECIFICATIONS OF CONCRETE (See Fig. 5)

Specifications of concrete must be adhered to the specification as following.

Failure to do so may result in lift and/or vehicle falling.

1. Concrete must be thickness 4’’ minimum and without reinforcing steel bars，and must be

dried completely before the installation.

2. Concrete must be in good condition and must be of test strength 3,000 psi (210kg/cm²)

minimum.

3. Floors must be level and no cracks.

E. AIR SUPPLY

Air pressure requirement: 0.5Mpa~0.8Mpa, Air line size ￠8×￠6 and ￠6×￠4.

F. POWER SUPPLY

The electrical source must be 2.0HP minimum. The source cable size must be 2.5mm² and in

good condition of contacting with floor.

Fig. 5

Fig. 4

≥4’’

- 5 -

III. STEPS OF INSTALLATION

A. Location of installation

Check and insure the installation location (concrete, layout, space size etc.) is suitable for

lift installation.

B. Check the parts before assembly

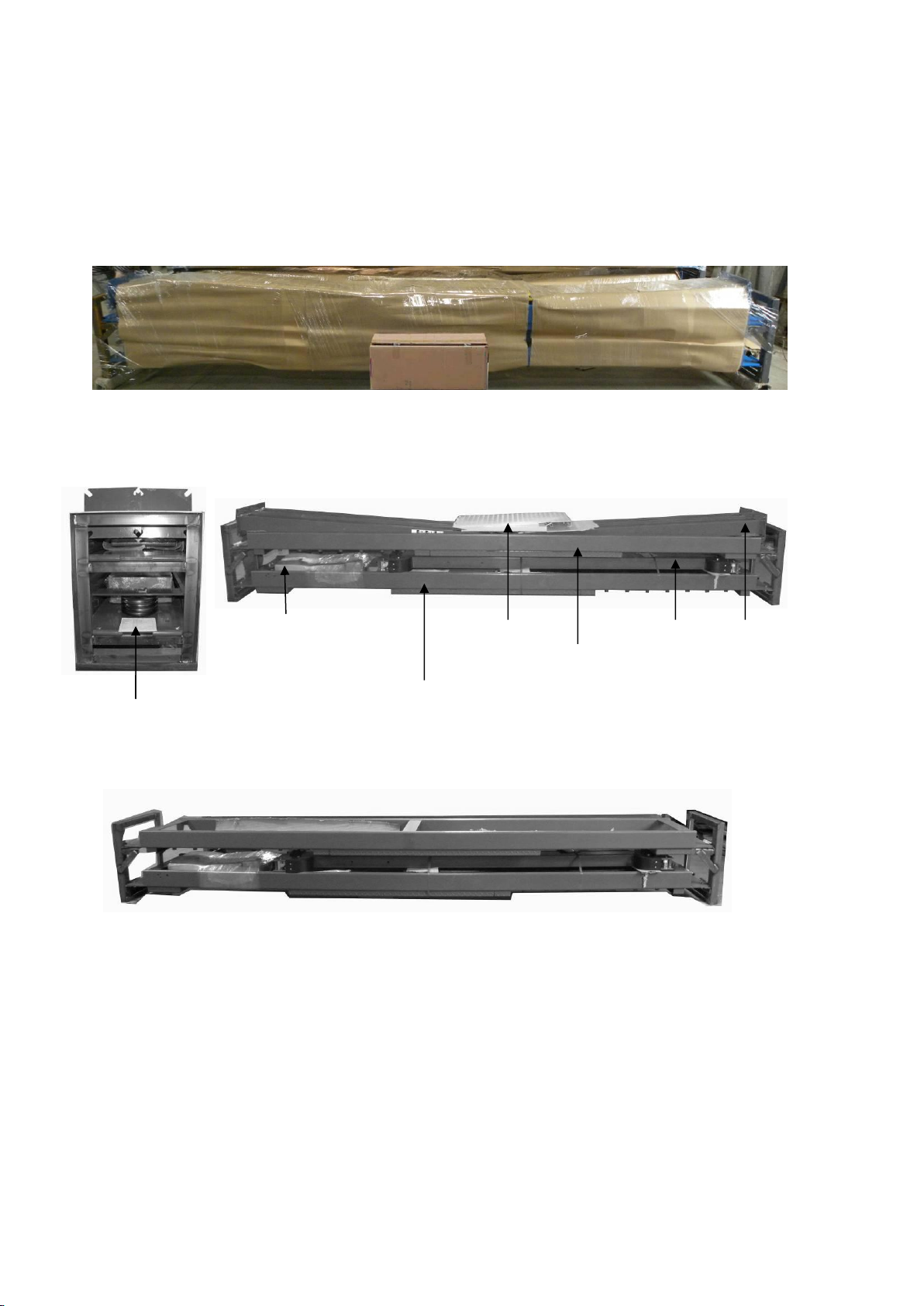

1. Packaged lift and hydraulic power unit (See Fig. 6).

2. Open the outer packing carefully (See Fig. 7).

Shipment Parts List

3. Take off the Drive-in Ramps and Columns (See Fig. 8).

4. Loose the screws of the upper package stand, take off the offside platform, take out the

parts inside the power-side platform, then remove the package stand.

Fig. 6

Power-side Platform

Drive-in Ramp

Offside Platform

Cross Beam

Column

Fig. 7

Parts box

Fig. 8

- 6 -

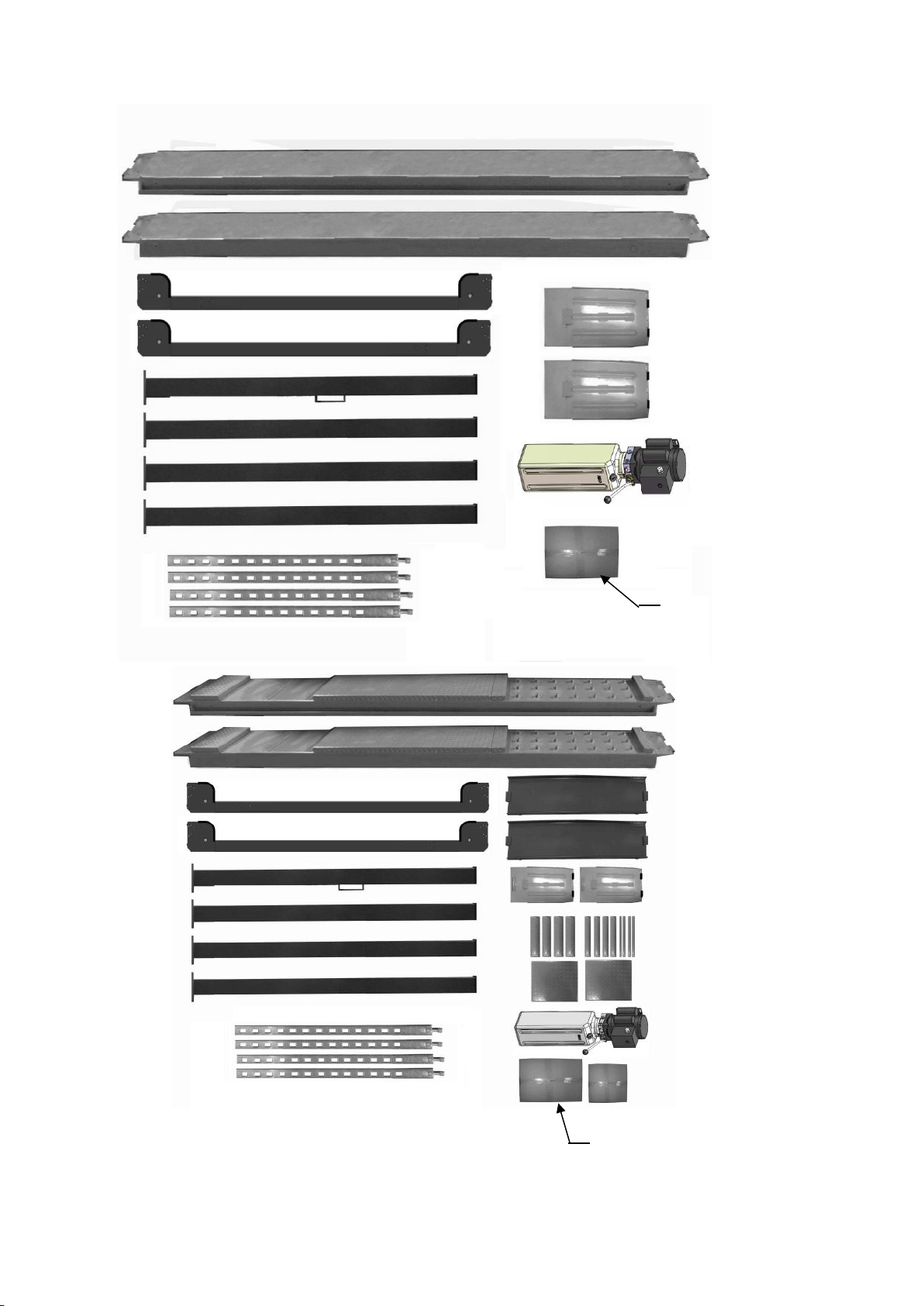

5. Move aside the parts and check the parts according to the shipment parts list

(See Fig. 9).

PRO-12A/PRO-12AX

Fig. 10

PRO-12

Fig. 9

- 7 -

6. Open the carton of parts and check the parts according to the parts box list

(See Fig. 11).

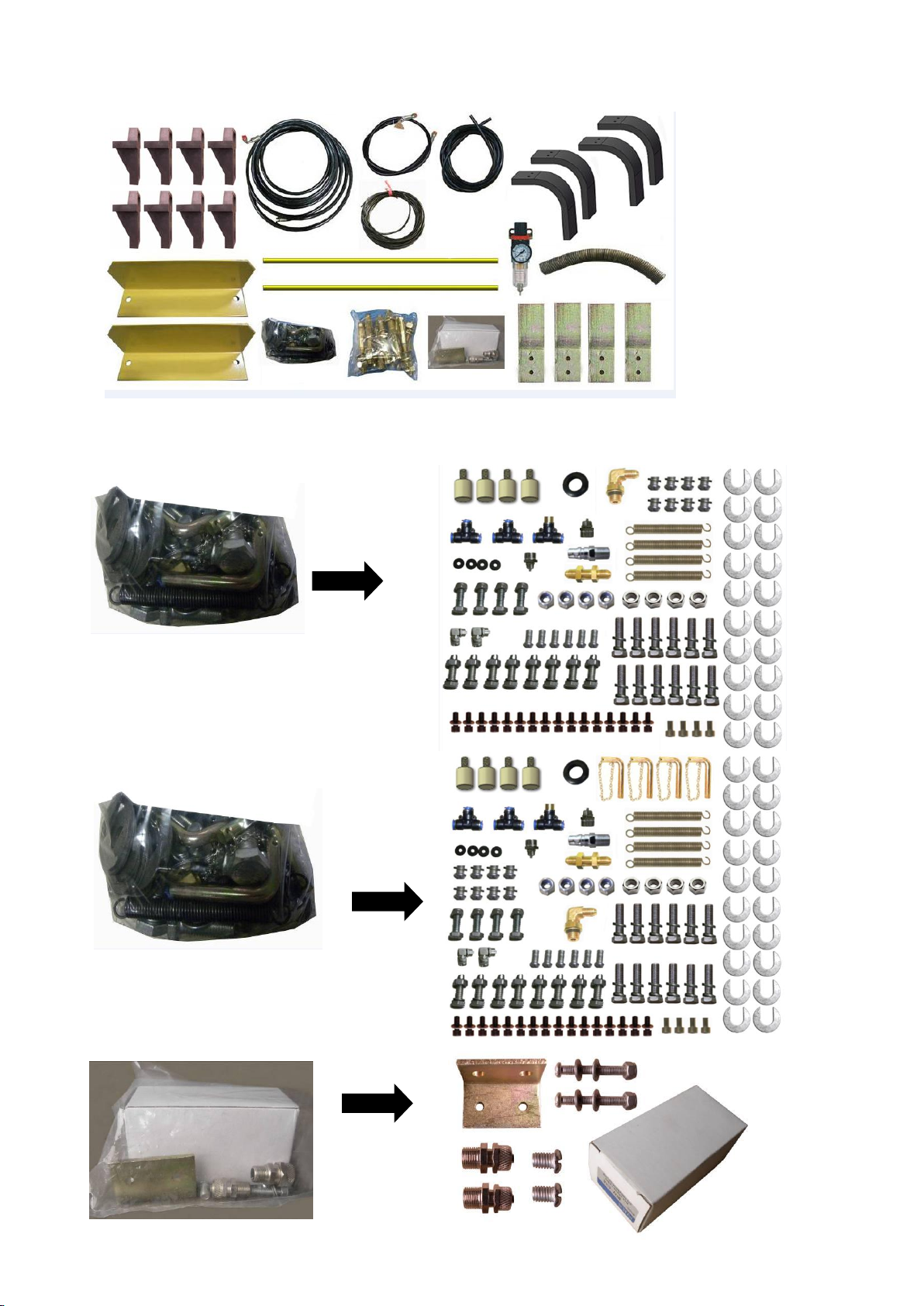

7. Check the parts of the parts bag according to the parts bag list (See Fig. 12).

Fig. 12

Fig. 11

PRO-12

Parts bag 1

Parts bag 2

PRO-12A

Parts bag 1

- 8 -

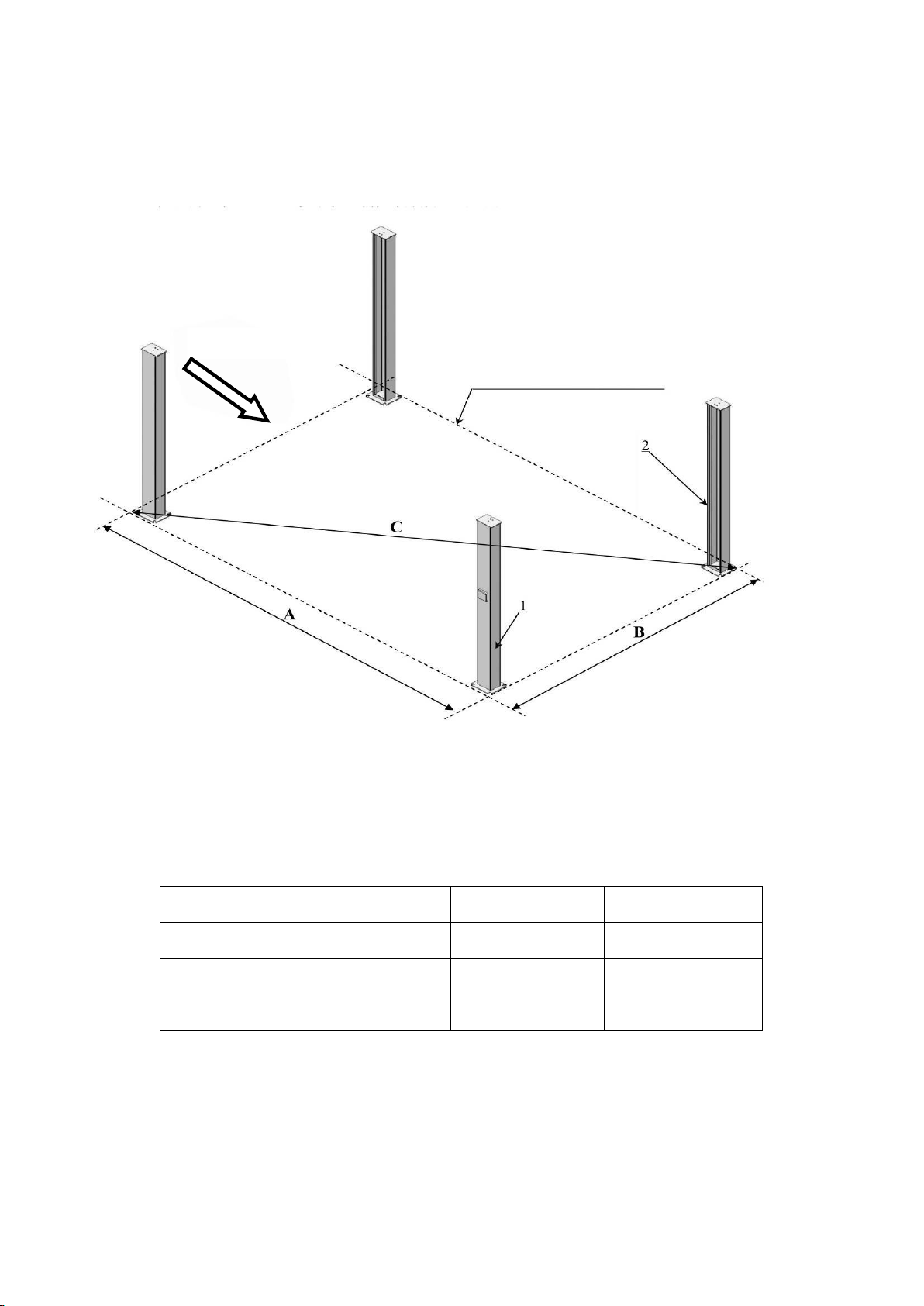

C. Use a carpenter’s chalk line to establish installation layout make sure the size is

right and base is flat (see Fig. 13). Note: Reserve space before and behind the

installation site.

Model

PRO-12

200-3/4”

126-1/4”

237-1/4”

PRO-12A

200-3/4”

126-1/4”

237-1/4”

PRO-12AX

200-3/4”

132-1/8”

240-3/8”

Fig. 13

Use a carpenter’s chalk line to establish

installation layout

Car in Direction

- 9 -

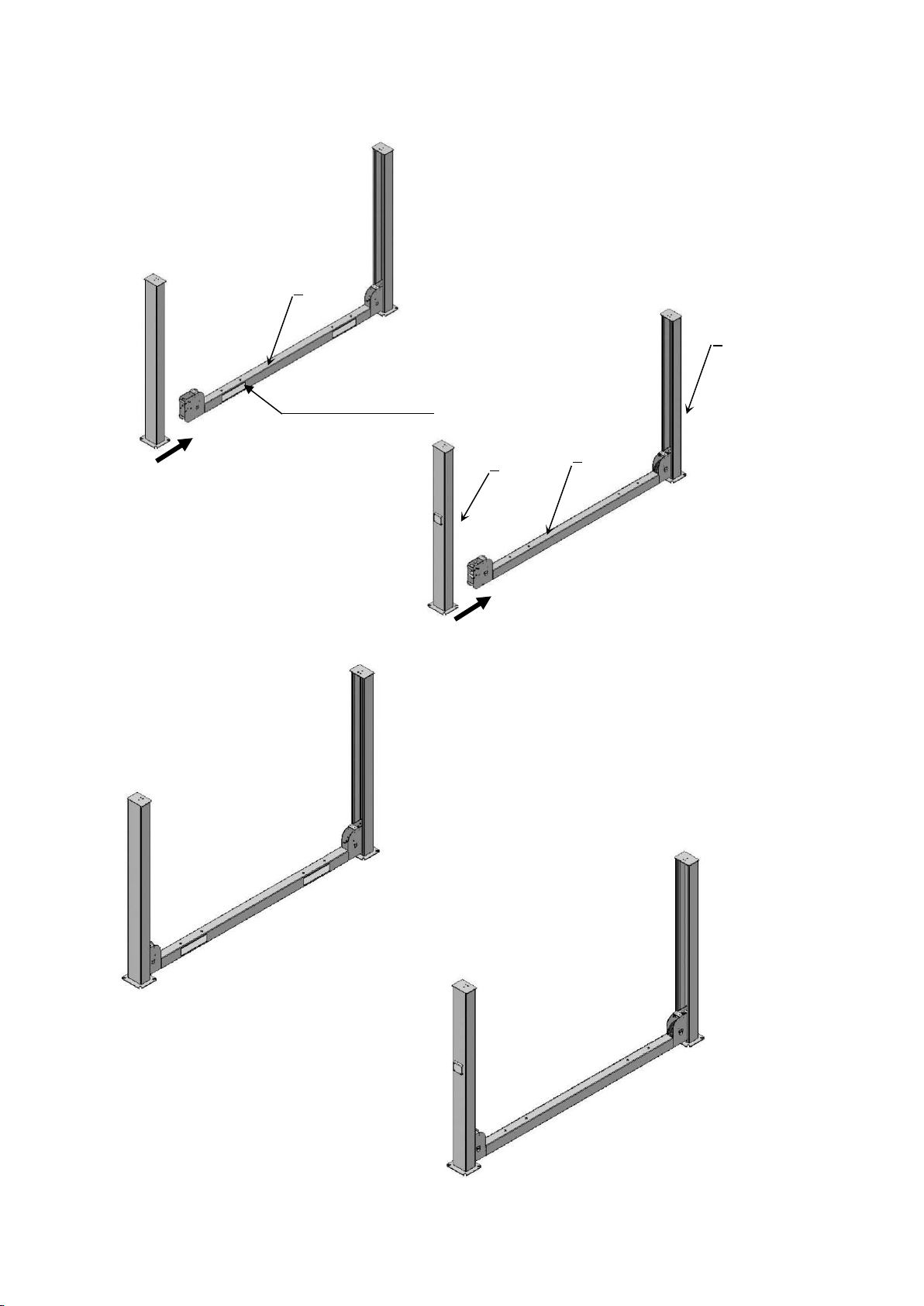

D. Install cross beams (See Fig. 14, Fig. 15).

Fig. 14

Fig. 15

Hole towards inside
