Sav-Wire 2 Base

Installation Guide

General

The Sav-Wire 2 base, part no 45681-206AMP, is a mounting base for Series 65 smoke and heat

detectors and may be used only in association with a Sav-Wire-compatible ﬁ re control panel. The

use of any other control panel will render the ﬁ re detection system inoperable.

Detectors, call points and sounders are connected to the control panel by one pair of wires. In the

event of an alarm, polarity is reversed in order to activate the sounders without affecting the status of

the detectors.

Sav-Wire 2 bases incorporate a circuit which detects the removal of a detector head. If a detector is

removed from the base the control panel will give a fault signal.

Installation and Wiring

The base is installed in exactly the same way as a standard base. Shielded cables should be used.

Install in accordance with BS5839 Part 1.

It is essential to observe polarity when wiring a Sav-Wire 2 base. See wiring diagram overleaf.

39214-700/Rev/ B

Locking the detector

The detector head should be locked into the base, particularly if it is installed at a height less than

3m above the ﬂ oor level. The reason for locking is to deny unauthorised persons access to the base

terminals in order to prevent base malfunction.

Lock the detector with a hexagonal driver.

Commissioning and Maintenance

Fit all detector heads before switching on power. Commission in accordance with BS5839 Part 1.

Routine maintenance should be carried out to BS5839 Part 1.

EOL

Resistor

(8.2kΩ)

–

From

control

panel

Note: This Sav-Wire 2 base may be used

only with compatible control panels

REMOTE LED

+ R

+ ve

–R

EARTH

+ R

– ve

+ ve

–R

EARTH

+ R

– ve

+ ve

–R

EARTH

– ve

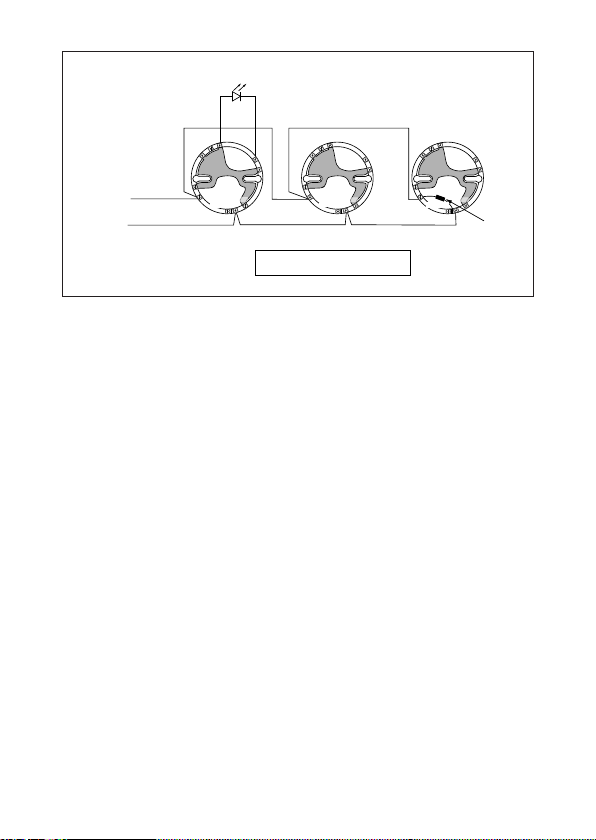

Sav-Wire base wiring diagram

Ampac

7 Ledgar Road, Balcatta, Western Australia 6021

Telephone: +618 9201 6100 Fax: +618 9201 6101

Email: [email protected] Website: www.Ampac.net

Apollo Fire Detectors Limited, 36 Brookside Road, Havant, Hants, PO9 1JR, UK

Tel +44 (0)23 9249 2412 Fax +44 (0)23 9249 2754

Email: techsales@apollo-ﬁre.co.uk Website: www.apollo-ﬁre.co.uk
