Secure Power Unit
Ref. SPU001
Protect your LiveCoreTM system against mains loss or unstable power using the Secure
Power Unit
Security and Performance
Secure Power Unit integrates two slots for hot-swappable power supplies and a battery module providing up to 10 minutes in
case of mains loss. Connected to your LiveCoreTM with a simple RS232 link cable, the advanced monitoring status of the Secure
Power Unit is available through the LiveCoreTM Web RCS.
To protect the following switchers
ASC4806-4K-PL: Ascender 48 - 4K - PL
ASC3204-4K-PL: Ascender 32 - 4K - PL
ASC1602-4K: Ascender 16 - 4K
NXT1604-4K: NeXtage 16 - 4K
NXT0802-4K: NeXtage 08 - 4K
Secure Power Unit at a glance
Slots for up to two hot-swappable power supplies
Battery module provides approx. 10 minutes of power in case of mains loss
Replaces the existing removable power supply of the LiveCoreTM device, which can
be used as second supply in SPU001 (see next page)
Advanced Status monitoring through LiveCoreTM Web RCS through RS232 link
User Controls: 2 LED for status message, 4 LED for battery charge, 1 test button
Connectors:
• speakONTM DC Power 12V (Female). The cable lead on the Secure Power
Unit adaptor module is approximately 30 cm
• RS232 for maintenance/information with a LiveCore™ device
Ascender 48 - 4K - PL connected to the Secure Power Unit
*All technical specifications and videos are available on
www.analogway.com

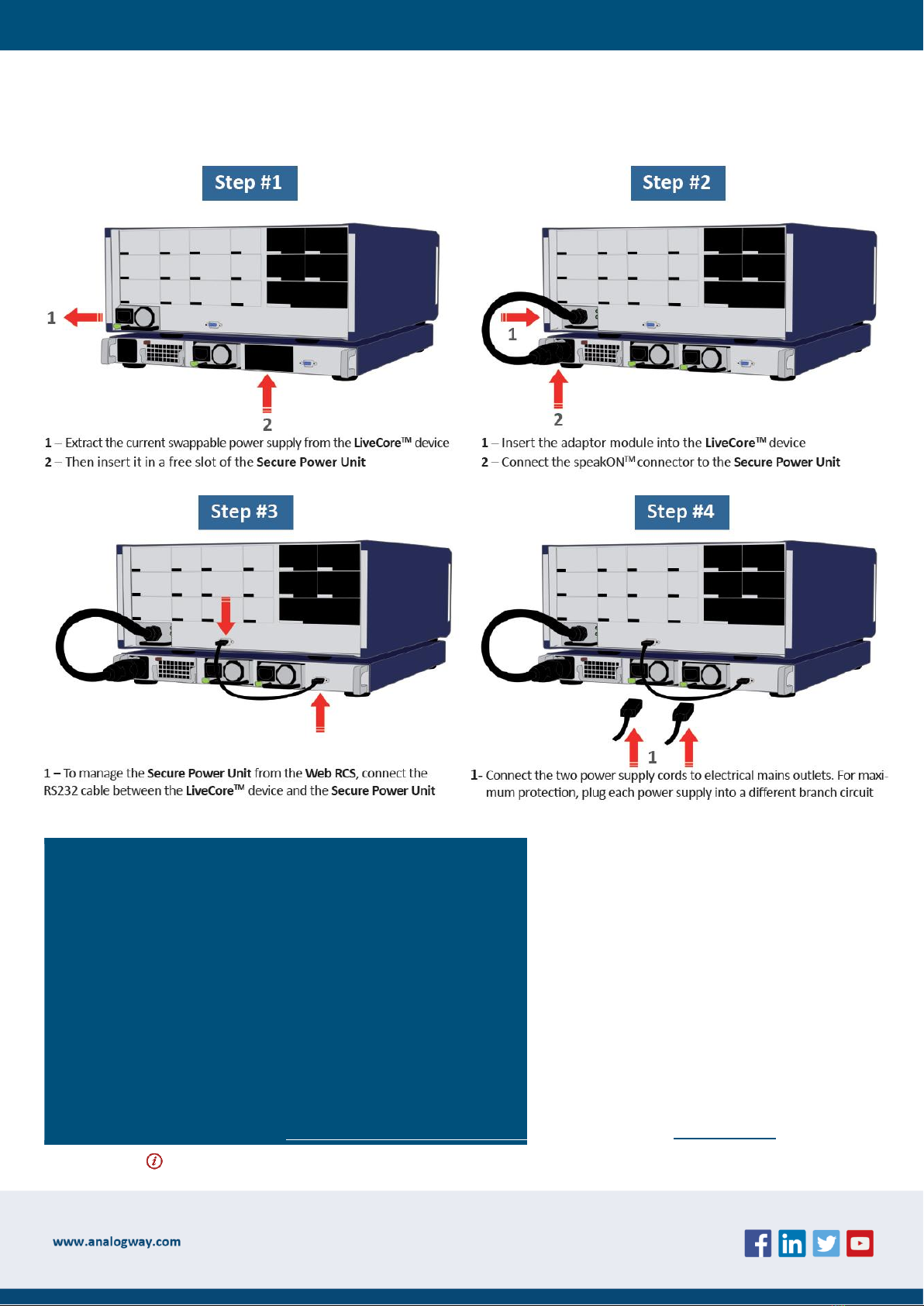

How to connect the Secure Power Unit
Specifications subject to change without prior notice
Dimension (in Rack Units - RU)
1RU
Dimensions (without rack ears and rear rack mount)
W 17.30’’ x H 1.73’’ x D 19.33’’
L 439.5 mm x H 44 mm x P 491 mm
Dimensions (with handles)
W 19’’ x H 1.73’’ x D 22.48’’
L 482.1 mm x H 44 mm x P 571 mm
Weight without accessories
12 kg / 26.45 lbs
Shipping weight accessories included
17.7 kg / 39 lbs
Operating conditions
Temperature: 0 to 40°C (32 to 104°F)
Humidity: 10% to 80%, non-condensing
Noise (@1,6m height @25°C)
Front: 49 DBa@1m
Rear: 51 DBa@1m
Thermal dissipation
1024 to 1826 BTU/hr
Warranty
3-year warranty on parts and labor back to factory
Power Supply
2 x redundant hot swappable power supplies
100-240 VAC 50/60Hz 8A
1x1000W Hot swappable battery
Max consumption: 300W (connected to NXT0804-
4K) to 535W (connected to ASC4806-4K-PL)
Safety Compliance
IEC/UL/EN 60950-1, CSA22.2#60950-1, UL Listed
(US & Canada) File:E359143
Supplied with
Secure Power Unit frame
1 x OPT-SPS swappable power supply
1 x OPT-SB swappable battery module
1 x Power Supply to SPU adaptor module (12’’ lead)
1 x RS232 cable (1,8m/6 feet) (M/F)
1 x Rear rack mount kit
1 x Quick start guide including safety instructions*
SPU001_EN-04/28/2018
