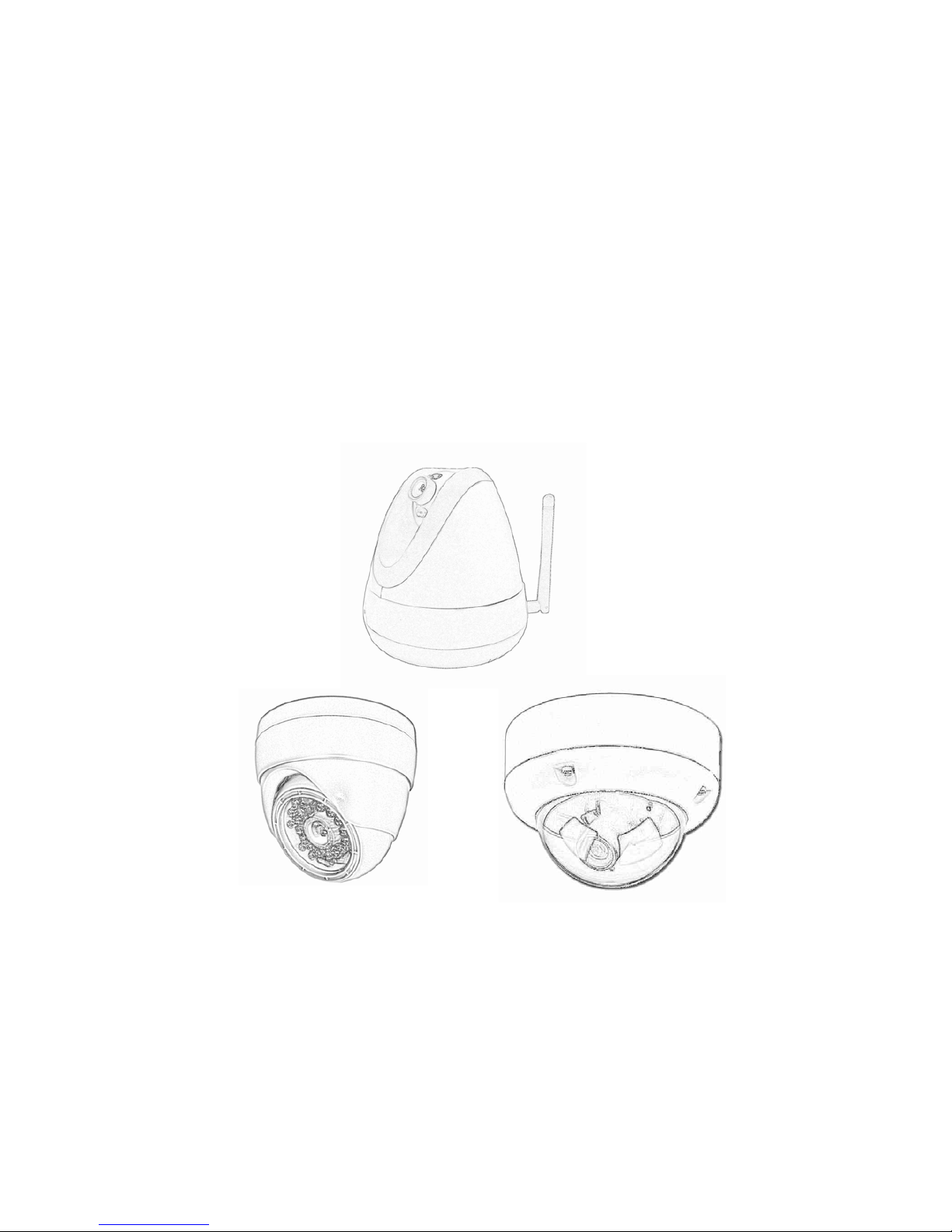

Ansel Pan/Tilt & Dome Type Manuale utente

Multi-Profile

Network Cameras:

Pan/Tilt & Dome Type

Quick Start Guide

2007 Dec.

Table of Contents

1. System Requirements........................................................................................... 3

2. Physical Installation.............................................................................................. 3

2.1 Indoor IP Dome Camera Installation.......................................................... 4

2.2 Vandal IP Dome Camera Installation ......................................................... 6

2.3 P/T IP Camera Installation.......................................................................... 8

3. Camera administration........................................................................................ 10

4. 3G Mobile Phone (3GPP) Usage.........................................................................11

About multi-profile

Multi-profile stands for simultaneously video streams. The Network Camera can

generate MPEG4 and MJPEG streaming simultaneously to different clients. Moreover,

the resolution can be different from one client to another. This state-of-art design is

considerable to fit in various network environments.

Before Installation

Before installation, please be sure to read this quick installation guide and user’s

manual carefully to complete machine installation.

1. System Requirements

2. Physical Installation

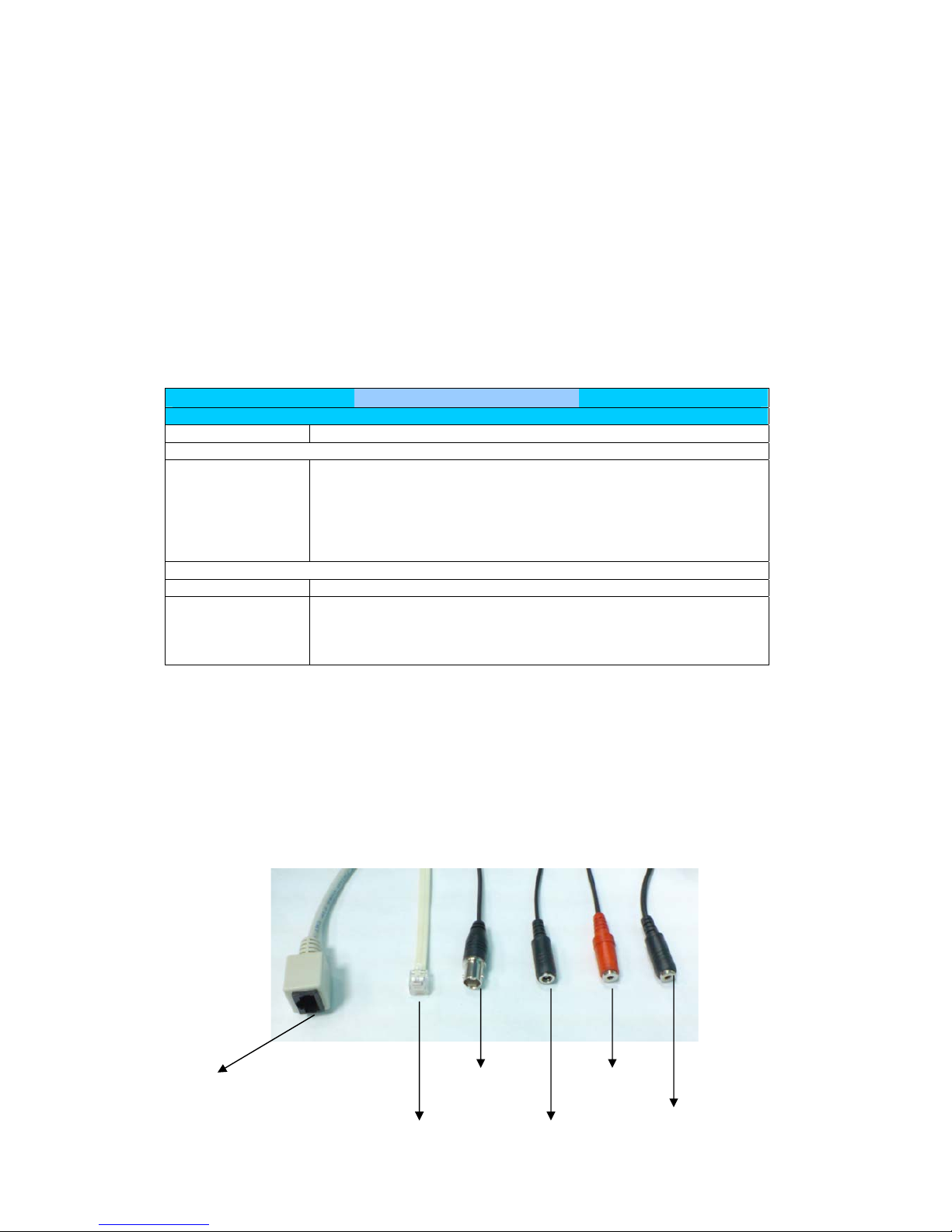

Connections:

All dome type cameras have the same cables for connection as below:

Multi-Profile Network Camera

Network Environment

Network Interface 10/100MBase-TX Ethernet

Monitoring System Recommended for Internet Explorer 6.0 or later

System Hardware · CPU: Pentium 4, 2GHz or above

· Memory Size : 512 MB or above

· VGA card resolution : 1024 x 768 or above

- Sound card: for 2-way audio funciton

· Network bandwidth: In VGA resolution mode, minimum upload

bandwidth is 1M bit. In QVGA or QQVGA mode, no limitation

System Requirement for Viewer & Recorder Application

Support OS Win 2000 , Win XP, Win Vista

System Hardware 16 cameras surveillance application

· CPU: Pentium D, 2.8GHz or faster

· Memory Size : 512 MB or above

· VGA card resolution : 1024 x 768 or above

RJ45 LAN

(Vandal dome is male type

IR IP Dome is female type).

Video out Line in

Line out

1. RJ45 LAN socket: Connect to PC or Hub/Switch.

For connections to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This

Ethernet port built N-Way protocol can detect or negotiate the transmission speed of the

network automatically. Please use Category 5 “straight through” cable to connect the

Network Camera to a 100Mbps Fast Ethernet network switch or hub.

Note that, in case you need to connect the device to PC or notebook directly, you

should use cross over cable instead.

2. RS-485: Connect to a local keyboard controller.

DI/ DO: Connect to sensor in and alarm out devices

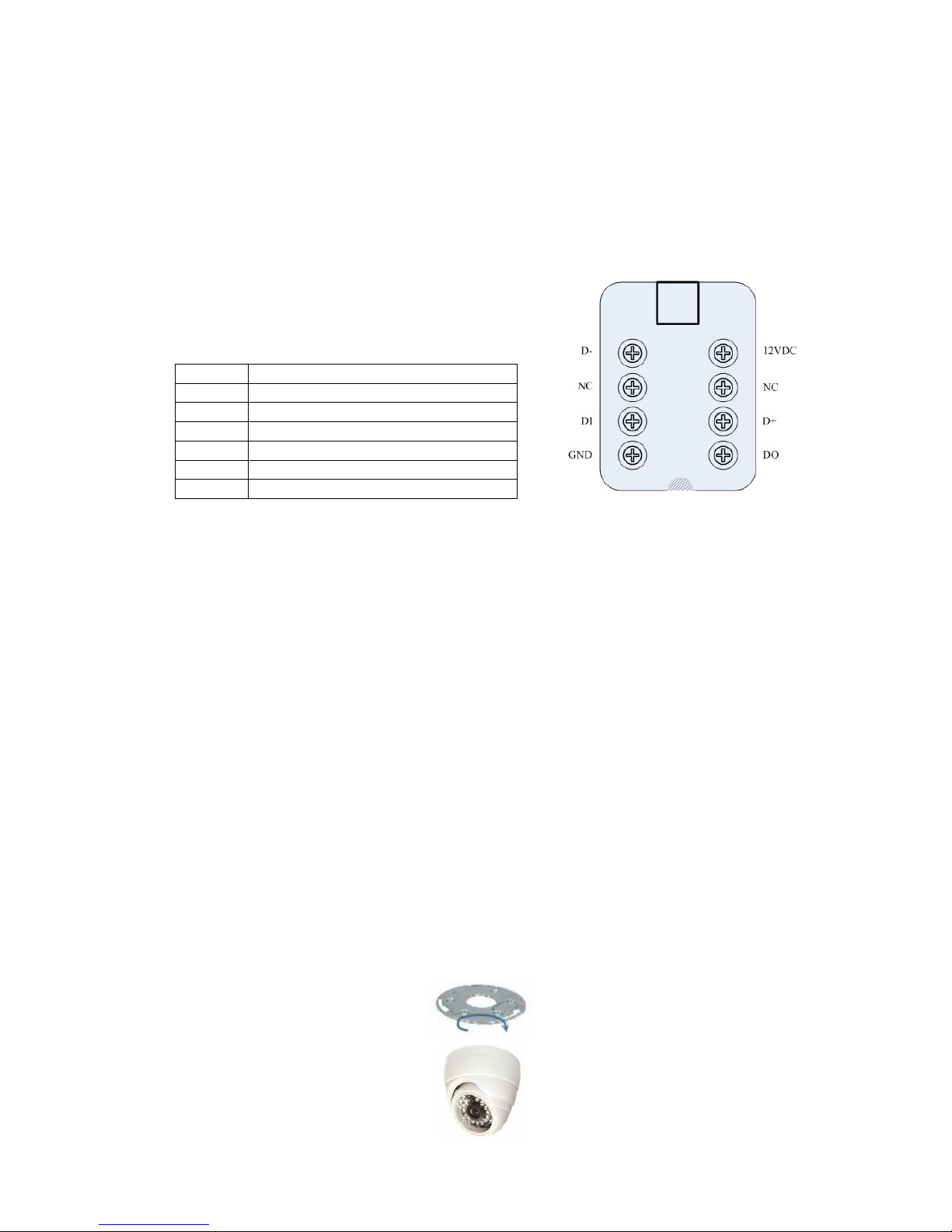

Inside the TEL box:

Name Function

12VDC DC 12V (50mA maximum)

GND GND

D+ RS485 data +

D- RS485 data -

DI Digital signal input

DO Digital signal output

3. Local Video output (BNC port)

The Network Camera also provides composite video output. User can use BNC video

cable to connect the Network Camera with a TV monitor or VCR.

4. DC-in Jack

The input power is 12VDC. Note that supply the power to the Network Camera with the

power adapter included in package.

5. Line in (audio in)

Connect an audio input source to the speed-dome network camera.

6. Line out (audio out)

Connect a loud speaker to the speed-dome network camera. This function is for voice

alerting and two-way audio.

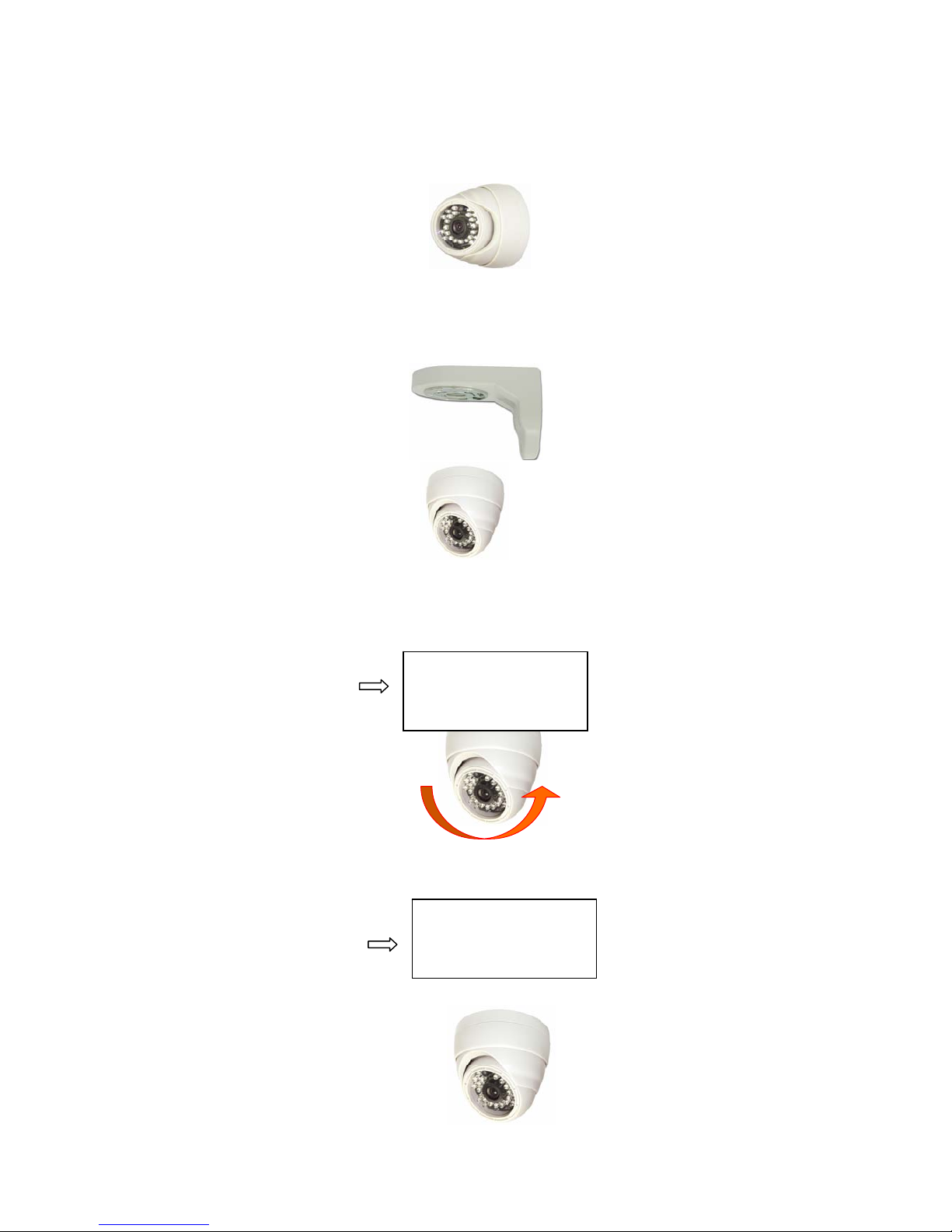

2.1 Indoor IP Dome Camera Installation

1. Drill 20mm (3/4") holes in the ceiling or wall and then align the mounting plate to the

holes you have made as below.

RS485 & DI/DO

(Connect to a TEL box) 12V DC in

Ceilin

Plate

2. Directly install on any horizontal or vertical surface

3. Alternatively, fixed with wall mount bracket (option).

4. Camera Adjustment:

Option: Bracket

4.1. X-axis

Tilting View

Angle range is 0o~90o

4.2. Y-axis

Rotating View

Angle range is 0o~90o

5. Connect the necessary cables and connectors:

- Plug-in Ethernet Cable into LAN port (necessary)

- Connect the attached power adapter to camera and plug-in this adapter into

power outlet (necessary)

- Connect Video BNC connector to a local TV if necessary (to check camera

viewing angle)

6. Done.

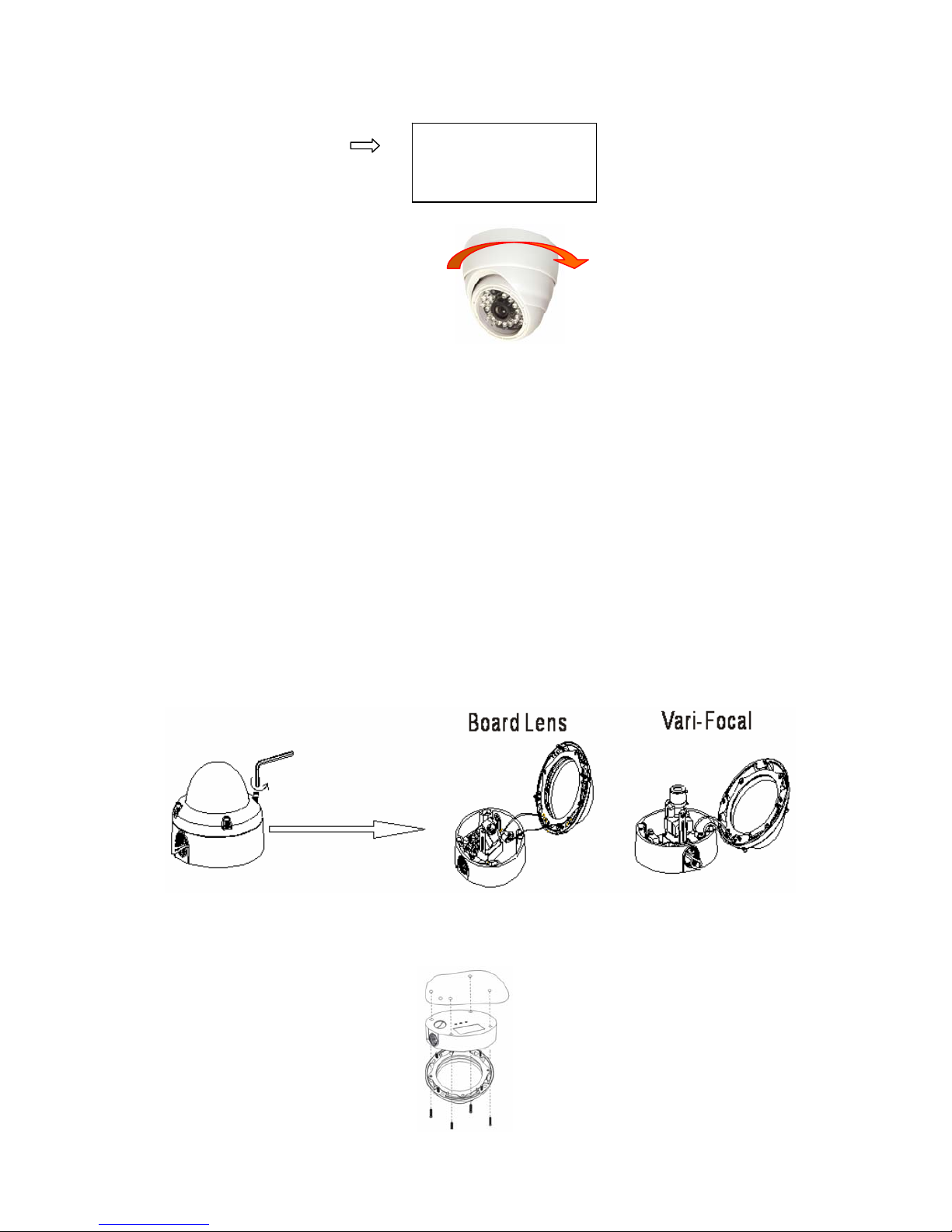

2.2 Vandal IP Dome Camera Installation

1. Use the provided L-wrench, loosen the vandal-resistant housing cover (with screws

still attached on the cover).

2. Set the mounting base onto the wall or ceiling and center it over the mounting hole, using

the supplied four retaining screws to secure the main body.

4.3. Z-axis Panning View

Angle range is 0o~180o

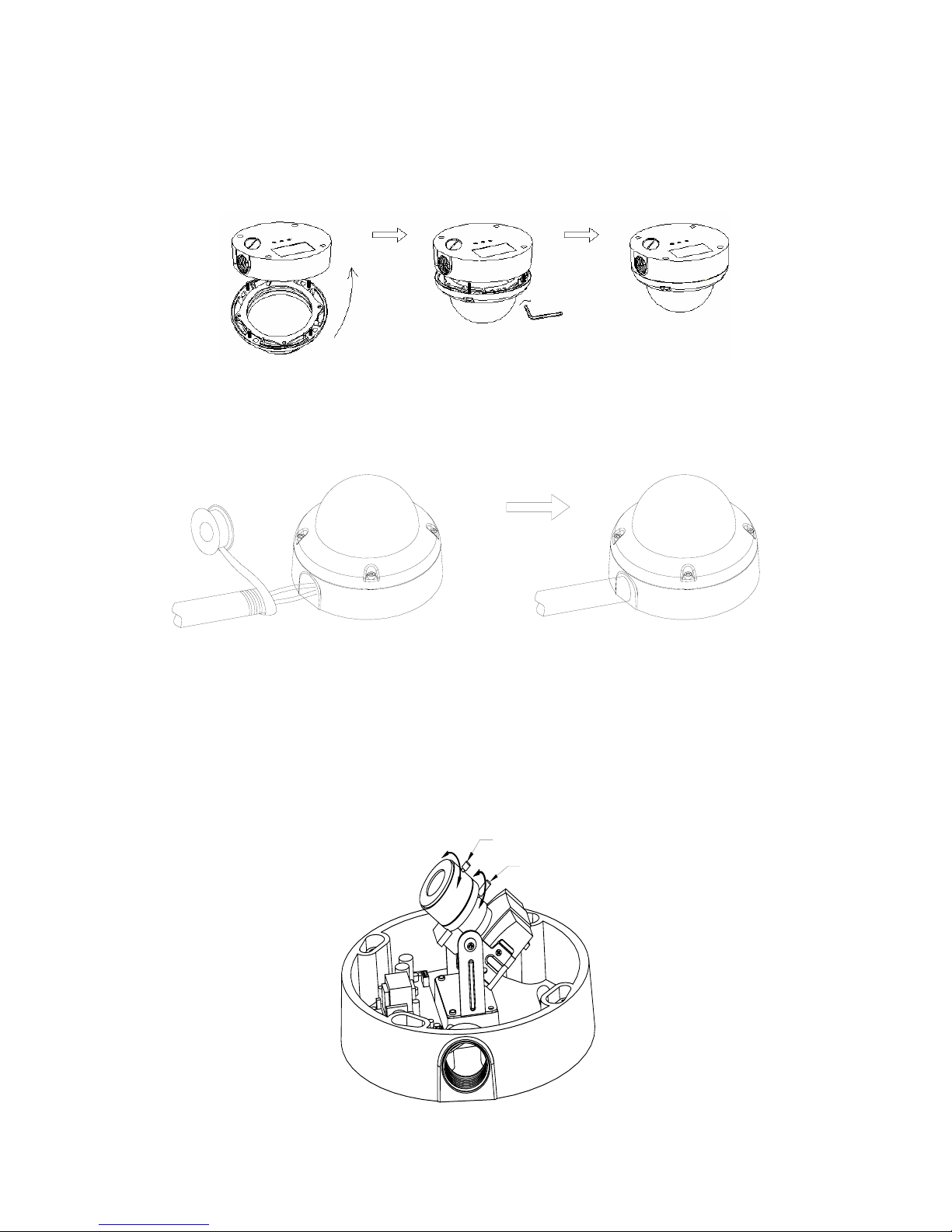

3. Set the proper image by moving the camera body (3-axis) and set the focus by

turning the lens to the left or right direction.

4. When the camera focus adjustment has been completed, use the provided L-wrench

to fasten the vandal-resistant housing to the main body.

5. When using the side conduit cabling, it is suggested to cover the cables using metal

covers (to prevent external damage and for waterproof prevention), and wined the

waterproof adhesive tape (P.T.F.E. THREAD SEAL TAPE) onto the metal cover before

installation.

6. Connect the LAN cable to Ethernet’s switch or hub, the video cable to video output

to the monitor or other video device through a 75 Ohms type coaxial cable and the

DC-Jack to the power source.

7. Vari-Focal Dome Operation Guide: Once the picture appears on the monitor, open

the cover and adjust the lens wrench to “NEAR←→FAR”, get the view zoom that you

desire, and then adjust the focus wrench of the lens to obtain the best picture. After

adjustment, tighten both wrenches.

oom

Adj

ustment

Focal Adjustmen

NEAR

FAR

WIDE

TELE

8. Connect the necessary cables and connectors:

- Plug-in Ethernet Cable into LAN port (necessary)

- Connect the attached 12V power adapter to camera and plug-in this adapter

into power outlet (necessary)

- Connect Video BNC connector to a local TV if necessary (to check camera

viewing angle)

9. Done

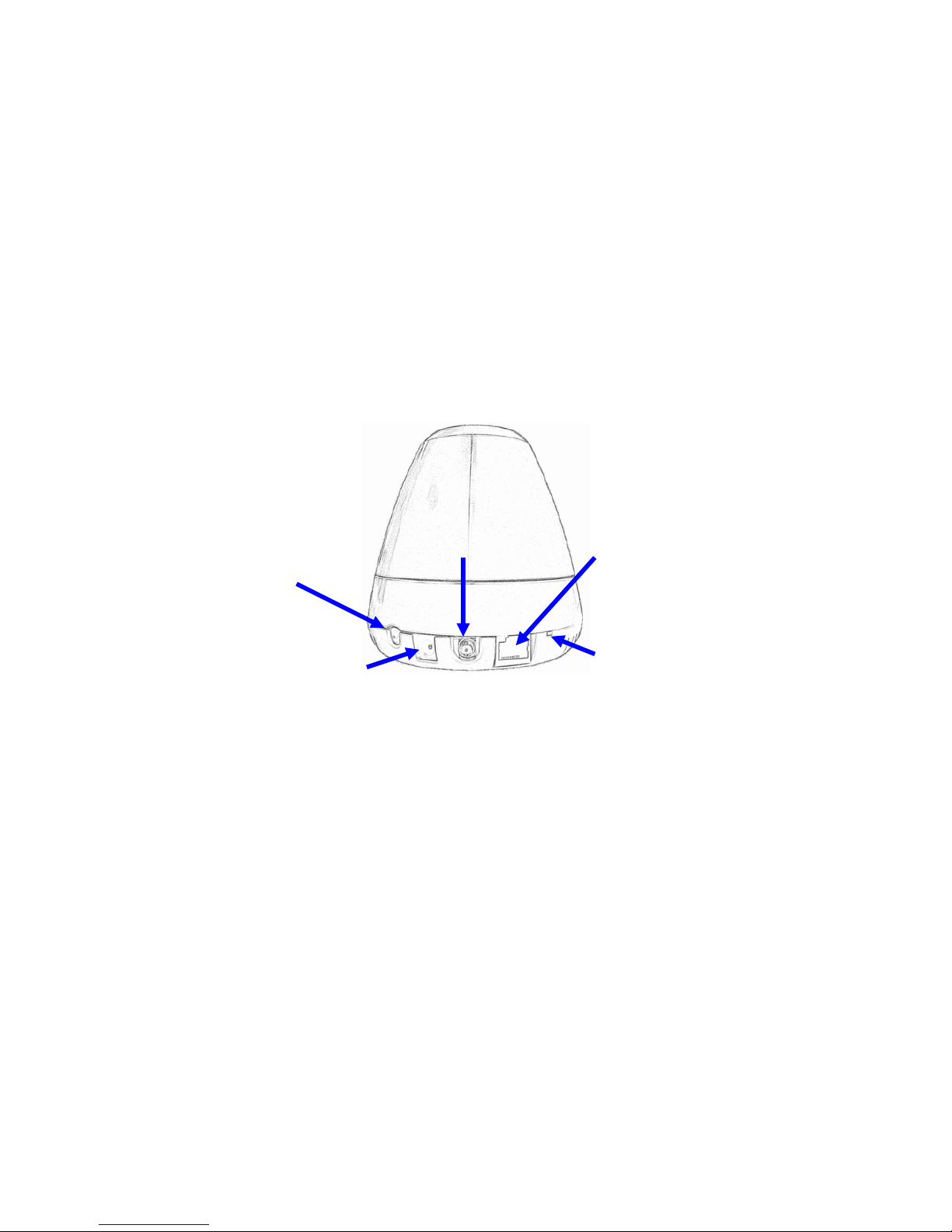

2.3 P/T IP Camera Installation

Connections:

Audio Output Jack

It allows this device to output audio or alerting sound. Connect with a 3.5Øphone jack

speaker (external adaptor)

DC Power Jack

The input power is 12VDC. Note that supply the power to the Camera with the power

adapter included in package. Otherwise, the improper power adapter may damage the

unit and result in danger.

Antenna Connector

User can attach the included wireless antenna to this connector (SMA type) or use

another high-gain antenna to get higher performance.

LAN Socket

The LAN socket is a RJ-45 connector for connections to 10/100Base-TX Fast Ethernet

cabling. This Ethernet port built N-Way protocol can detect or negotiate the transmission

speed of the network automatically. Please use Category 5 “straight through” cable to

connect the Network Camera to a 100Mbps Fast Ethernet network switch or hub. Note

that, in case you need to connect the device to PC or notebook directly, you should use

“cross-over” cable instead.

Factory Default Reset

This button is hidden in the pinhole. Please refer to the Appendix A in this manual for

LAN Socket

DC Power

Jack

Factory

Default Reset

Audio

Output Jack

Antenna

Connector

more information.

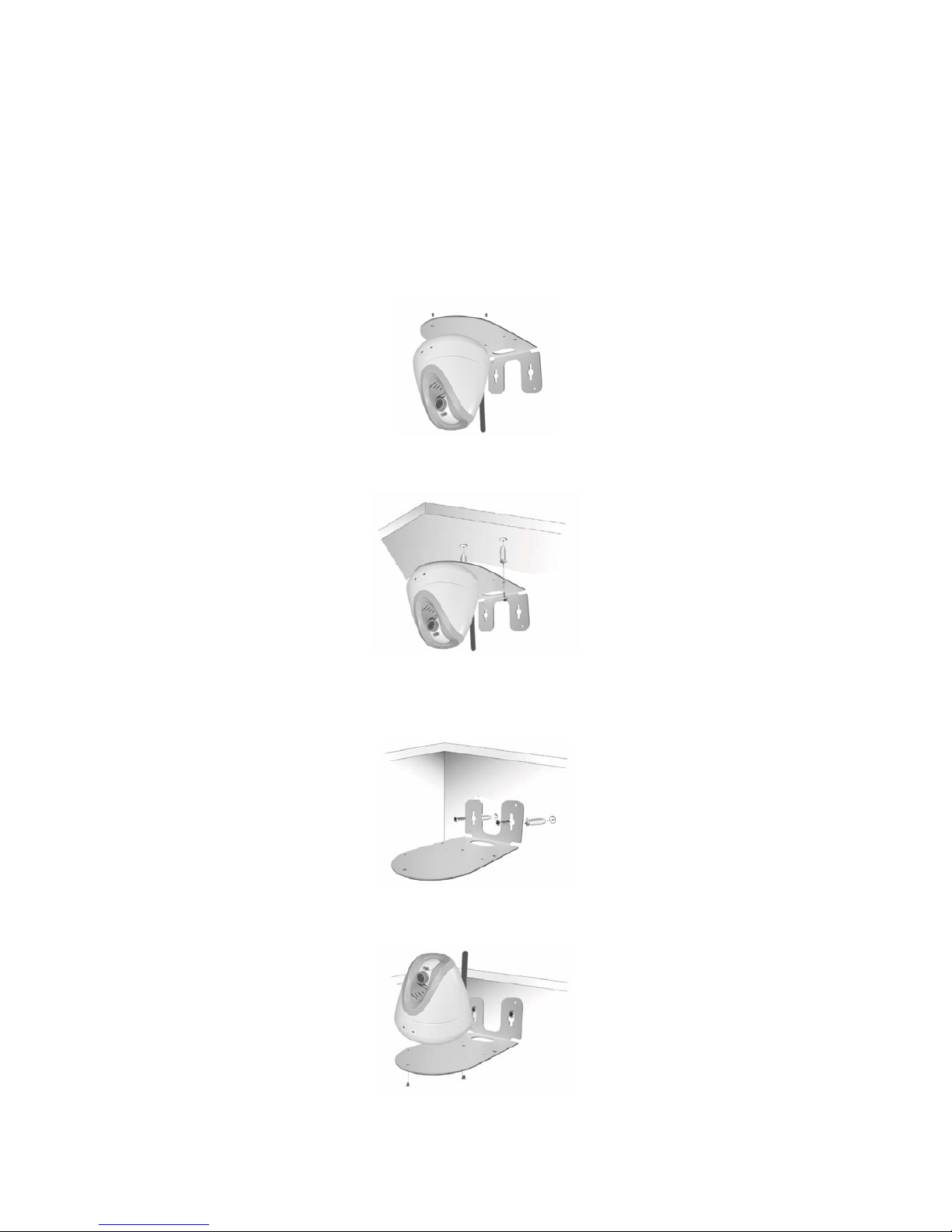

P/T IP Camera Installation:

Ceiling Mount

1. Fix the camera to L-type bracket with the two supplied screws

2. Fix the bracket and camera to the ceiling using two holly wall anchors and screws

Wall Mount

1. Fix the L-type bracket to the wall using two holly wall anchors and screws

2. Fix the camera to L-type bracket with the two supplied screws

3. Camera administration

When you installed your networked device over your network environment, to start

Network Camera web configuration, you must have the web browsers installed on

computer for web management.

-Microsoft internet Explorer 6.0 or higher

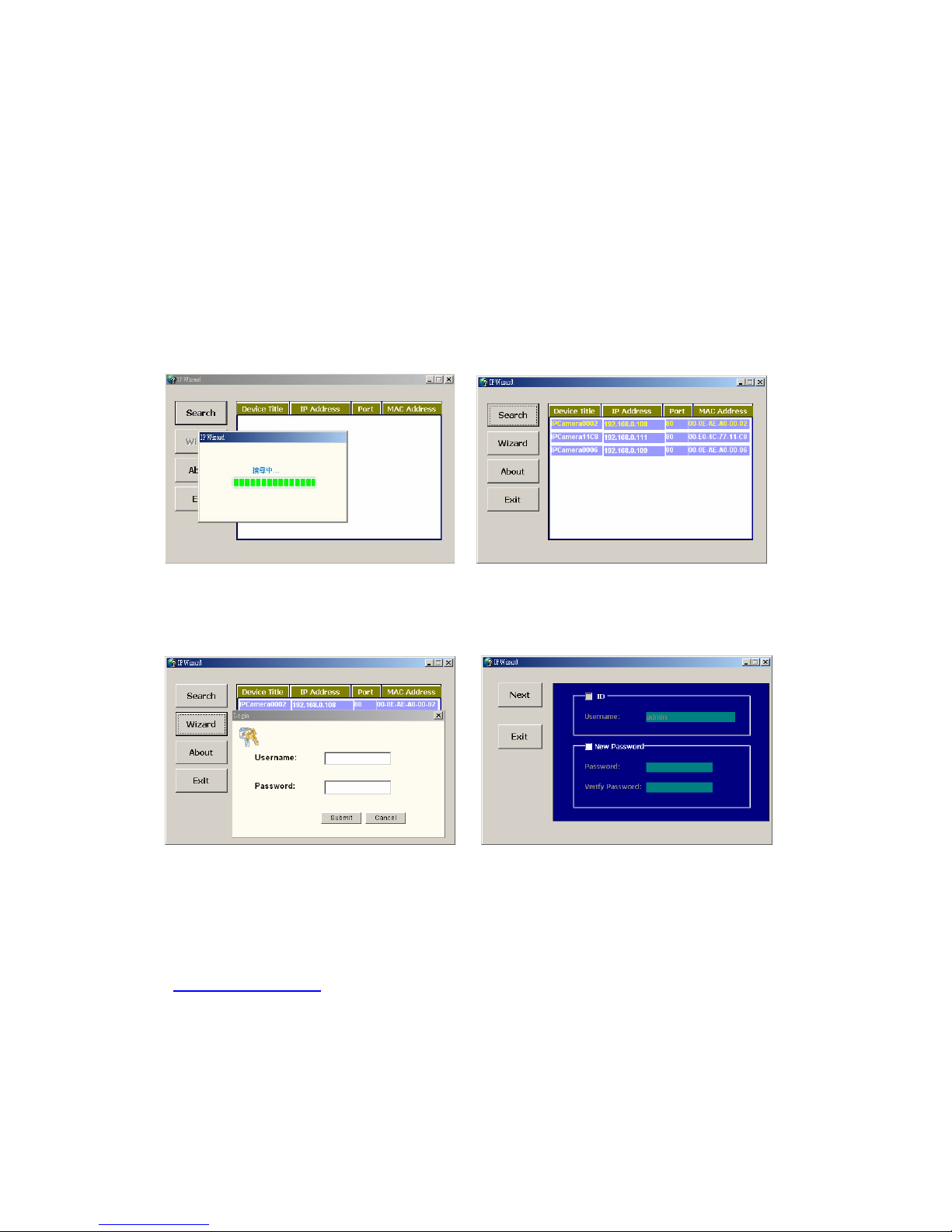

At first, user may use “IP Wizard” utility to search all networked devices in the LAN.

Use “IP Wizard” to locate IP address

Press “Search” button. IP Wizard will list all networked devices in the LAN:

Wizard function:

The utility featured with “Wizard” function to help user to modify the IP parameters of

the installed network devices. User can step by step to setup IP address, username and

password.

Username and Password:

The networked devices will prompt for User Name and Password. Default username is:

admin, leave password blank.

Note 1: If no IP address is assigned within 30 seconds, the networked device will

automatically assign 192.168.0.100. User may now open your web browser, and key in

http://192.168.0.100 in the address bar of you web browser to logon Network

Camera’s web configuration page.

Note 2: If you have problem when connecting the network camera to a router, please

read user’s manual inside CD, the section “Installation to a router”.

After connected to networked device, the device will prompt for User name and

Password. For the first time, please enter: admin as username to continue machine

Web Management.
