LMP-0800G Series User Manual V1.0
i
LMP-0800G Series
8-Port Industrial PoE+ Gigabit Managed Ethernet Switches
8*10/100/1000Tx (30W/Port)
Version 1.2
Hardware Manual
Antaira Technologies - Industrial Ethernet Switches
LMP-0800G Series Hardware Manual V1.2
II
© Copyright 2018 Antaira Technologies, LLC
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or translation
without prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the
trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the
registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered
trademarks of their respective owners.
Notice: Copyrights © 2018 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or
translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the
copyright laws.
Disclaimer
Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but
not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,
LLC may make improvements and/or changes to the product and/or specifications of the product described in this
manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or
typographical errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to change without prior
notice.
Antaira Technologies - Industrial Ethernet Switches
LMP-0800G Series Hardware Manual V1.2
III
FCC Warning
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause
harmful interference to radio communications if the equipment is not installed and used in accordance with the
instructions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
Industrial Ethernet Switches
Industrial Grade Gigabit PoE Managed Ethernet Switches
Hardware Manual
Version 1.2 (March 2018)
This manual supports the following models:
LMP-0800G
LMP-0800G-T
This document is the current official release manual. Please check our website (www.antaira.com) for any
updated manual or contact us by e-mail ([email protected]).
Antaira Technologies - Industrial Ethernet Switches
LMP-0800G Series Hardware Manual V1.2
IV
Table of Contents
1.
Introduction ...................................................................... 1
1.1 Product Overview 1
1.2 Product Software Features 1
1.3 Product Hardware Features 2
1.4 Package Contents 3
1.5 Safety Precaution 3
2.
Hardware Description ...................................................... 4
2.1 Physical Dimensions 4
2.2 Front Panel 5
2.3 Top View 5
2.4 LED Indicators 6
2.5 Reset Button 6
2.6 Ethernet Ports 7
2.7 Cabling 8
2.8 Wiring the Power Inputs 8
2.9 Wiring the Fault Alarm Contact 8
2.10 Grounding Note 9
3.
Mounting Installation ....................................................... 9
3.1 DIN-Rail Mounting 9
3.2 Wall Mounting 10
4.
Hardware Installation ..................................................... 12
4.1 Installation Steps 12
4.2 Maintenance and Service 12
5.
Technical Specifications ............................................... 13
Antaira Technologies - Industrial Ethernet Switches
LMP-0800G Series Hardware Manual V1.2
1
1.
Introduction
All Antaira industrial managed switches come with a pre-installed “user-friendly” web console
interface, which allows users to easily configure and manage the units, whether one is using a serial
console and command line interface (CLI) commands like Telnet, SSH, HTTP (Web GUI) or simple
network management protocols (SNMP).
1.1
Product Overview
Antaira Technologies’ LMP-0800G series is a 8-port industrial Gigabit PoE+ managed Ethernet
switch embedded with 8*10/100/1000Tx Ethernet ports that support IEEE802.3at/af for a maximum of
30W/port. It is a fully manageable Layer 2 Ethernet switch that is pre-loaded with a user-friendly web
management console design. It supports the ring network redundancy function using the market’s
open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms
network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN,
QoS, SNMP, RMON, ModbusTCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve
network management for remote SCADA systems or control networks.
The LMP-0800G series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature
models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -
40°C to 75°C). It also provides high EFT and ESD protection for industrial networking applications, such as,
power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other
outdoor or harsh environment.
1.2
Product Software Features
Network Redundancy
STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for
network redundancy
Network Management
Web UI based management, SNMP v1/v2/v3, Serial Console
Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,
broadcast storm control, Diffserv
IEEE802.1q VLAN tagging, port-based VLAN support
IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group
Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP,
Antaira Technologies - Industrial Ethernet Switches
LMP-0800G Series Hardware Manual V1.2
2
HTTPS, SSH/SSL, TFTP
MODBUS TCP for SCADA system integration
Port Configuration
Status, statistics, mirroring, rate limiting, event syslog
Event Handling
Event notification by Email: Cold/Warm Start, Power Failure, Authentication, SNMP
trap and Fault Alarm Relay Output
Software Upgrade via TFTP and HTTP
Configuration Backup – USB Port
1.3
Product Hardware Features
System Interface and Performance
All RJ-45 ports support Auto MDI Function
Embedded 8*10/100/1000Tx (PSE 30W/Port) RJ45 Ports
Store-and-forward switching architecture
8K MAC address table
Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC
Power Input
DC 48~55V redundant with a 6-pin removal terminal block
One user programmable alarm relay contact
The power input specification is complied with the requirements of SELV (Safety Extra Low
Voltage), and the power supply should be complied with UL 61010-1 & UL 61010-2-201
Operating Temperature
Standard operating temperature models: -10°C to 70°C
Extended operating temperature models: -40°C to 75°C
Case/Installation
IP-30 protection metal housing
DIN-Rail and wall mount design
Installation in a Pollution Degree 2 industrial environment
Antaira Technologies - Industrial Ethernet Switches
LMP-0800G Series Hardware Manual V1.2
3
1.4
Package Contents
1– LMP-0800G series: 8-port industrial gigabit PoE+ managed Ethernet switch, with
8*10/100/1000Tx (PSE 30W/Port).
1-Product CD
2-W all mounting brackets and screws
1-RJ45 to DB9 Serial Console cable
1-DC cable –18 AWG & DC jack 5.5x2.1mm
1.5
Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s
hardware specs, ports, cabling information, and wiring installation will be
described within this user manual.
Warning Labels
The caution label means that you should check the certain information on user manual when working with
the device. (Shown in Figure 1.1)
Figure 1.1 - Caution Label
This warning label is on the device, and means that the surface of the device is hot. (Shown in Figure 1.2)
Figure 1.2 - Hot Surface Warning Label
Antaira Technologies - Industrial Ethernet Switches
LMP-0800G Series Hardware Manual V1.2
4
2.
Hardware Description
2.1
Physical Dimensions

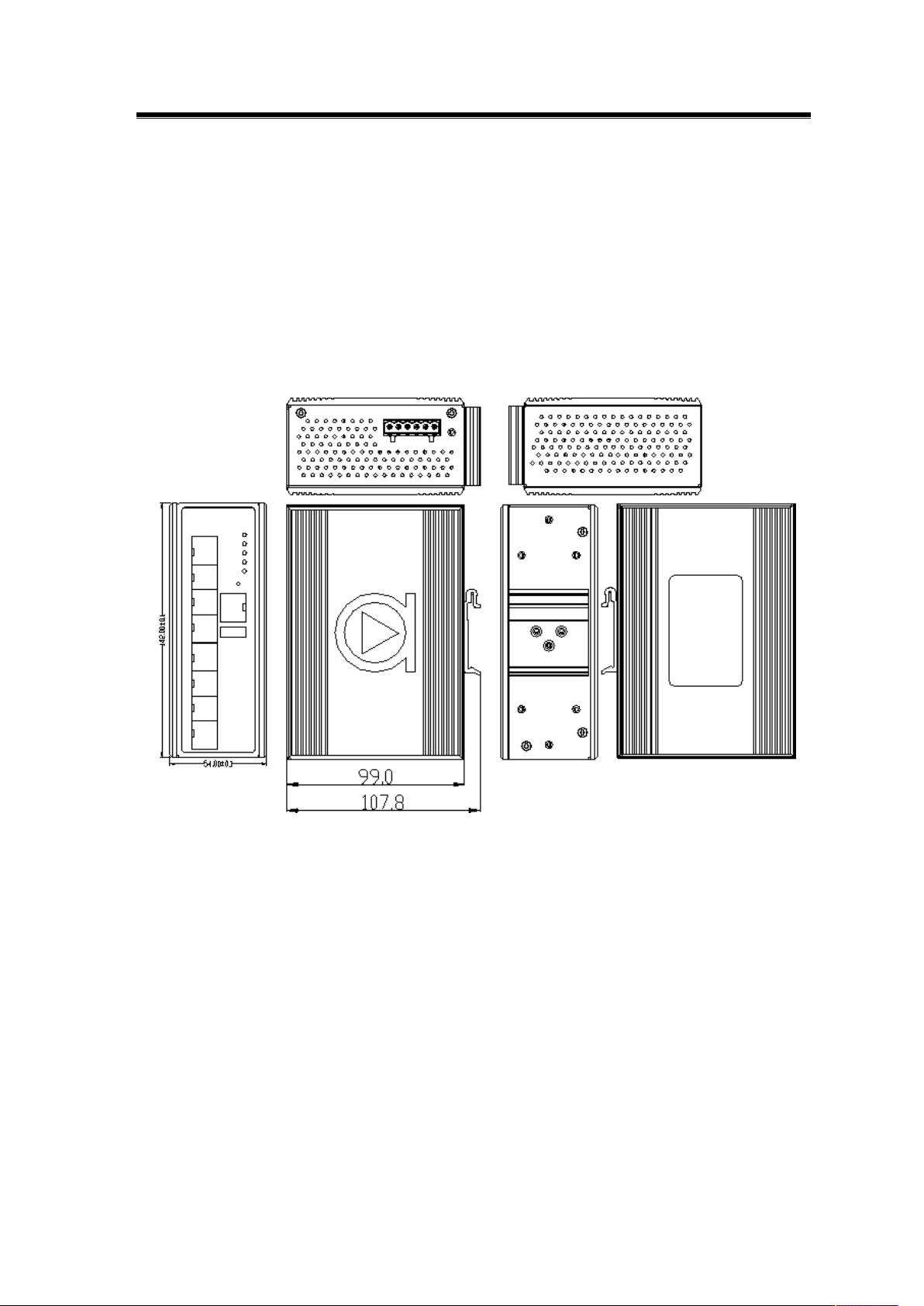

Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-0800G series: 8-port industrial
gigabit PoE+ managed Ethernet switches with 8*10/100/1000Tx ports.
(W x D x H) is 54mm x 99mm x 142mm
Figure 2.1
LMP-0800G Series Physical Dimensions
Antaira Technologies - Industrial Ethernet Switches
LMP-0800G Series Hardware Manual V1.2
5
2.2
Front Panel

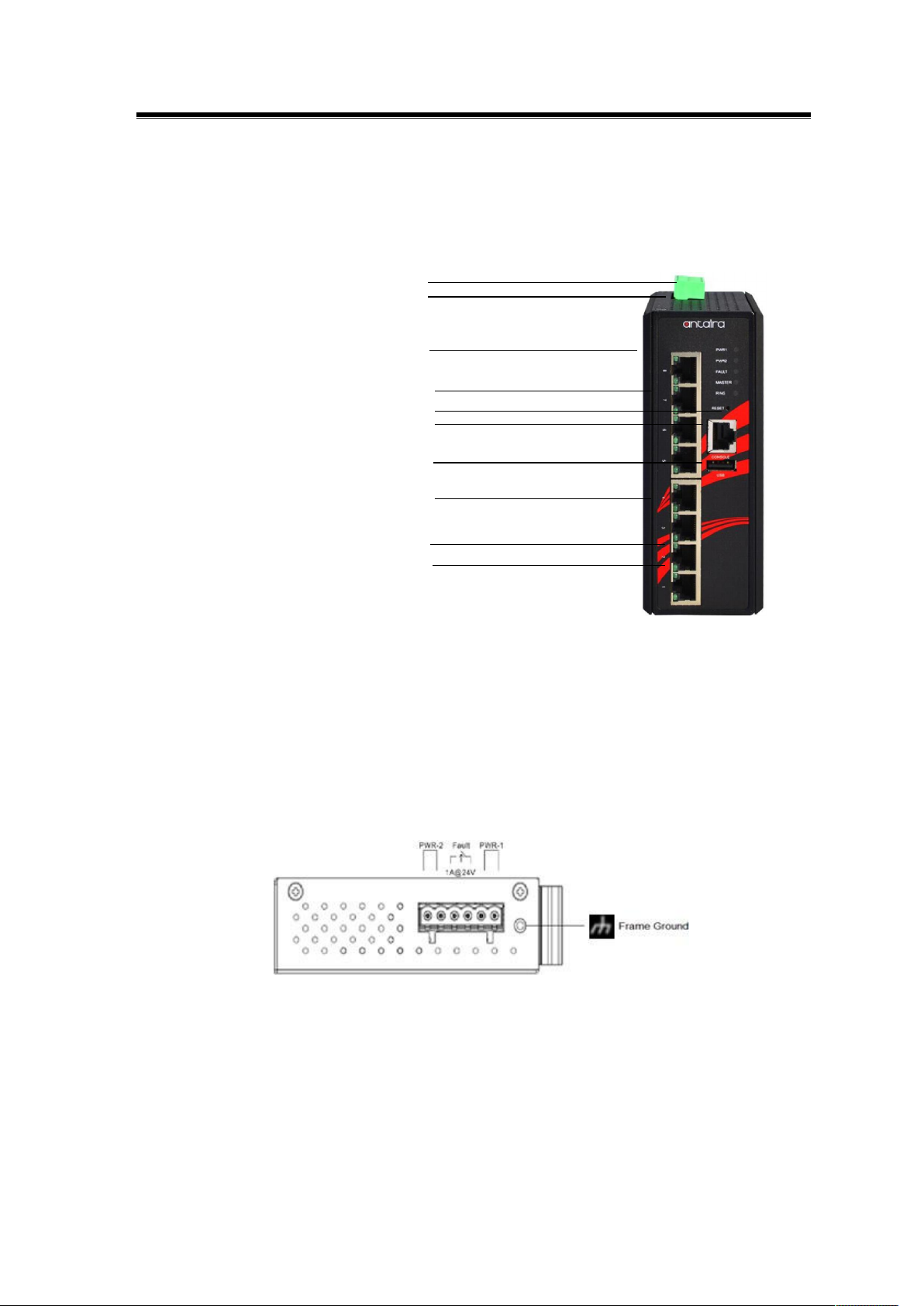

The front panel of the LMP-0800G series industrial gigabit PoE+ managed Ethernet switch is
shown below in Figure 2.2.
6-Pin Removal Terminal Block (Power Input)
Grounding Screw
LED for PWR1, PWR2, and Fault
LAN Port #5~8 – 10/100/1000Tx
Hard (Physical) Reset Button
Console Port
USB Backup
LAN Port (1~4) 10/100/1000Tx
LED for 10/100/1000Tx Network Speed Status
LED for PoE Activity
Figure 2.2
The Front Panel of LMP-0800G Series
2.3
Top View
Figure 2.3, below, shows the top panel of the LMP-0800G series switch that is equipped
with one 6-pin removal terminal block connector for dual DC power inputs 48~55VDC.
Figure 2.3
Top Panel View of LMP-0800G Series
Antaira Technologies - Industrial Ethernet Switches
LMP-0800G Series Hardware Manual V1.2
6
2.4
LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has
its own specific meaning, see below in Table 2.1.
LED Color Description
P1
Green On Power input 1 is active
Off Power input 1 is inactive
P2
Green On Power input 2 is active
Off Power input 2 is inactive
Fault
Green/
Red
Green Power input 1 or 2 is inactive
Red An applied alarm (such as port disconnect) has been
triggered
Off
Power input 1 and 2 are both functional and no
active/port alarm is detecting errors
Owner Green On ERPS Owner Mode (Ring Master) is ready
Off ERPS Owner Mode is not active
Ring Green On Ring Network is active
Off Ring Network is not active
LAN Port 1 ~ 8
(Left LED)
Green
On Connected to network, 10/100/1000Mbps
Flashing
Networking is active
Off Not connected to network
LAN Port 1~ 8
(Right LED)
PoE Indicators
Green
On The port is supplying power to the powered-device
Off No powered-device attached or power supplying fails
Table 2.1 - LED Indicators for LMP-0800G Series
Caution: "P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for
"Activity".
2.5
Reset Button
There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that helps
users to reboot, restore default, or save running configurations by pressing the button for
different seconds. Please refer to Table 2.2 for the timing and function.
Seconds Function
1
Save running configuration to USB
4-6 Reboot the switch
7 or more Restore factory default
Table 2.2 – Reset Button Functions
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali ANTAIRA Interruttore
ANTAIRA
ANTAIRA LNP-0802-24 Series Manuale utente
ANTAIRA
ANTAIRA LMP-1802G-SFP Series Manuale utente
ANTAIRA
ANTAIRA LMX-1802G-SFP Series Manuale utente
ANTAIRA
ANTAIRA LMX-2602G-SFP Series Manuale utente
ANTAIRA
ANTAIRA LNX-0500-M12-67 Series Manuale utente
ANTAIRA
ANTAIRA LNP-2602G-SFP Series Manuale utente
ANTAIRA
ANTAIRA LMP-1204G-SFP-bt-24 Series Manuale utente
ANTAIRA
ANTAIRA LNX-1204G-SFP Series Manuale utente
ANTAIRA
ANTAIRA LMP-2004G-SFP Series Manuale utente
ANTAIRA
ANTAIRA LNP-0800G-24 Series Manuale utente
ANTAIRA
ANTAIRA LMP-0602 24-V2 Series Manuale utente
ANTAIRA
ANTAIRA LMX-2012G-SFP Series Manuale utente
ANTAIRA
ANTAIRA LMP-0501 Series Manuale utente
ANTAIRA
ANTAIRA LNX-C800 Series Manuale utente
ANTAIRA
ANTAIRA LNP-0602-M Manuale utente
ANTAIRA
ANTAIRA LMX-2012G-SFP Series Manuale utente
ANTAIRA
ANTAIRA LNX-C500 Manuale utente
ANTAIRA
ANTAIRA LNX-800AG-E Series Manuale utente
ANTAIRA
ANTAIRA LNX-1600-E Series Manuale utente
ANTAIRA
ANTAIRA LNX-0601G-SFP Manuale utente
