ANTAIRA LNX-C800G Series Manuale utente

Antaira Technologies - Industrial Ethernet Switches

LNX-C800 Series User Manual V1.0

LNX-C800G Series

8-Port Compact Industrial Unmanaged Gigabit Ethernet Switch,

with 8*10/100/1000Tx

Version 1.0

User Manual

Antaira Technologies - Industrial Ethernet Switches

LNX-C800G Series User Manual V1.0

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the

trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM andWPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC. is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC. may make improvements and/or changes to the product and/or specifications of the product described in

this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Technologies - Industrial Ethernet Switches

LNX-C800G Series User Manual V1.0

iii

FCC Notice

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Unmanaged Gigabit Ethernet Switches

User Manual

Version 1.0 (March 2020)

This manual supports the following models:

•LNX-C800G

•LNX-C800G(-T)

This document is the current official release manual. Please check our website (www.antaira.com) for any

updated manual or contact us by e-mail (support@antaira.com).

Antaira Technologies - Industrial Ethernet Switches
LNX-C800G Series User Manual V1.0

iv

Table of Contents

Overview..................................................................... 1
1Key Features..................................................... 1
2 Package Contents............................................. 2
3 Safety Precaution.............................................. 2
Hardware Description................................................ 3
1Physical Dimensions......................................... 3
2 Front Panel....................................................... 3
3 Top View........................................................... 4
4 LED Indicators.................................................. 5
5 GigEthernet Ports ............................................. 5
6 Cabling............................................................. 6
7 Wiring the Power Inputs.................................... 7
Mounting Installation................................................. 8
1 DIN-Rail Mounting............................................. 8
2 Wall Mounting................................................... 9
Hardware Installation............................................... 10
1 Installation Steps ............................................ 10
Trouble Shooting ..................................................... 11
Technical Specifications......................................... 12


Antaira Technologies - Industrial Ethernet Switches

LNX-C800 Series User Manual V1.0

1. Overview

Antaira Technologies’ LNX-C800G series is a compact 8-port industrial Ethernet switch. The

small form factor of this metal IP30 rated industrial switch is 30% smaller allowing for a more

versatile implementation. The LNX-C800G is equipped with 8*10/100/1000Tx RJ45 Ethernet

ports; with a backplane speed of 16gbps. The industrial-grade design and compact size of the

LNX-C800G series makes this ideal unit for integration into projects or other applications that

need a small footprint.

The LNX-C800G series supports reverse polarity and overload current protection. This product

series supports DIN-rail as well as wall mountable orientations and provides operating

temperature range models in STD: -10°C to 65°C and EOT: -40°C to 75°C. This is an industrial

grade unit applicable for networking applications in factory automation, ITS, power/utility, water

wastewater treatment plants, or any application that needs a compact solution.

1.1 Key Features

◼System Interface/Performance

•All RJ-45 ports support the auto MDI/MDI-X function

•Embedded 8*10/100/1000Tx

•Store-and-forward switching architecture

•4K MAC address table

◼Power Input

•DC 12~48V redundant power with a 6-pin removal terminal block

◼Operating Temperature

•Standard operating temperature model: -10°C ~ 65°C

•Extended operating temperature model (–T): -40°C ~ 75°C

◼Case/Installation

•IP30 protection

•DIN-Rail and wall mount design

Antaira Technologies - Industrial Ethernet Switches

LNX-C800G Series User Manual V1.0

1.2 Package Contents

➢1 - LNX-C800G(-T): 8-port industrial compact unmanaged Gigabit Ethernet switch

with 8*10/100/1000Tx

➢2 - Wall mounting brackets and screws

➢1 - DC cable –18 AWG & DC jack 5.5x2.1mm

➢1 - Quick Installation Guide

➢1 –RJ45 dust cover set

1.3 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

Antaira Technologies - Industrial Ethernet Switches

LNX-C800G Series User Manual V1.0

2. Hardware Description

2.1 Physical Dimensions

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNX-C800G series: 8-

port compact industrial unmanaged Gigabit Ethernet switch with 8*10/100/1000TxRJ45 ports.

(W x D x H) is 40mm x 70mm x 95mm

Figure 2.1

LNX-C800G Series Physical Dimensions

Antaira Technologies - Industrial Ethernet Switches

LNX-C800G Series User Manual V1.0

2.2 Front Panel

The front panel of the LNX-C800G series: 8-port industrial compact unmanaged Gigabit Ethernet

switch with 8*10/100/1000Tx. See Figure 2.2.

2.3 Top View

Figure 2.3, below, shows the top panel of the LNX-C800G series switch that is equipped

with one 6-pin removal terminal block connector for dual DC power inputs (12-48 VDC).

Figure 2.3

Top Panel View of LNX-C800G Series

Figure 2.2

Front Panel of the LNX-C800G Series

6-pin Removal Terminal Block

(Dual Power Input)

LED for Power 1, Power 2, and Fault

LAN Port # 1~8 –10/100/1000Tx

LAN#1 LED for Link/Activity Status 1000Mbps

LAN#1 LED for Link/Activity Status 10/100Mbps

Grounding Screw

Antaira Technologies - Industrial Ethernet Switches

LNX-C800G Series User Manual V1.0

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial Gigabit Ethernet

switch that display the power status and network status. Each LED indicator has a different

color and has its own specific meaning, see below in Table 2.4.

LED

Color

Description

Power

Green

Power input is active

Off

Power input is inactive

LAN Port 1 ~ 8

(Left LED)

Green

Connected to network, 100Mbps

Flashing

Networking is active

Off

Not connected to network

LAN Port 1 ~ 8

(Right LED)

Green

Connected to network at 10Mbps

Flashing

Networking is active

Off

Not connected to network

2.5 Ethernet Ports

◼RJ-45 Ports

RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports(LAN 1~8) are auto-sensing for 10/100/1000Base-

T, or 1000Base-Tx devices connections. Auto MDI/MDIX means that the switch can connect to

another switch or workstation without changing the straight-through or crossover cabling. See the

figures shown below for straight-through and crossover cabling schematics.

◼RJ-45 Pin Assignments (Table 2.5)

Pin Number

Assignment

Rx+

Rx-

Tx+

Tx-

Table 2.4

LED Indicators for LNX-C800G Series

Table 2.5

RJ45 Pin Assignments

Antaira Technologies - Industrial Ethernet Switches

LNX-C800G Series User Manual V1.0

All ports on this industrial Ethernet switch support automatic MDI operations. Users can use

straight-through cables (see figure below) for all network connections to PCs, servers, and other

switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are

connected straight through to pins1, 2, 3 and 6 atthe other end of the cable. Thetable below shows

the 10BASE-T/100BASE-TX MDI port pin outs.

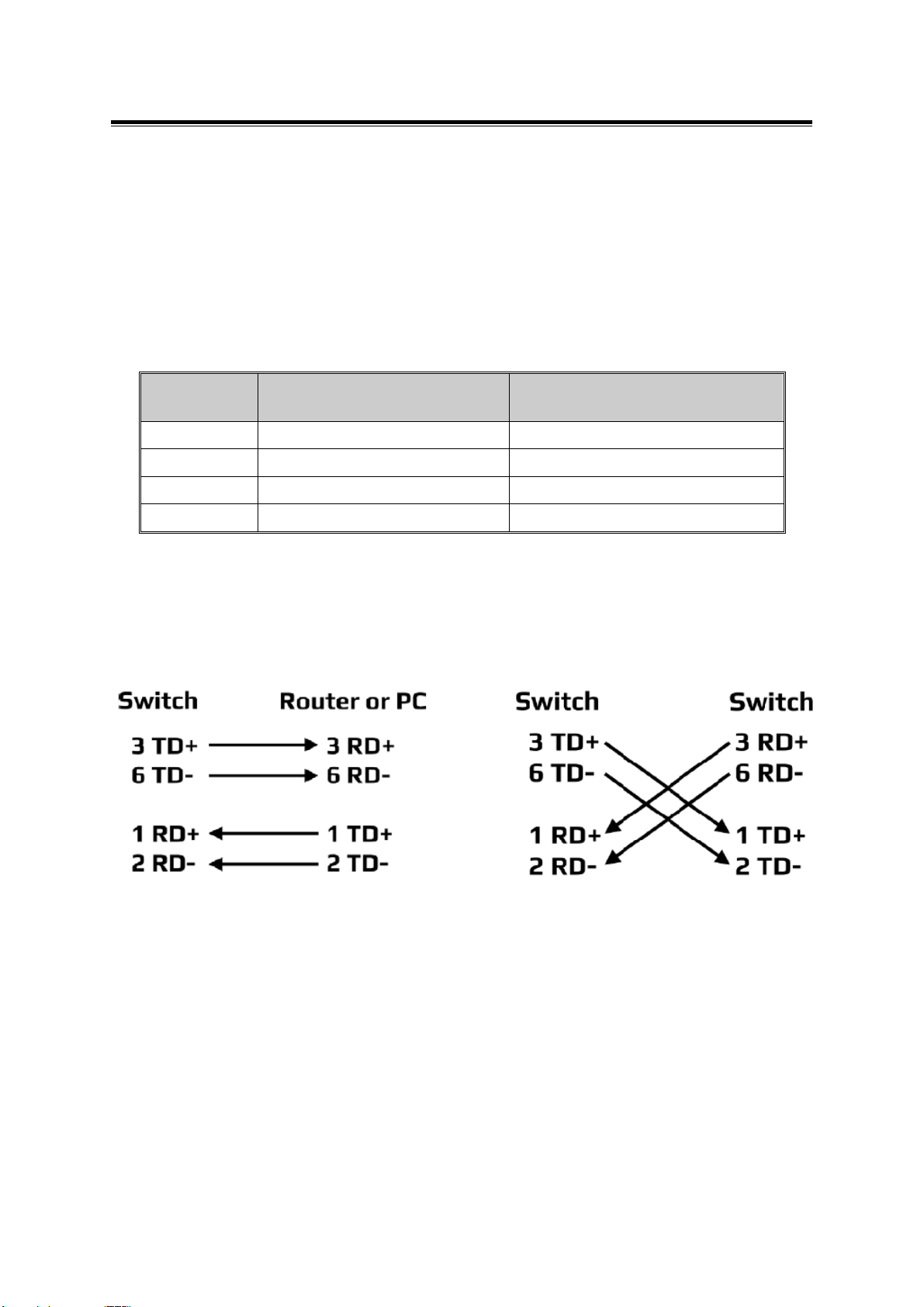

The following figures show the cabling schematics for straight-through and crossover cables.

2.6 Cabling

◼Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded

twisted pair (STP) cable. The cable must comply with the IEEE 802.3u 1000Base TX standard

(e.g. Category 5, 5e, 6, or 6a). The cable between the equipment and the link partner (switch,

hub, workstation, etc.) must be less than 100 meters (328 ft.) long.

Note:

The “+” and “-” signs represent the polarity of the wires that make up each wire pair.

Pin MDI-X

Signal Name

MDI Signal Name

Receive Data plus (RD+)

Transmit Data plus (TD+)

Receive Data minus (RD-)

Transmit Data minus (TD-)

Transmit Data plus (TD+)

Receive Data plus (RD+)

Transmit Data minus (TD-)

Receive Data minus (RD-)

Table 2.5

Ethernet Signal Pin Outs

Figure 2.4 Figure 2.5

Straight-Through Cables Schematic Crossover Cables Schematic
