Anywave Marble Series Manuale utente

ANYWAVE

PA-U8D-C-FA (Marble Series)

User Manual

Version 2.0 –May20, 2022

PA-U8D-C-FA User Manual

ACT-PAU8D-USR-DOC-V2.0, 05/20/2022 Page 2 of 33

No part of this publication may be reproduced, translated, transcribed, stored in a retrieval

system, or transmitted into any form or by any means, without the express written permission

of Anywave Communication Technologies, Inc.

FCC Compliance

This equipment complies with relevant portions of Parts 2, 73, & 74 of the FCC rules

governing LPTV operation.

Disclaimer

Information provided by Anywave Communication Technologies is believed to be accurate

and complete; however, no liability can be assumed for its use.

The manufacturer makes no representations or warranties, either expressed or implied, by or

with respect to anything in this manual, and shall not be liable for any implied warranties of

fitness for a particular purpose or any indirect, special, or consequential damages.

Information in this document is subject to change without notice and does not represent a

commitment on the part of the manufacturer.

USE OF THIS PRODUCT IN A MANNER OTHER THAN DESCRIBED IN THIS

MANUAL MAY RESULT IN DAMAGE TO THE EQUIPMENT AND/OR PERSONAL

INJURY.

PLEASE READ THIS MANUAL IN ITS ENTIRETY BEFORE ATTEMPTING TO

INSTALL THE EQUIPMENT. CONTACT ANYWAVE WITH ANY QUESTIONS OR

CONCERNS YOU MAY HAVE.

Anywave Communication Technologies Inc.

100 N Fairway Dr, STE 128, Vernon Hills, IL 60061

Tel: (847) 415-2258

Fax: (847) 415-2112

http://www.anywavecom.net

PA-U8D-C-FA User Manual

ACT-PAU8D-USR-DOC-V2.0, 05/20/2022 Page 3 of 33

Unpacking

Carefully unpack the equipment and perform a visual inspection to determine if any apparent

damage has occurred during shipment. Please notify the delivery carrier and Anywave

immediately if shipment damage has occurred. Retain all original shipping materials.

Please locate and reference the Packing Check List to verify you have received all

components of your system. Retain the Packing Check List for future reference.

Also, please identify and remove all packing materials and supports (foam pads, etc.) before

the initial turn-on of the equipment.

Returns and Exchanges

Written approval and a Return Authorization Number (RAN) are required from Anywave for

all equipment returns. Please direct all return inquiries to the Anywave Service Department at

[email protected], providing the Sales Order number and Serial Number(s) of

the equipment. Complete details regarding the nature and circumstances of your return must

be included in your RAN request. Proper handling and return shipping instructions will be

provided with an approved RAN number.

Technical Support

Technical support and troubleshooting assistance for Anywave Transmitters are available

through the Anywave Service Department during normal business hours (8:00 AM - 5:00 PM

CST) at (847) 415-2258.Email questions to support_us@anywavecom.com.

Note: For all service and support requests, you will need to provide the Serial Number of the

equipment with your Sales Order number. For future reference, please record that information

here: ________________________________________

PA-U8D-C-FA User Manual

ACT-PAU8D-USR-DOC-V2.0, 05/20/2022 Page 4 of 33

WARNING

THE VOLTAGES, CURRENTS, AND RF ENERGY IN THIS EQUIPMENT ARE

DANGEROUS. PERSONNEL MUST AT ALL TIMES OBSERVE ALL SAFETY

WARNINGS, INSTRUCTIONS, AND REGULATIONS.

IN THE CASE OF AN EMERGENCY, ENSURE THAT ALL POWER HAS BEEN

DISCONNECTED.

ALWAYS DISCONNECT POWER BEFORE REMOVING COVERS,

ENCLOSURES, OR SHIELDS. DO NOT PERFORM SERVICE ON THE

EQUIPMENT WHEN ALONE OR FATIGUED. KNOW YOUR EQUIPMENT AND

DO NOT TAKE RISKS.

This manual is provided as a general guide for trained and qualified personnel well aware of

the dangers inherent in handling potentially hazardous electrical transmission equipment.

The installation, operation, maintenance, and service of this equipment involves risks both to

personnel and equipment and must ONLY be performed by qualified personnel exercising

due care. Anywave Communication Technologies, Inc. shall not be responsible for injury or

damage resulting from improper handling or the use of improperly trained or inexperienced

personnel performing such tasks.

All local building and electrical codes, as well as fire protection standards, must be observed

in the installation and operation of the equipment.

PA-U8D-C-FA User Manual

ACT-PAU8D-USR-DOC-V2.0, 05/20/2022 Page 5 of 33

Contents

1 Product Appearance ........................................................................................6

1.1 Front Panel....................................................................................................................................6

1.2 Back Panel ....................................................................................................................................7

1.3 System Interconnect Diagram.......................................................................................................9

2 Specifications..................................................................................................11

3 Control Interface............................................................................................12

3.1 Web Interface..............................................................................................................................12

3.2 Local (Touch Screen) User Interface ..........................................................................................18

3.2.1. Home Screen.........................................................................................18

3.2.2. Status Screen.........................................................................................19

3.2.3. A/B Exciter Icon Screen.......................................................................20

3.2.4. Config Screen .......................................................................................25

3.2.5. CONTROL SCREEN...........................................................................31

3.2.6. LOG SCREEN......................................................................................31

PA-U8D-C-FA User Manual

ACT-PAU8D-USR-DOC-V2.0, 05/20/2022 Page 6 of 33

1 Product Appearance

1.1 Front Panel

LED_PWR

The green light will be on when the DC voltage of the internal power supply is within the normal

range (48 VDC ~ 52 VDC).

The green light will flash when the DC voltage of the internal power supply is out of the normal

range (48 VDC ~ 52 VDC).

The green light will be off when the external power supply is turned off, or the internal power

supply module does not work.

LED_RS485

The green light will stay on or flash when internal communication is normal.

The green light will stay constantly off when internal communication is abnormal.

LED_FWD

The blue light will be on when RF_OUT has power output.

The blue light will be off when the RF button is turned off, or the PA enters the auto-protection

mode and therefore shuts down its RF output. Several situations will result in auto-protection

mode, such as the input power is too high, the reflected power is too high, or the temperature is

too high.

LED_ALARM

The red light will be off if there is no alarm.

The red light will be on if there is an alarm.

LAN

Connector: 10M/100M Ethernet

Note: Ethernet port for web-based remote control (IP address: 192.168.1.200,

username/password: anywavecom/anywavecom)

RESET

Press for up to 8 seconds to reset the IP of the amplifier to default (192.168.1.200).

PA-U8D-C-FA User Manual

ACT-PAU8D-USR-DOC-V2.0, 05/20/2022 Page 7 of 33

1.2 Back Panel

PRE PA—RF IN1/RF IN2

Connector: SMA

Impedance: 50 Ω

Note: This is the input of the pre-amp section and should be connected to the output of the

exciter(s). If input power from RF_IN1/2 is lower than the rated input value, the output power

will be lower than the rated output power accordingly. If the input level from RF_IN1/2 is higher

than the recommended value, it will result in RF output distortion and performance deterioration.

If the output power is higher than the preset FWD threshold, it may trigger the current-limiting

function. The PA will enter the auto-protection mode, and there will be reduced RF output or

even no RF output.

PRE PA—PA OUT

Connector: SMA

Impedance: 50 Ω

Note: This is the output of the pre-amp section and should be connected to PA-RF-IN (the input

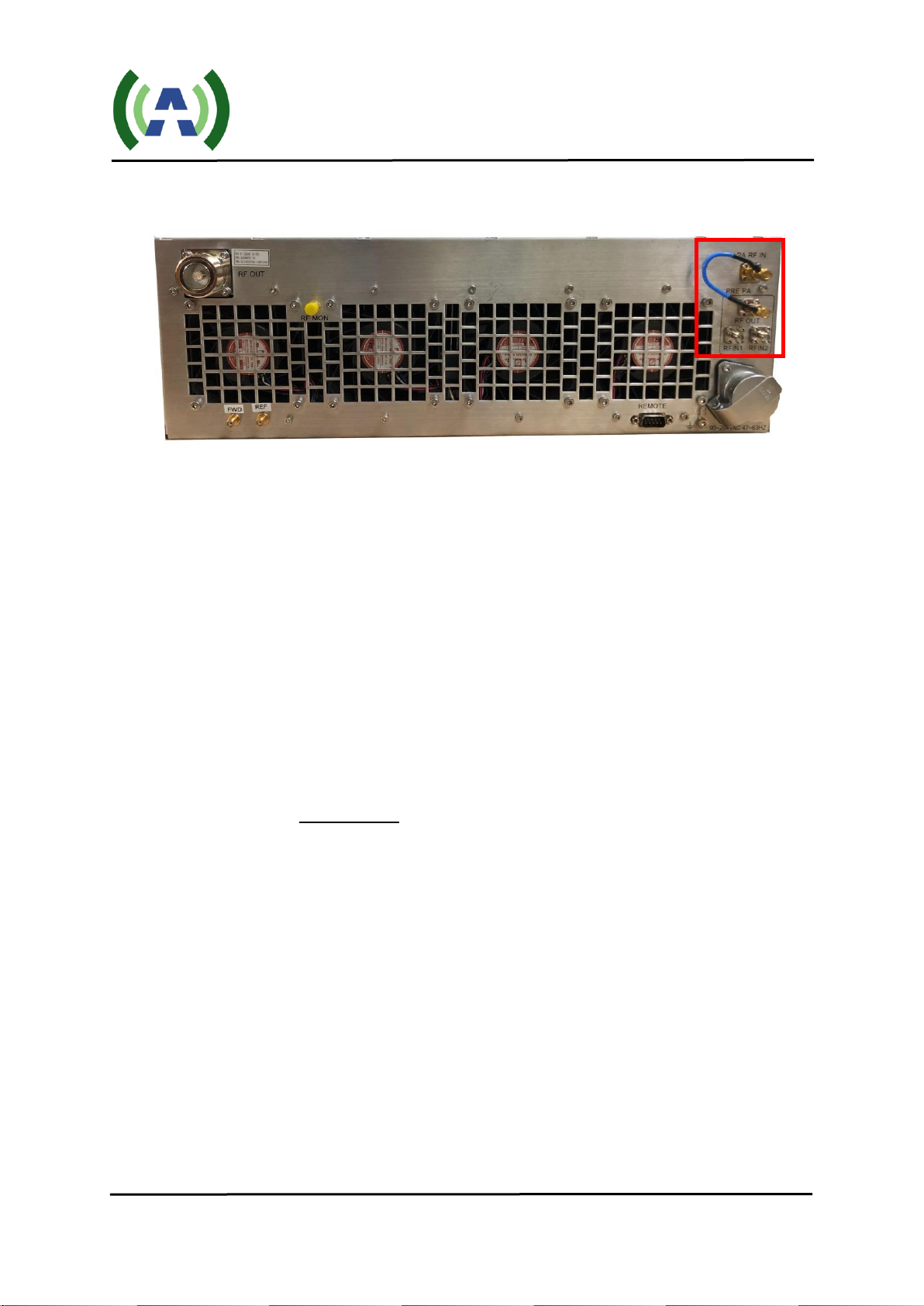

of the final stage). IMPORTANT: A SMA-to-SMAjumper is provided with the unit and has to

be connected between PRE-PA-OUT to PA-RF-IN (as shown above in the red rectangle).

Otherwise, there is no drive to the final stage of the PA and there is no output power.

RF_OUT

Connector: 7/16

Impedance: 50 Ω

Note: RF_OUT must be connected with a load with proper impedance, otherwise the PA may be

damaged.

REMOTE

Connector: DB9-M

Note: Connected to the REMOTE (RS232) port of exciter A/B (with an

RS232-to-485 adapter), which is used for control and

communication between the PA and the exciterA/B.

PA-U8D-C-FA User Manual

ACT-PAU8D-USR-DOC-V2.0, 05/20/2022 Page 8 of 33

FWD & REF

Connector: SMA

Impedance: 50 Ω

Note: Forward (FWD) and Reflected (REF) power metering sample fed back from external

directional coupler (reference system interconnect diagram below).

AC INPUT: 90~264VAC, 47~63Hz (standard L14-30 plug is recommended).

PA-U8D-C-FA User Manual

ACT-PAU8D-USR-DOC-V2.0, 05/20/2022 Page 9 of 33

1.3 System Interconnect Diagram

The Anywave PA-U-2200-D-FB Marble DTV Transmitter consists of an Exciter, a

PA-U-2200-D-FB (with built-in Controller), a 7/16 DIN Directional Coupler, a 7/16 DIN 90

degree elbow, a 7/16-to-1-5/8 adapter, a 1-5/8 LPF, a 1-5/8 90 degree elbow, a 30 inch section

of 1-5/8 rigid coax (to eliminate moding with some mask filters), a BPF (optional) with two

additional single port 1-5/8 directional couplers for Exciter feedback samples (optional), two

20 dB N-type attenuators (optional), and a final 1-5/8 unflanged-to-flanged adapter. The

diagram below shows the overall system interconnect between the system components.

*** Caution *** Please connect the system as detailed in the diagram below. Failure to do so may

result in equipment damage and void the equipment limited warranty. Please refer to the Quick Start

Guide for detailed initial turn on instructions. Contact Anywave with any questions you may have.

PA-U8D-C-FA User Manual

ACT-PAU8D-USR-DOC-V2.0, 05/20/2022 Page 10 of 33

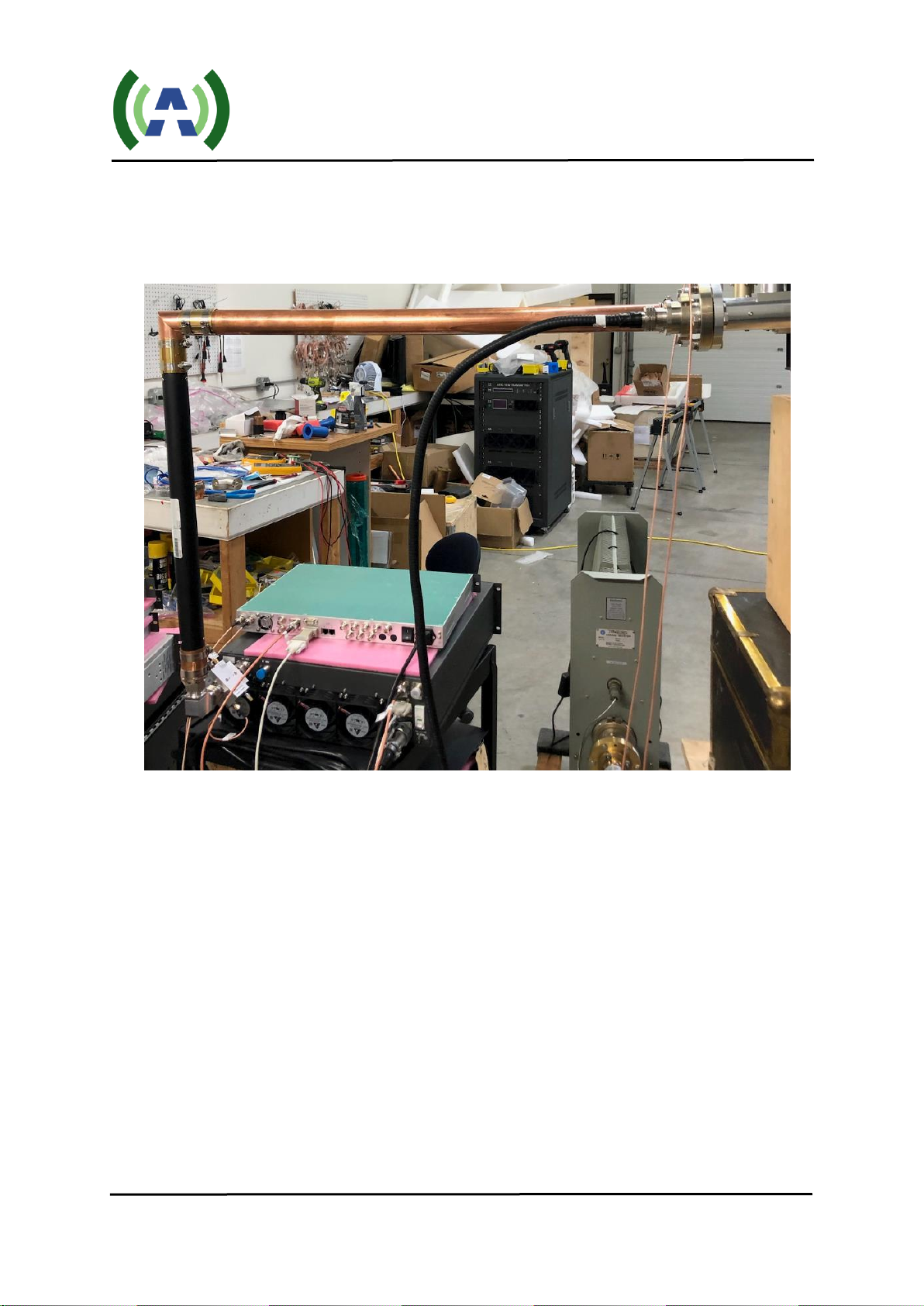

Below is an example photo showing the system connetcions. (Please note: this photo is

illustrative only and your system connections may differ slightly. Please refer to the system

diagram above for the specific system interconnection for your 2KW system).
