User Manual
DVB-T
Receiver Box
1. Accessories
2. Panel Illustration
3. Cable Connection
4. Remote Control
5. OSD Menu Operation
5.1 Channel
5.2 Installation
5.3 Setup
5.4 Tools
6. Hot Keys
1
2
3
5
6
7
8
10
13
15
Index
User Manual
DVB-T
Receiver Box

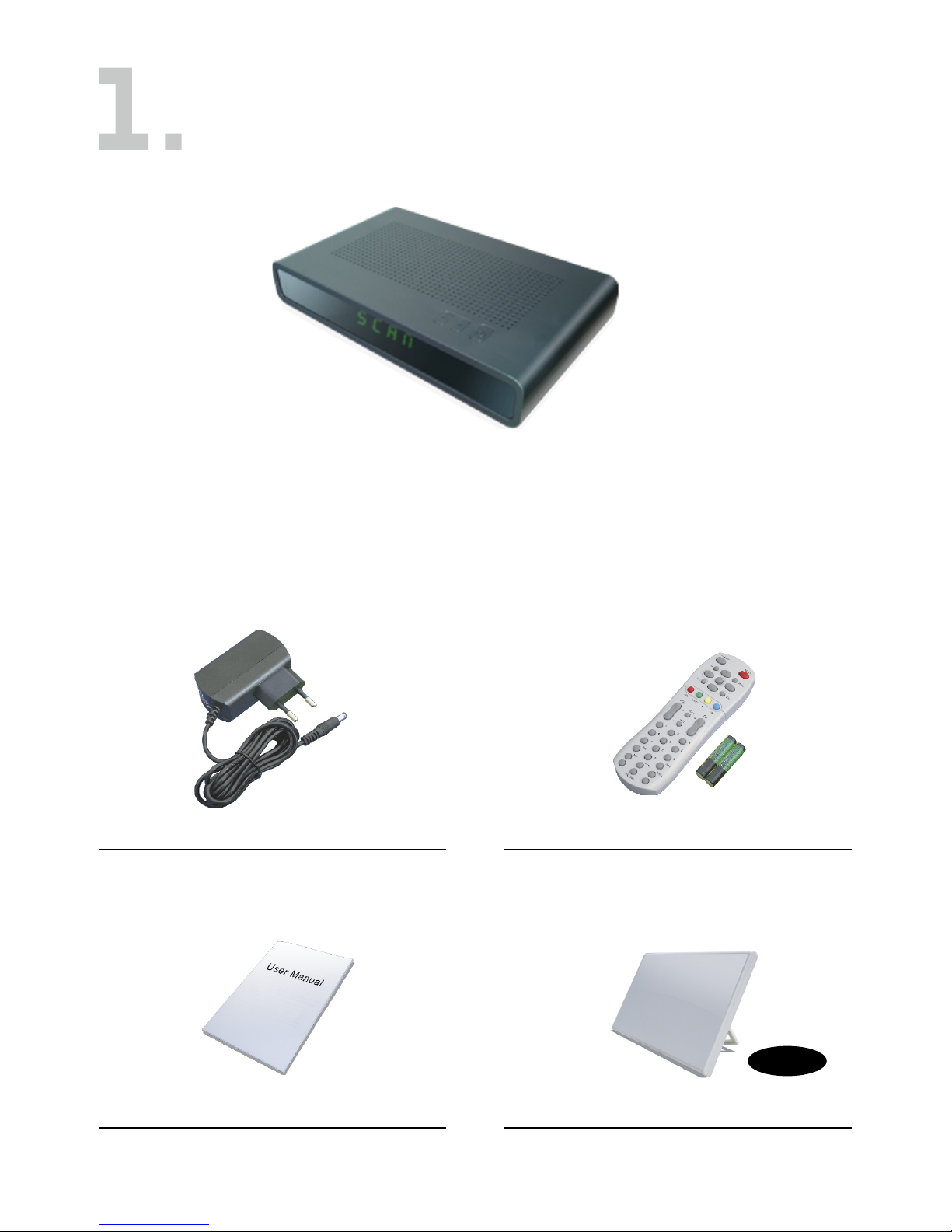

When you open the box, please check the content rst. Besides the DTB-131EU receiver box, there
are other accessories shown below.
Remote Control (with battery) x 1
User’s Manual x 1 ANT-101 Antenna x 1
Option
Power Adapter (12VDC/A) x 1
1. Accessories
1

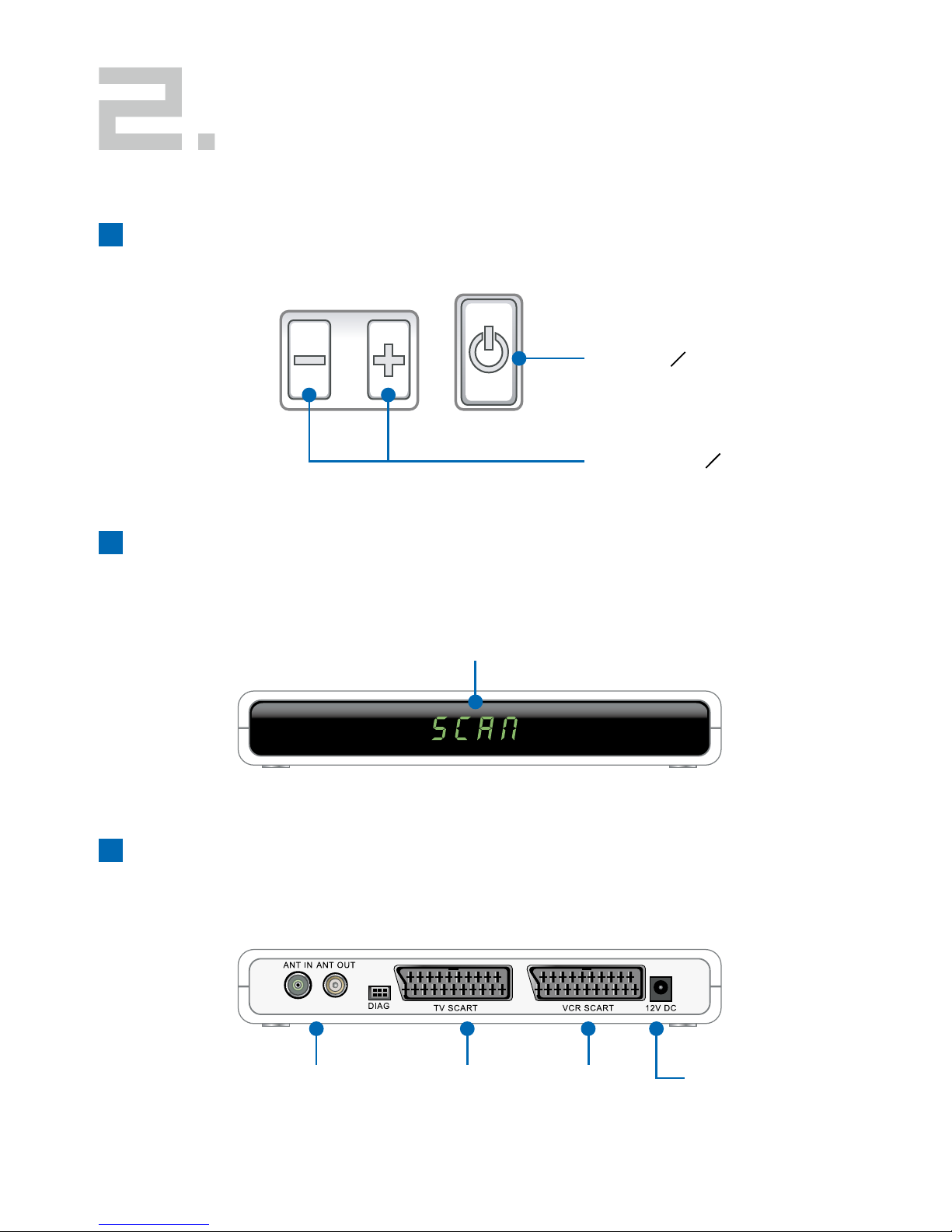

2. Panel Illustration
Buttons
Front Panel
Rear Panel
12V DCIn – Antenna – Out TV Scart VCR Scart
7-Segment LED
Power On Stand by
Channel Down Up
2

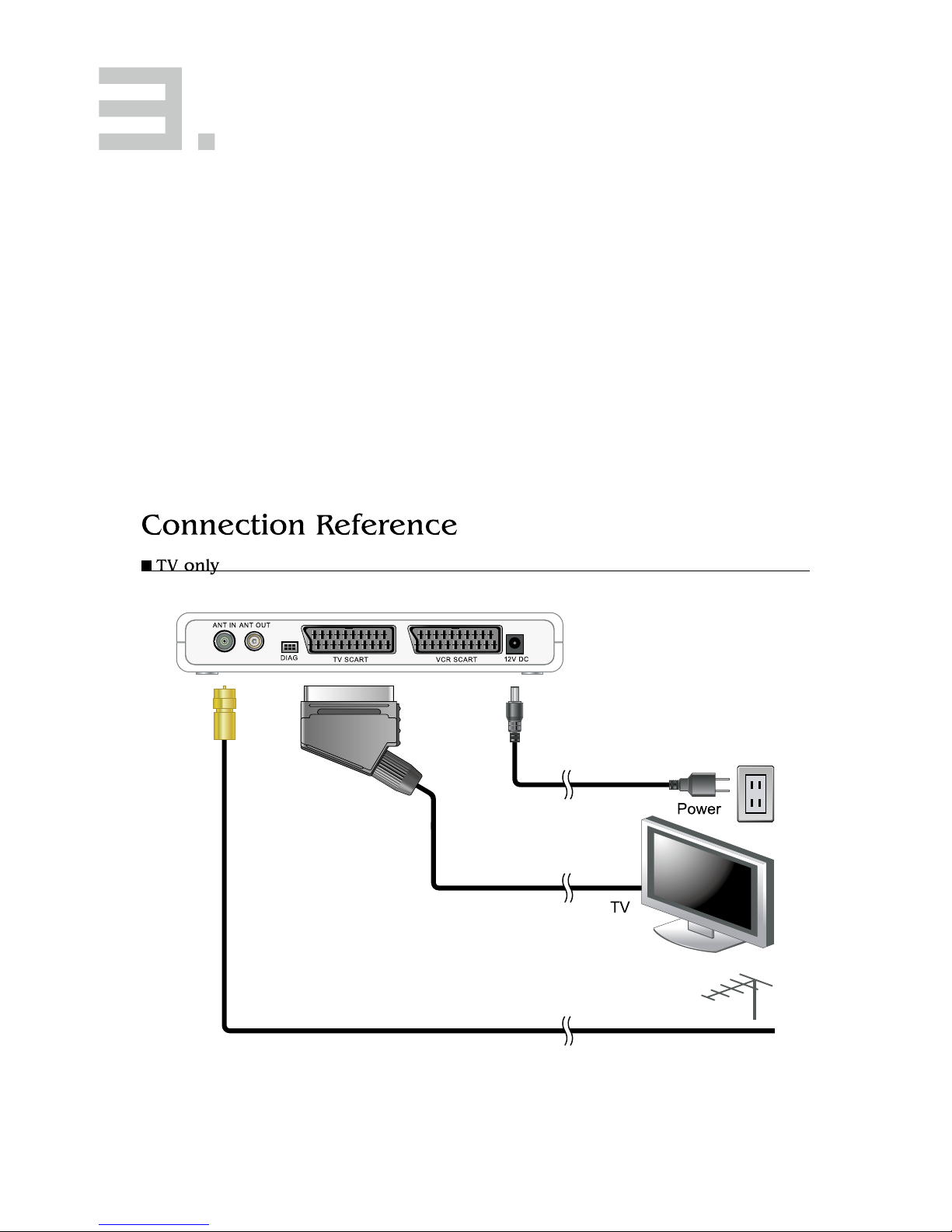

3. Cable Connection
This receiver box provides TV and VCR SCART with CVBS and RGB video output for TV and VCR.
There is one ANT IN to receive RF signal from the air and forward it to ANT OUT for VCR or TV RF
input.
Following procedure describe cable connection on the rear cover of the receiver:
Connect the antenna output to "ANT IN".
You can use the "ANT OUT" connector to provide analog RF signal to TV, VCR and digital RF

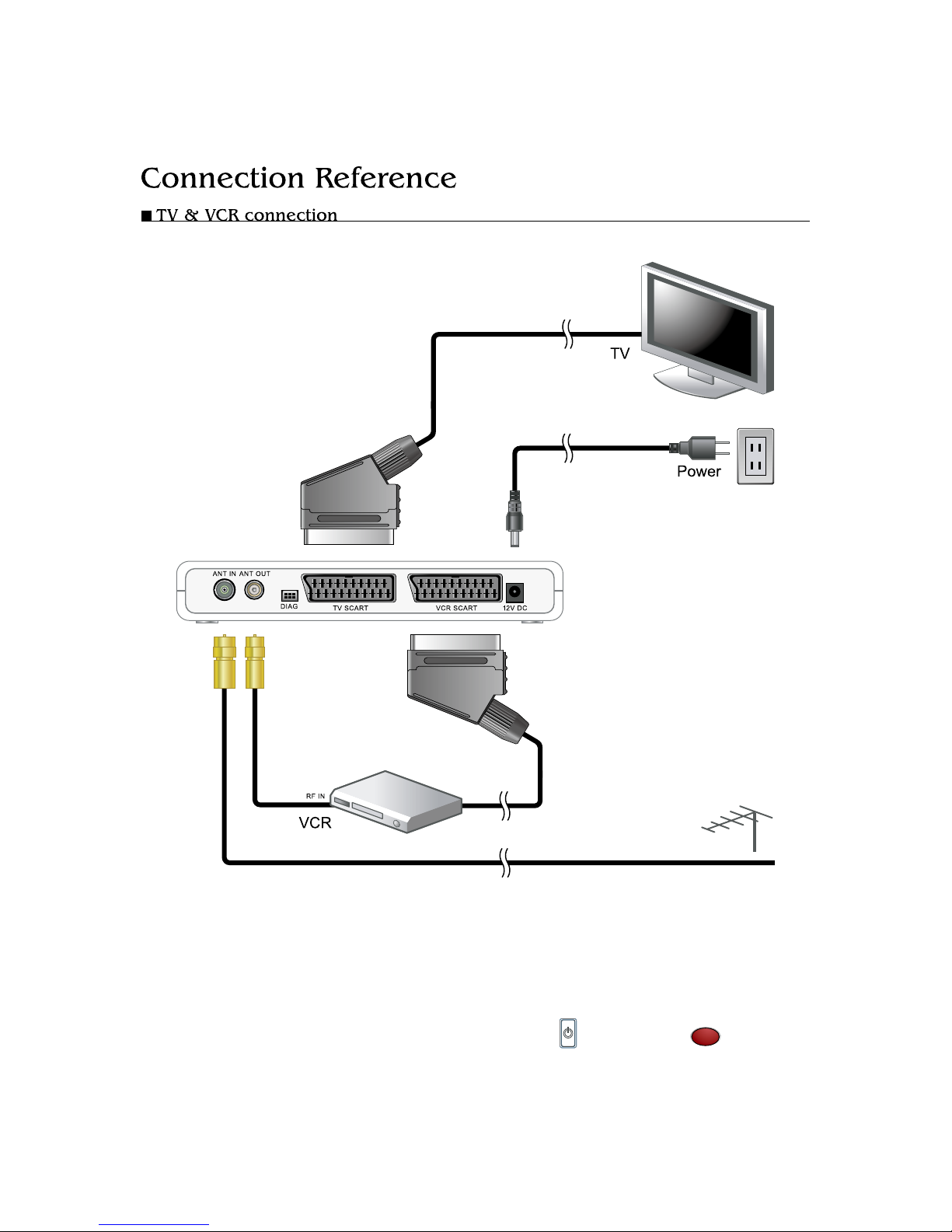

signal to another DVB-T receiver box. (Refer to gure "TV&VCR Connection" below.)
Connect the "TV SCART" connector of the receiver box and TV scart input via SCART cable.
Connect the "VCR SCART" connector of the receiver box and VCR scart input via SCART cable.
(Refer to gure “TV&VCR Connection” below.)
Plug the power adapter to the “12V DC IN” jack.
1.
2.
3.
4.
5.
Antenna
3
When power on, box will go to standby mode. You can use the or the remote " POWER" key on
the top cover to start the operation. An "WELCOME PAGE" will guide you to setup the box by selecting
proper OSD language, region and scan channel if this is the 1st time boot up.
*NOTE: “DIAG” is for diagnostic only, please DO NOT use it as USB port.
Antenna
4

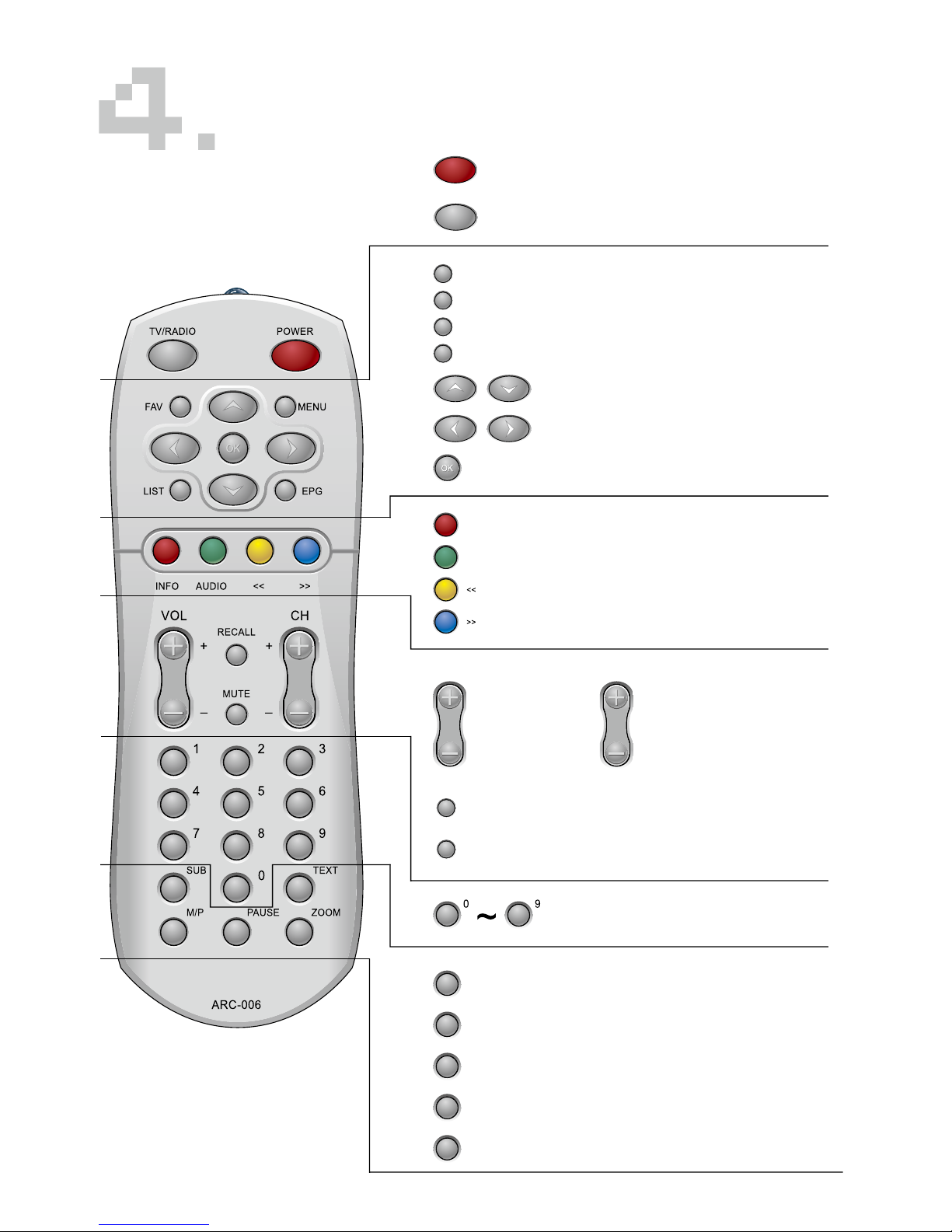

4. Remote Control
Power On or Stand by
Select TV or Radio programs
POWER
TV/RADIO
Display Favorite Group
Display Channel List
Turn on OSD main menu or exit current menu
Display EPG table
FAV
LIST
MENU
EPG
Move highlight to up or channel up
Move highlight to down or channel down
Move highlight to left or turn down volume
Move highlight to right or turn up volume
Conrm or Enter
Show program information
Toggle audio language options
Page down
Page up
INFO
AUDIO
Change channelAdjust volume
Jump to previous viewing channel
Toggle volume on/off
VOL CH
RECALL
MUTE
0~9
Show program subtitle
Show Teletext page
Enter multi-picture mode
Stop video to current picture
Magnify certain area of the video
SUB
TEXT
M/P
PAUSE
ZOOM
5

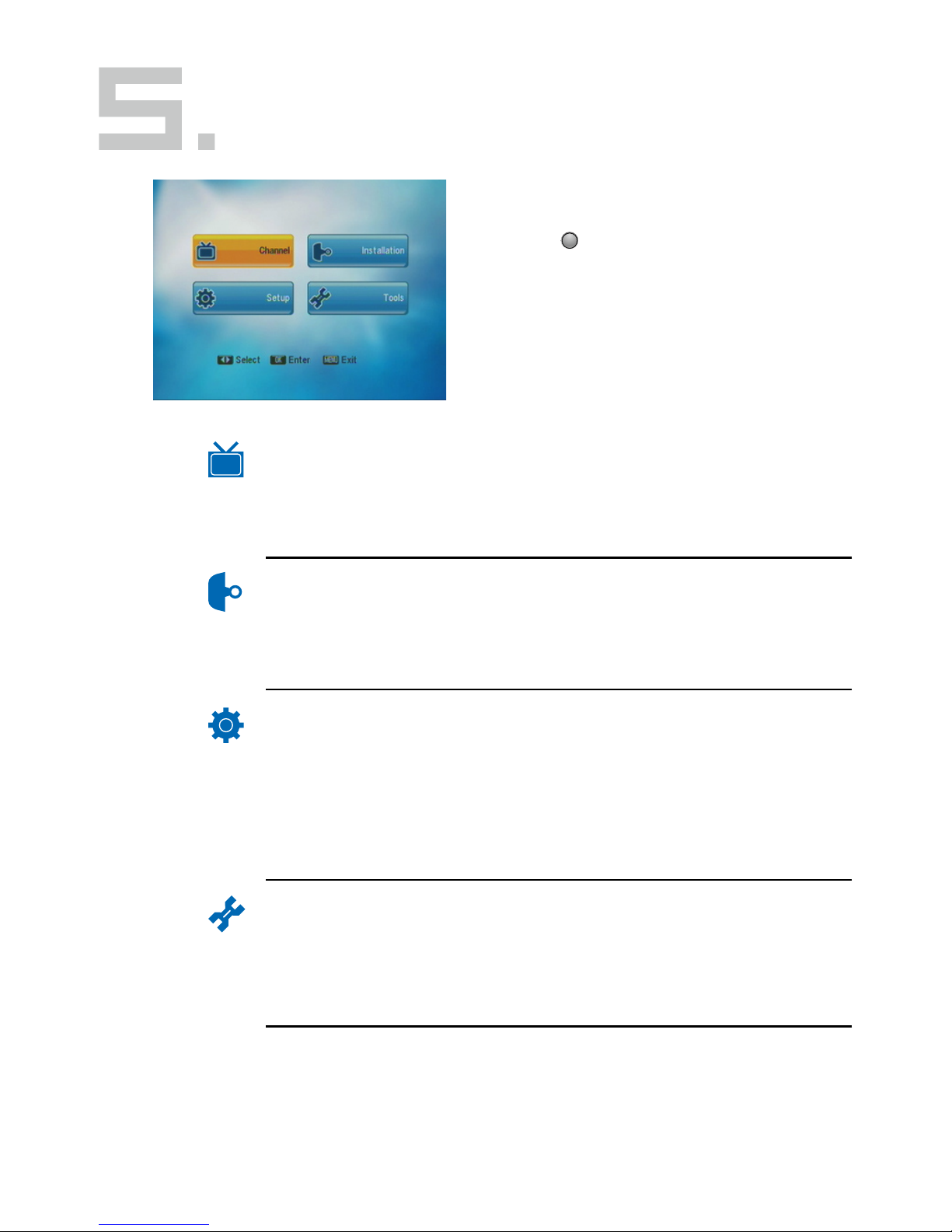

5. OSD Menu Operation
The OSD menu provides an easy interface for
you to operate the box via the included remote.
Press [ MENU ] key to enter main menu like
the gure at left. There are four groups of sub-
menu: Channel, Installation, Setup and Tools.
Following list shows the functions in each sub-
menu.
Channel
Installation
Setup
Tools
Hot Keys
TV Channel List
Radio Channel List
Delete All Favorites
Delete All Channels
Auto Scan
Channel Scan
Channel Setup
Aerial Adjustment
OSD Language
TV System
Start up Service
Region and Time
Timer Setting
OSD Setting
Parental Lock
Information
Game
Load Factory Default
Software Upgrade
Welcome Page
Teletext
Subtitle
EPG
6

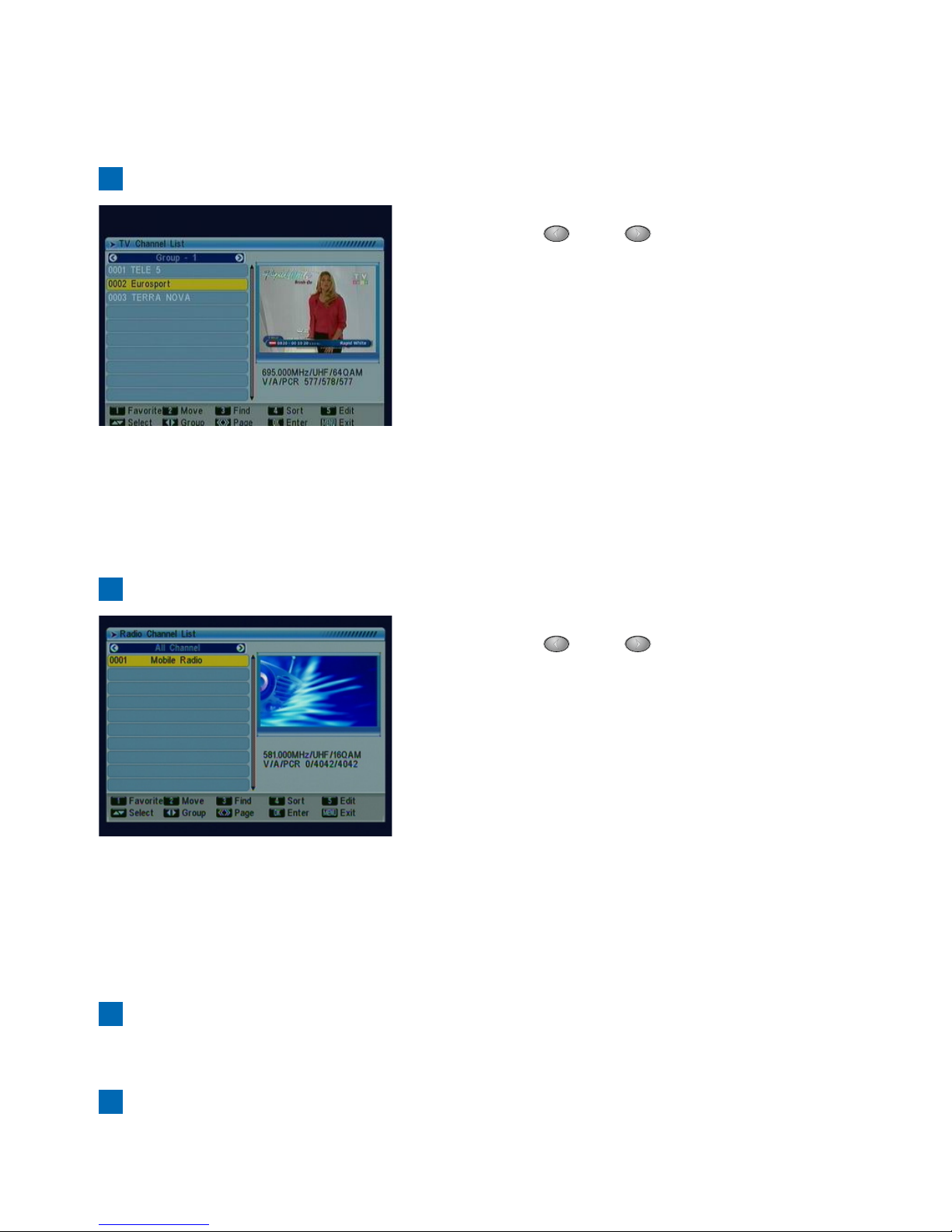

5.1 Channel
TV Channel List
Radio Channel List
Delete All Favorites
Delete All Channels
Show all channels with preview window. Use
the " LEFT/ RIGHT" key to show chan-
nels in the same frequency.
■Favorite
Set Favorite channel to group 1~8.
■Move
Move a channel to another position.
■Find
Search channel name by characters.
■Sort
Sort channel names by characters.
■Edit
Entry into advance functions. (Delete/Skip/
Lock/Edit/Del All)
(*Should input default password "0000" rst.)
Show all channels with preview window. Use
the " LEFT/ RIGHT" key to show chan-
nels in the same frequency.
■Favorite
Set Favorite channel to group 1~8.
■Move
Move a channel to another position.
■Find
Search channel name by characters.
■Sort
Sort channel names by characters.
■Edit
Entry into advance functions. (Delete/Skip/
Lock/Edit/Del All)
(*Should input default password "0000" rst.)
■Group
Show channels in the same frequency.
To delete all favorite channels settings.(Should input default password "0000" rst.)
To delete all channels settings.(Should input default password "0000" rst.)
7

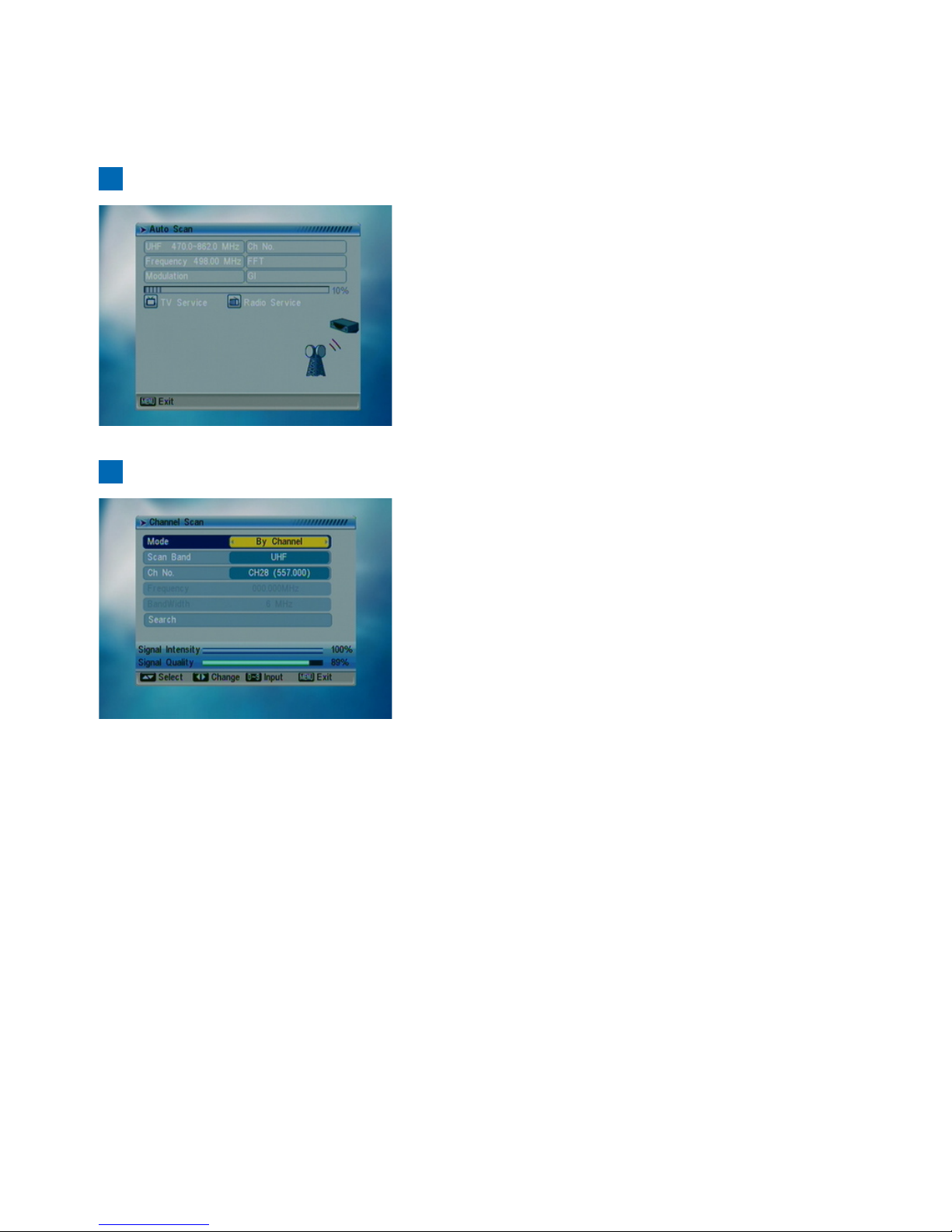

5.2 Installation
Auto Scan
Channel Scan
Scan all free channels.
Search channels by frequency or by channel.
8
