Aplex VITAM-9 A Series Manuale utente

VITAM-9XXB Series

Fanless Stainless Steel Panel PC

User Manual

Release Date Revision

June 2022 V1.0

Aplex Technology, Inc.

15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan

Tel: 886-2-82262881 Fax: 886-2-82262883 URL: http://www.aplextec.com/zh/home.php

VITAM-9XXB Series User Manual

Revision History

Reversion

Date

Description

1.0

2022/06/14

Official Version

VITAM-9XXB Series User Manual

Warning!________________________

Caution

Risk of explosion if the battery is replaced with an incorrect type.

Batteries should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

Disclaimer

This information in this document is subject to change without notice. In no event

shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or

consequential, arising from either the use or misuse of information in this

document or in any related materials.

Electric Shock Hazard –Do not operate the machine with its back cover removed.

There are dangerous high voltages inside.

This equipment generates, uses and can radiate radio frequency energy and

if not installed and used in accordance with the instructions manual, it may cause

interference to radio communications. It has been tested and found to comply

with the limits for a Class A computing device pursuant to FCC Rules, which are

designed to provide reasonable protection against such interference when

operated in a commercial environment. Operation of this equipment in a

residential area is likely to cause interference in which case the user at his own

expense will be required to take whatever measures may be required to correct

the interference.

VITAM-9XXB Series User Manual

Packing List

Accessories (as ticked) included in this package are:

□Adaptor

□Driver & manual CD disc

□Other.___________________(please specify)

VITAM-9XXB Series User Manual

Safety Precautions

Follow the messages below to prevent your systems from damage:

◆Avoid your system from static electricity on all occasions.

◆Prevent electric shock. Don‘t touch any components of this card when

the card is power-on. Always disconnect power when the system is not

in use.

◆Disconnect power when you change any hardware devices. For instance,

when you connect a jumper or install any cards, a surge of power may

damage the electronic components or the whole system.

VITAM-9XXB Series User Manual

Dear Valued Partners

Thank you for supporting APLEX Technology. Kindly note for ViTAM

series, the pressure testing screw is loosen for half turn before shipment.

The purpose is to avoid potential quality concerns caused by radical air

pressure change during transportation. This especially applies to air

shipment with unpressurized cabin.

Upon receiving the system, please tighten the pressure testing screw

before deployment to ensure 100% functionality.

Here is our suggestion:

1. Prepare a 3mm hex screwdriver

2. Tighten the screw (indicated in circle) clockwise until it is well in place

3. Recommend torque is 8~10 kgf-cm

Apologies for any inconveniences caused and thank you for your

cooperation.

Yours Sincerely

VITAM-9XXB Series User Manual

6
Table of Contents
Revision History…………………………………………………………………………………………………….1
Warning!/Caution/Disclaimer.................................................…………………………….…2
Packing List…………………………………….……………………………………………………………………..3
Safety Precautions…………………………………………………………………….…..……………………..4
Logistic Statement…………………………………………………………………….…..……………………..5
Chapter 1 Getting Started
1.1 Features………………………..………………………...…………………………..8
1.2 Specifications…………………...………………………………………………….8
1.3 Dimensions………………………....…………………………………………….12
1.4 Brief Description of VITAM-9XXB Series………...…….……….……15
1.5 Yoke Mounting and VESA Mounting……………………………………16
Chapter 2 Hardware
2.1 Motherboard Introduction……………………...……………..………....17
2.2 Specifications…………………………..…………………………………………17
2.3 Jumpers and Connectors Location……………………………………...20
2.4 Jumpers Setting and Connectors…………………………………..……21
Chapter 3 BIOS Setup
3.1 System Test andInitialization.….....….……...…………………………40
3.2 AMI BIOS Setup…….…..……………………………………………………….41
3.3 Setup Submenu:Main…………….…………..………………………………42
3.4 Setup Submenu:Advanced.………………………………………………...42
3.5 Setup Submenu:Chipset….……………………….………………………...53
3.6 Setup Submenu:Security……….……………………….…………………..58
3.7 Setup Submenu:Boot….…………………………….……………………..62
3.8 Setup Submenu:Save & Exit………………………..…………………....63
Chapter 4 Installation of Drivers
4.1 Intel® 8th Generation Core Chipset………..…………….……………65
4.2 Intel® VGA Chipset……………………………………………….……........68
4.3 Intel® LAN Driver…….…………………………………..…………..……….71
4.4 Realtek Audio Driver……………………………………..…..……………..74
4.5 Intel Serial IO Driver………………………….……………………………..76
4.6 Resistive Touch  Driver……………………………………………………….79

VITAM-9XXB Series User Manual

Figures

Figure 1.1: Dimensions of VITAM-915BP/R/G(H)…………..……………………12

Figure 1.2: Dimensions of VITAM-916BP/R/G(H)…….……….…………………12

Figure 1.3: Dimensions of VITAM-917BP/R/G(H)……..….…..…………………13

Figure 1.4: Dimensions of VITAM-919BP/R/G(H)…….……….…………………13

Figure 1.5: Dimensions of VITAM-921BP/R/G(H)……...……………………….14

Figure 1.6: Dimensions of VITAM-924BP/G(H)……..…….……………………..14

Figure 1.7: Front View and Touch on/off Button of VITAM-9XXB Series……………..15

Figure 1.8: Rear View of VITAM-9XXB Series…..……….……..…………….….15

Figure 1.9: Yoke Mounting of VITAM-9XXB Series………………….…………..16

Figure 1.10: VESA Mounting of VITAM-9XXB Series..............................16

Figure 2.1: Motherboard Dimensions………………………………………….…….19

Figure 2.2: Jumpers and Connectors Location-Board Top……………….….20

Figure 2.3: Jumpers and Connectors Location-Board Bottom…………..…20

VITAM-9XXB Series User Manual

Chapter 1 Getting Started

1.1 Features

Intel®8th Gen. Fanless Stainless Steel Panel PC

IP66/IP69K Full Sealed with Anti-Corrosion Enclosure

Grade Stainless 304/316 for anti-corrosion

Totally IP66/IP69K for meet indoor/semi-outdoor waterproof applications

Support Resistive Touch(No for 23.8” models) and Projected Capacitive Touch

M12 Connectors with waterproof cover and chain

9~36V wide-rage power input

1.2 Specifications

VITAM-915

BP/R(H)

VITAM-916

BP/R(H)

VITAM-917

BP/R(H)

VITAM-919

BP/R(H)

VITAM-921

BP/R(H)

VITAM-924

BP(H)

System

CPU

Intel Core i5-8365UE Processor(6M Cache, up to 1.60 GHz, 15W TDP)

Intel Core i3-8145UE Processor(4M Cache, up to 2.20 GHz, 15W TDP)

Chipset

SoC

Memory

2 x 260-pin SO-DIMM up to 64GB DDR4 2400MHz(32GB per DIMM)

Graphics

Intel UHD Graphics 620 (300-1100 MHz)

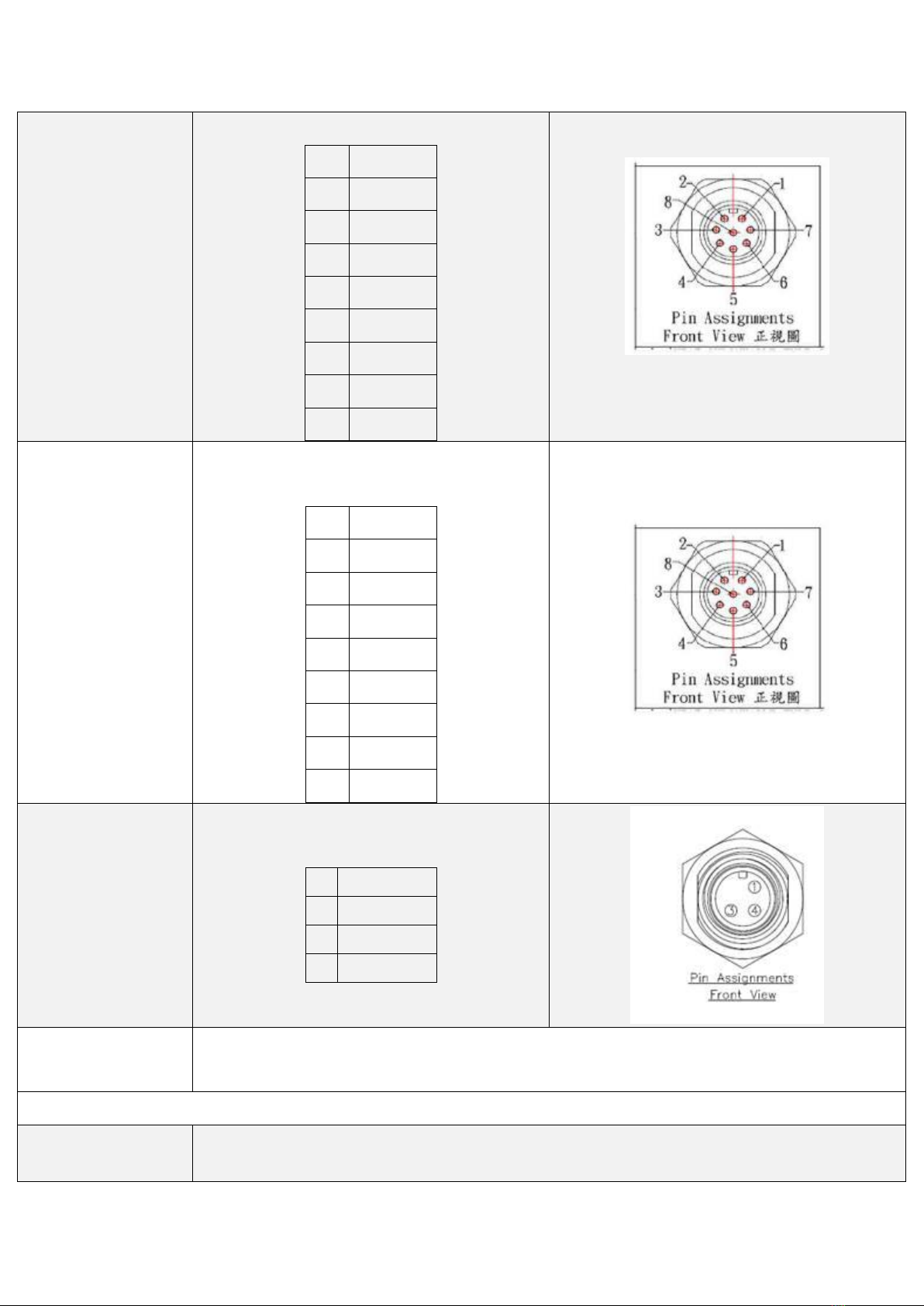

Outside IO Port –Standard M12 I/O Connector on the Rear Side

USB

1 x M12 8-pin for 2x USB2.0 with waterproof cover and

chain

USB1/2:

CN1

Pin Define

USB1 5V

D1-

D1+

GND

USB2 5V

D2-

D2+

GND

Serial/Parallel

1 x M12 8-pin COM1, RS-232/422/485, Default RS-232,

VITAM-9XXB Series User Manual

with waterproof cover and chain

Pin Define

DCD

RXD

TXD

DTR

GND

DSR

RTS

CTS

LAN

1 x M12 8-pin for LAN with waterproof cover and chain

LAN:

Pin Define

LAN1_0+

LAN1_0-

LAN1_1+

LAN1_1-

LAN1_2+

LAN1_2-

LAN1_3+

LAN1_3-

Power

1 x M12 3-pin for DC power with waterproof cover

and chain

Pin Define

VCC

GND

Others

1 x Power Switch on the rear

1 x Touch on/off button at the side (Touch on-default/Touch off-option_press downward)

Option I/O Port (Either two)

2 x optional blank M12 connectors with waterproof cap for selecting two from the following

options:
