ViTAM-6XX Series

10.1”, 12.1”, 15”, and 21”New Gen. IP66/IP69K Stainless Steel Panel PC

User Manual

Release Date Revision

Oct. 2017 V1.3

Aplex Technology, Inc.

15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan

Tel: 886-2-82262881 Fax: 886-2-82262883 URL: http://www.aplextec.com/zh/home.php

ViTAM-6XX Series User Manual

Revision History

Reversion

Date

Description

0.1

2016/12/08

For Preliminary Release

0.2

2016/12/22

Update Power consumption and net weight Spec.

1.0

2017/01/11

Official Version

1.1

2017/06/02

Add 21 inch model

Modify optional function

Add micro SD card storage

1.2

2017/07/28

Add I/O drawing and definition

1.3

2017/10/13

Modify expansion I/O function

ViTAM-6XX Series User Manual

Warning!________________________

Caution

Risk of explosion if the battery is replaced with an incorrect type.

Batteries should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

Disclaimer

This information in this document is subject to change without notice. In no event

shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or

consequential, arising from either the use or misuse of information in this

document or in any related materials.

Electric Shock Hazard –Do not operate the machine with its back cover removed.

There are dangerous high voltages inside.

This equipment generates, uses and can radiate radio frequency energy and

if not installed and used in accordance with the instructions manual, it may cause

interference to radio communications. It has been tested and found to comply

with the limits for a Class A computing device pursuant to FCC Rules, which are

designed to provide reasonable protection against such interference when

operated in a commercial environment. Operation of this equipment in a

residential area is likely to cause interference in which case the user at his own

expense will be required to take whatever measures may be required to correct

the interference.

ViTAM-6XX Series User Manual

Packing List

Accessories (as ticked) included in this package are:

□Adaptor

□Driver & manual CD disc

□Other.___________________(please specify)

ViTAM-6XX Series User Manual

Safety Precautions

Follow the messages below to prevent your systems from damage:

◆Avoid your system from static electricity on all occasions.

◆Prevent electric shock. Don‘t touch any components of this card when

the card is power-on. Always disconnect power when the system is not

in use.

◆Disconnect power when you change any hardware devices. For instance,

when you connect a jumper or install any cards, a surge of power may

damage the electronic components or the whole system.

ViTAM-6XX Series User Manual

Table of Contents

Revision History…………………………………………………………………………………………………….1

Warning!/Caution/Disclaimer.................................................…………………………….…2

Packing List…………………………………….……………………………………………………………………..3

Safety Precautions…………………………………………………………………….…..……………………..4

Chapter 1 Getting Started

1.1 Features………………………..………………………...…………………………..6

1.2 Specifications…………………...………………………………………………….6

1.3 Dimensions………………………....…………………………………………….10

1.4 Brief Description of ViTAM-6XX Series………...……….……….……12

1.5 Yoke Mounting and VESA Mounting………………………...…………13

Chapter 2 Hardware

2.1 Motherboard Jumpers Setting and Connectors……...………....14

Chapter 3 Installations

3.1 Update Linux QT for SBC-7112.....................……….……………...20

3.2 Update Android Firmware............................……………………...24

Figures

Figure 1.1: Dimensions of ViTAM-610P/R/G(H)………………………………….10

Figure 1.2: Dimensions of ViTAM-612P/R/G(H)……..………..………………...10

Figure 1.3: Dimensions of ViTAM-615P/R/G(H)….….……..…………………..11

Figure 1.4: Dimensions of ViTAM-621P/R/G(H)….….……..…………………..11

Figure 1.5: Front View and Touch on/off Button of ViTAM-6XX Series..12

Figure 1.6: Rear View of ViTAM-6XX Series…..…….……………………...……12

Figure 1.7: Yoke Mounting of ViTAM-6XX Series…………...……………….….13

Figure 1.8: VESA Mounting of ViTAM-6XX Series...................................13

ViTAM-6XX Series User Manual

Chapter 1 Getting Started

1.1 Features

10.1”, 12.1”, 15”, and 21”New generation stainless steel panel PC

Freescale I.MX6 DualLite 1.0GHz onboard processor

True flat front bezel design and grade 304 stainless steel enclosure (grade 316

for option)

IP66/IP69K rated with M12 connectors

Support resistive touch, projected capacitive touch, and glass

Touch on/off button on the side edge for hygienic cleaning

Support ergonomic versatile mounting: Yoke mounting / space-saving VESA

mounting.

1.2 Specifications

ViTAM-610

P/R/G/(H)

ViTAM-612

P/R/G/(H)

ViTAM-615

P/R/G/(H)

ViTAM-621

P/R/G/(H)

System

CPU

Freescale I.MX6 DualLite 1.0GHz

Chipset

SoC

Memory

Onboard 1GB DDR3 DRAM (2GB option)

RFID Module

RFID module design on the front side (option)

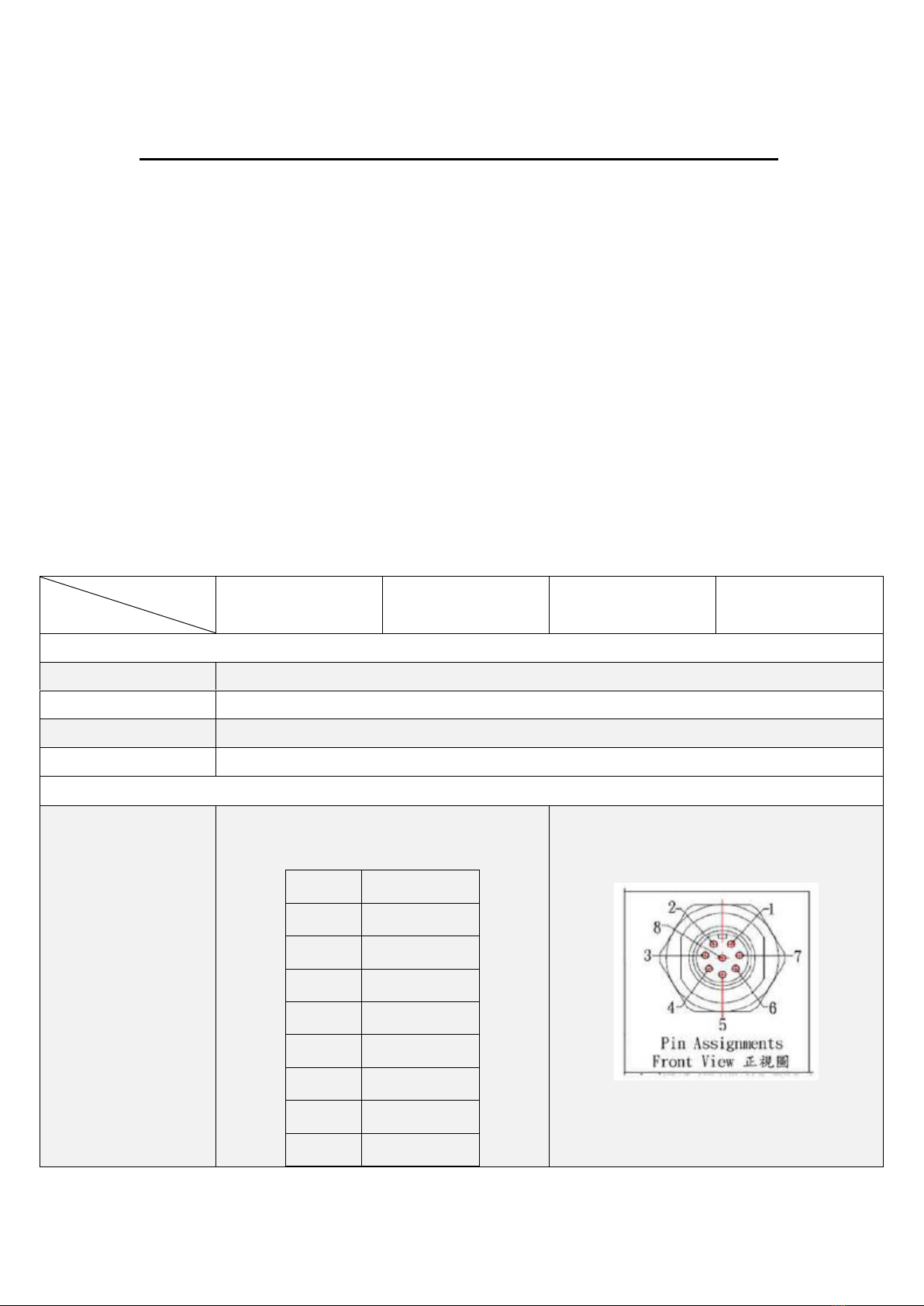

Outside IO Port –Standard M12 I/O Connector on the Rear Side

USB

1 x M12 for 2 x USB 2.0

USB1/2:

CN1

Pin Define

USB1 5V

D1-

D1+

GND

USB2 5V

D2-

D2+

GND

ViTAM-6XX Series User Manual

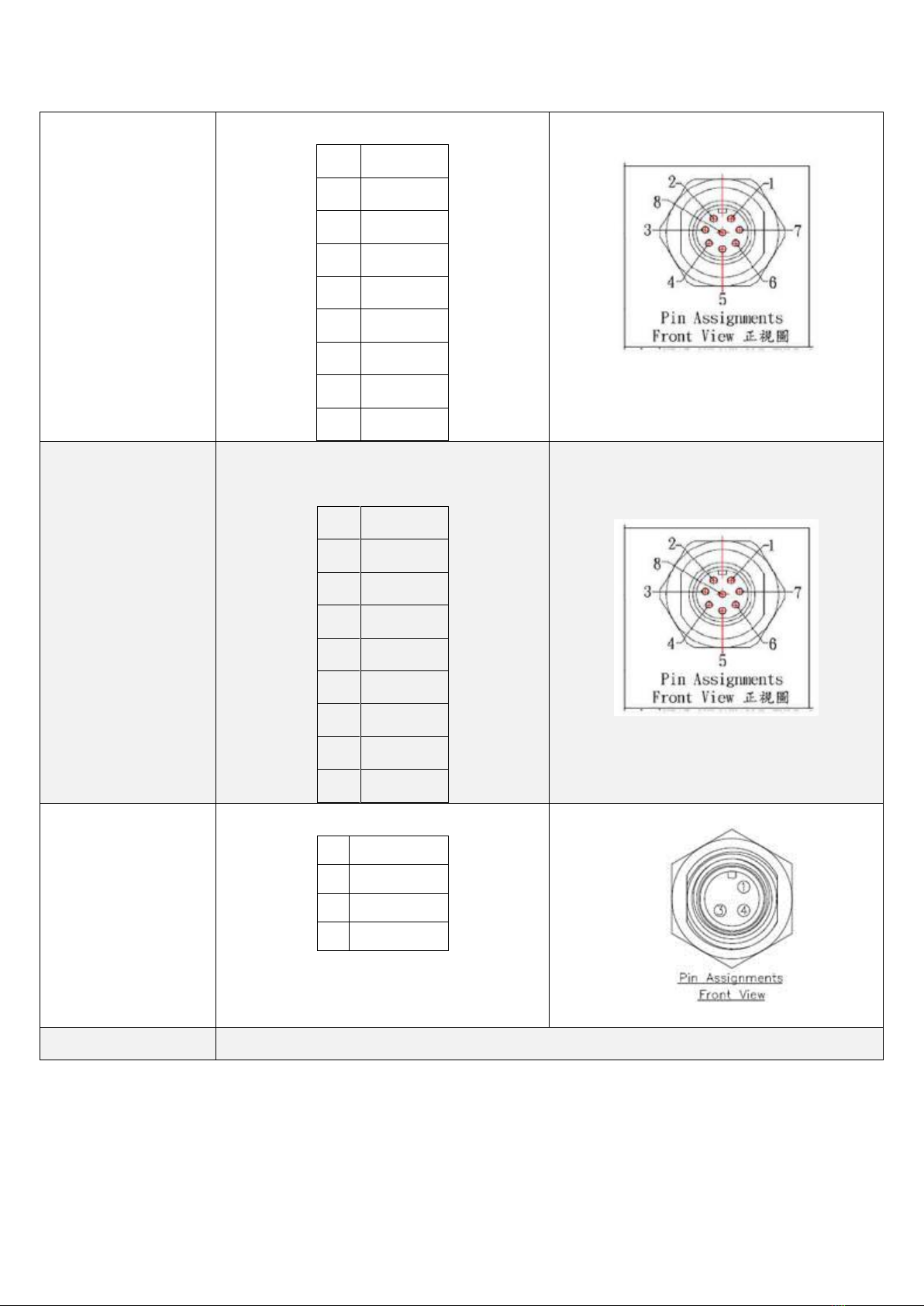

Serial/Parallel

1 x M12 for RS-232/422/485, Default RS-232

Pin Define

DCD

RXD

TXD

DTR

GND

DSR

RTS

CTS

LAN

1 x M12 for LAN

LAN:

Pin Define

LAN1_0+

LAN1_0-

LAN1_1+

LAN1_1-

LAN1_2+

LAN1_2-

LAN1_3+

LAN1_3-

Power

1 x DC power input (9~36V) by M12 connector

Pin Define

VCC

GND

Others

1 x Touch on/off button on the side

ViTAM-6XX Series User Manual

Outside IO Port –M12 I/O for option

Option

TB-508 Series :

1 x RS-232/422/485

1 x 8-bit GPIO

1 x CAN

1 x POE via AG5300

Storage Space

Storage

Onboard 4GB eMMC NAND flash

1 x Micro SD card slot on board

Expansion

Expansion Slot

1 x Mini PCIe slot for WIFI/BT (option)

Display

Display Type

10.1 TFT LCD

12.1”TFT LCD

15”TFT LCD

21.5”TFT LCD

Max. Resolution

1280 x 800

800 x 600

1024 x 768 (option)

1024 x 768

1920 x 1080

Max. Color

16.7M

262K / 16.2M

(option)

16.7M

Luminance (cd/m2)

350

450 / 500 (option)

420

300

Contrast Ratio

800: 1

800: 1 / 700: 1

(option)

800: 1

3000:1

Viewing Angle

170(H) / 170(V)

160(H) / 150(V)

160(H) / 140(V)

(option)

160(H) / 160(V)

178(H) / 178(V)

Backlight Lifetime

15,000 hrs

50,000 hrs /

30,000 hrs (option)

50,000 hrs

Option

Optical bonding

Display –High Brightness LCD (option)

Display Type

10.1 TFT LCD

12.1”TFT LCD

15”TFT LCD

21.5”TFT LCD

Max. Resolution

1280 x 800

800 x 600

1024 x 768 (option)

1024 x 768

1920 x 1080

Max. Color

16.7M

262K / 16.2M

(option)

262K

16.7M

Luminance (cd/m2)

1000

Contrast Ratio

800: 1

700: 1

800: 1

3000:1

Viewing Angle

170(H) / 170(V)

178H) / 178(V)

160(H) / 140(V)

160(H) / 150(V)

178(H) / 178(V)

ViTAM-6XX Series User Manual

(option)

Backlight Lifetime

30,000 hrs

50,000 hrs

30,000 hrs

50,000 hrs

Option

Optical bonding

Touch Screen

Type

Resistive touch window (for R model)

Projected capacitive touch screen (for P model)

Interface

USB

Light Transmission

Resistive touch window: over 80%

Projected capacitive touch screen: over 90%

Glass Type

Type

Light Transmission

Over 90%

Power

Power Input

DC 9~36V

Power Consumption

MAX: 13.6W (610R)

MAX: 10.3W (610P)

MAX: 11.1W (612R)

MAX: 12.4W (612P)

MAX: 11.8W (615R)

MAX: 12.1W (615P)

MAX: TBD (621R)

MAX: 22.5 (621P)

Mechanical

Color

304 Stainless steel enclosure (default)

316 Stainless steel enclosure (option)

Construction

Stainless steel enclosure

Mounting

VESA mount 75 x 75

Yoke mount

VESA mount 100 x

100

Yoke mount

IP Rating

IP66/IP69K

Dimension (mm)

300 x 220 x 53

335 x 265 x 53

399 x 324 x 53

571 x 362 x 55

Net Weight

3.8 Kg

4.6 Kg

7.1 Kg

9.8 kg

Environmental

-20~60°C

Storage temperature

-30~70°C

Storage humidity

10 to 90% @ 40°C, non- condensing

Certification

CE / FCC Class A

Operating System

Support

Linux 3.2, Android 5.1.1

Questo manuale è adatto per i seguenti modelli
