Aplex OPC-5**8 Series Manuale utente

OPC-5XX8(P) Series

12.1”, 15”and 15.6”Intel Celeron N2930 Open Frame Panel PC

User Manual

Release Date Revision

Apr. 2017 V1.1

Aplex Technology, Inc.

15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan

Tel: 886-2-82262881 Fax: 886-2-82262883 URL: www.aplextec.com

OPC-5XX8(P) Series User Manual

Revision History

Reversion

Date

Description

0.1

2016/04/19

For Preliminary Release

1.0

2016/10/06

Official Version

1.1

2017/04/05

Add 12”new inch product

Revised touch screen software driver to

Win8.1/10

OPC-5XX8(P) Series User Manual

Warning!________________________

Caution

Risk of explosion if the battery is replaced with an incorrect type.

Batteries should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

Disclaimer

This information in this document is subject to change without notice. In no event

shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or

consequential, arising from either the use or misuse of information in this

document or in any related materials.

Electric Shock Hazard –Do not operate the machine with its back cover removed.

There are dangerous high voltages inside.

This equipment generates, uses and can radiate radio frequency energy and

if not installed and used in accordance with the instructions manual, it may cause

interference to radio communications. It has been tested and found to comply

with the limits for a Class A computing device pursuant to FCC Rules, which are

designed to provide reasonable protection against such interference when

operated in a commercial environment. Operation of this equipment in a

residential area is likely to cause interference in which case the user at his own

expense will be required to take whatever measures may be required to correct

the interference.

OPC-5XX8(P) Series User Manual

Packing List

Accessories (as ticked) included in this package are:

□Adaptor

□Driver & manual CD disc

□Other.___________________(please specify)

OPC-5XX8(P) Series User Manual

Safety Precautions

Follow the messages below to prevent your systems from damage:

◆Avoid your system from static electricity on all occasions.

◆Prevent electric shock. Don‘t touch any components of this card when

the card is power-on. Always disconnect power when the system is not

in use.

◆Disconnect power when you change any hardware devices. For instance,

when you connect a jumper or install any cards, a surge of power may

damage the electronic components or the whole system.

OPC-5XX8(P) Series User Manual

Table of Contents

Revision History…………………………………………………………………………………………………….1

Warning!/Caution/Disclaimer……………...................................…………………………….…2

Packing List…………………………………….……………………………………………………………………..3

Safety Precautions…………………………………………………………………….…..……………………..4

Chapter 1 Getting Started

1.1 Features………………………..………………………...…………………………..7

1.2 Specifications…………………...………………………………………………….7

1.3 Dimensions………………………....…………………………………………..….9

1.4 Brief Description of OPC-5XX8(P) Series….…………………….……12

Chapter 2 Hardware

2.1 Motherboard Introduction……………………...……………..………....15

2.2 Specifications…………………………..…………………………………………15

2.3 Jumpers and Connectors Location……………………………………...19

2.4 Jumpers Setting and Connectors…………………………………..……20

Chapter 3 BIOS Setup

3.1 Operations after POST Screen…...…….……...…………………………33

3.2 BIOS Setup Utility……………………………………………………………….33

3.3 Main Settings……………………………………..………………………………34

3.4 Advanced Settings……………………………………………………………...35

3.5 Chipset Settings……………………………………….………………………...43

3.6 Security Settings…………………………………………….…………………..45

3.7 Boot Settings…..………………………………………….……………………..46

3.8 Save & Exit Settings……………………………………..…………………....47

Chapter 4 Installation of Drivers

4.1 Intel (R) AtomTM SoC Chipset ………..……...………….………………50

4.2 Intel (R) VGA Chipset……………………………………………….……......53

4.3 Realtek ALC662 HD Audio Driver Installation………………………56

4.4 COM Driver……………………………….……………………………………….58

4.5 Intel_TXE(Win) Driver…..……………..…………………………………….60

OPC-5XX8(P) Series User Manual

Chapter 5 Touch Screen Installation

5.1 Windows 8.1/10 Universal Driver Installation for PenMount

6000 Series……………………....………….…………………………………...63

5.2 Software Functions…………………………………………………………....67

Figures

Figure 1.1: Dimensions of OPC-5128(P).……..…………………..……………….....9

Figure 1.2: Dimensions of OPC-5158(P).……..…………………..………………...10

Figure 1.3: Dimensions of OPC-5168(P).……..…………………..…………………11

Figure 1.4: Front View of OPC-5128(P)…………………………………….…….….12

Figure 1.5: Rear View of OPC-5128(P)…………………………………………….….12

Figure 1.6: Front View of OPC-5158(P)…………………………………….…….….13

Figure 1.7: Rear View of OPC-5158(P)…………………………………………….….13

Figure 1.8: Front View of OPC-5168(P)…………………………………….…….….14

Figure 1.9: Rear View of OPC-5168(P)………………………..……………….….….14

Figure 2.1: Motherboard Dimensions………………………………………….…….18

Figure 2.2: Jumpers and Connectors Location-Board Top……………….….19

Figure 2.3: Jumpers and Connectors Location-Board Bottom…………..…19

OPC-5XX8(P) Series User Manual

Chapter 1 Getting Started

1.1 Features

x86 base Intel Celeron N2930 Processor

Low Power Consumption Design

Slim, Fanless, and Front Bezel IP65 Design

Easily Achieve Flat Front Bezel Design

Adjustable Front Bezel Design(2mm, 3mm and 6mm Front Bezel)

Variety of LCD size available 12.1”, 15”and 15.6”

Optional for High Brightness and Optical Bonding

5-wire Resistive Touch Window/Projected Capacitive Touch Screen Support 7H Optional

Wide-ranging 9~36V DC Power Input with System Power LED Light

1.2 Specifications

OPC-5128(P)

OPC-5158(P)

OPC-5168(P)

System

CPU

Onboard Intel Celeron N2930 1.83 GHz Processor

Chipset

SoC

Memory

Onboard 4GB DDR3L 1600MHz

IO Port

USB

2 x USB 3.0 type A

Serial/Parallel

1 x RS-232/422/485 DB-9, Default RS-232, COM1

1 x RS-232 DB-9, COM2

Audio

1 x Audio Line Out

LAN

2 x GbE LAN RJ-45

Power

1 x 3-pin DC Power input terminal

1 x 2-pin connector for power on/off button

Others

1 x System power LED light

Option

2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1

2 x CAN bus via TB-528CAN2

2 x USB 2.0 type A Via TB-528U2

2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1xRS-232 DB-9 + 1 x Power button

via TB-528C1U2P1

Storage Space

Storage

1 x 2.5”SATA HDD bay for SATA HDD

OPC-5XX8(P) Series User Manual

Expansion

Expansion Slot

1 x Intel Mini-PCIe slot full size

Display

Display type

12.1”color TFT LCD

15”color TFT LCD

15.6”color TFT LCD

Max. Resolution

800 x 600

1024 x 768

1366 x 768

Max. Color

262K

16.2M

16.7M

Luminance (cd/m2)

450

500

450

300

Contrast Ratio

800

700

800: 1

500: 1

Viewing Angle

160(H)/ 150(V)

160(H)/140(V)

160(H) / 140(V)

160(H) / 160(V)

Backlight Lifetime

50,000 hrs

60,000 hrs

50,000 hrs

Touch Screen –Resistive Touch Window Type

Interface

USB

Light Transmission

Over 80%

Touch Screen –Projected Capacitive Type

Interface

USB

Light Transmission

Over 90%

Power

Power Input

9~36V DC

Power Consumption

MAX: 18.8W (OPC-5128)

MAX: 19.5W (OPC-5128P)

MAX: 19.3W (OPC-5158)

MAX: 20.1W (OPC-5158P)

MAX: 19.4W (OPC-5168)

MAX: 21.5W (OPC-5168P)

Mechanical

Front Bezel

Flat Bezel Design(2mm, 3mm, 6mm)/Steel/Stainless Steel/Aluminum

With System Power LED Light

Rear Bezel

Steel

IP Rating

IP65 Compliant front panel

Dimension

323 x 263 x 54 mm

409 x 323.5 x 54.8 mm

447 x 297 x 61.8 mm

Net Weight

3.7 Kg

4.9 Kg

5 Kg

Environmental

Operating

temperature

0~40°C without fan / 0~60°C with fan

Storage temperature

-20~60°C

Storage humidity

10 to 90% @ 40°C, non- condensing

OPC-5XX8(P) Series User Manual

Certification

CE / FCC Class A

Operating System Support

OS Support

Windows Embedded Compact 7

Windows Embedded Standard 7

Windows 7 Professional for Embedded Systems

Windows 7 Ultimate for Embedded Systems

Windows Embedded 8 Standard,

Windows Embedded 8.1 Industry Pro

Windows 10 IoT Enterprise 2015LTSB

1.3 Dimensions

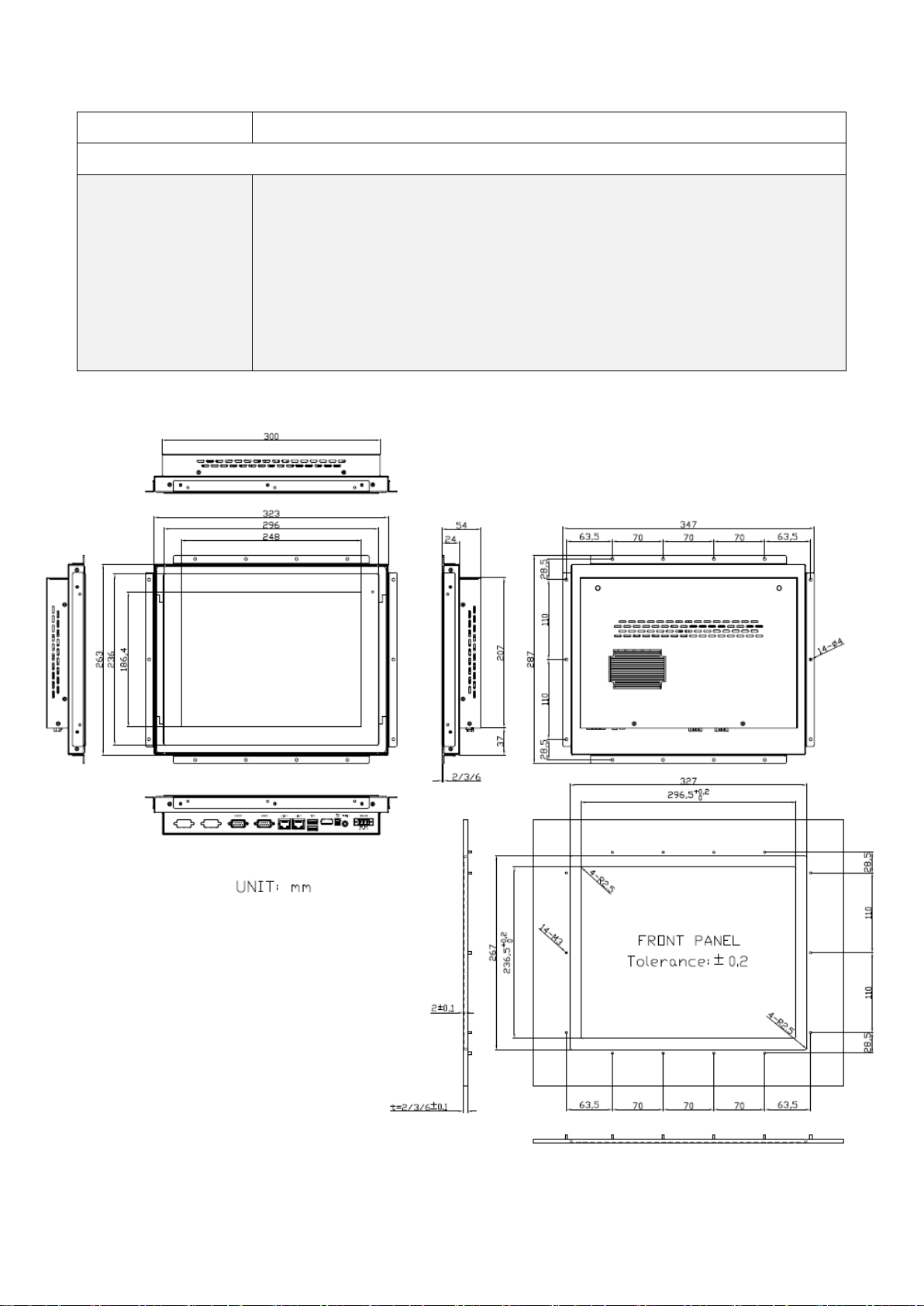

Figure 1.1: Dimensions of OPC-5128(P)
