Apogee Instruments S2-431 Manuale utente

APOGEE INSTRUMENTS, INC. | 721 WEST 1800 NORTH, LOGAN, UTAH 84321, USA

TEL: (435) 792-4700 | FAX: (435) 787-8268 | WEB: APOGEEINSTRUMENTS.COM

OWNER’S MANUAL

RED - FAR-RED SENSORS

Models S2-431

Rev: 31-Aug-2022

TABLE OF CONTENTS
Owner’s Manual ............................................................................................................................................................................... 1
Certificates of Compliance ....................................................................................................................................................... 3
Introduction ............................................................................................................................................................................. 5
Sensor Models ......................................................................................................................................................................... 6
Specifications ........................................................................................................................................................................... 7
Deployment and Installation.................................................................................................................................................... 9
Cable Connectors................................................................................................................................................................... 10
Operation and Measurement ................................................................................................................................................ 11
Maintenance and Recalibration............................................................................................................................................. 15
Troubleshooting and Customer Support................................................................................................................................ 16
Return and Warranty Policy................................................................................................................................................... 17


CERTIFICATE OF COMPLIANCE

EU Declaration of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Apogee Instruments, Inc.

721 W 1800 N

Logan, Utah 84321

USA

for the following product(s):

Models: S2-431

Type: Red - Far-red Sensors

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

2014/30/EU Electromagnetic Compatibility (EMC) Directive

2011/65/EU Restriction of Hazardous Substances (RoHS 2) Directive

2015/863/EU Amending Annex II to Directive 2011/65/EU (RoHS 3)

Standards referenced during compliance assessment:

EN 61326-1:2013 Electrical equipment for measurement, control, and laboratory use –EMC requirements

EN 63000:2018 Technical documentation for the assessment of electrical and electronic products with

respect to the restriction of hazardous substances

Please be advised that based on the information available to us from our raw material suppliers, the products

manufactured by us do not contain, as intentional additives, any of the restricted materials including lead (see

note below), mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), polybrominated

diphenyls (PBDE), bis (2-ethylhexyl) phthalate (DEHP), butyl benzyl phthalate (BBP), dibutyl phthalate (DBP), and

diisobutyl phthalate (DIBP). However, please note that articles containing greater than 0.1 % lead concentration

are RoHS 3 compliant using exemption 6c.

Further note that Apogee Instruments does not specifically run any analysis on our raw materials or end products

for the presence of these substances, but we rely on the information provided to us by our material suppliers.

Signed for and on behalf of:

Apogee Instruments, August 2022

Bruce Bugbee

President

Apogee Instruments, Inc.

CERTIFICATE OF COMPLIANCE

UK Declaration of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Apogee Instruments, Inc.

721 W 1800 N

Logan, Utah 84321

USA

for the following product(s):

Models: S2-431

Type: Red - Far-red Sensors

The object of the declaration described above is in conformity with the relevant UK Statutory Instruments and

their amendments:

2016 No. 1091 The Electromagnetic Compatibility Regulations 2016

2012 No. 3032 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic

Equipment Regulations 2012

Standards referenced during compliance assessment:

BS EN 61326-1:2013 Electrical equipment for measurement, control, and laboratory use –EMC requirements

BS EN 63000:2018 Technical documentation for the assessment of electrical and electronic products with

respect to the restriction of hazardous substances

Please be advised that based on the information available to us from our raw material suppliers, the products

manufactured by us do not contain, as intentional additives, any of the restricted materials including lead (see

note below), mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), polybrominated

diphenyls (PBDE), bis (2-ethylhexyl) phthalate (DEHP), butyl benzyl phthalate (BBP), dibutyl phthalate (DBP), and

diisobutyl phthalate (DIBP). However, please note that articles containing greater than 0.1 % lead concentration

are RoHS 3 compliant using exemption 6c.

Further note that Apogee Instruments does not specifically run any analysis on our raw materials or end products

for the presence of these substances, but we rely on the information provided to us by our material suppliers.

Signed for and on behalf of:

Apogee Instruments, August 2022

Bruce Bugbee

President

Apogee Instruments, Inc.

INTRODUCTION

Specific wavelengths of radiation trigger distinct responses in plants. Red and far-red wavelengths are of particular

interest because they influence photosynthetic and morphogenic activity. Phytochrome pigments in plants are

sensitive to varying ratios of red and far-red radiation, providing information to the plant about the light

environment, and therefore, optimal growth patterns. Increasing the fraction of red radiation indicates less

shading and generally results in more conservative vertical growth patterns, while increasing the far-red radiation

fraction indicates more shading and results in more aggressive vertical growth patterns.

Red - far-red sensors are designed to have spectral sensitivities that approximate the phytochrome absorption

spectrum. Red - far-red sensors quantify properties of radiation sources, not plant responses. However, inferences

of plant responses can be made from measurements of the lighting/shading environment, so it is important that

red - far-red sensors have high sensitivity in the wavelength ranges where plants are most sensitive (i.e., the

wavelength ranges that drive the strongest responses in plants), hence red - far-red sensor spectral responses

should approximate the phytochrome absorption spectrum.

The primary application of red - far-red sensors is monitoring plant light environments, including calculation of the

red to far-red ratio (red photon flux density / far-red photon flux density) and far-red fraction (far-red photon flux

density / sum of red and far-red photon flux densities), in photobiology studies (e.g., researching plant

morphogenic activities).

Apogee Instruments S2 series red - far-red radiometers consist of a cast acrylic diffuser, pair of photodiodes that

measure specific wavelength ranges, and signal processing circuitry mounted in an anodized aluminum housing,

and a cable to connect the radiometer to a measurement device. Sensors are potted solid with no internal airspace

and are designed for continuous measurement in indoor and outdoor environments. S2-100 series sensors output

two analog voltages, one for each photodetector, that are directly proportional to red and far-red radiation

incident on a planar surface (does not have to be horizontal), where the radiation emanates from all angles of a

hemisphere.

SENSOR MODELS

This manual covers the SDI-12 model S2-431 (in bold below). Additional models are covered in their respective

manuals.

Model

Signal

S2-131

Self-powered

S2-431

SDI-12

S2-432

Modbus

A sensor’s model number and serial number are

located on the bottom of the sensor. If you need

the manufacturing date of your sensor, please

contact Apogee Instruments with the serial

number of your sensor.

SPECIFICATIONS

Calibration Traceability

Apogee S2 series Red - Far-red sensors are calibrated through side-by-side comparison to the mean of three

transfer standard sensors under a quartz halogen lamp. The transfer standard sensors are calibrated through side-

by-side comparison to red and far-red photon flux density calculated from solar spectra collected in Logan, Utah,

using an Apogee model PS-300 spectroradiometer. The PS-300 spectroradiometer is calibrated with a quartz

halogen lamp traceable to the National Institute of Standards and Technology (NIST).

S2-431

Power Supply

5.5 to 24 V DC

Current Draw

1.8 mA (quiescent), 1.9 mA (active)

Calibration Factor

(reciprocal of sensitivity)

Custom for each sensor and stored in firmware

Calibration Uncertainty

± 5 %

Output Range

SDI-12

Measurement Repeatability

Less than 1 %

Long-term Drift

Less than 2 % per year

Non-linearity

Less than 1 % (up to 400 µmol m⁻² s⁻¹)

Response Time

0.6 s, time for detector signal to reach 95 % following a step change; fastest data transmission

rate for SDI-12 circuitry is 1 s.

Field of View

180°

Wavelength Ranges

645 to 665 nm ± 5 nm (Red)

720 to 740 nm ± 5 nm (Far-red)

Directional (Cosine)

Response

± 2 % at 45°; ± 5 % at 75° zenith angle

Temperature Response

Less than 0.1 % per C

Housing

Anodized aluminum body with acrylic diffuser

IP Rating

IP68

Operating Environment

-40 to 70 C; 0 to 100 % relative humidity

Dimensions

30.5 mm diameter, 37 mm height

Mass (with 5 m of cable)

140 g

Cable

5 m of shielded, twisted-pair wire; TPR jacket (high water resistance, high UV stability, flexibility

in cold conditions); pigtail lead wires; stainless steel (316), M8 connector

Cosine Response

Spectral Response

Directional, or cosine, response is

defined as the measurement error at a

specific angle of radiation incidence.

Directional error for Apogee S2 series red

- far-red sensors is approximately ± 2 %

and ± 5 % at solar zenith angles of 45°

and 75°, respectively.

Mean spectral response

measurements of six replicate red -

far-red sensors (red sensor is centered

near 655 nm, far-red sensor is

centered near 730 nm). Spectral

response measurements were made

at 2 nm increments across a

wavelength range of 600 to 800 nm in

a monochromator with an attached

electric light source. Measured

spectral data from each sensor were

normalized by the measured spectral

response of the

monochromator/electric light

combination, which was measured

with a spectroradiometer.

DEPLOYMENT AND INSTALLATION

Mount the sensor to a solid surface with the nylon mounting screw provided to prevent galvanic corrosion. To

accurately measure red and far-red photon flux density incident on a horizontal surface, the sensor must be level.

An Apogee Instruments model AL-100 Leveling Plate is recommended to level the sensor when used on a flat

surface or being mounted to surfaces such as wood. To facilitate mounting on a mast or pipe, the Apogee

Instruments model AL-120 Solar Mounting Bracket with Leveling Plate is recommended.

To minimize azimuth error, the sensor should be mounted with the cable pointing toward true north in the

northern hemisphere or true south in the southern hemisphere. Azimuth error is typically less than 1 %, but it is

easy to minimize by proper cable orientation.

In addition to orienting the cable to point toward the nearest pole, the sensor should also be mounted such that

obstructions (e.g., weather station tripod/tower or other instrumentation) do not shade the sensor. Once

mounted, the green cap should be removed from the sensor. The green cap can be used as a protective covering

for the sensor when it is not in use.

Nylon Screw: 10-32x3/8

Model AL-120

Model AL-100

CABLE CONNECTORS

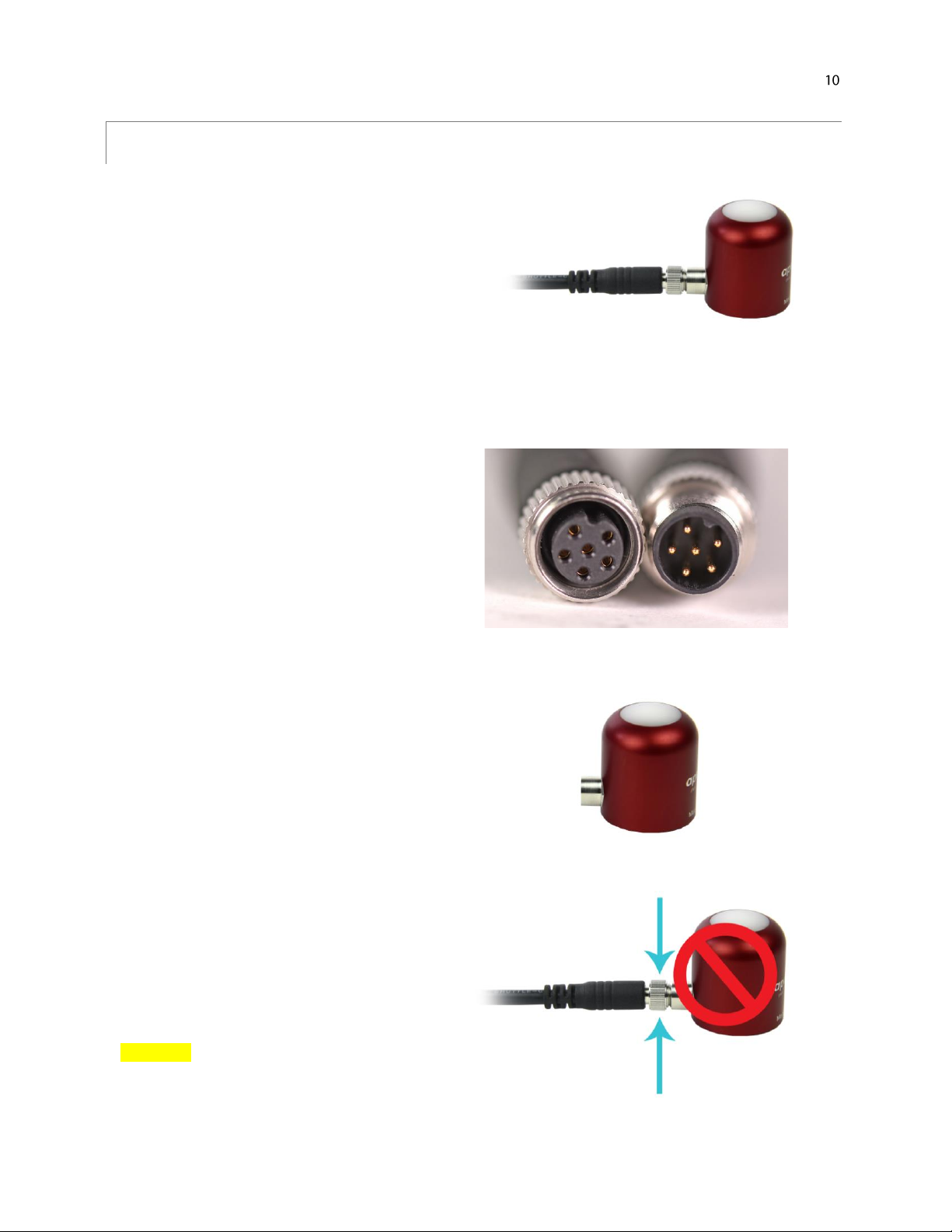

Apogee sensors offer cable connectors to simplify the

process of removing sensors from weather stations

for calibration (the entire cable does not have to be

removed from the station and shipped with the

sensor).

The ruggedized M8 connectors are rated IP68, made

of corrosion-resistant marine-grade stainless-steel,

and designed for extended use in harsh

environmental conditions.

Cable connectors are attached directly to the head.

Instructions

Pins and Wiring Colors: All Apogee

connectors have six pins, but not all pins are

used for every sensor. There may also be

unused wire colors inside the cable. To

simplify datalogger connection, we remove

the unused pigtail lead colors at the

datalogger end of the cable.

If a replacement cable is required, please

contact Apogee directly to ensure ordering

the proper pigtail configuration.

Alignment: When reconnecting a sensor,

arrows on the connector jacket and an

aligning notch ensure proper orientation.

Disconnection for extended periods: When

disconnecting the sensor for an extended

period of time from a station, protect the

remaining half of the connector still on the

station from water and dirt with electrical

tape or other method.

A reference notch inside the connector ensures

proper alignment before tightening.

When sending sensors in for calibration, only send the sensor head.

Tightening: Connectors are designed to be

firmly finger-tightened only. There is an o-

ring inside the connector that can be overly

compressed if a wrench is used. Pay

attention to thread alignment to avoid

cross-threading. When fully tightened, 1-2

threads may still be visible.

WARNING: Do not tighten the connector by

twisting the black cable or sensor head, only

twist the metal connector (blue arrows).

Finger-tighten firmly

Indice

Altri manuali Apogee Instruments Accessori

Apogee Instruments

Apogee Instruments SU-100 Manuale utente

Apogee Instruments

Apogee Instruments SQ-422 Manuale utente

Apogee Instruments

Apogee Instruments SU-321 Manuale utente

Apogee Instruments

Apogee Instruments SQ-616 Manuale utente

Apogee Instruments

Apogee Instruments SU-200 Manuale utente

Apogee Instruments

Apogee Instruments SU-300-SS Manuale utente

Apogee Instruments

Apogee Instruments SQ-610 Manuale utente

Apogee Instruments

Apogee Instruments SQ-646 Manuale utente

Apogee Instruments

Apogee Instruments SU-221 Manuale utente

Apogee Instruments

Apogee Instruments SQ-624-SS Manuale utente

Apogee Instruments

Apogee Instruments SQ-647 Manuale utente

Apogee Instruments

Apogee Instruments SQ-624 Manuale utente

Apogee Instruments

Apogee Instruments SQ-600 Series Manuale utente

Apogee Instruments

Apogee Instruments SQ-421 Manuale utente

Apogee Instruments

Apogee Instruments S2-432 Manuale utente

Apogee Instruments

Apogee Instruments SQ-626 Manuale utente

Apogee Instruments

Apogee Instruments SQ-620 Manuale utente

Apogee Instruments

Apogee Instruments S2-111 Manuale utente

Apogee Instruments

Apogee Instruments PAR-FAR Manuale utente

Apogee Instruments

Apogee Instruments SP-522 Manuale utente

Apogee Instruments

Apogee Instruments SQ-214 Manuale utente

Apogee Instruments

Apogee Instruments S2-411 Manuale utente

Apogee Instruments

Apogee Instruments SQ-522 Manuale utente

Apogee Instruments

Apogee Instruments S2-441 Manuale utente

Manuali Accessori popolari di altre marche

Hillco

Hillco 2810 Manuale utente

Siemens

Siemens QSA2700D Manuale dell'operatore

Contours

Contours ZY024 Manuale utente

Saivod

Saivod VS621 Manuale utente

Virtuox

Virtuox VirtuCLEAN 2.0 Manuale utente

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuale utente

Z-Wave

Z-Wave HSD-200Z Manuale utente

turck

turck FMX-IM-2UPLI63FX Manuale utente

Decagon Devices

Decagon Devices 10HS Manuale utente

UPPAbaby

UPPAbaby Cup Holder Manuale utente

Elko

Elko SmartSensor Leakage Wireless Manuale utente

Grizzly

Grizzly H8371 Manuale utente

Panasonic

Panasonic HG-T Series Manuale utente

IFM Electronic

IFM Electronic Efector 250 Series Guida di riferimento

DigiDesign

DigiDesign 888/24 I/O Manuale utente

PROZIS

PROZIS QUAY Manuale utente

patagonia

patagonia PSI Vest Manuale utente

SFC Energy

SFC Energy EFOY GO! Manuale utente
