OWNER’S MANUAL

QUANTUM SENSOR

Model SQ-514

Rev: 28-Oct-2020

TABLE OF CONTENTS
Owner’s Manual ............................................................................................................................................................1
Certificate of Compliance ......................................................................................................................................3
Introduction...........................................................................................................................................................4
Sensor Models .......................................................................................................................................................5
Specifications.........................................................................................................................................................6
Deployment and Installation .................................................................................................................................9
Cable Connectors.................................................................................................................................................10
Operation and Measurement..............................................................................................................................10
Maintenance and Recalibration ..........................................................................................................................16
Troubleshooting and Customer Support .............................................................................................................18
Return and Warranty Policy ................................................................................................................................19


CERTIFICATE OF COMPLIANCE

EU Declaration of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Apogee Instruments, Inc.

721 W 1800 N

Logan, Utah 84321

USA

for the following product(s):

Models: SQ-514

Type: Quantum Sensor

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

2014/30/EU Electromagnetic Compatibility (EMC) Directive

2011/65/EU Restriction of Hazardous Substances (RoHS 2) Directive

2015/863/EU Amending Annex II to Directive 2011/65/EU (RoHS 3)

Standards referenced during compliance assessment:

EN 61326-1:2013 Electrical equipment for measurement, control and laboratory use –EMC requirements

EN 50581:2012 Technical documentation for the assessment of electrical and electronic products with respect to

the restriction of hazardous substances

Please be advised that based on the information available to us from our raw material suppliers, the products

manufactured by us do not contain, as intentional additives, any of the restricted materials including lead (see

note below), mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), polybrominated

diphenyls (PBDE), bis(2-ethylhexyl) phthalate (DEHP), butyl benzyl phthalate (BBP), dibutyl phthalate (DBP), and

diisobutyl phthalate (DIBP). However, please note that articles containing greater than 0.1% lead concentration are

RoHS 3 compliant using exemption 6c.

Further note that Apogee Instruments does not specifically run any analysis on our raw materials or end products

for the presence of these substances, but rely on the information provided to us by our material suppliers.

Signed for and on behalf of:

Apogee Instruments, January 2021

Bruce Bugbee

President

Apogee Instruments, Inc.

INTRODUCTION

Radiation that drives photosynthesis is called photosynthetically active radiation (PAR) and is typically defined as

total radiation across a range of 400 to 700 nm. PAR is almost universally quantified as photosynthetic photon flux

density (PPFD), the sum of photons from 400 to 700 nm in units of micromoles per square meter per second (µmol

m-2 s-1, equal to microEinsteins m-2 s-1). While microEinsteins and micromoles are equal (one Einstein = one mole of

photons), the Einstein is not an SI unit, so expressing PPFD as µmol m-2 s-1 is preferred. Daily total PPFD is typically

reported in units of moles of photons per square meter per day (mol m-2 d-1) and is often called daily light integral

(DLI).

The acronym PPF is also used and refers to the photosynthetic photon flux. The acronyms PPF and PPFD refer to

the same variable. Both terms are used because there is not a universal definition of the term flux. Flux is

sometimes defined as per unit area per unit time and sometimes defined as per unit time only. PPFD is used in this

manual.

Sensors that measure PPFD are often called quantum sensors due to the quantized nature of radiation. A quantum

refers to the minimum quantity of radiation, one photon, involved in physical interactions (e.g., absorption by

photosynthetic pigments). In other words, one photon is a single quantum of radiation.

Typical applications of quantum sensors include measurement of incident PPFD on plant canopies in outdoor

environments or in greenhouses and growth chambers, and reflected or under-canopy (transmitted) PPFD

measurement in the same environments.

Apogee Instruments SQ series quantum sensors consist of a cast acrylic diffuser (filter), photodiode, and signal

processing circuitry mounted in an anodized aluminum housing, and a cable to connect the sensor to a

measurement device. SQ-500 series quantum sensors are designed for continuous PPFD measurement in indoor or

outdoor environments. SQ series sensors output an analog signal that is directly proportional to PPFD. The analog

signal from the sensor is directly proportional to radiation incident on a planar surface (does not have to be

horizontal), where the radiation emanates from all angles of a hemisphere.

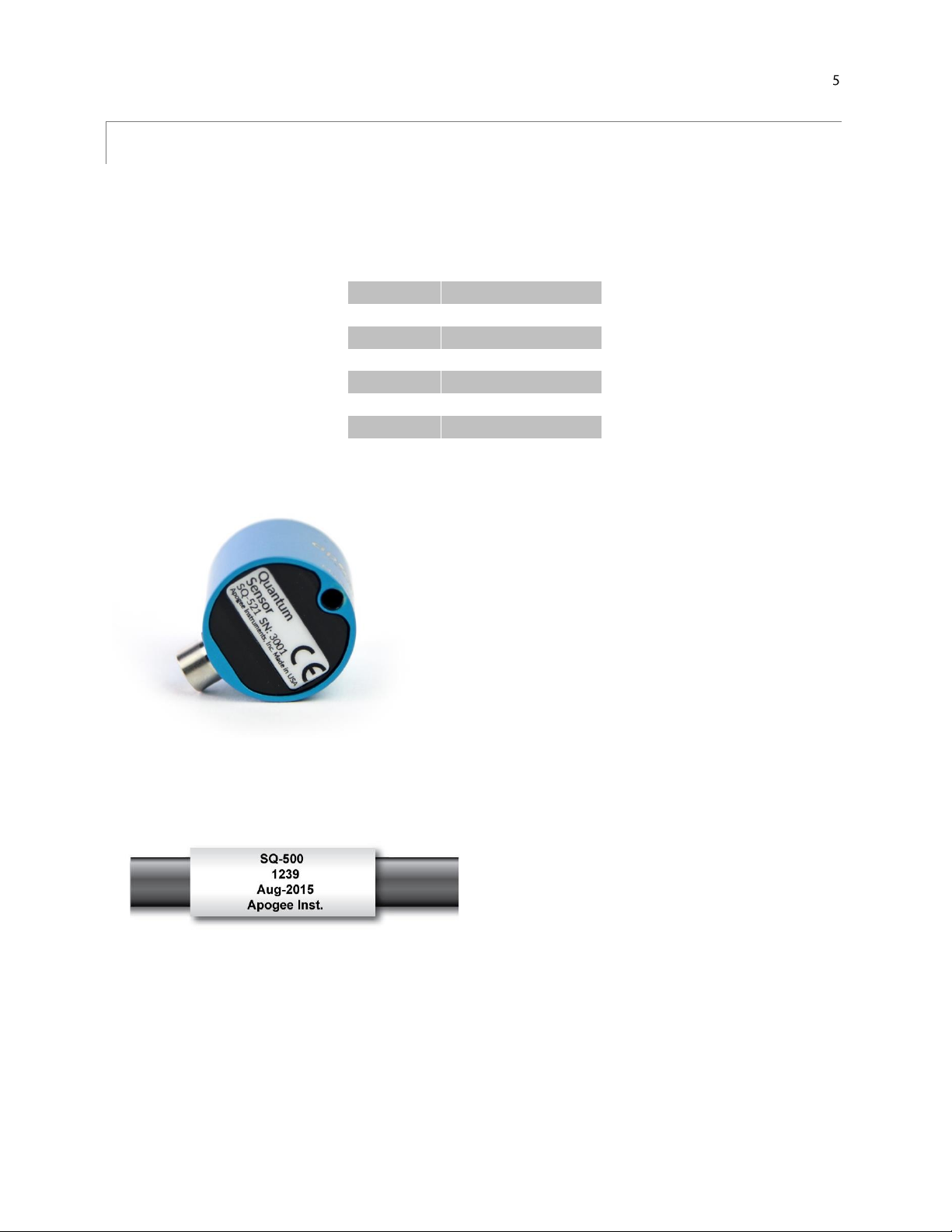

Serial Numbers 3354 and above: Sensor model

number and serial number are located on the

bottom of the sensor. If you need the

manufacturing date of your sensor, please

contact Apogee Instruments with the serial

number of your sensor.

SENSOR MODELS

This manual covers the amplified voltage output quantum sensor, model SQ-514 (listed in bold below). Additional

models are covered in their respective manuals.

Model

Signal

SQ-514

4-20 mA

SQ-500

Self-powered

SQ-512

0-2.5 V

SQ-515

0-5 V

SQ-520

USB

SQ-521

SDI-12

SQ-522

Modbus

Serial Number 0-3353: Sensor model number

and serial number are located near the pigtail

leads on the sensor cable. If you need the

manufacturing date of your sensor, please

contact Apogee Instruments with the serial

number of your sensor.

SPECIFICATIONS

Calibration Traceability

Apogee Instruments SQ-500 series quantum sensors are calibrated through side-by-side comparison to the mean

of four transfer standard quantum sensors under a reference lamp. The reference quantum sensors are

recalibrated with a quartz halogen lamp traceable to the National Institute of Standards and Technology (NIST).

SQ-514

Power Supply

12 to 24 V DC

Current Draw

maximum of 20 mA

Output (Sensitivity)

0.004 µmol m-2 s-1 per mA

Calibration Factor

250 µmol m-2 s-1 per mA

Calibration Uncertainty

± 5 % (see calibration Traceability below)

Output Range

4 to 20 mA

Measurement

Repeatability

Less than 0.5 % (up to 4000 µmol m-2 s-1)

Long-term Drift

(Non-stability)

Less than 2 % per year

Non-linearity

Less than 1 % (up to 4000 µmol m-2 s-1)

Response Time

Less than 1 ms

Field of View

180°

Spectral Range

389 to 692 nm ± 5 nm (wavelengths where response is greater than 50 %)

Spectral Selectivity

Less than 10 % from 412 to 682 ± 5 nm (see Spectral Response below)

Directional (Cosine)

Response

± 2 % at 45° zenith angle, ± 5 % at 75° zenith angle (see Directional Response below)

Azimuth Error

Less than 0.5 %

Tilt Error

Less than 0.5 %

Temperature Response

-0.11 ± 0.04 % per C (see Temperature Response below)

Uncertainty in Daily Total

Less than 5 %

Detector

Blue-enhanced silicon photodiode

Housing

Anodized aluminum body with acrylic diffuser

IP Rating

IP68

Operating Environment

-40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m

Dimensions

Serial # 3354 and above

30.5 mm diameter, 37 mm height

Dimensions

Serial # 0-3353

24 mm diameter, 37 mm height

Mass (with 5 m cable)

Serial # 3354 and above

140 g

Mass (with 5 m cable)

Serial # 0-3353

100 g

Cable

5 m of shielded, twisted-pair wire; TPR jacket (high water resistance, high UV stability,

flexibility in cold conditions); pigtail lead wires; stainless steel (316), M8 connector

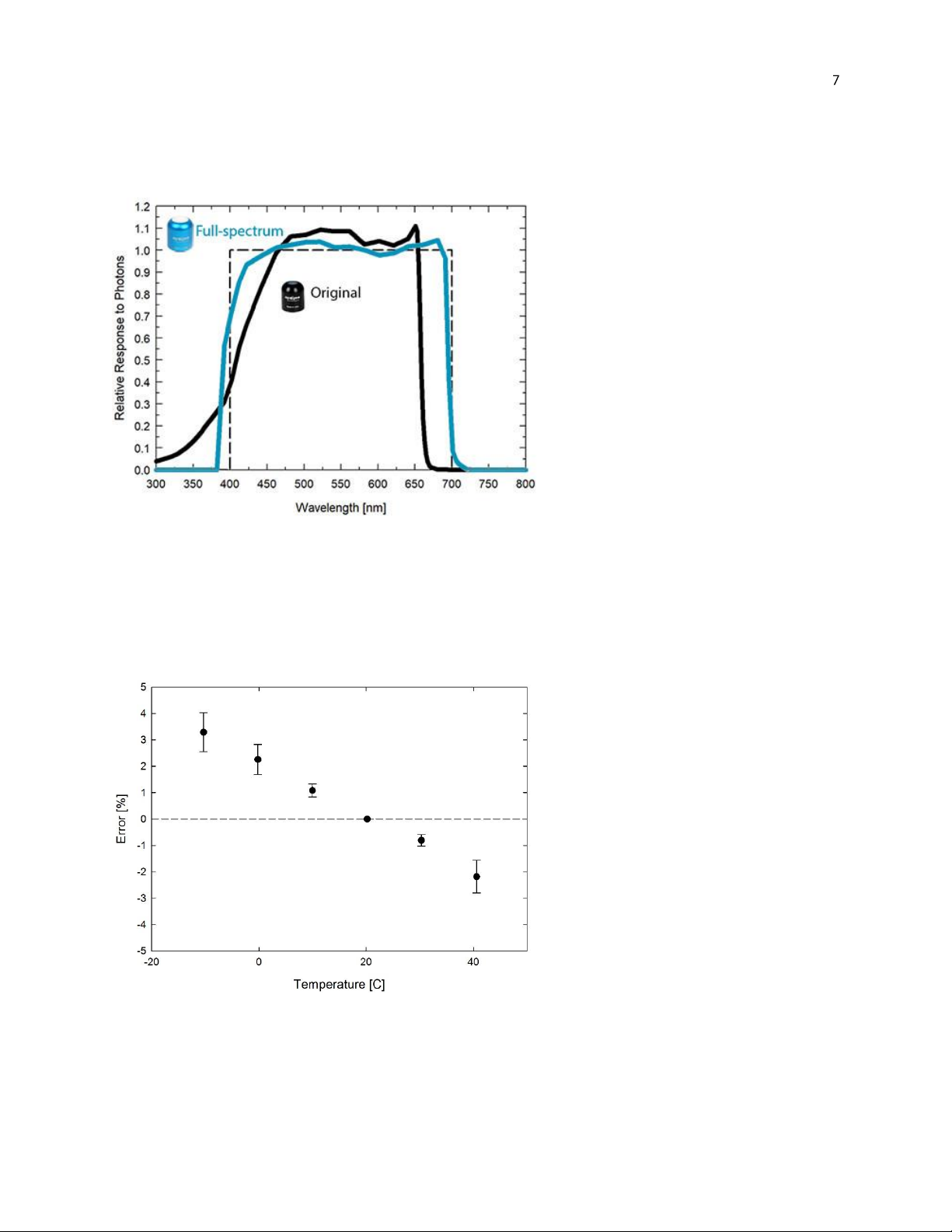

Spectral Response

Temperature Response

Mean temperature response of ten SQ-500

series quantum sensors (errors bars represent

two standard deviations above and below

mean). Temperature response measurements

were made at 10 C intervals across a

temperature range of approximately -10 to 40 C

in a temperature controlled chamber under a

fixed, broad spectrum, electric lamp. At each

temperature set point, a spectroradiometer was

used to measure light intensity from the lamp

and all quantum sensors were compared to the

spectroradiometer. The spectroradiometer was

mounted external to the temperature control

chamber and remained at room temperature

during the experiment.

Mean spectral response measurements of

six replicate Apogee SQ-100 (original) and

SQ-500 (full-spectrum) series quantum

sensors. Spectral response measurements

were made at 10 nm increments across a

wavelength range of 300 to 800 nm with a

monochromator and an attached electric

light source. Measured spectral data from

each quantum sensor were normalized by

the measured spectral response of the

monochromator/electric light combination,

which was measured with a

spectroradiometer.

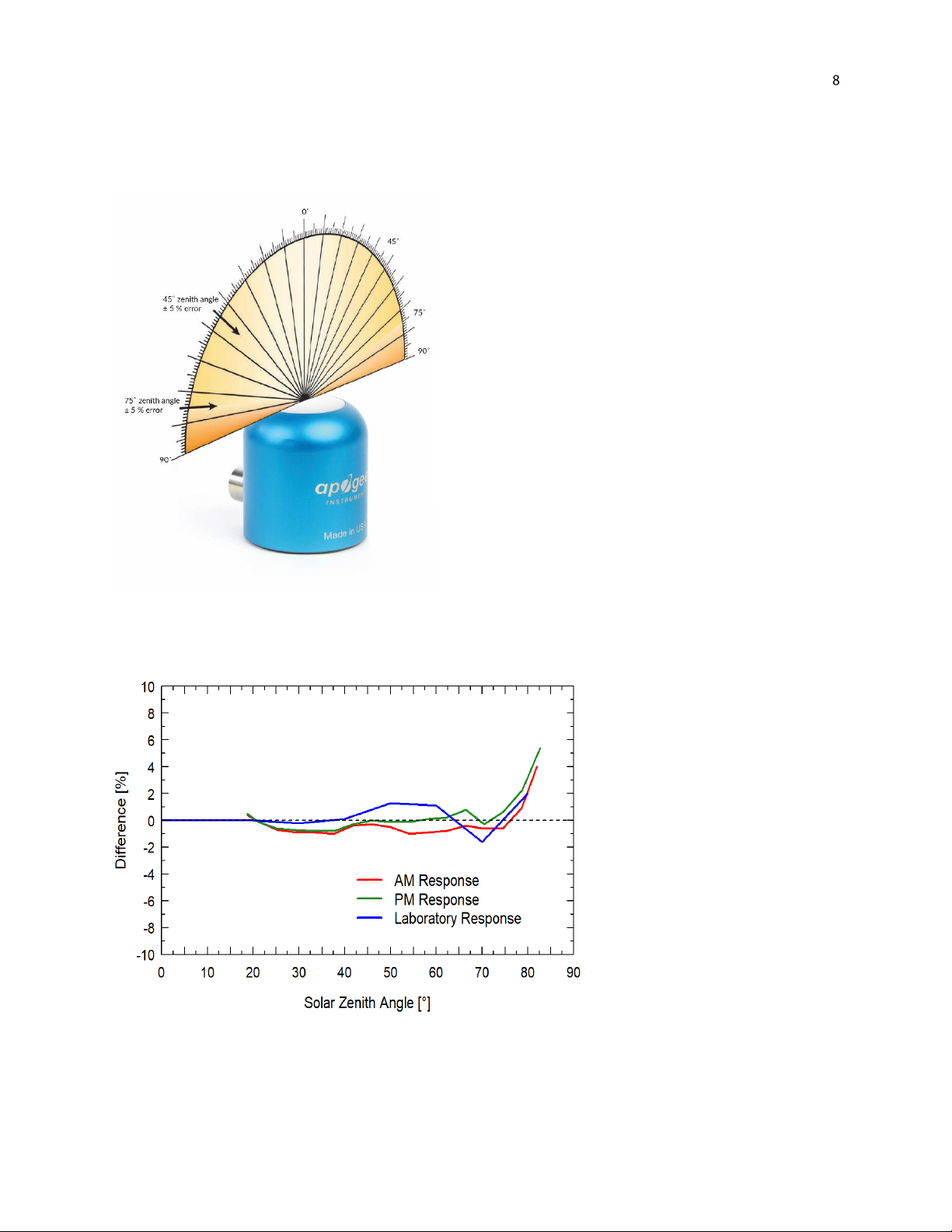

Cosine Response

Mean directional (cosine) response

of seven apogee SQ-500 series

quantum sensors. Directional

response measurements were made

on the rooftop of the Apogee

building in Logan, Utah. Directional

response was calculated as the

relative difference of SQ-500

quantum sensors from the mean of

replicate reference quantum sensors

(LI-COR models LI-190 and LI-190R,

Kipp & Zonen model PQS 1). Data

were also collected in the laboratory

using a reference lamp and

positioning the sensor at varying

angles.

Directional (cosine) response is defined as the measurement

error at a specific angle of radiation incidence. Error for

Apogee SQ-500 series quantum sensors is approximately ± 2

% and ± 5 % at solar zenith angles of 45° and 75°,

respectively.

Important: Only use the nylon screw provided

when mounting to insulate the non-anodized

threads of the aluminum sensor head from the

base to help prevent galvanic corrosion. For

extended submersion applications, more insulation

may be necessary. Contact Apogee tech support for

details.

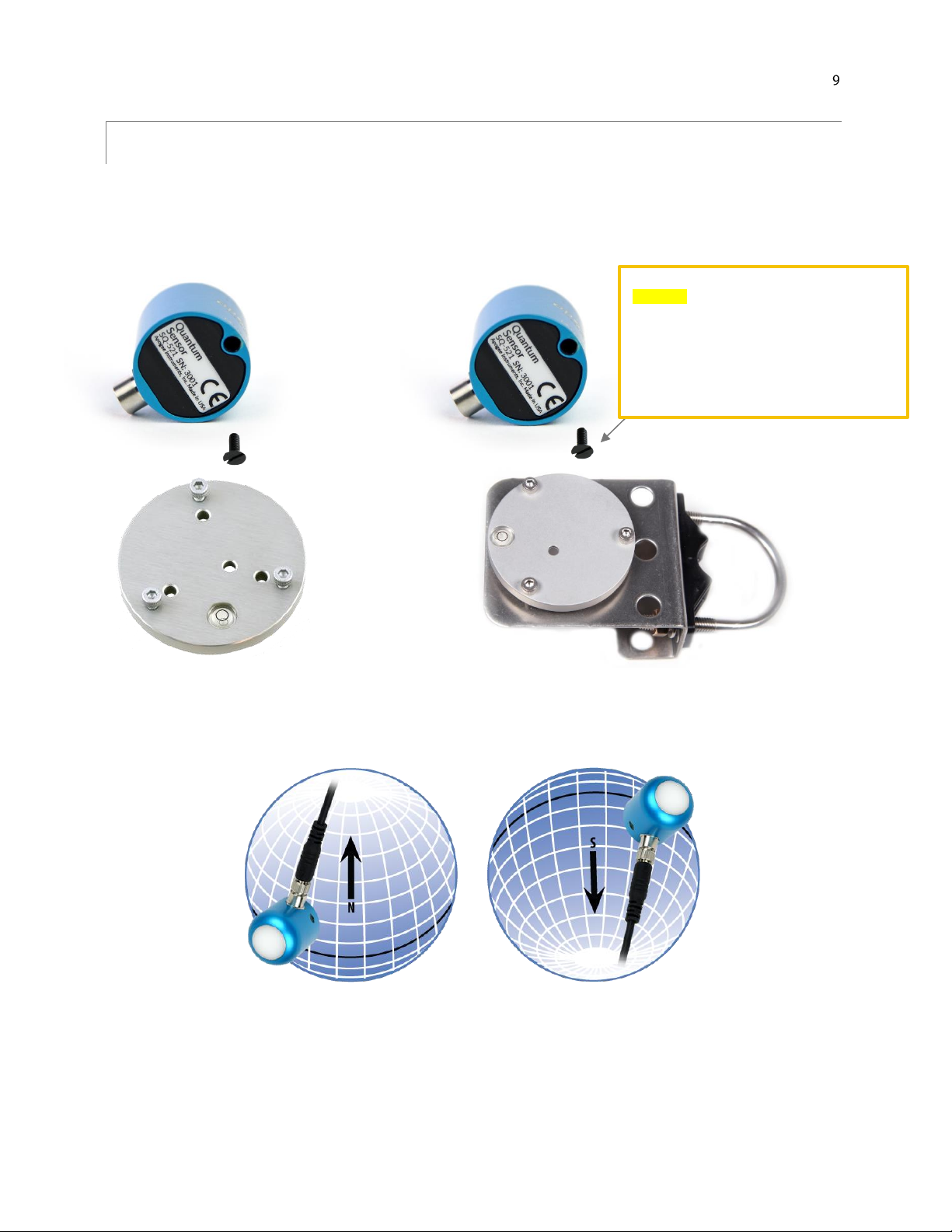

DEPLOYMENT AND INSTALLATION

Mount the sensor to a solid surface with the nylon mounting screw provided. To accurately measure PPFD incident

on a horizontal surface, the sensor must be level. An Apogee Instruments model AL-100 leveling plate is

recommended for this purpose. To facilitate mounting on a cross arm, an Apogee Instruments model AL-120

mounting bracket is recommended.

To minimize azimuth error, the sensor should be mounted with the cable pointing toward true north in the

northern hemisphere or true south in the southern hemisphere. Azimuth error is typically less than 0.5 %, but it is

easy to minimize by proper cable orientation.

In addition to orienting the cable to point toward the nearest pole, the sensor should also be mounted such that

obstructions (e.g., weather station tripod/tower or other instrumentation) do not shade the sensor. Once

mounted, the blue cap should be removed from the sensor. The blue cap can be used as a protective covering for

the sensor when it is not in use.

Nylon Screw: 10-32 x 3/8

Model: AL-100

Model: AL-120

Nylon Screw: 10-32 x 3/8

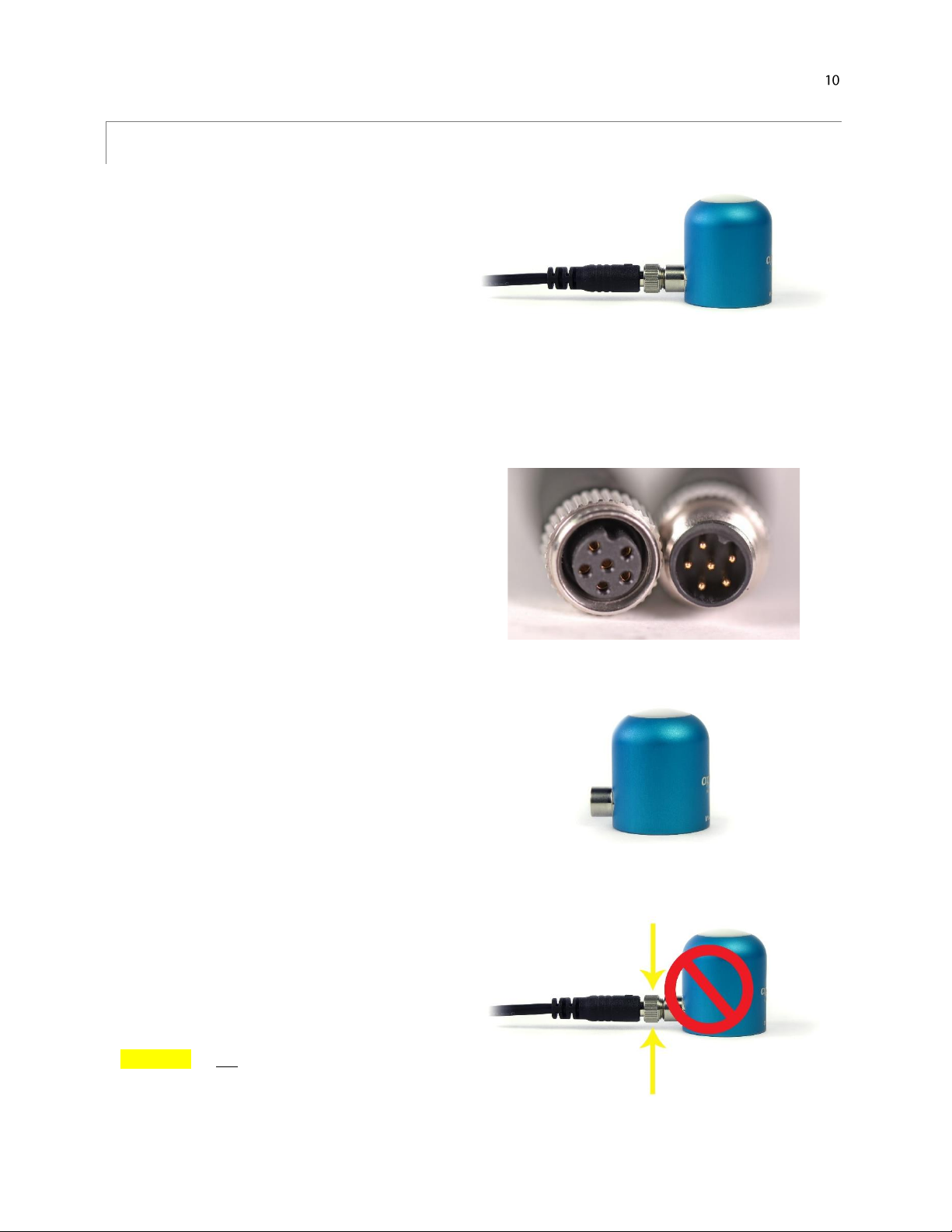

CABLE CONNECTORS

Apogee started offering cable connectors on some

bare-lead sensors in March 2018 to simplify the

process of removing sensors from weather stations

for calibration (the entire cable does not have to be

removed from the station and shipped with the

sensor).

The ruggedized M8 connectors are rated IP68,

made of corrosion-resistant marine-grade stainless-

steel, and designed for extended use in harsh

environmental conditions.

Cable connectors are attached directly to the head.

Instructions

Pins and Wiring Colors: All Apogee connectors have

six pins, but not all pins are used for every sensor.

There may also be unused wire colors inside the

cable. To simplify datalogger connection, we remove

the unused pigtail lead colors at the datalogger end

of the cable.

If a replacement cable is required, please contact

Apogee directly to ensure ordering the proper pigtail

configuration.

Alignment: When reconnecting a sensor, arrows on

the connector jacket and an aligning notch ensure

proper orientation.

Disconnection for extended periods: When

disconnecting the sensor for an extended period of

time from a station, protect the remaining half of the

connector still on the station from water and dirt

with electrical tape or other method.

A reference notch inside the connector ensures

proper alignment before tightening.

When sending sensors in for calibration, only send the

sensor head.

Tightening: Connectors are designed to be firmly

finger-tightened only. There is an o-ring inside the

connector that can be overly compressed if a wrench

is used. Pay attention to thread alignment to avoid

cross-threading. When fully tightened, 1-2 threads

may still be visible.

WARNING: Do not tighten the connector by twisting

the black cable or sensor head, only twist the metal

connector (yellow arrows).

Finger-tighten firmly

Indice

Altri manuali Apogee Instruments Accessori

Apogee Instruments

Apogee Instruments SQ-422X Manuale utente

Apogee Instruments

Apogee Instruments SQ-421 Manuale utente

Apogee Instruments

Apogee Instruments SQ-640 Manuale utente

Apogee Instruments

Apogee Instruments SQ-644 Manuale utente

Apogee Instruments

Apogee Instruments SU-221 Manuale utente

Apogee Instruments

Apogee Instruments SQ-626 Manuale utente

Apogee Instruments

Apogee Instruments SQ-422 Manuale utente

Apogee Instruments

Apogee Instruments SQ-624-SS Manuale utente

Apogee Instruments

Apogee Instruments S2-111 Manuale utente

Apogee Instruments

Apogee Instruments SQ-647 Manuale utente

Apogee Instruments

Apogee Instruments SQ-624 Manuale utente

Apogee Instruments

Apogee Instruments SQ-620-SS Manuale utente

Apogee Instruments

Apogee Instruments SU-202 Manuale utente

Apogee Instruments

Apogee Instruments SQ-522 Manuale utente

Apogee Instruments

Apogee Instruments S2-441 Manuale utente

Apogee Instruments

Apogee Instruments SU-321 Manuale utente

Apogee Instruments

Apogee Instruments SQ-214 Manuale utente

Apogee Instruments

Apogee Instruments SQ-420X Manuale utente

Apogee Instruments

Apogee Instruments SU-300-SS Manuale utente

Apogee Instruments

Apogee Instruments S2-411 Manuale utente

Apogee Instruments

Apogee Instruments S2-432 Manuale utente

Apogee Instruments

Apogee Instruments SU-100 Manuale utente

Apogee Instruments

Apogee Instruments SQ-600 Series Manuale utente

Apogee Instruments

Apogee Instruments SQ-642 Manuale utente

Manuali Accessori popolari di altre marche

Hillco

Hillco 2810 Manuale utente

Siemens

Siemens QSA2700D Manuale dell'operatore

Contours

Contours ZY024 Manuale utente

Saivod

Saivod VS621 Manuale utente

Virtuox

Virtuox VirtuCLEAN 2.0 Manuale utente

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuale utente

Z-Wave

Z-Wave HSD-200Z Manuale utente

turck

turck FMX-IM-2UPLI63FX Manuale utente

Decagon Devices

Decagon Devices 10HS Manuale utente

UPPAbaby

UPPAbaby Cup Holder Manuale utente

Elko

Elko SmartSensor Leakage Wireless Manuale utente

Grizzly

Grizzly H8371 Manuale utente

Panasonic

Panasonic HG-T Series Manuale utente

IFM Electronic

IFM Electronic Efector 250 Series Guida di riferimento

DigiDesign

DigiDesign 888/24 I/O Manuale utente

PROZIS

PROZIS QUAY Manuale utente

patagonia

patagonia PSI Vest Manuale utente

SFC Energy

SFC Energy EFOY GO! Manuale utente
