Apogee Jam X Manuale utente

Jam XUser’s Guide

Version 1.0

Apogee Jam X User’s Guide

Contents

Contents 2

In the Box 3

System Requirements 3

Jam X Product Tour 4

Connecting Your Studio 5

Connect your instrument 5

Connect headphones or speakers 5

Connecting to a Mac or Windows computer 6

Connecting to an iPad Pro (USB-C connector) 6

Connecting to an iOS Device (Lightning connector) 7

Jam X Lights and Getting Sound 8

Installing Jam X Software 9

Windows 10 Installer 9

Configure the Computer’s OS to use Jam X for Audio I/O 10

macOS 10

Windows 11 11

Apple iOS 11

Working with Jam X 12

Blend Mode 12

Blend Off - Software Monitoring 12

Minimize Latency with Software Monitoring 13

Blend On - Direct Monitoring 13

Configuring Neural Archetype:Tim Hensen - Standalone 14

Configuring Your DAW 15

Apple Logic Pro 15

Avid Pro Tools 16

Ableton Live 17

Troubleshooting 18

Warranty Information and Legal Notices 19

Declarations of Conformity 19

Apogee Jam X User’s Guide

In the Box

● Jam X

● Micro-USB B to USB-A cable, 1 meter

● Micro-USB B to USB-C cable, 1 meter

● Warranty Booklet

● Product Registration Link Card

System Requirements

● macOS 10.15 or greater

● Windows 10 Anniversary update or later

● iOS 13 or greater

● Mac & Windows: 4GB minimum RAM, 8GB Recommended

● Receive links to free software!

○ Ableton Live Lite

○ Neural Archetype: Tim Henson Plugin Extended Trial

● Access Apogee’s expert Technical Support for free

● Receive important product update information by email

● Take the Customer Satisfaction Survey for a chance to win Apogee gear!

Apogee Jam X User’s Guide

Jam X Product Tour

Apogee Jam X User’s Guide

Connecting Your Studio

A wide range of devices, including dynamic microphones, electric instruments and keyboards,

speakers and headphones may be connected to Jam X.

Connect your instrument

Connect Hi-Z instruments such as guitar, bass, keyboards, and synthesizers to the Jam X using a ¼”

instrument cable.

● Dynamic mics with XLR plug can be connected using a Hi-Z to Low-Z transformer converter.

● Condenser microphones require a separate external 48V phantom power supply.

Connect headphones or speakers

Connect headphones to the ⅛” stereo connector.

Powered speakers can also be connected to this jack.

● Adjust the output level using the volume controls on the computer or iOS device.

Apogee Jam X User’s Guide

Connecting to a Mac or Windows computer

Using one of the supplied cables, connect Jam X’s Micro-USB B port to any USB-A or USB-C port on

your Mac or Windows computer.

Connecting to an iPad Pro (USB-C connector)

Using the supplied Micro-USB B to USB-C cable, connect Jam X’s to your iPad Pro’s USB-C

connector.

Apogee Jam X User’s Guide

Connecting to an iOS Device (Lightning connector)

Using the micro-USB B to Lightning Cable (sold separately), connect to the Lighting port on your

iPhone or iPad:

Connecting Jam X to an iPhone with Lightning connector

Connecting Jam X to an iPad with Lightning connector

Apogee Jam X User’s Guide

Installing Jam X Software

For Windows 10 & 11 users, download the Apogee ASIO Driver from the link below:

https://apogeedigital.com/installer-downloads

For macOS and iOS users, no software is required to connect Jam to your Mac, iPhone or iPad.

After registering your Jam X at the link below, you’ll receive links to download accessory software:

● Ableton Live Lite, a digital audio workstation;

● Neural Archetype: Tim Henson, a virtual guitar amp/FX plugin.

https://apogeedigital.com/my-account

Windows 10 Installer

1. In your Downloads folder, double-click the .zip file

to extract it, then double-click the .exe file to start

the installation process.

2. Click Next through all steps, then click Finish at

the final step.

3. You should restart your computer immediately.

Apogee Jam X User’s Guide

Configure the Computer’s OS to use Jam X for Audio I/O

macOS

To choose Jam X as the audio interface for Mac applications that don’t have specific audio hardware

preferences, such as Safari, Spotify, Voice Memos and others:

1. Open System Settings by choosing Apple menu > System

Settings.

2. Click the Sound icon to open the Sound Settings panel.

3. Click the Output tab, then click Jam X in the devices list.

4. Click the Input tab, then click Jam X in the devices list.

Apogee Jam X User’s Guide

Windows 11

To choose Jam X as the audio interface for Windows applications that don’t have specific audio

hardware preferences, such as Google Chrome, Spotify, and others:

1. Type Control Panel in the Windows search bar to open the Control Panel. Double-click the Sound

icon.

2. Click the Output section and select Speakers-Apogee Jam X.

3. Click Speakers to show the Properties of the device.

4. Ensure the Audio - “Allow apps and Windows to use this device for audio” is Allowed. When using

a DAW and apps like Spotify simultaneously, match the Default Format sample rate with the rate

of the DAW session.

5. Go back to the main System > Sound window.

6. Click the Input Section and repeat steps 2-5 for Input.

Apple iOS

Apple iOS (iPhone and iPad) automatically chooses the most recently connected audio interface as

the audio I/O device for all applications. Simply connect Jam X to your iOS device’s Lightning or

USB-C port as described on page 6-7.

Indice

Altri manuali Apogee Interfaccia USB

Apogee

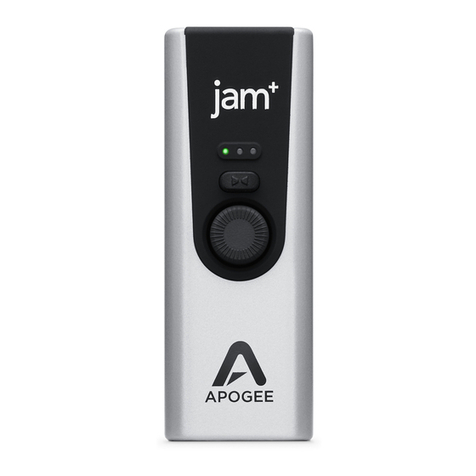

Apogee Jam+ Manuale utente
