Apricorn Aegis Padlock 3.0 Manuale utente

User’s Manual

Aegis Padlock 3.0

Table of Contents

About the Aegis Padlock Portable Secure Hard Drive 4

Package contents 4

Aegis Padlock button panel 5

Aegis Padlock - Getting Started 6

Before you begin 6

Connecting the Aegis Padlock 6

Connecting the Aegis Padlock with USB Y-Cable 7

How do I use the Aegis Padlock the rst time? 7

What if I forget the User Password? 7

Using the Aegis Padlock 8

Entering the Standby Mode 8

Entering the User Mode 8

Exiting the User Mode 8

Entering the Admin Mode 9

Exiting the Admin Mode 9

Password Management 10

Changing the Admin Password 10

Adding a new User Password 11

Deleting the User Passwords 11

Changing the User Password 11

Setting the Unattended Auto Lock Feature 12

Aegis Padlock Brute Force Protection 13

What is Brute Force Attack? 13

How does the Aegis Padlock protect against brute force attack? 13

Setting a Self Destruct Password 14

Completely resetting the Aegis Padlock 15

Initializing and formatting the Aegis Padlock after a complete reset 15

Windows is a registered trademark of Microsoft Corporation.

All other trademarks and copyrights referred to are the property of their

respective owners.

Distribution of modied versions of this document is prohibited without the explicit

permission of the copyright holder.

Distribution of the work or derivative work in any standard (paper) book form for

commercial purposes is prohibited unless prior permission is obtained from the

DOCUMENTATION IS PROVIDEDAS IS AND ALL EXPRESS OR IMPLIED

CONDITIONS, REPRESENTATIONSAND WARRANTIES, INCLUDINGANY

IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FORA PARTICULAR

PURPOSE OR NON-INFRINGEMENT,ARE DISCLAIMED, EXCEPT TO THE

EXTENT THAT SUCH DISCLAIMERSARE HELD TO BE LEGALLY INVALID

Hibernating, Suspending, or Logging off 17

Troubleshooting 18

Technical Support 20

Warranty and RMA information 20

www.apricorn.com

About the Aegis Padlock Portable

Secure Hard Drive

Package contents

• Aegis Padlock drive with

integrated USB cable

• Travel pouch

• USB Y-cable

• Quick Start Guide

Looking for an effortless way to secure your

data? The Aegis Padlock Secure Drive is

the ultimate portable hard drive and secure

storage system. With an easy-to-use

keypad design and software free setup, the

Aegis Padlock Secure Drive enables you

to access the drive with your own unique

pin. Featuring 256 bit hardware encryption

and a super-fast USB 3.0 connection, the

Aegis Padlock provides seamless real-time

encryption, keeping your data safe even if

the hard drive is removed from its enclosure.

Quick Start Guide

cancel

abc

jkl

mno

wxyz

tuv

pqrs

ghi

def

Cancel button

button

LED Indicator light

Remember to save your password in a safe place. If

lost or forgotten, there is no way to access the drive.

If you are having difculty please refer to the com-

plete user’s manual which is loaded on your Aegis

Padlock drive and is also available at Apricorn’s

website at: www.apricorn.com/support

YourAegis Padlock is preformatted in NTFS for Windows®and is ready for use. For the Mac

OS please refer to the directions on the reverse to reformat your drive to a compatible format.

To access theAegis Padlock plug your drive into a powered USB port, enter the default PIN

number of 123456 and press .

The indicator light will change from RED to GREEN indicating the drive is unlocked and can be

accessed.

Changing the ADMIN PIN number to your own unique PIN number

You are the “administrator” of this drive. The rst thing you will want to do is change the

Administrator PIN number from the default 123456 to a unique, secure PIN number that you

will remember.

To change theAdmin PIN number follow the instructions below:

To enter Admin Mode, rst plug the drive into the USB port and wait until the LED light 1. turns RED.

Next, press and hold 0 + for 5 seconds until the LED light ashes RED.2. Enter the Admin PIN number (default is 123456) and press . The LED light will3. turn BLUE indicating you are in Admin Mode.

While in Admin Mode, press and hold 9 + until the LED light ashes BLUE.4.

Enter the new PIN number (minimum 6 digits) and press . The LED light will ash 5. GREEN 3 times if successful.

Re-enter the new PIN number and press . The LED light will stay solid GREEN for

6. 2 seconds then solid BLUE indicating you have successfully changed the Admin PIN.

To exit admin mode and begin using your Aegis Padlock drive, press the CANCEL 7. button until the LED turns RED. Now enter your new PIN number and press .

Aegis Padlock 3.0

www.apricorn.com

Aegis Padlock button panel

The “Cancel” button can be used to:

• Cancel current operation

• Return to the previous step when you knowingly entered a wrong

password

• Exit the Admin Mode

The button can be used to access the Aegis Padlock and it can also be used

as an OK acknowledgement in the following operations:

• Entering a password

• Conrming a new password

The indicator light displays the following colors to indicate the various modes of

operation:

• RED: Standby Mode

• BLUE: Admin Mode

• GREEN: User Mode

The indicator light has other display methods to indicate different status of the

Aegis Padlock. Details are provided later in this chapter.

cancel

abc

jkl

mno

wxyz

tuv

pqrs

ghi

def

Cancel button

button

Indicator light

www.apricorn.com

Aegis Padlock - Getting Started

Before you begin

Be sure to review the following information before you begin to use the Aegis

Padlock.

Attention: Use only the included cables with your Aegis Padlock. You might

damage the drive if you use a cable not included with the Aegis Padlock.

The Aegis Padlock is designed for portable use without an AC power adapter and

in most cases will be able to power on a single USB port. In the event that the

Aegis Padlock is unable to power on a single USB connection, use the included

USB Y-cable.

Connecting the Aegis Padlock

1. Attach the integrated USB cable of theAegis Padlock drive to an available USB

port on your computer, as shown below.

2. TheAegis Padlock indicator light should glow RED.

If the Indicator light

does not power, use the

included USB Y-cable.

Refer to directions on the

following page

www.apricorn.com

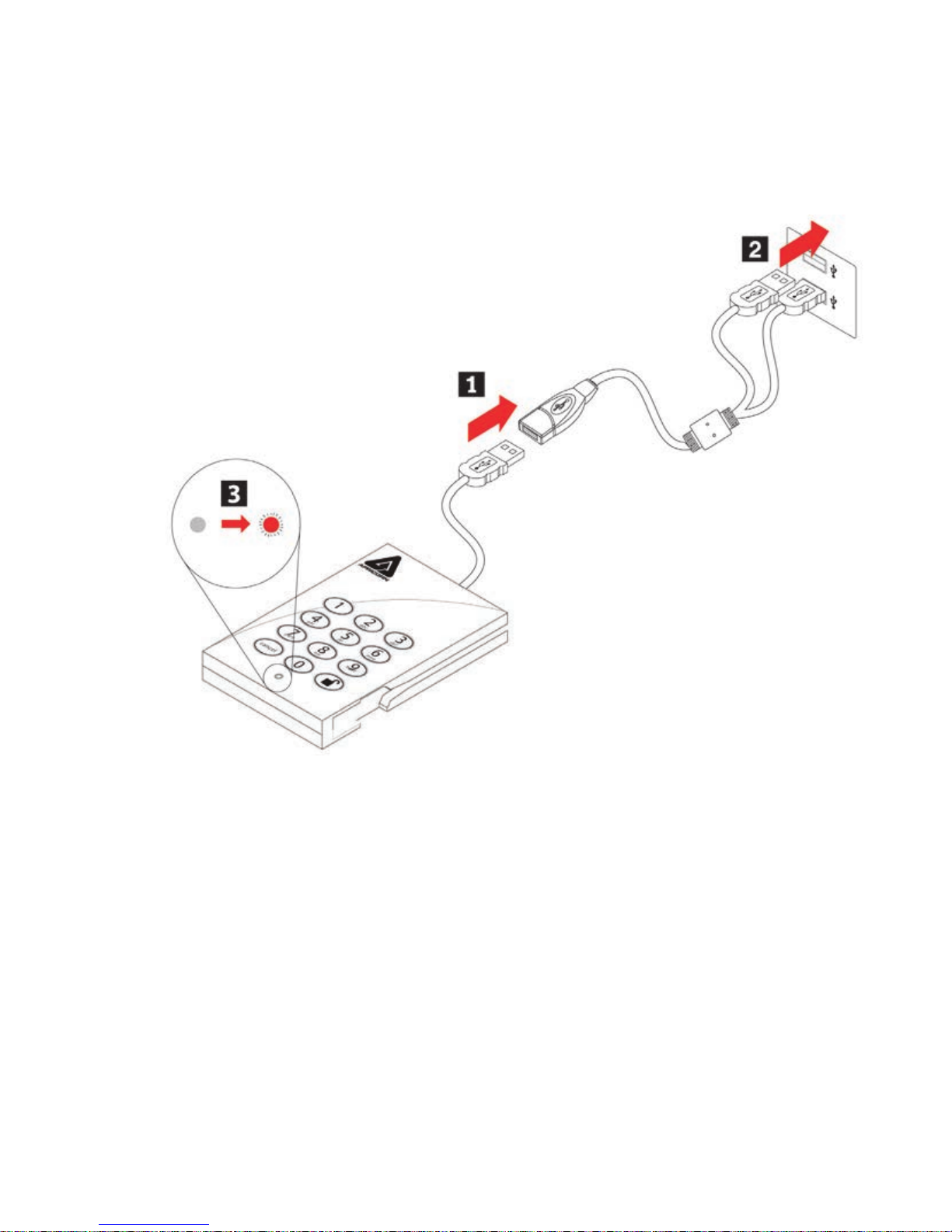

Connecting the Aegis Padlock with USB Y-Cable

If the indicator light does not power on a single USB connection, use the included

USB Y-cable.

1. Attach theAegis Padlock’s integrated USB cable to the female connector of the

USB Y-cable.

2. Connect the two male USB connectors to two available

USB ports on your computer.

3. TheAegis Padlock indicator light should glow RED.

You can use it in one of the following ways:

• Enter the Admin Mode with 123456 (default administrator password),

and then you are able to change the Admin Password or create a User

Password.

• Directly enter the Secure User Mode with 123456 (default Admin Password)

to use the Aegis Padlock.

How do I use the Aegis Padlock the rst time?

What if I forget the User Password?

Use your Admin Password to enter Admin Mode, and then create another User

Password in Admin Mode.

www.apricorn.com

Using the Aegis Padlock

Entering and exiting the Standby Mode, Admin

Mode, and User Mode

Entering the Standby Mode

The Standby Mode is the default working mode of the Aegis Padlock and is the

gateway to other working modes.

To enter the Standby Mode, attach theAegis Padlock to your computer. The drive

automatically goes into Standby Mode and the indicator light turns RED. In this

mode, the Aegis Padlock is locked. It cannot be recognized by My Computer and it

does not provide either the regular functions or the encryption function. However, it

enables you to enter and switch between the Admin Mode and the User Mode.

Attention: To switch between theAdmin Mode and the User Mode, you are

required to switch to the Standby Mode rst, and then you can enter the

mode of your choice.

Entering the User Mode

To enter the User Mode, do the following:

1. Attach the Secure Hard Drive to your computer. It enters the Standby Mode.

2. Enter the User Password or the Admin Password (the default Admin Password

is 123456) and press . The indicator light turns GREEN indicating that the

drive is in the User Mode. If the indicator light ashes RED, you need to re-enter

the correct password.

Exiting the User Mode

To exit the User Mode, double-click the Safely Remove Hardware icon from

the Microsoft®Windows®desktop, and then remove the Aegis Padlock from your

computer.

Attach the Aegis Padlock to your computer again and the indicator light turns RED.

This indicates that you are in the Standby Mode.

www.apricorn.com

Entering the Admin Mode

Note: The Aegis Padlock cannot be recognized by the operating system in the

Admin Mode.

To enter theAdmin Mode, do the following:

1. Attach the USB cable to an available USB port on your computer. TheAegis

Padlock goes into the Standby Mode, and the indicator light turns RED.

2. Press and hold + 0 for ve seconds until the indicator light ashes RED.

This indicates that you can enter the Admin Password.

3. Enter the Admin Password and press . The defaultAdmin Password is

123456. The Secure Hard Drive is inAdmin Mode when the indicator light has

changed to BLUE.

Note: If the indicator light ashes RED for a few seconds, indicating the

Aegis Padlock has returned to the Standby Mode, go back to Step 2. This

is due to one of the following conditions:

• You entered an incorrect Admin Password in Step 3.

• No activity was detected within two minutes in the Admin Mode.

Exiting the Admin Mode

To exit the Admin Mode, press the “Cancel” button in theAdmin Mode until the

indicator light turns RED. This indicates that you are in the Standby Mode.

www.apricorn.com

Password Management

Changing the Admin Password

This section provides information about managing your password in the Admin

Mode and User Mode.

You can change the Admin Password by doing the following:

1. Enter Admin Mode (refer to page 9 for details).

2. Press and hold + 9 until the indicator light ashes BLUE.

3. Enter the new password and press (The Password must be a minimum of

6 digits and a maximum of 16 digits). The indicator light ashes GREEN three

times. See note below.

4. Re-enter the new Admin Password and press . The indicator light stays

solid GREEN for two seconds and then solid BLUE indicating that the Admin

Password has been changed successfully.

Note: If the indicator light ashes RED three times, this indicates that the

password is less than 6 digits or more than 16 digits. Enter a

password that contains 6 – 16 digits after the indicator light ashes

BLUE intermittently.

1. If the indicator light ashes RED intermittently and then BLUE

intermittently, go back to step 3. This is due to one of the following

conditions:

• You waited longer than 10 seconds before entering a password.

• The new password was entered incorrectly.

2. If no activity is detected within two minutes in theAdmin Mode, theAegis

Padlock will return to the Standby Mode.

Altri manuali per Aegis Padlock 3.0

Indice

Altri manuali Apricorn Magazzinaggio

Apricorn

Apricorn Aegis Padlock SSD Manuale utente

Apricorn

Apricorn Aegis Padlock Manuale utente

Apricorn

Apricorn Aegis Portable A25-USB 500GB Manuale utente

Apricorn

Apricorn Aegis Secure Key Manuale utente

Apricorn

Apricorn EZ-BUS-DTS 1TB Manuale utente

Apricorn

Apricorn Aegis Mini A18-USB 240GB Manuale utente

Apricorn

Apricorn Aegis Padlock A25-PLE256S 128GB Manuale utente

Apricorn

Apricorn Aegis Bio A25-BIO 640GB Manuale utente

Apricorn

Apricorn EZ Gig Manuale utente

Apricorn

Apricorn Aegis Padlock A25-PL256 128GB Manuale utente

Apricorn

Apricorn EZ-UP-UNIVERSAL Manuale utente

Apricorn

Apricorn Aegis Padlock DT Manuale utente

Apricorn

Apricorn Aegis Mini A18-USB 100GB Manuale utente

Apricorn

Apricorn Aegis Bio 3.0 Manuale utente

Apricorn

Apricorn Aegis Secure Key 3.0 Manuale utente

Apricorn

Apricorn Aegis Padlock A25-PL128 250GB Manuale utente

Apricorn

Apricorn Aegis Padlock DT FIPS Manuale utente

Apricorn

Apricorn Aegis Bio 3.0 Manuale utente

Apricorn

Apricorn Aegis Secure Key Manuale utente

Apricorn

Apricorn Aegis Secure Key 3.0 Manuale utente

Apricorn

Apricorn Aegis Padlock Fortress Manuale utente

Apricorn

Apricorn Aegis Padlock A25-PLE256 500GB Manuale utente

Apricorn

Apricorn Aegis Padlock Manuale utente

Apricorn

Apricorn Aegis Padlock Fortress Manuale del proprietario

Manuali Magazzinaggio popolari di altre marche

QNAP

QNAP TS 32PXU Series Manuale utente

LaCie

LaCie RUGGED RAID Manuale utente

Freecom

Freecom CLS DOCK Manuale utente

PNY

PNY Attache P-FD64MBATT3 Manuale utente

HP StorageWorks MSL2024 Manuale utente

OLT

OLT 6x6 Maximizer Manuale utente

Transcend

Transcend JetFlash 160 Manuale utente

LaCie

LaCie RUGGED MINI Manuale utente

Thunderbolt

Thunderbolt 600 Manuale utente

Panasonic

Panasonic LB-DH8 series Manuale

Intel

Intel RAID High Availability Manuale utente

LaCie

LaCie 12big Thunderbolt 3 Manuale utente

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuale utente

Panasonic

Panasonic LKM-F931-1 Manuale utente

Tabernus

Tabernus Enterprise Erase E2400 Manuale utente

Rocstor

Rocstor COMMANDER 3F series Manuale utente

HP P9000 Manuale utente

Western Digital

Western Digital Ultrastar Data60 Manuale utente
