LS-2 User Manual
Specifications
Featuring a compact and stand-alone design, AREC LS-2 Media Station consists of diverse features and functionality,
including multi-signals capturing, recording synchronously, codec, streaming online, live broadcasting, and web-based
monitor page, providing complete presentation or lecture capture solution.
Product Name Media Station
Model Name LS-2
Dimension 354mm(L) x 188.2mm(W) x 46mm(H)
Weight 1420g
Power Requirement 12V/2A
Power Consumption (Max.) 24W (Max.)
Operating Temperature / Humidity 0ºC ~ 40ºC / 90%
Maximum normal load description
Insert 1 IP CAM to LAN port or insert 2 video signals (either HDMI or VGA input).
Using external USB flash to record the transcoded video/audio. And output the
transcoded video/audio to both HDMI and VGA port.
Introduction
Package Contents
Quick Installation Guide Terminal BlockPower Adapter
AREC LS-2 Media Station
5www.arec.com
LS-2 User Manual
No. Name Brief introduction
1Record function keys Control the Record, Pause, Stop function
2Power Power on/off the device
3Front USB port For external USB storage device* Firmware update through USB disk
4Power port 12V / 2A
5Video input VGA / HDMI input source for PC [ ]
6Video input VGA / HDMI input source for camera [ ]
7Video output HDMI preview output
8Video output VGA loop thru from input [ ]
9Audio input Line audio input
10 Audio output Line audio output
11 Back USB port USB interface for camera control over RS-232
12 Network port RJ-45 Ethernet connector for network connection
13 Network camera input 1 RJ-45 Ethernet connector for network camera input source
14 Network camera input 2 RJ-45 Ethernet connector for network camera input source
15 Setting port RJ-45 Ethernet connector for device conguration and control
16 RS-232 Captive screw connector for control over RS-232
17 Reset button Restoring devices to its factory default state
Product Appearance
NOTE: The LS-2 can detect and record to USB storage devices using FAT32, NTFS le systems.
1
5
2 3
4
Front
Back
6
11
1512 13 14
7
10
9
8 16 17
6www.arec.com
LS-2 User Manual
Connection
Power
AREC
Network Camera
document cam
notebook
DV
amplier RS-232
Audio output
Ethernet
Video output VGA / HDMI
Video input VGA / HDMI
Audio input
USB
RS-232
USB
Speaker
TV
projector
projector
Setting PC
network
USB keyboard USB drive
7www.arec.com
LS-2 User Manual
Front Panel Buttons and Indicators
Button Display method of indicator Product status
Record / Pause / Stop
Record button glows red
continuously. Recording in progress.
Record button flashes red rapidly. Recording is paused.
Record button flashes red slowly. Recording is being nalized.
Power
Solid red. Device is powered, yet not booted up.
Green and red light flash alternately. Device is booting up.
Solid green. Boot up completed.
Fast flashing red. Device is shutting down.
Fast flashing green. Firmware updating.
Slow flashing red. Fan is abnormal.
Storage is abnormal.
8www.arec.com
LS-2 User Manual
Overview of the Web Interface
LS-2 web interface has three user types, which are described in detail in the following chapters :
Administrator
To setup the device, log in Administrator with default username admin and password
admin, then entering System Administrator webpages. The admin account provides the
user all three type of privileges.
Video Manager
If you only need to access to the recordings, log in Video Manager with default username
video and password video.Log in with Administrator account, can switch to Administrator
page.
External Control via USB Keypad
Insert the keyboard into the Media Station's USB hole, let USB numeric keypad as function keys to control the Media Station.
Button Brief introduction Button Brief introduction
1Theme 1 Backspace All input volume mute/unmute
2Theme 2 -All input volume down
3Theme 3 +All input volume up
4Theme 4 Enter Record
5Theme 5 ESC Power off
6Theme 6 Z • z Change Background
7Theme 7 X • x Change Layout
8Theme 8 C • c Change Overlay
9Theme 9 V • v Live streaming on/off
/Pause B • b Playback last record video
*Stop A • a All output volume up
0Change Display S • s All output volume down
.Snapshot D • d All output volume mute/unmute
Getting start
Connect PC to the setting port of Media Station with standard network cable. Open up the browser, and input 192.168.11.254
in the browser page. Log in Administrator with default username admin and password admin, then entering the LS-2
system Administrator webpages.
9www.arec.com
LS-2 User Manual
Chapter 1 Administrator
The Administrator web pages provide a system administration interface of the LS-2: it can perform Media I/O, Video,
Storage,Scheduler,Account, Upload, System settings and conrm operations. The Media I/O settings make sure each input
source are properly connected, and adjust the audio volume. The Video setting pages congure the recording, streaming, and
other functions which dene the content being recorded. System are pages contain basic settings and information of this
device.Click icon can switch to Video Manager page.
1.1 Media I/O
The pages within Media I/O include the following :
Video inputs Select the signal type, video source and PTZ control method for each input.
Network device manager List out all the connected network cameras and Auto-Tracking Mount.
PTZ control port Set LS-2 back USB-to-RS-232 serial port to drive PTZ cameras.
Audio Adjust the volume and select the audio input source.
Display Set the LS-2 on screen display language, video output settings and color adjustment.
10www.arec.com
LS-2 User Manual
1.1.1 Video inputs
The LS-2 is capable to process up to four video inputs. The name of these inputs are user configurable; by default are
Content and Cam 1.

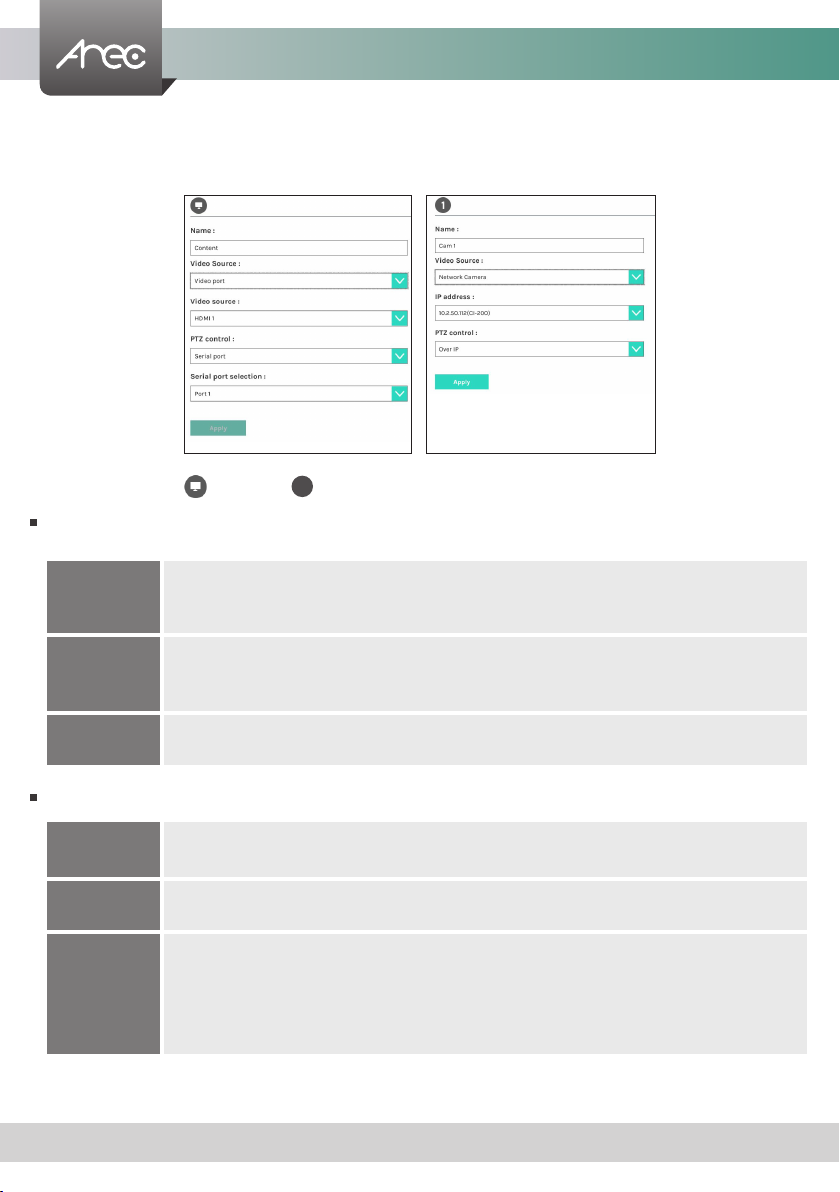

1.1.1.1 Content / Cam 1
Video Source can be choose from Network Camera, Encoder or Video port. The last option is available only for the rst
two video inputs.
PTZ control : The LS-2 is highly integrated with PTZ cameras and provides two control methods, Over IP or via Serial port.
Video port
Select Video source: The LS-2 provides VGA and HDMI input options for video port. If only one of
those is connected, the system would detect and automatically switch to source of signal. If both
options are connected, select one in between.
Network Camera
Select IP address: Select from the camera ip address drop list of those available.
Note: A login authentication with the camera might be required. See Media I/O\ Camera manager for
more details.
Encoder Select Protocol: The available options are RTP, RTSP, or RTMP. Enter the primary and secondary url/
port number.
Serial port Select this option when the appointed camera uses RS-232 PTZ control protocol. Then complete the
Serial port selection from drop list Port 1~4. See Media I/O\ PTZ control port for more details.
Over IP The option is available when the specied signal type is a network camera. Select this option if that
camera supports networking PTZ control.
Auto-Tracking
Mount
Select IP address: Select from the TP-100 ip address drop list of those available.
Select Tracking mode: off / Auto-Tracking / Auto-Tracking (pan only), the default is the Auto-
Tracking.
Note: A login authentication with the TP-100 might be required. See Media I/O\ Network device
manager for more details.
