Argos Technologies EVac™ — Operator’s Manual

Table of Contents

Contents ..........................................................................2

ImportantSafetyInformation......................................................3

OperatingConditions..............................................................3

HazardWarningsUsed.............................................................3

ProductOverview .................................................................4

FrontView.........................................................................4

RearView..........................................................................5

ProductDescription ...............................................................6

PackageContents..................................................................6

WarrantyInformation..............................................................7

RepairService .....................................................................7

GettingStarted....................................................................8

OperatingEVac™...................................................................9

Preparingwithoutlevelsensing....................................................9

PreparingVacuumBottle ..........................................................9

ConnectingVacuumBottletoInstrument ..........................................9

Connecting Vacuum Bottle to HandEvac™ Handheld Aspirator . . . . . . . . . . . . . . . . . . . . . . 9

Preparingwithlevelsensing ......................................................10

PreparingVacuumBottle .........................................................10

ConnectingVacuumBottletoInstrument .........................................10

Connecting Vacuum Bottle to HandEvac™ Handheld Aspirator . . . . . . . . . . . . . . . . . . . . . 10

Connecting the Level Detection Sensor Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

PoweringUp......................................................................11

SwitchingOn.....................................................................11

Operation........................................................................12

LevelDetection...................................................................13

CalibratingLevelDetection .......................................................13

Maintenance,CareandSafetyPrecautions.........................................14

Maintenance .....................................................................14

Care..............................................................................14

Autoclaving ......................................................................14

Troubleshooting(FAQ)............................................................15

TechnicalData....................................................................16

AccessoriesandSpareParts.......................................................17

Argos Technologies EVac™ — Operator’s Manual

Always use this product in accordance with these instructions. Where appropriate, please use

safety goggles and protective clothing.

Operating Conditions

Operating Temperature 10 - 40° C (50 - 104° F)

Relative Humidity 10 - 90% (no condensation)

Altitude 0 - 2,500M (1.55 Miles)

Important Safety Information

STOP

CAUTION

Indicates possible damage to the instrument. Comply with the instructions.

Hazard Warnings Used

DANGER

Indicates possible danger of personal injury or death. Comply with the instructions.

DANGER Biological Risk

Indicates possible biological risk. Comply with the instructions.

NOTE

Provides important notes on the correct operation of Argos Technologies EVac™

Vacuum System.

Argos Technologies EVac™ — Operator’s Manual

Product Overview

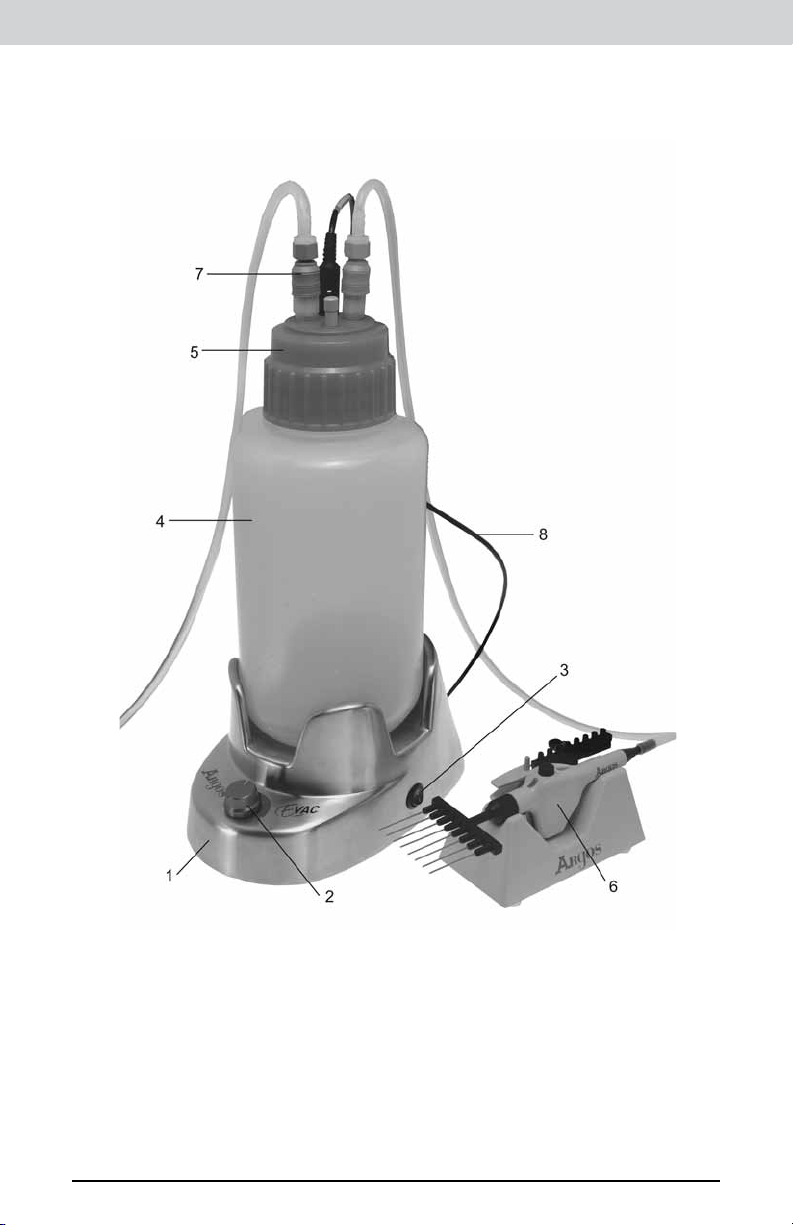

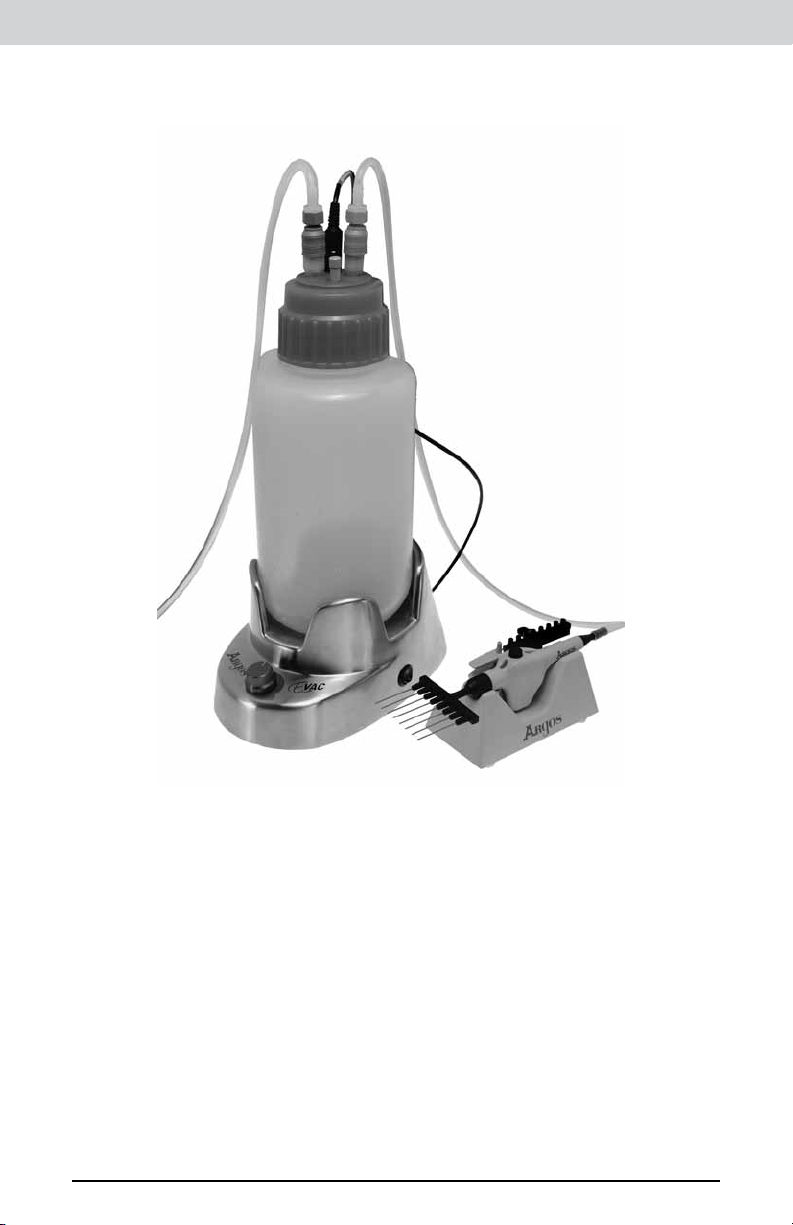

Front View

1. EVac™ Instrument.

2. Control for Setting Vacuum/Suction Power.

3. ON/OFF Switch.

4. Vacuum Bottle.

5. Bottle Lid.

6. HandEvac™ Handheld Aspirator.

7. Quick Couplings.

8. Level Detection Sensor Cable.

Argos Technologies EVac™ — Operator’s Manual

Product Overview

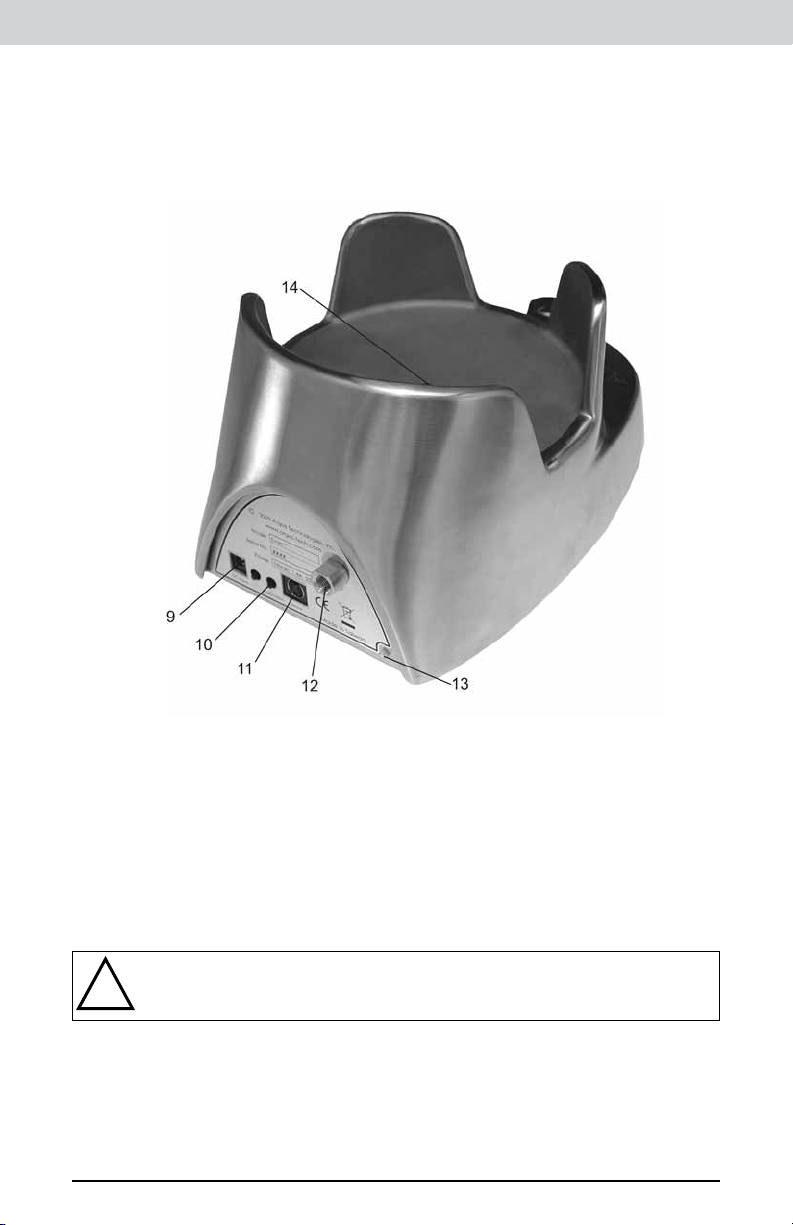

Rear View

9. Socket for Cable Mains Adapter.

10. Push-Button for Level Detection Calibration.

11. Socket for Level Detection Sensor Cable.

12. Connection for Filter Missing if Needed.

13. Air Outlet.

14. Power/Illumination LED Indicator.

NOTE

If the level detection is not in use, items 10 and 11 have no function.

Argos Technologies EVac™ — Operator’s Manual

Product Description

Thank you for your recent purchase of the Argos Technologies EVac™ Vacuum System.

•The EVac™ is a vacuum system with an integral pump and adjustable, electronic

vacuum controller for laboratory use.

•The instrument should not be used for applications other than those specified.

Package Contents

•EVac™ Vacuum System.

•Universal Power Supply with US, UK, EU and SAA adapters.

•Warranty Registration Card.

•Instruction Manual.

•Tubing Set with Filter.

•Level Detection Sensor Cable (EV300 & EV310).

•4 Liter Polypropylene Bottle or Glass Bottle

•Lid for 4 Liter Polypropylene Bottle with Quick Couplings and Level Detection

(EV310), Lid with Barbed Fittings (EV320) or Lid for Glass Bottle with Quick

Couplings and Level Detection (EV418)

•HandEvac™ Hand Operator

Argos Technologies EVac™ — Operator’s Manual

Warranty Information

The Argos Technologies EVac™ Vacuum System is warranted to be free of defects

in materials and workmanship for a period of 12 months from date of purchase,

provided that:

•The unit has not been opened or attempted to be opened by the end user

•The user ensures that it has been carefully cleaned and decontaminated

•The unit has been operated according to the instructions and not in any improper way

In order to qualify for warranty repair, customer must return warranty card supplied with

unit that includes all information required to validate proof of purchase. Should warranty

service be required, repair or replacement will be provided by Argos Technologies without

charge. Freight charges for shipping unit to Argos Technologies will be responsibility of

purchaser. There are no other warranties of application or merchantability.

Repair Service

Should the EVac™ require service or repair, please contact Argos Technologies Customer

Service. A Return Authorization Number will be issued and customer will be advised on

proper packing and method of shipment.

Customer Service:

Within US: 800-886-8675

Outside US: 847-622-0456

Please include RA Number on shipping label.

Please use the same contact numbers for Argos Technologies Technical Support.

[email protected]

Argos Technologies EVac™ — Operator’s Manual

Getting Started

Please ensure that all packaging materials have been removed before using the EVac™.

Place the EVac™ unit on a dry, level, dust-free location.

Power supply connection

•Attach the mains adapter with the primary adapter appropriate to the power outlet.

•Plug the mains adapter into a standard electrical source and connect to the EVac™.

DANGER

The supply voltage must comply with requirements listed in the “Technical Data”

section (see page 16).

Argos Technologies EVac™ — Operator’s Manual

Operating EVac™

Preparing without level sensing

Preparing Vacuum Bottle

•Fit lid with barbed tube fittings onto bottle. Ensure that lid is firmly attached.

Connecting Vacuum Bottle to Instrument

•Twist filter onto connection on EVac™. Writing on filter should point away from

device. Twist filter until resistance is felt, then twist an additional half turn to ensure

that an adequate seal is achieved.

•Connect filter with short tube to the barbed tube fitting marked “PUMP” on lid of the

vacuum bottle.

Connecting Vacuum Bottle to HandEvac™ Handheld Aspirator

•Connect long tube from HandEvac™ or other suction tool to barbed tube fitting

marked “HAND” on lid of vacuum bottle.
