HANDSET USER GUIDE

MODEL: DKP30 or DKP50

Table of Contents

KEY TELEPHONE LAYOUT.............................................................................................2

ANSWERING CALLS .........................................................................................................4

AUTOMATIC COACCESS................................................................................................ 10

BABY MONITORING..........................................................................................................4

BACKGROUND MUSIC ......................................................................................................4

CALCULATOR FUNCTION...................................................................................................4

CALL FORWARD..............................................................................................................5

CALL FOLLOW ME...........................................................................................................5

CALL TRANSFER.............................................................................................................5

CHANGING SIGNAL..........................................................................................................6

CONFERENCE CALLS.......................................................................................................6

DATE/TIME SETTING........................................................................................................7

DAY SWITCH/NIGHT SWITCH.............................................................................................6

DO NOT DISTURB............................................................................................................7

DOOR PHONE.................................................................................................................7

FIRE ALARM ...................................................................................................................7

FORCED ACCOUNT CODE(S).............................................................................................7

HOLD CALL....................................................................................................................7

INDIVIDUAL ALARM/MORNING CALL (CONSOLE ONLY)...........................................................8

INTERCOM CALL..............................................................................................................8

LOCK/UNLOCK YOUR TELEPHONE......................................................................................8

MESSAGE TEXT..............................................................................................................9

MUTE.......................................................................................................................... 10

NON ENFORCED ACCOUNT CODE(S)................................................................................ 10

OUTGOING CALL........................................................................................................... 10

PAGING ....................................................................................................................... 11

PICK UP...................................................................................................................... 11

REDIAL........................................................................................................................ 12

RELEASE CALL...............................................................................................................4

RETRIEVE NORMAL CALL FROM HOLD.............................................................................. 13

SPEED DIAL................................................................................................................. 13

STATION OPERATION HELP LIST...................................................................................... 14

VOLUME/FREQUENCY CONTROL (STATIC CONTROL)........................................................... 14

VOLUME/FREQUENCY CONTROL (DYNAMIC CONTROL)........................................................ 15

DSS BUTTON LAYOUT ................................................................................................. 16

Arista Systems Corporation

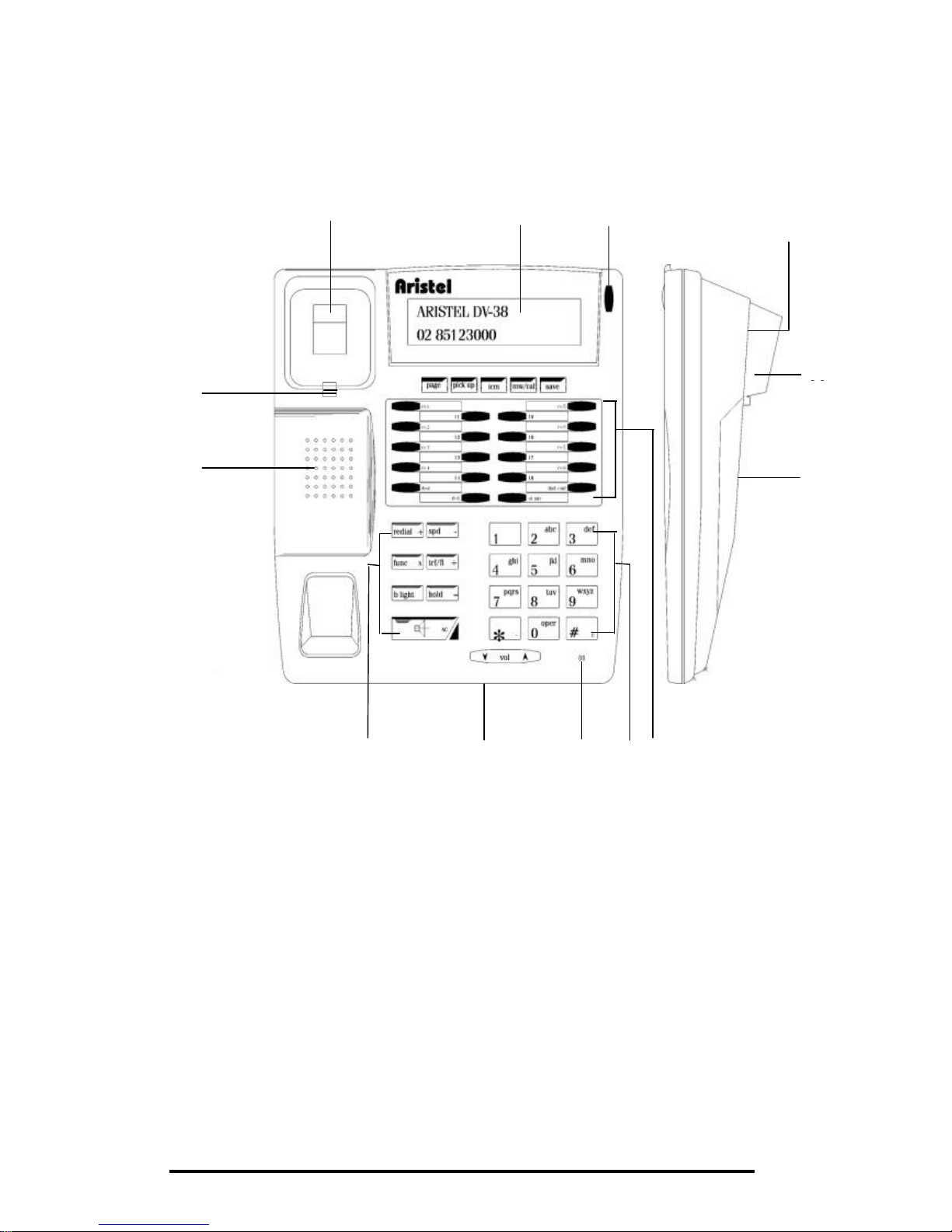

KEY TELEPHONE LAYOUT

For Model DKP50 Series

Features:

1.Hook

2.Handpiece Wall Mount Clip

3.Speaker

4.Function Keys

5.Quick Reference Card

6.Handsfree Microphone

7.Dial Keypads

8.DSS Keys

9.Handset Cord Jack

10. Table/Wall Mount Bracket

11. Line Cord Jack

12. MW lamp

13. LCD Display

45678

Arista Systems Corporation

For Model DKP30 Series

Features:

1. Hook Switch

2. Handpiece Wall Mount Clip

3. Speaker

4. Handset Cradle

5. Dial Keypad

6. Microphone

7. Function Keys

8. DSS Keys

9. LCD Display

10. Line Cord Jack

Arista Systems Corporation

Answering Calls

•Lift handset or press [SPK] button on handsfree

models.

Answering Intercom Calls•Lift handset or press [SPK] of [MIC] button on

handsfree models.

Automatic CO Access

Off Hook •Lift handset and press [9] or [0] (depending on

programming).

•Dial required telephone number.

On Hook •Press [9] or [0]; or press [SPK]+[9] or[0].

•Dial required telephone number.

CO Access through DSS •Handset on/off hook.

•Press any defined CO DSS button.

•Dial required telephone number.

Baby Monitoring

(On a handsfree Models) •Lift handset or press [SPK] (on a handsfree)..

(Room to be Listened)

•Dial [#]+[51]. (Room to Listen From)

•Ring that extension number.

To Cancel •Press [SPK] on listened phone.

Note: 1. Once the function is enabled, the

monitoring station’s microphone will be

turned on. When it is called, it will not

ring but the calling station will hear any

activity in the immediate area.

2.The monitoring station’s microphone is

activated when the function is initiated.

Background Music

To Start •Press [#].

To Cancel •Press [#] or [SPK].

Calculator Function

(DKP-50 Display Models Only)

•Press [CAL] button to start/cancel calculator

function.

Functions: [＋] (Plus) located on [REDIAL]button

[－] (Minus) located on [SPD] button

Arista Systems Corporation

[Ｘ] (Multiply) located on [FUNC] button

[ ÷] (Divide) located on [Trf/Fl] button

[﹦] (Equal) located on [HOLD] button

[．] (Decimal) located on [*] button

[Ｃ] (Clear Digit) located on[#] button

Caller ID Search

•Off hook.

•Press FN92 function key (refer to Programming

Manual Zone 500).

•Press [3] to search the caller number backwardly

or Press [6] to search the caller number

forwardly.

Call Forward

General •From own station: (Handset on Hook) Press

[CFW] button or [FUNC]+[2]+[*CF

Code]+[Destination Station

Number].

Call Forward Codes: [1] Call Forward All

[2] Call Forward Busy

[3] Call Forward No Answer

[4] Call Forward Busy No Answer

[5] Call Follow Me

[6] Call Forward External

To Cancel •From own station: Press[CFW] or

[FUNC]+[2]+[1]+[Own Station Number].

Call Follow Me •From other station: Press[CFW] button or

[FUNC]+[2]+[5]+[Own Station Number].

To Cancel •From other station: Press[CFW] or

[FUNC]+[2]+[1]+[Own Station Number].

Call Transfer

Unannounced Transfer •Lift handset.

•Press [HOLD].

•Dial transferred station number.

•Press [TRF/FL].

•Replace handset.

Announced Transfer •Lift handset.

•Press [HOLD].

Arista Systems Corporation

•Dial transferred station number.

•Wait for answer, then press [TRF/FL].

•Replace handset.

Changing Signal

Voice to Ring or Ring to Voice

•During Intercom call, press [*]to change signal.

Conference Calls

(Maximum of Three (3) Parties)

Supervised •Lift handset.

•Dial Party A.

•Place Party A on hold.

•Dial Party B.

•Press [CONF/DND].

Unsupervised •Lift handset.

•DialCOParty A.

•Place Party A on hold.

•Dial CO Party B.

•Press [CONF/DND]button twice.

•Replace handset.

Get back to the conference

Press CO DSS button

Press [CONF/DND].

Note: A supervised conference becomes

unsupervised when the supervisor leaves the

conference. The conference supervisor can

re-access an unsupervised conference by

pressing [CO DSS] + [CONF/DND]. During

unsupervised conferences, outside parties have a

3-minute limit for conversation. Pressing [#]

when the 3-limit warning tone sounds will increase

the limit by a further 3 minutes.

Day Switch/Night Switch

(Must be in Manual Mode)

Night Switching •Press [FUNC]+[TRF/FL]+[TRF/FL]+[SPK].

Day Switching •Press [FUNC]+[TRF/FL]+[TRF/FL]+[SPK].

Auto/Manual Switching (Console Only)

•Press [FUNC]+[TRF/FL]+[*] to toggle from Auto

to Manual mode.

Arista Systems Corporation

Date/Time Setting

(Console Only) •Press [FUNC]+[9]+[#].

•Enter 00 for item.

•Set Date/Time:

[MM]+[DD]+[YY]+[DW]+[hh]+[mm]or

[DD]+[MM]+[YY]+[DW]+[hh]+[mm]

(depending on EPROM Version).

•Press [SAVE]+[SPK].

[MM] Month =01 ~ 12

[DD] Day = 01 ~ 31

[YY] Year = 00 ~ 99

[DW] Day of Week = 01 ~ 07 (Monday = 01)

[hh] Hour = 00 ~ 23

[mm] Minute = 00 ~ 59

Do Not Disturb •Press [CONF/DND] to enable or disable.

Note: [CONF/DND] LED will flash when Do Not

Disturb is enabled.

Door Phone

Call Door Phone •Press [SPK]+[#]+[6]+[1] (for Door 1),

or [SPK]+[#]+[6]+[2] (for Door 2)

•Press [DOOR] button on DSS panel to talk to

Door 1.

Door Lock Release •While on door phone call, press [0] to release

door lock.

Fire Alarm

Turning Off •Press [SPK] while alarm is ringing.

•Press [#]+[5]+[2].

Forced Account Code(s)

•Press [Forced Account Code] key or

[FUNC]+[1], then on entry of account number,

system will automatically access a free CO line.

Hold Call

Normal Call Hold •Lift handset and answer call.

•Press [HOLD].

•Replace handset.

Arista Systems Corporation

Exclusive Call Hold •Lift handset and answer call.

•Press [HOLD]twice.

•Replace handset.

Individual Alarm/Morning Call

Individual Station Alarm •Press [FUNC]+[REDIAL]+[Alarmed Station

Number].

•Set Time and Duration: *[hh]+[mm]+[Duration].

•Press [SAVE].

[hh]Hour = 00 ~ 23

[mm] Minute = 00 ~ 59

[Duration] = 01 ~ 99 (99 = Morning Call)

Note: If the Duration is not 99, then the Morning

Call function will become Alarm function.

Own Station Alarm (Must be a Display Handset)

•Handset on Hook.

•Press [FUNC]+[9]. If it is the Console, press

[FUNC]+[9]+[9].

•Set Time and Duration: *[hh]+[mm]+[Duration].

•Press [SAVE]+[SPK].

Note: If the Duration is not 99, then the Morning

Call function will become Alarm function.

Intercom Call

Normal Call •Lift handset or press [SPK].

•Dial Station Number or press DSS button.

Intercom Hot Line Call •Refer to Programming ManualZone 508.

•Lift handset or press [SPK].

Call Operator •Lift handset or press [SPK].

•Press [0] or [9] (depending on programming).

Hot Line Call Operator •Refer to Programming ManualZone 505 P=4.

•Lift handset or press [SPK].

Lock/Unlock Your Telephone

Lock/Unlock

•Press [FUNC]+[3].

•Key in security number (maximum of 3 digits:

refer to System Administrator’s Manual for

details).

Arista Systems Corporation

•Press [SAVE].

Temporary Unlock •Press [FUNC]+[4].

•Key in security number (maximum of 3 digits: this

will provide CO access for one (1) call).

Macro Key Assignment

•Handset on hook.

•Press [FUNC]+[7].

•Press one DSS key from DSS16 ~ DSS25.

This key must be a key that has not already

been programmed as a Function Key in

Programming Zone 500.

•Press keys in sequence.

•Press [SAVE].

To CancelMacro Key •Handset on hook.

•Press [FUNC]+[7].

•Press one DSS key from DSS16 ~ DSS25 that

has already been programmed as a Macro Key.

•Press [REDIAL].

Message Lamp On •Call an internal station which is engaged or does

not answer.

•Press DSS key assigned for[MW] button

programmed in Zone 500.

Answering Message •If the called station is busy, the Message Waiting

lamp On Indicator will flash. After this station is free it

will recall to the station which leaves the

message. Once the leaving message station

answers the recall, these 2 stations can talk to

each other.

•If the called station does not answer, the

Message Waiting indicator will flash. Once the

called station presses the [MW] key and recall to

the station which leaves the message, these 2

stations can talk to each other.

Message Text

Enable •Press [FUNC]+[HOLD].

•Select Message Code *[0 ~ 6].

•Press [SAVE](messages will be displayed on

caller’s display phone).

Message Codes

(depending on EPROM Version):

Arista Systems Corporation

TYPEA: TYPE B:

0 In A Meeting 0 Reserved

1 Do Not Disturb 1 Do Not Disturb

2 At Lunch 2 BackAt

3 Will Be Back 3 Not in Office

4 Call 4 Return On

5 Vacation 5 Ring My Mobile

6 Business Trip 6 Call

Disable •Press [FUNC]+[HOLD]+[SPK].

Monitor Refer to Programming Manual Zone 504-ST-02.

•Lift handset and dial number.

•If the station or CO line is busy, press [#].

•During monitoring, the monitoring party can hear

the existing conversation from the two monitored

parties, but the monitored parties cannot hear

the monitoring party.

Mute •Lift handset.

•Press [SPK]to enable/disable Mute function.

Note: Enable Disconnects microphone

Disable Restores microphone if using

Handsfree, use [AT/MIC] button to

mute line.

Outgoing Call

Individual CO Access •Lift handset or press [SPK]+[CO]

•Dial required telephone number

•Lift handset or press [SPK].

•Press [#]+[*LR Code].

* Line Representative Codes:

DV-38...................401 ~ 412

DV-96...................401 ~ 416

•Dial required telephone number.

Hot Line Call •Refer to Programming ManualZone 508.

•Press [#]+[5]+[0] to start/cancel this function.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Aristel Cornetta

Aristel

Aristel DKP61B Manuale utente

Manuali Cornetta popolari di altre marche

Swissvoice

Swissvoice ePure HD Manuale utente

Philips

Philips TD6736/BH051P Manuale utente

ASCOM

ASCOM I62 - Manuale utente

LG-Ericsson

LG-Ericsson LIP-9010 Manuale utente

GE 1583 Manuale utente

iiNet

iiNet Handset Manuale utente

ASCOM

ASCOM 9p23 Manuale utente

AT&T

AT&T DLP70110 Manuale utente

AirCell

AirCell ST 3100 Manuale utente

Eaton

Eaton HHIR-LCD-PROG Istruzioni per il montaggio

Mitel

Mitel 112 Manuale utente

SBC

SBC SBC-381H Manuale utente

Mitel

Mitel 5602 Manuale utente

ASCOM

ASCOM d81 Messenger Istruzioni per l'installazione

SpectraLink

SpectraLink 7522 Manuale utente

Avaya

Avaya L100 Series Come usare

ooma

ooma HD2 Handset Manuale utente

Yealink

Yealink IPW56 Manuale utente
