Asante IntraCore 65120 Series Manuale utente

IntraCore™65120 Series

Gigabit Ethernet Switches

Getting Started Guide

2Getting Started Guide

Quick Start Guide

Follow these steps to install the IntraCore 65120 switch:

1. Open the box and check the contents. SeeChapter 1.1Package

Contents for a complete list of the items included with your IntraCore

switch.

2. Install the IntraCore 65120 switch in an equipment or wall rack,

or prepare it for desktop placement.

3. Connect the power supply.

4. Connect network devices to the IntraCore 65120.

5. Refer to the User’s Manual on the accompanying CD-ROM for

configuration and management capabilities.

For more information on installing the IntraCore 65120, please refer

to Chapter 2.6 Installation Overview.

AsantéIntraCore 65120

Table of Contents

Quick Start Guide 2

1. Introduction 7

1.1 Package Contents 7

1.2 LEDs 8

1.3 Front Panel Description 9

2. Installation and Setup 11

2.1 Safety Overview 11

2.2 Recommended Installation Tools 12

2.3 Power Requirements 12

2.4 Environmental Requirements 12

2.5 Cooling and Airflow 13

2.6 Installation Overview 13

2.7 Chassis Installation and Placement 13

2.8 Installing GBIC Interfaces 15

2.9 Connecting Power 16

2.10 Connecting to the Network 17

Appendix A: Troubleshooting and Online Registration 21

Appendix B: Safety and Regulatory Compliance 23

Appendix C: Specifications and Defaults 25

4Getting Started Guide

AsantéIntraCore 65120

1Introduction

The IntraCore 65120

Thank you for purchasing the AsantéIntraCore 65120 Gigabit

switch. The IntraCore 65120 delivers powerful management, user

mobility, security, high-availability and multimedia support. The

65120-2G model supports 10 copper Gigabit Ethernet ports and 2

GBIC interface. Each copper port is capable of automatically sens-

ing and working with 10, 100, and 1000 Mbps. The 65120-12G

model supports 12 GBIC ports. Multiple LED indicators display the

status of each port.

The system can operate as

a stand-alone network or be

used in combination with

other IntraCore series

switches in the backbone.

1.1 Package Contents

The following items are included in your package:

•IntraCore 65120 Series Gigabit Ethernet switch

•Self-adhesive rubber pads for desktop installation

•Rack mount kit for rack installation

•Getting Started Guide (this document)

•AC power cord

•IntraCore 65120 CD-ROM

6Getting Started Guide

1.2 LEDs

After the power is turned on, the power LED will cycle through from

amber, to off (for system initialization), to amber again (for system

boot up), to finally green (power is up and system is ready).

After the system boots up, use the followingLEDs to monitor the

status of your switch:

Port LED Color ON OFF

N/A Power/

System Green

Amber

Red

Power is up

Booting

Failure

Power is off

or system is

initializing

10/100/

1000 1G Link Green A valid 1000

Mbps link has

been estab-

lished

No 1000

Mbps link

has been

established

10/100/

1000 10/100

Link Green A valid 10/100

link has been

established

No 10/100

Mbps link

has been

established

10/100/

1000 Activity Blinking Green

SolidGreen

Trafficdetected

No traffic

10/100/

1000 FDXHDX SolidGreen

Blinking Green

Full Duplex

Collisions oc-

curring in half-

duplex

No Full Du-

plex link has

been estab-

lished, or no

collisions

are occur-

ring in half-

duplex

GBIC Link Green A valid link has

been estab-

lished

No GBIC

link has

been estab-

lished

Table 1-1 LEDs

AsantéIntraCore 65120

1.3 Front Panel Description

The 65120-2G (Figure 1-1) has ten 10/100/1000 copper ports, 2

GBIC ports and a console port.

The 65120-12G (Figure 1-2) has 12 GBIC ports and one console

port.

Note: The GBICs are installed normally in the top row; they are in-

stalled upside-down in the bottom row.

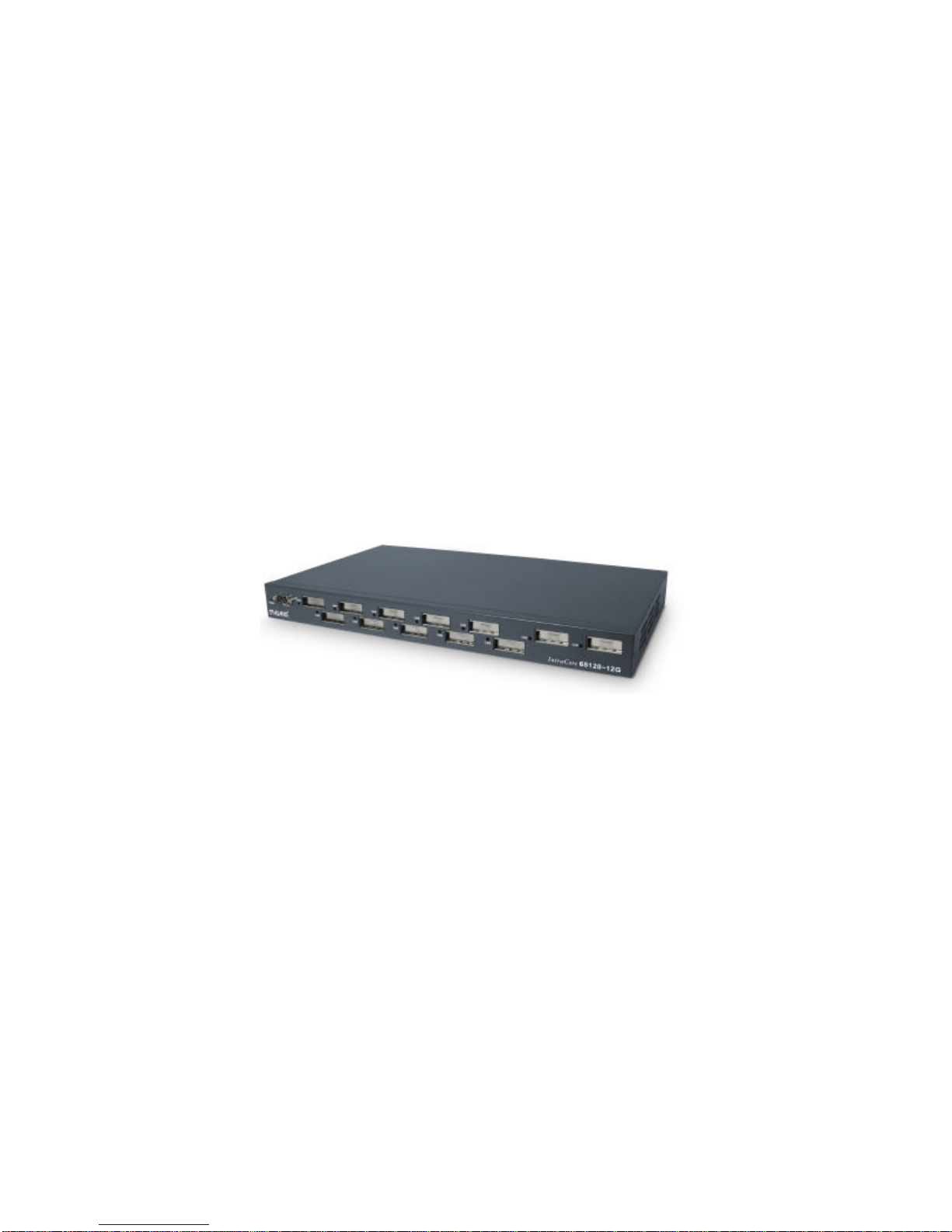

Figure 1-1 65120-2G

Figure 1-2 65120-12G

8Getting Started Guide

AsantéIntraCore 65120

2Installation and Setup

This chapter explains how to install and connect the IntraCore

65120 to your network. To configure the switch for manage-

ment, refer to the user’s manual on the IC 65120 CD-ROM.

The following guidelines will help you prepare to install the

switch in such a way that it has the proper power supply and

environment.

2.1 Safety Overview

The following information provides safety guidelines to ensure your

safety and to protect the switch from damage.

Note: Be aware, however, that this information is intended as a

guideline, and may not include every possible hazard to which you

may be exposed. Use caution when installing this switch.

•Only trained and qualified personnel should be allowed to in-

stall or replace this equipment.

•Always use caution when lifting heavy equipment

•Keep the chassis clean

•Keep tools and chassis components off the floor and away from

foot traffic

•Avoid wearing rings or chains (or other jewelry) that could get

caught in the chassis. Metal objects can heat up and cause

serious injury to persons and damage to the equipment. Avoid

wearing loose clothing, I.e. ties or sleeves

When working with electricity, follow these guidelines:

•Before accessing the interior of the chassis, locate

the emergency power-off switch for the room you are in

•Disconnect all external cables before installing or removing a

chassis

•Do not work alone when working with electricity

•Always check that the power has been disconnected from the

circuit

10 Getting Started Guide

•Do not tamper with the equipment

•Examine your work area for potential hazards (I.e. wet floors,

ungrounded cables, etc.)

For more safety information, please refer to the User’s Manual.

2.2 Recommended Installation Tools

You will need the following tools and equipment (not included) to

install the IntraCore 65120 switch:

•Number 1, number 2 and 3/16-inch flat-

bladescrewdrivers

•Antistatic mat or foam

•An ESD grounding strap

2.3 Power Requirements

The electrical outlet should be located near the IntraCore 65120

and be easily accessible. It must also be properly grounded.

Make sure the power source adheres to the following guidelines:

•Power: Auto Switching 110/240 VAC

•Frequency range: 50/60 Hz

•Maximum input AC Current: 1.0A at 115 VAC full load

2.4 Environmental Requirements

The IntraCore 65120 must be installed in a clean, dry, dust-

free area with adequate air circulation to maintain the following

environmental limits:

•Operating Temperature: 0° to 40° C (32° to 104° F)

•Storage Temperature: -20° to 70° C (-4° to 158° F)

•Relative Humidity: 10% to 90% non-condensing

•Storage Relative Humidity: 10% to 95% non-condensing
