It is always recommended to anchor the unit to the ground. Drill through
the four holes in each of the base of the unit using 6mm dia masonry drill
to a depth of 70mm. Screw in the anchor fixings. (These have a self
cutting thread). If not anchoring the unit, fit the self seal plugs BEFORE
BUILDING to seal the fixing holes from underneath. Please note
product must be bolted down to comply with LPS1175.
TOOLS REQUIRED
Power driver POSI-DRIV screwdriver, 6mm dia. masonry drill and a
10mm socket or spanner.
CENTURION PLUS 1
BASE INSTRUCTIONS
Flat and firm base. Recommended: concrete, tarmac or paving flags.
Min. distance from walls/ shrubbery: 1000mm.
Min. base size (WxDxH) 3790mm x 1730mm x 50mm.
LEVELING THE UNIT
Correctly level the constructed unit using the shims (ZCOMPPLAS)
provided prior to fixing the unit to the ground. Slide the packing pieces
under the corners of the unit base as required until an equal gap has
been achieved around the door allowing for its smooth operation and
alignment.
Warning: some panels may weigh over
20Kg. Beware of manual handling
10mm
Spanner
18V
For maintenance instructions of this product visit www.asgardsss.co.uk
x2
SEALANT

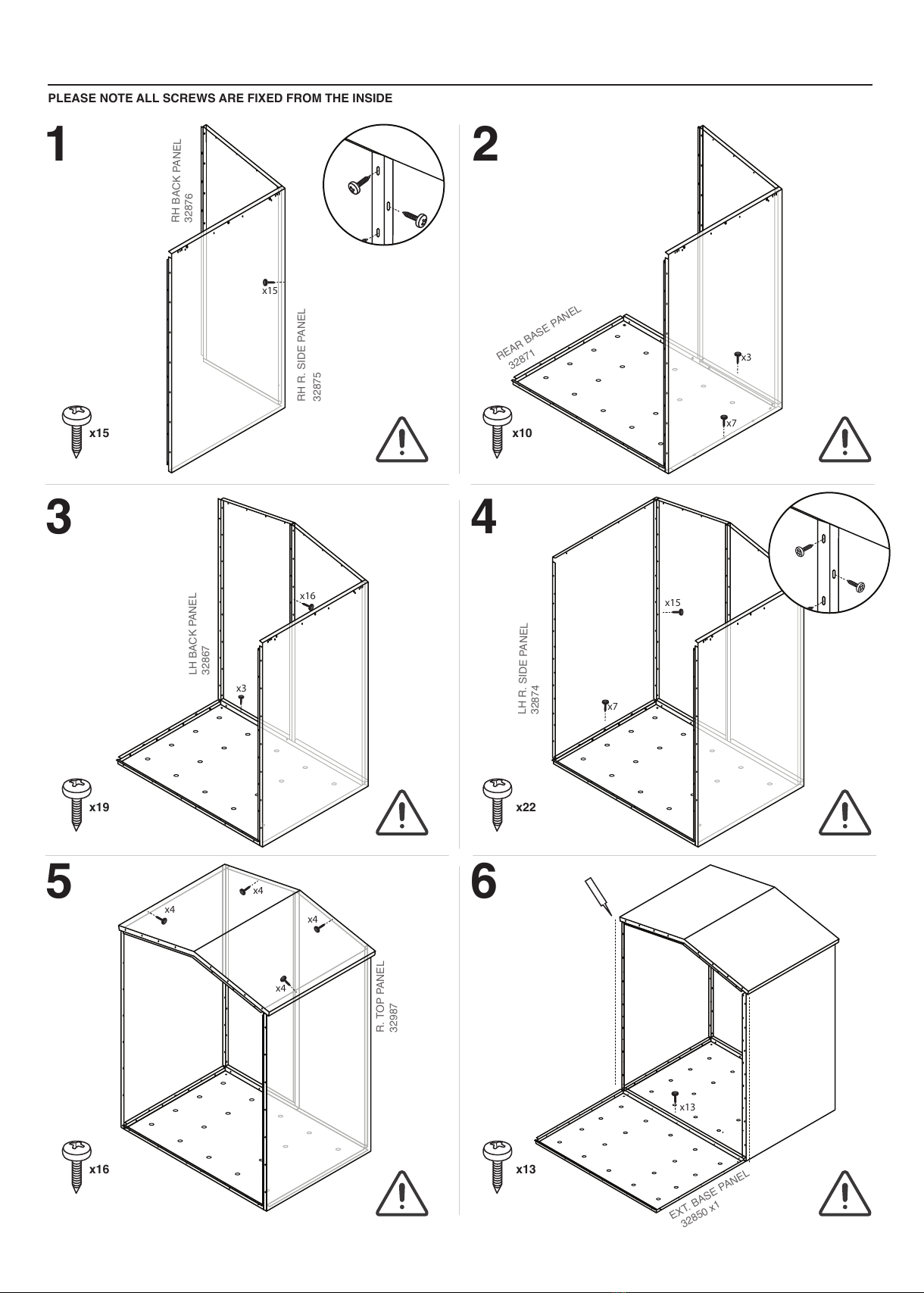

LH R. SIDE PANEL
32874 x1
LH EXT. SIDE PNL
32853 x1
F. BASE PNL
32940 x1
R. BASE PNL
32871 x1
EXT BASE PNL
32850 x1
LH DOOR
32943 x1
RH DOOR
32944 x1
FRONT FASCIA
32948 x1
ZSCREW32 x12
ZSILCO1 x2
ZSCREW04 x4
ZSCREW100 x282
ZSCREW340 x24
32670 x20
ZCOMPPLZS02 x12
ZCOMPPLAS22-23-24 x18
6x 2mm, 6x 3mm, 6x 5mm
BASE COVER CHANNEL 37364 x2
SIDE COVER CHANNEL 32916 x4
ROOF COVER CHANNEL
32918 x4
RH F. SIDE PNL
32942 x1
RH EXT. SIDE PNL
32854 x1
LH BACK PANEL
32867 x1
RH BACK PANEL
32876 x1
TOP SHROUD
32945 x2
EXT. TOP SHROUD
32996 x1
RH R. SIDE PNL
32875 x1
F. TOP PANEL
32986 x1
R. TOP PANEL
32987 x1
ROOF JOINT
STRIP 40446 x4
EXT. TOP PANEL
32927 x1
LH F. SIDE PANEL
32941 x1
Warning: Please keep
this key card safe! Refer
to if replacement key is
required.
00001
YOUR UNIQUE
KEY CODE
6mm
Dia.
Posi-Driv
Screwdriver
