Asgard COMPACT Manuale utente

It is always recommended to anchor the unit in to the ground. Drill

through the four holes in the base of the unit using 6mm dia masonry drill

to a depth of 70mm. Screw in the anchor fixings. (These have a self

cutting thread). If not anchoring the unit, fit the self seal plugs BEFORE

BUILDING to block the fixing holes from underneath. Please note

product must be bolted down to comply with LPS1175.

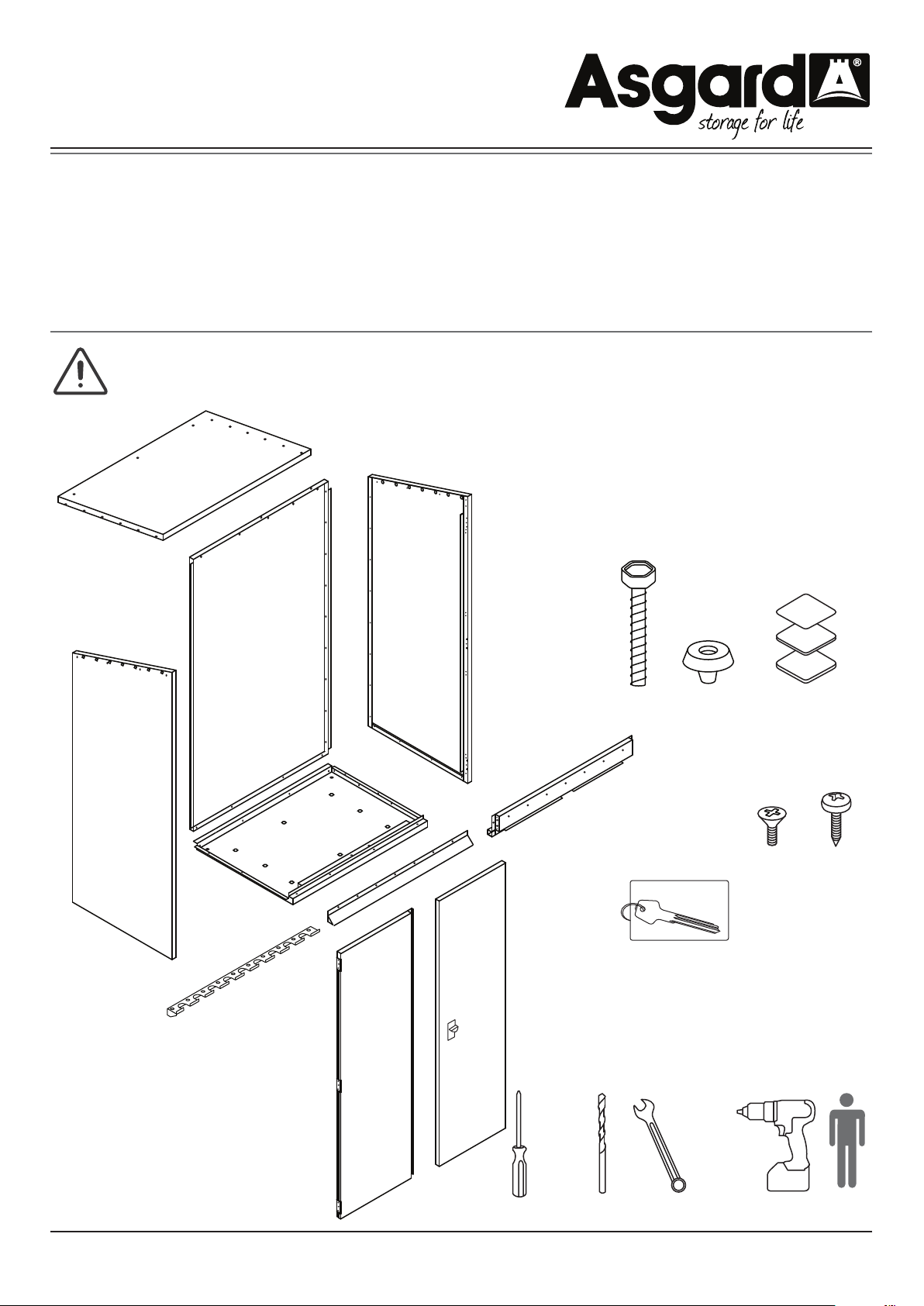

TOOLS REQUIRED

Power driver POSI-DRIV screwdriver, 6mm dia. masonry drill and a

13mm socket or spanner.

COMPACT

ZSCREW32 x4

ZSCREW100 x64

ZSCREW340 x18

6mm

Dia.

13mm

Spanner

18V

ZCOMPPLZS02 x4

ZCOMPPLAS22-23-24 x6

2x 2mm, 2x 3mm, 2x 5mm

LH SIDE PNAEL 31986 x1

LH DOOR 32253 x1

RH DOOR 32254 x1

BACK PANEL 31974 x1

FASCIA 32082 x1

RAIN GUARD 32030 x1

TOOL RAIL 32171 x1

BASE PANEL

32086 x1

TOP PANEL

31973 x1

RH SIDE PANEL 31987 x1

BASE INSTRUCTIONS

Flat and firm base. Recommended: concrete, tarmac or paving flags.

Min. distance from walls/ shrubbery: 1000mm.

Min. base size (WxDxH) 1280mm x 960mm x 50mm.

LEVELING THE UNIT

Correctly level the constructed unit using the shims (ZCOMPPLAS)

provided prior to fixing the unit to the ground. Slide the packing pieces

under the corners of the unit base as required until an equal gap has

been achieved around the door allowing for its smooth operation and

alignment.

For maintenance instructions of this product visit www.asgardsss.co.uk

Warning: some panels may weigh over

20Kg. Beware of manual handling

Warning: Please keep

this key card safe! Refer

to if replacement key is

required.

Posi-Driv

Screwdriver

00001

YOUR UNIQUE

KEY CODE

5 6

PLEASE NOTE ALL SCREWS ARE FIXED FROM THE INSIDE

x16 x6

x15 x7

x11

RH SIDE PANEL 31987

BACK PANEL 31974

BASE PANEL

32086

LH SIDE PNAEL 31986

TOP PANEL 31973

FASCIA 32082

DO NOT TIGHTEN

SCREWS AT THIS

STAGE

RAIN GUARD 32030

x6 x4

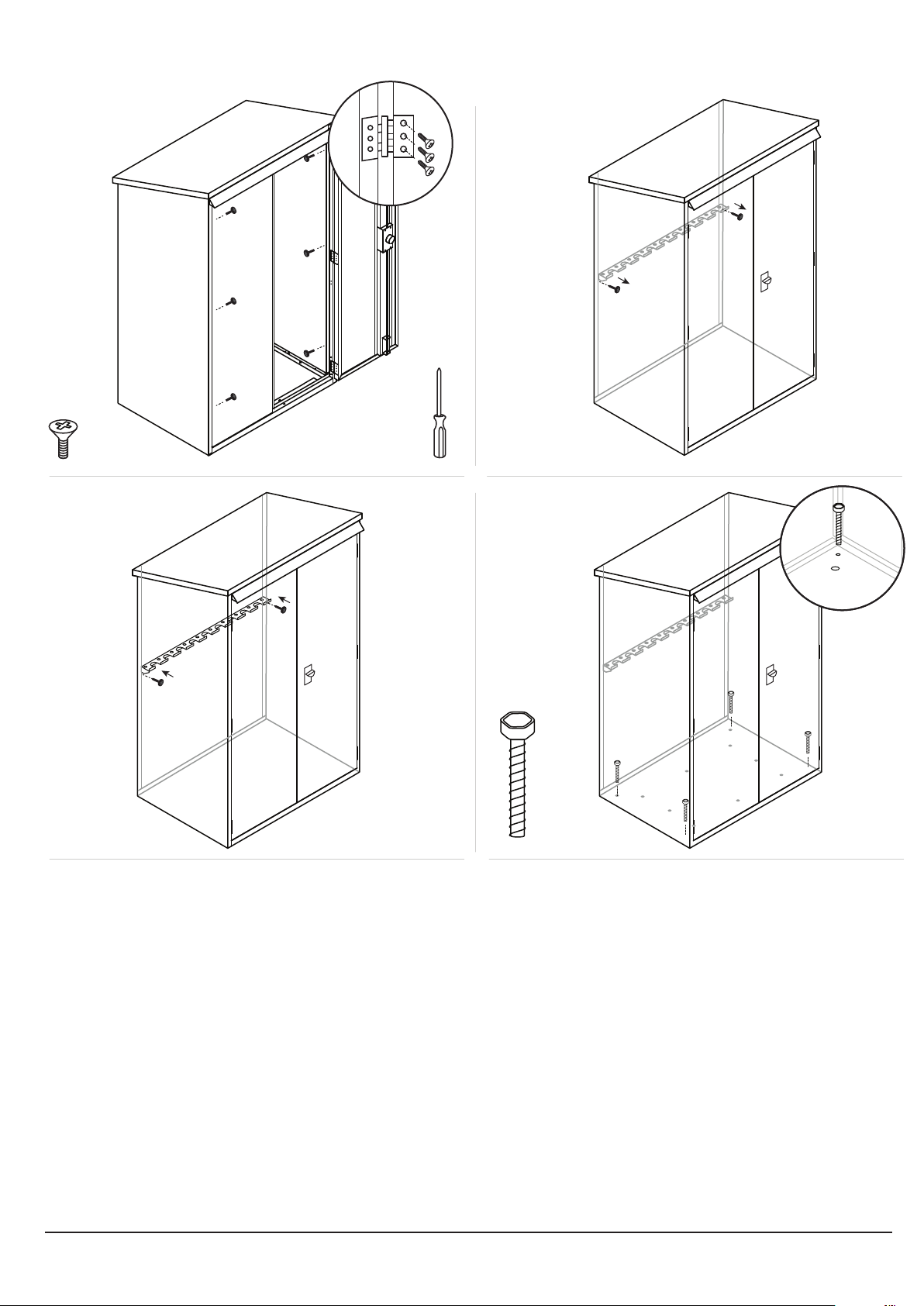

7 8

910

x18

LH DOOR 32253

RH DOOR 32254

TOOL RAIL 32171

www.asgardsss.co.uk

32234/11.12.15/KW/REV1
