ASROCK MARVELL SATA3 RAID Manuale utente

ASRASR

ASRASR

ASRock SAock SA

ock SAock SA

ock SATT

TT

TA3 Card Quick GuideA3 Card Quick Guide

A3 Card Quick GuideA3 Card Quick Guide

A3 Card Quick Guide

I. IntroductionI. Introduction

I. IntroductionI. Introduction

I. Introduction

ASRock SATA3 Card is composed of three SATAIII connectors which allow up to

6.0 Gb/s data transfer rate. The red eSATAIII connector (eSATAIII_1) supports

external storage devices, and the yellow SATAIII connectors (SATAIII_1_2)

support internal storage devices. With ASRock SATA3 Card, you can enjoy the

convenience of higher speed data transfer rate on ASRock motherboard.

1

II. InstallationII. Installation

II. InstallationII. Installation

II. Installation

Before you install ASRock SATA3 Card on your motherboard, please refer to

below steps carefully.

Step 1. InsertASRock SATA3 Card into PCIE slot on your motherboard.

eSATAIII connector

(eSATAIII_1, red)

SATAIII connectors

(SATAIII_1_2, yellow)

1: top

2: bottom

LED header

(LED_HEADER, black)

2

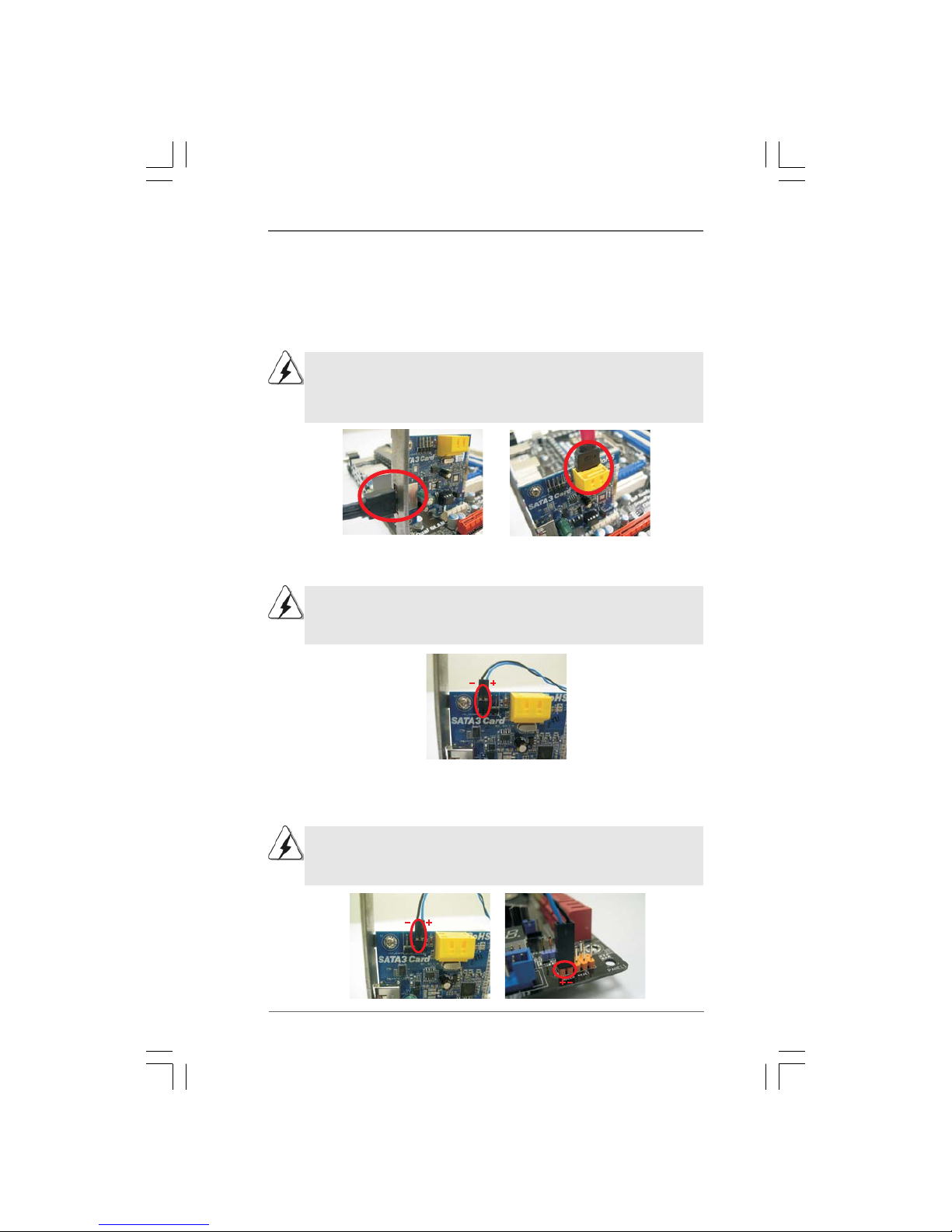

Step 3. Connect the chassis HDD LED lead to ASRock SATA3 Card LED header

(HDLED-_CHAandHDLED+_CHA).

For the bundled motherboard LED lead, the blue lead is “+” electrode, and the black

lead is “-” electrode. Make sure you connect the correct lead to ASRock SATA3 Card

and system panel header.

Step 4. Connect the bundled motherboard LED lead toASRock SATA3 Card LED

header (LED-_MB and LED+_MB) and the system panel header (HDLED-

and HDLED+) on your motherboard.

Before connecting, please consult the chassis manual for the electrode of the HDD

LED lead. Make sure you connect the HDD LED lead to the corresponding electrode

pin of LED header.

1. If you use single SATAIII HDD, it is recommended to connect it to SATAIII_1 (top)

connector.

2. The red eSATAIII connector (eSATAIII_1) and SATAIII_2 (bottom) connector cannot

work simultaneously. You can only use either one of them.

Step 2. If you want to use external storage function, please connect the eSATA

cable to the red eSATAIII connector (eSATAIII_1) and the external storage

device. If you want to use internal storage function, please connect the

SATA data cables to the yellow SATAIII connectors (SATAIII_1_2) and the

HDDs.

or
