Assa Abloy PADDE Series Manuale utente

Hole ‘B’ for

timber frame

Hole ‘A’ for

metal frame

Part No. ES3100/ES310 - 121 - 0515

Solenoid

Plunger

Solenoid Leads

Strike Body

Locking Pins

(Long - Short - Short)

Pin Chamber

Fig.1 (Fail Secure)

Locking Pins

(Short - Short - Long)

Solenoid

Plunger

Solenoid Leads

Strike Body

Pin Chamber

Fig.2 (Fail Safe)

To change the electric strike’s mode of lock operation, remove the back

cover and the two screws securing the solenoid.

Remove solenoid from strike housing, and invert the strike. This will release

three locking pins from the strike and keeper chambers.

Re-insert the pins as shown in the diagrams for desired mode of lock

operation (Fail Secure/PTO: See Fig 1; (Fail Safe/PTL: See Fig 2).

Place solenoid back in strike housing, and secure with solenoid screws.

Press strike back cover into position.

CAUTION! When removing solenoid, please be mindful to keep the

plunger in the solenoid as it is not secured, and may be easily misplaced.

• Peel backing off adhesive template and centrally locate in the

marked position, lining up both the mark for the door latch front

face (Line 1) and the centre mark of the latch (Line 2).

• For the metal door drill two Ø5mm holes (A) 22mm above and

below the “X” mark on the template, f or a timber door drill

two Ø3mm holes (B).

• Ensure secondary bolt is not within the strike cavity.

• Using the template as a guide, mortice out the door frame to the

required size.

• Countersink holes in metal frame to accept screws.

• For wider framed doors, an Extension Lip may be required.

Mark centre of Door

latch on frame

(Line 2).

Door Latch

Door

Frame

• To enable the Electric strike to be located in the door frame, first

mark the position of the Door Latch front face on the door frame

with the door in the closed position, (”X”mm).

• Mark where centre of latch meets door frame:

- For new installations, mark frame where front of latch touches

the door frame at the midpoint of the latch bolt.

- For retrofit installations, remove existing strike plate and ensure

the latch fits into and is centred in existing hole.

ES3100 ES310 SERIES ELECTRIC STRIKE

INSTALLATION INSTRUCTIONS

Mark centre of Door

latch on frame

(Line 2).

POSITIONING OF STRIKEMARKING OF STRIKE POSITION

MORTICING REBATE CHANGING MODE OF LOCK OPERATION

CAUTION! Incorrect supply voltage may cause damage not covered by warranty.

Please check supply voltage with a suitable meter to ensure it is within 10-13.8V DC.

Current required is 250mA @ 12V DC

DO NOT OIL OR LUBRICATE.

(10-13.8V DC)

250mA

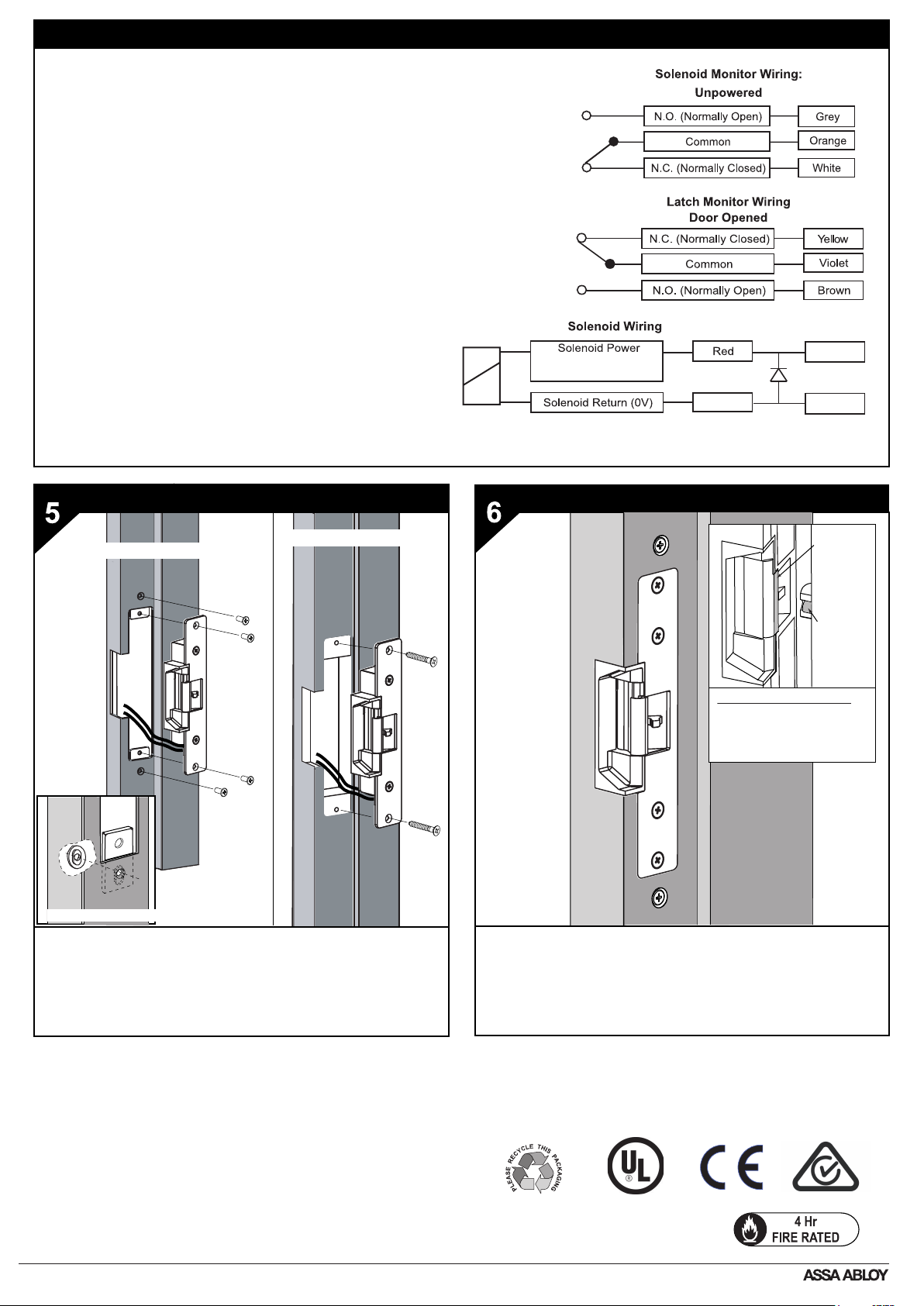

Fig. 3 - Electrical Schematic

Red

Power (+)

Ground (-)

The installation of a Latch guard is recommended on outward opening

external doors.

An ASSA ABLOY Group brand

• For metal door frames, fit door mounting brackets.

• Once door frame preparation is complete, temporarily fit strike into

door frame to check for interference. Check that the door closes

smoothly and that the latch extends fully past the strike keeper.

• When strike operates correctly with latch, remove strike from

mortice and connect wiring.

Door mounting bracket

• Refit strike and secure, making sure no wires are being crushed.

• Check both mechanical and electronic operation works correctly.

TUBULAR LATCH OPERATION

To ensure deadlatching, ensure

that the deadlatching pin is

depresed by the edge of the

keeper when the door is closed.

Keeper

edge

Deadlatching

ASSEMBLING STRIKE

ELECTRICAL SPECIFICATION

CHECKING FUNCTION

Metal Door Frame

Timber Door Frame
