Assa Abloy Aperio KS100 Manuale utente

Page 1 of 12

For more information visit website www.assaabloy.com/aperio P/N: 3080006.025_1

Product Specifications

Wireless Frequency: 2.4GHz, IEEE 802.15.4, using AES 128-bit encryption

Lock Battery Type: AA Lithium, 1.5 Volts (V)

Battery Life: 50,000 cycles*

Holding Force: 181 kg (400 lbs)

FCC Part 15 Compliant, Industry Canada Compliant

Operating Temperature: 0 to 50 °C (32 to 122 F)

HID® multiCLASS SE® technology Credentials Supported: High Frequency (13.56 MHz) –HID iCLASS,

HID iClass SE (SIO-enabled), HID iCLASS Seos, HID MIFARE SE, HID DESfire EV1 SE, MIFARE CLASSIC DESfire

EV1. Low Frequency (125KHz) –HID Prox, AWID, EM4102, ioProx. NFC on Android Mobile Phones.

AA Lithium Batteries required.

Use of other types of

batteries, such as alkaline, is

not supported and can result

malfunctions

*All battery life claims are approximate and based on a set

configuration profile. Battery performance is based on pre-

defined system settings such as battery chemistry and battery

model used, credential presentation settings (LED/buzzer), UHF

polling period, UHF status intervals, and operations per

day. Actual battery performance will vary and depends on the

factors above.

AperioKS100

Wireless Cabinet Lock

Installation and Operating Instructions

xx May 2020

Page 2 of 12

For more information visit website www.assaabloy.com/aperio P/N: 3080006.025_1

Recommended tools

Cutting Wheel

Phillips #2 Screwdriver

Hardware Specifications

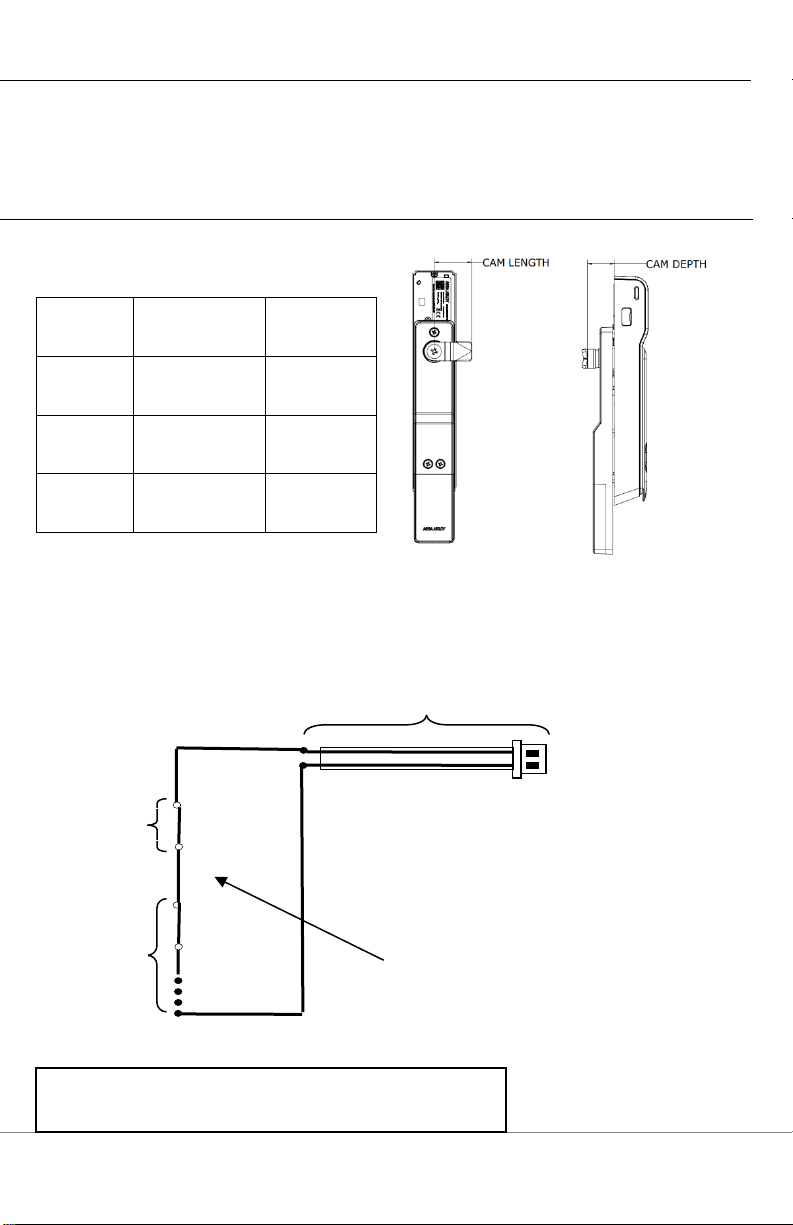

Table 1 –Cam

DPS (Door Position Sensor) Cable Extension

Optional –The DPS signal is closed when the handle is resting in its locked position. The DPS circuit can

be extended to include normally closed DPS switches arranged in a series to monitor additional doors

and panels

CAM

CAM LENGTH

CAM DEPTH

38mm - 4

(Standard)

38mm [1-1/2"]

26mm [1”]

38mm - 5

(Optional)

38mm [1-1/2”]

28mm

[1-1/10"]

45 mm - 1

(Optional)

45mm

[1-3/4”]

18mm

[7/10”]

DPS Extension Cable (Provided)

DPS

Switches:

As Needed

Optional

Switch #1

Extending the DPS Circuit:

A: Remove the DPS jumper

B: Connect the included DPS extension

cable

C: Connect additional normally closed

DPS switches as shown to monitor

additional panels.

Note: Normally closed DPS switch –closed when doors are closed

(Form A or SPST-NO), voltage free switch only

Page 3 of 12

For more information visit website www.assaabloy.com/aperio P/N: 3080006.025_1

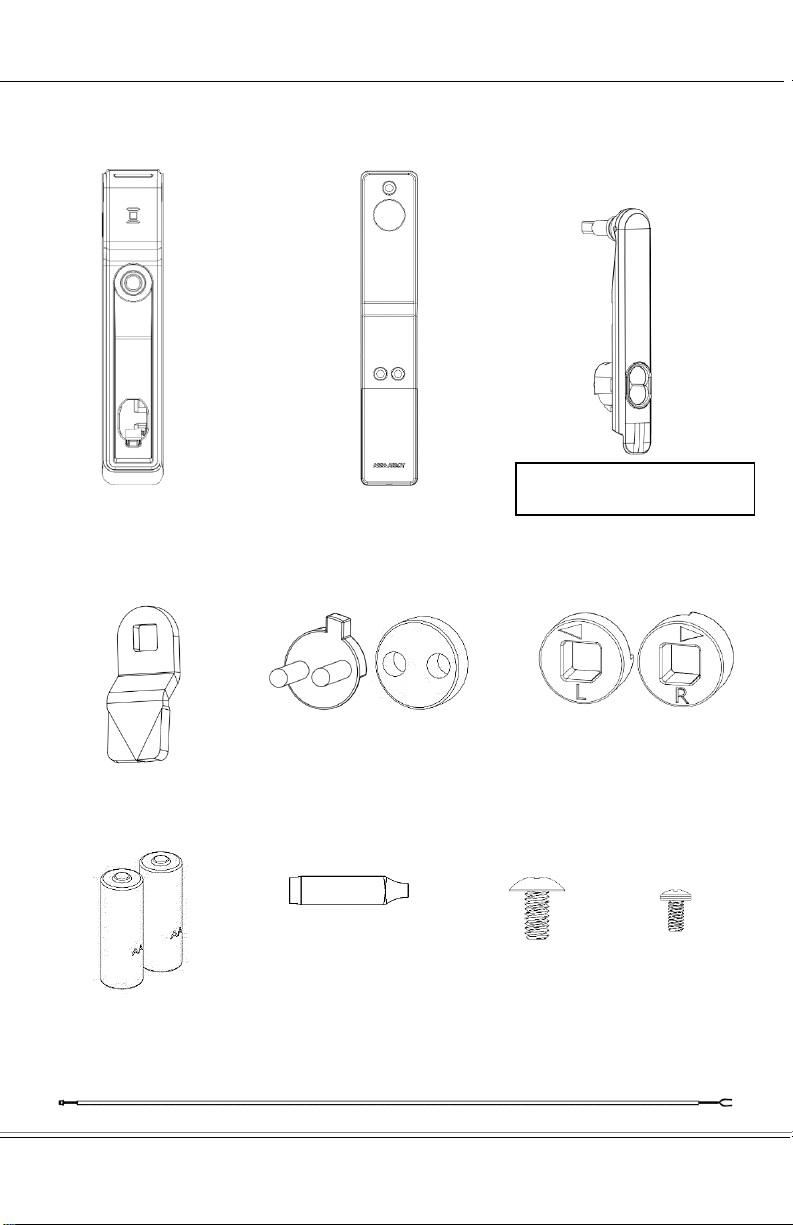

Package Contents

Installing the Lock

Lock Body

Battery Bracket

Handle Assembly

with SFIC blank

plastic core

Handing Selectors

SFIC Cam and

Spacer

Cam

38mm - 4

2x AA Lithium

Batteries

Screw A

#1/4-20 x .50

Truss Head

Phillips

3x Screw B

8/32 x 5/16”

Pan Head

Phillips

Optional External DPS Cable

Harness

3x Dolphin

Connector

Note: SFIC mechanical key

override sold separately

Page 4 of 12

For more information visit website www.assaabloy.com/aperio P/N: 3080006.025_1

1. Locate the 150mm x 25mm lock cutout on the door. Connect battery cable

and optional DPS cable to lock body. Secure battery bracket to lockbody using 3x

screw B.

2. Ensure lock body is flush against the

mounting surface to depress tamper

switch.

3. Select appropriate handing selector.

4. Install handle, handing selector, and cam. Secure with screw A.

Tamper

Switch

Make sure that

it is pressed

correctly

when unit is

installed.

Failing to do

so could result

inoperational

unit locked on

the door.

Door Edge

Note: ensure that the arrow on the

handing selector is pointing

towards the edge of the door.

DPS Cable

(optional)

Page 5 of 12

For more information visit website www.assaabloy.com/aperio P/N: 3080006.025_1

Installing the SFIC Core (Optional)

1. Insert SFIC core and cam into handle. Use spacer for 6 pin SFIC core.

Note: SFIC blank plastic core (SFIC-BC)

sold separately. SFIC Blank is required if

no cylinder Is used.

Page 6 of 12

For more information visit website www.assaabloy.com/aperio P/N: 3080006.025_1

Installing the Batteries

1. Loosen screw on battery cover, slide cover down, and install batteries in the

appropriate orientation.

Micro USB Port

For emergency power & local (hard wired)

firmware updates, use micro USB port located on

the side of the KS100 reader.

Page 7 of 12

For more information visit website www.assaabloy.com/aperio P/N: 3080006.025_1

Optional Accessories

Part Number

Description

KS100-SFIC

MEDECO X4 7-pin SFIC cylinder & 2 keys

(1 Control,1 User)

KS100-SFIC-BC

KS SFIC blank, black plastic core

KS100-KS-CAM38

CAM: 38MM - 5 (28mm Depth)

KS100-KS-CAM45

CAM: 45MM - 1 (18mm Depth)

500-------35-00

ASSA ABLOY Aperio AH20 1:1 Wiegand Hub

500-------60-00

ASSA ABLOY Aperio AH20 Advanced Wiegand Hub

500ZB-EXTANT-00

ASSA ABLOY Aperio Hub External Antenna

500ZB-PAPUSB-00

ASSA ABLOY Aperio AP PAP Service Tool

500ZB-RD-USB-00

ASSA ABLOY Aperio USB Radio Dongle

Page 8 of 12

For more information visit website www.assaabloy.com/aperio P/N: 3080006.025_1

Page 9 of 12

For more information visit website www.assaabloy.com/aperio P/N: 3080006.025_1

Page 10 of 12

For more information visit website www.assaabloy.com/aperio P/N: 3080006.025_1
