Asus EA-N66R Manuale utente

Quick Start Guide

EA-N66R

Ethernet Adapter

English............................................. 4

Français ........................................... 12

Español............................................ 20

Português do Brasil..................... 28

Q7020 / July 2012

English

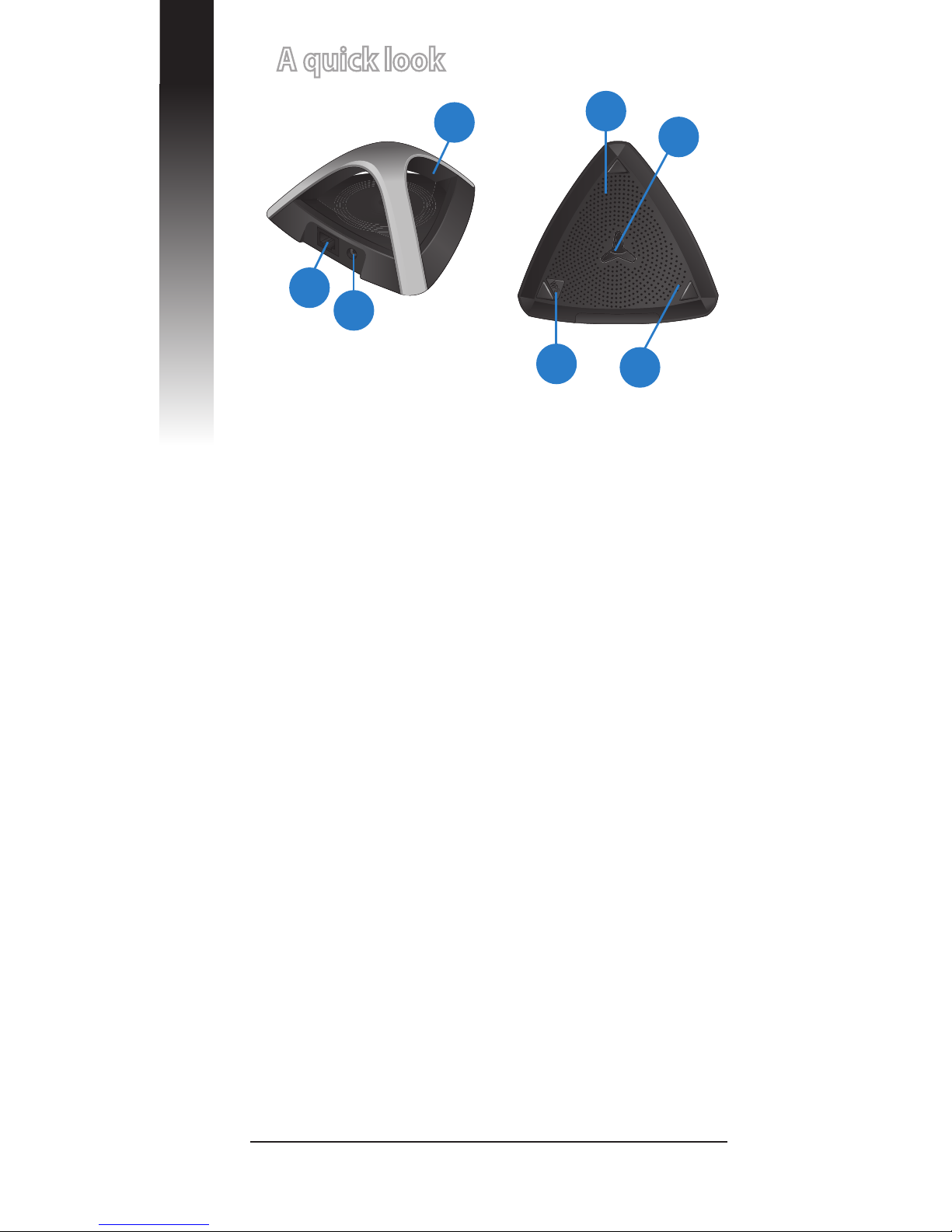

A quick look

1) Ethernet port

2) DC In port

3) LED indicator

OFF: No power or physical connection

Solid light: Excellent connection

Blinking fast: Active connection

Blinking slow: connection

4) Air vent

5) Mounting hole

6) WPS button

7) Reset button

345

English

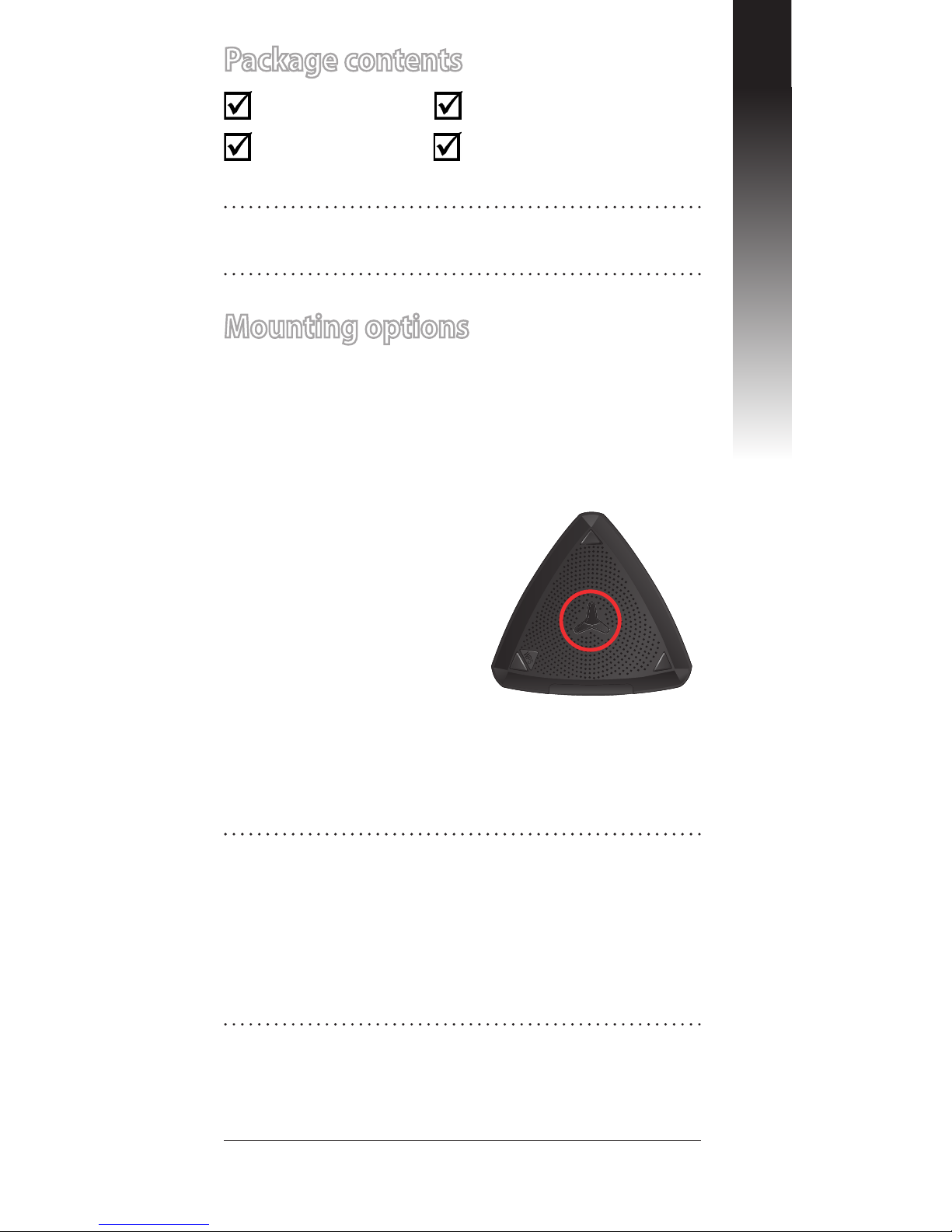

Mounting options

Out of the box, the ASUS EA-N66Ris

designed to sit on a raised at surface like

a le cabinet or book shelf. The unit may

also be converted for mounting to a wall

or ceiling.

1. Look on the

underside for the

mounting hook.

2. Mark an upper

hole in a at

surface.

3. Tighten one screw

until only 1/4’’is showing.

4. Latch the hook of your EA-N66Ronto

the screw.

Package contents

EA-N66RPower adapter

Network cable Quick Start Guide

NOTE: If any of the items is damaged or

missing, contact your retailer.

NOTES:

• Re-adjust the screw if you cannot latch

EA-N66Ronto the screw or if it is too

loose.

• The screw is not included in the

EA-N66Rpackage contents.

English

Getting started

1. Connect to a wireless network.

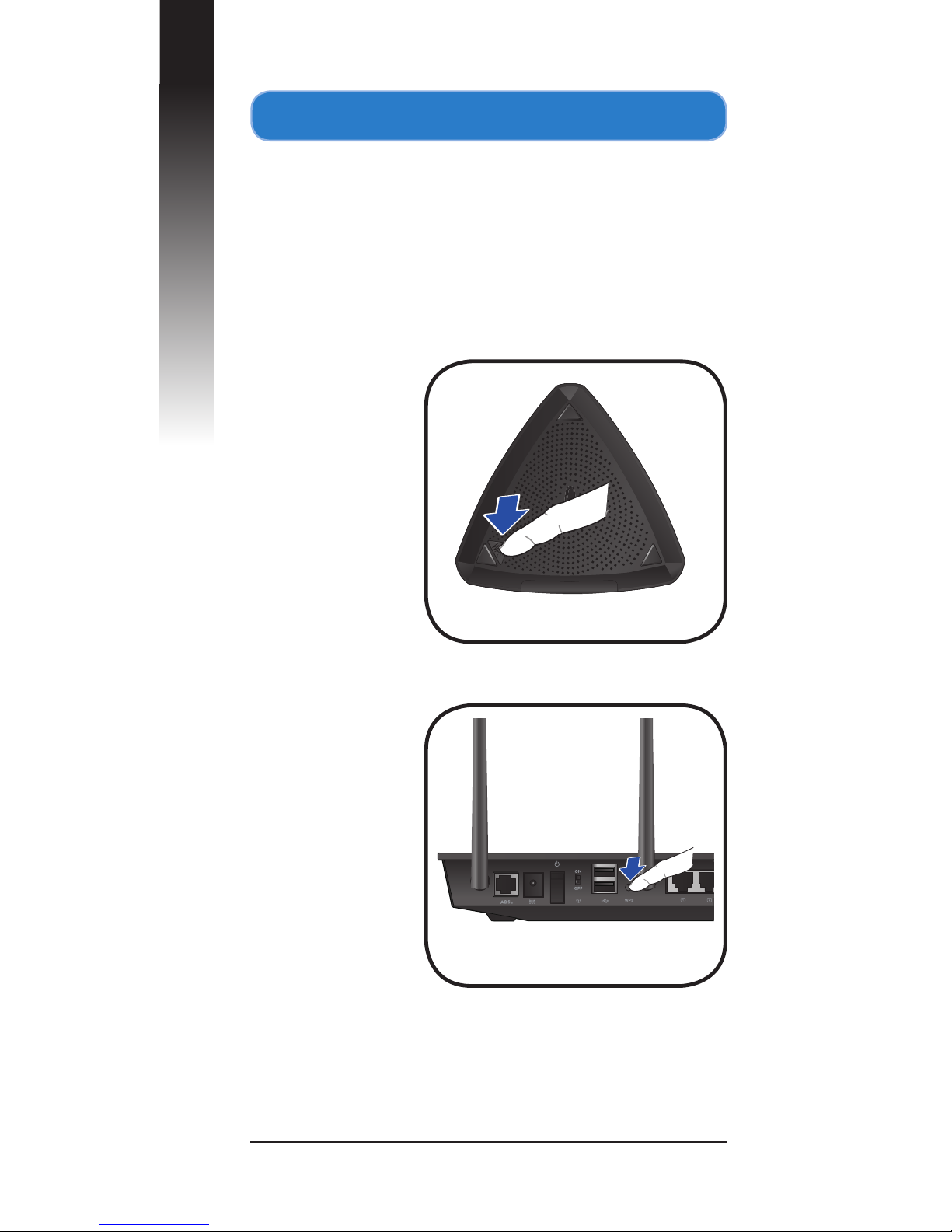

A. Connecting via the WPS button

The WPS (Wi-Fi Protected Setup) button

allows you to connect to a secured and

protected network.

2. Press WPS

button on

the router.

1. Press the

WPS button

on EA-N66R.

English

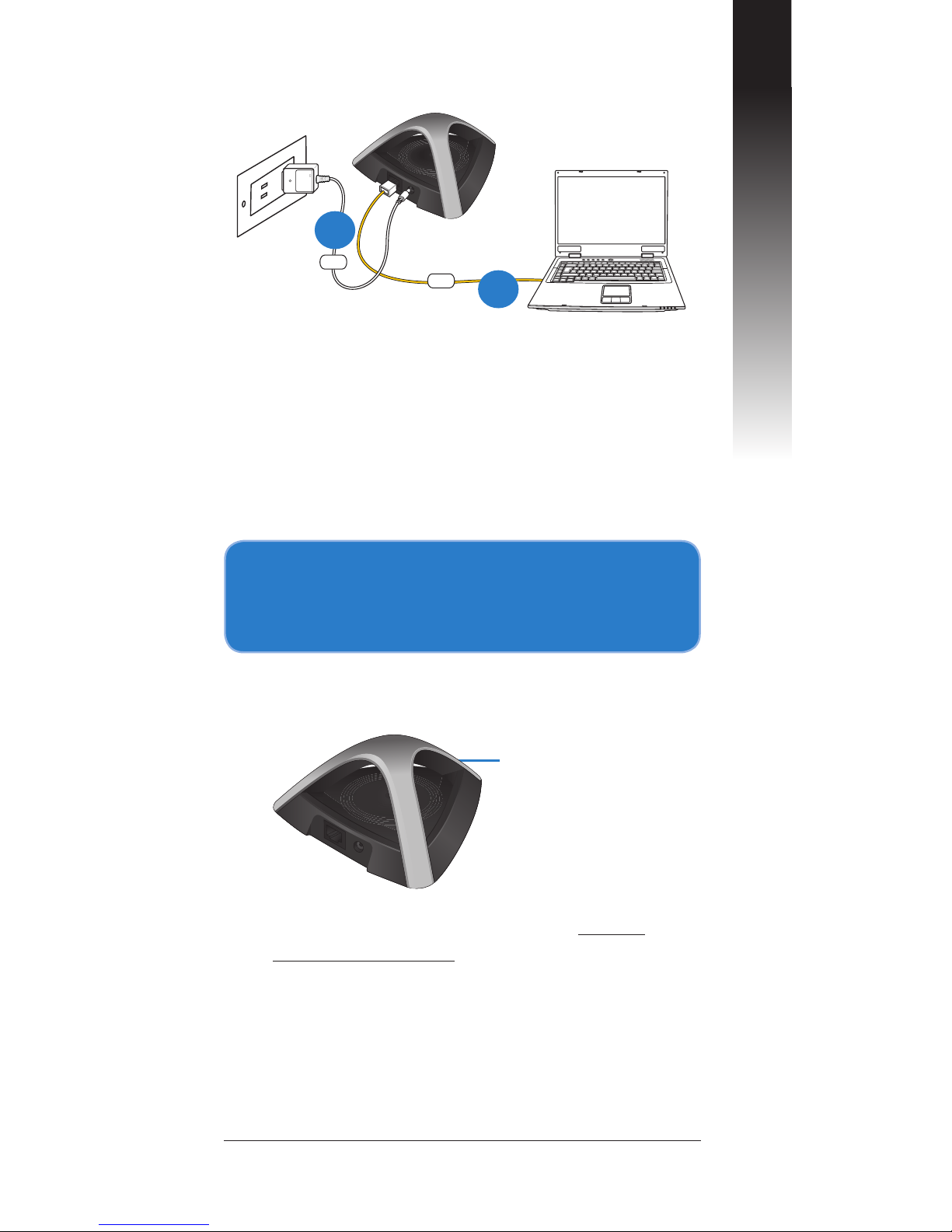

B. Connecting via a network cable

a: Insert your EA-N66R’s AC adapter to

the DC-In port and plug it to a power

outlet.

b: Using the bundled network cable,

connect your computer to your

EA-N66R’s LAN port.

EA-N66R

Power

Wall Power Outlet

LAN

2. Log into the EA-N66R's web

graphics user interface (web

GUI).

a: Ensure that the wireless LED is

blinking.

Wireless LED

b: In your web browser, key in www.

asusrouter.com. Key in admin as the

default username and password.

c: From the web GUI, select the

operation mode and congure its

settings for your wireless network

setup.

English

NOTE: If the web GUI does not launch,

refer to the Frequently Asked Questions

section.

IMPORTANT:

• For the best wireless performance, place

EA-N66 at a distance of more than 1.5

meters away from the parent Access

Point (AP).

• You can adjust the transmission power

of EA-N66Rfrom its web interface.

English

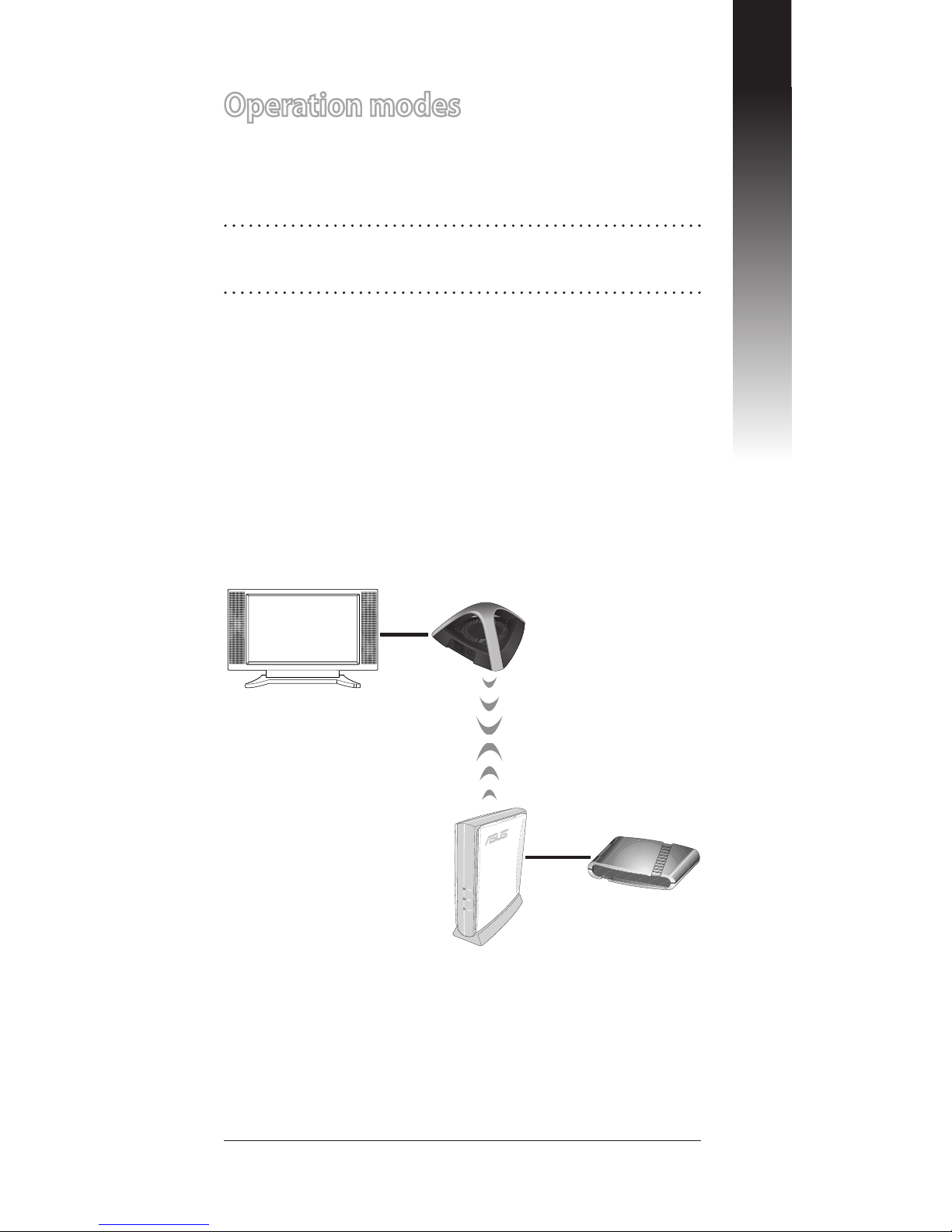

Operation modes

ASUS EA-N66Rprovides three operation

modes: Ethernet Adapter, Access Point

(AP), and Repeater.

NOTE: Please follow the GUI Setup Wizard

for these modes.

Ethernet Adapter mode

By default, EA-N66Ris set to the Ethernet

Adapter mode. In this mode, you can con-

nect any Ethernet-enabled device to your

wireless home network via the wireless

router. This mode is perfect for home

theater devices such as the Internet TV,

TiVo, and Blu-ray player.

Internet TV

ADSL/

Cable

modem

English

Frequently Asked Questions

Q1: I cannot access the web GUI to

congure the EA-N66Rsettings.

• Close all running web browsers and

launch again.

• Follow the steps below to congure

your computer settings based on its

operating system.

Windows 7

A. Disable the proxy server, if enabled.

1. Click Start > Internet Explorer to

launch the web browser.

2. Click Tools > Internet options > Con-

nections tab > LAN settings.

3. From the Local Area Network (LAN)

Settings screen, untick Use a proxy

server for your LAN.

4. Click OK when done.

B. Set the TCP/IP settings to automati-

cally obtain an IP address.

1. Click Start > Control Panel > Net-

work and Internet > Network and

Sharing Center > Manage network

connections.

2. Select Internet Protocol Version 4

(TCP/IPv4), then click Properties.

3. Tick Obtain an IP address automati-

cally.

4. Click OK when done.
