Asus P505 Manuale utente

Doc. No:

Date: DEC.02, 2004

Revision: 1

ASUSTeK COMPUTER

INC. P505 SERVICE GUIDE

Page: Grade:

Authorize

Review

Originator

Rev. Modification Modify description Issue

div.

Originator

FIRST RELEASE RMA-TC P.P_PAM

Form No : D2-001-11 Rev.01

Doc. No:

ASUSTeK COMPUTER INC.

P505 SERVICE GUIDE Date: DEC.02, 2004

Rev.: Page:1

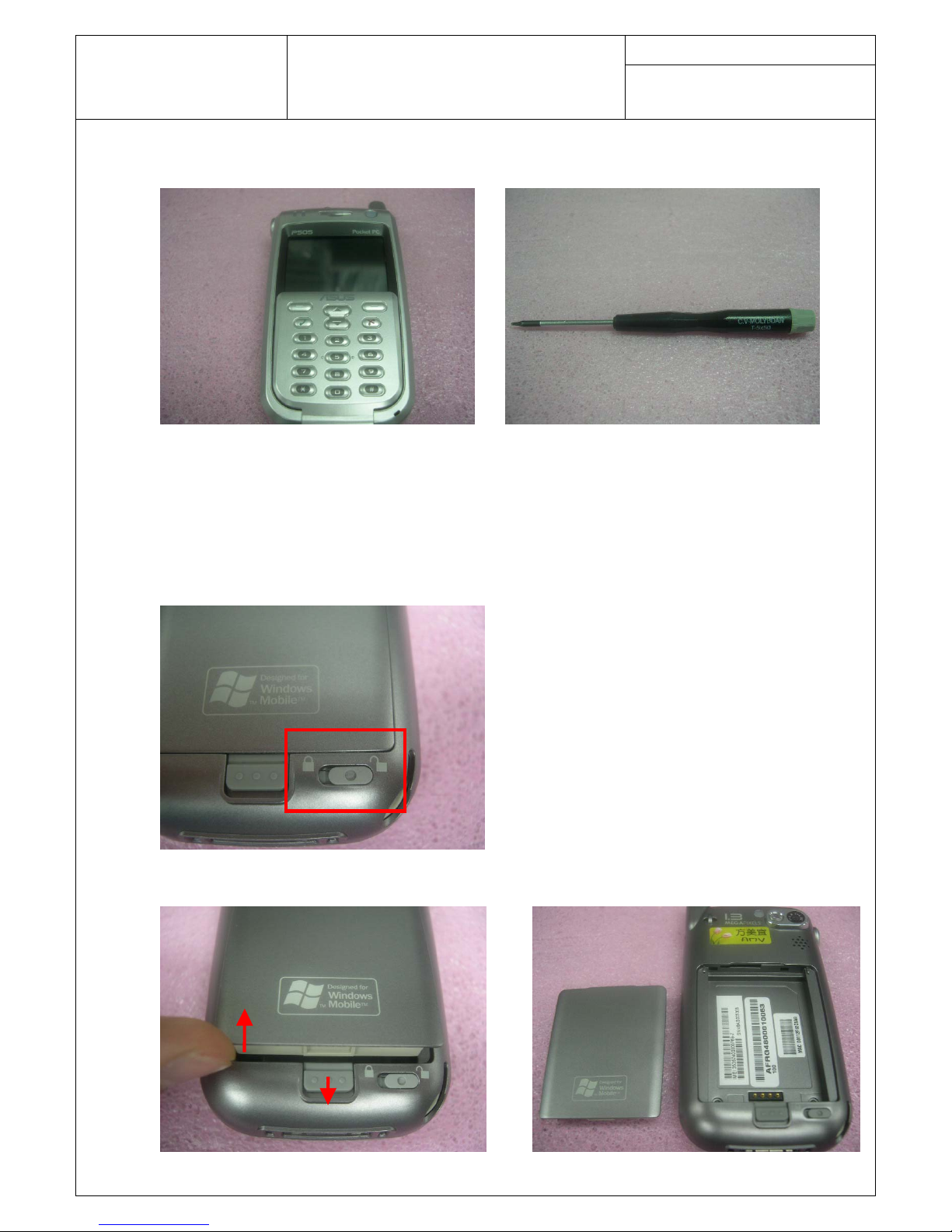

DISASSEMBLE TOOL:

P505X1 SCREWDRIVERX1

ASUS P505 DISASSEMBLE PROCEDURE-

STEPS 1:push the battery lock to right

STEPS 2:pull down the bolt and pick up battery

Doc. No:

ASUSTeK COMPUTER INC.

P505 SERVICE GUIDE Date: DEC.02, 2004

Rev.: Page:2

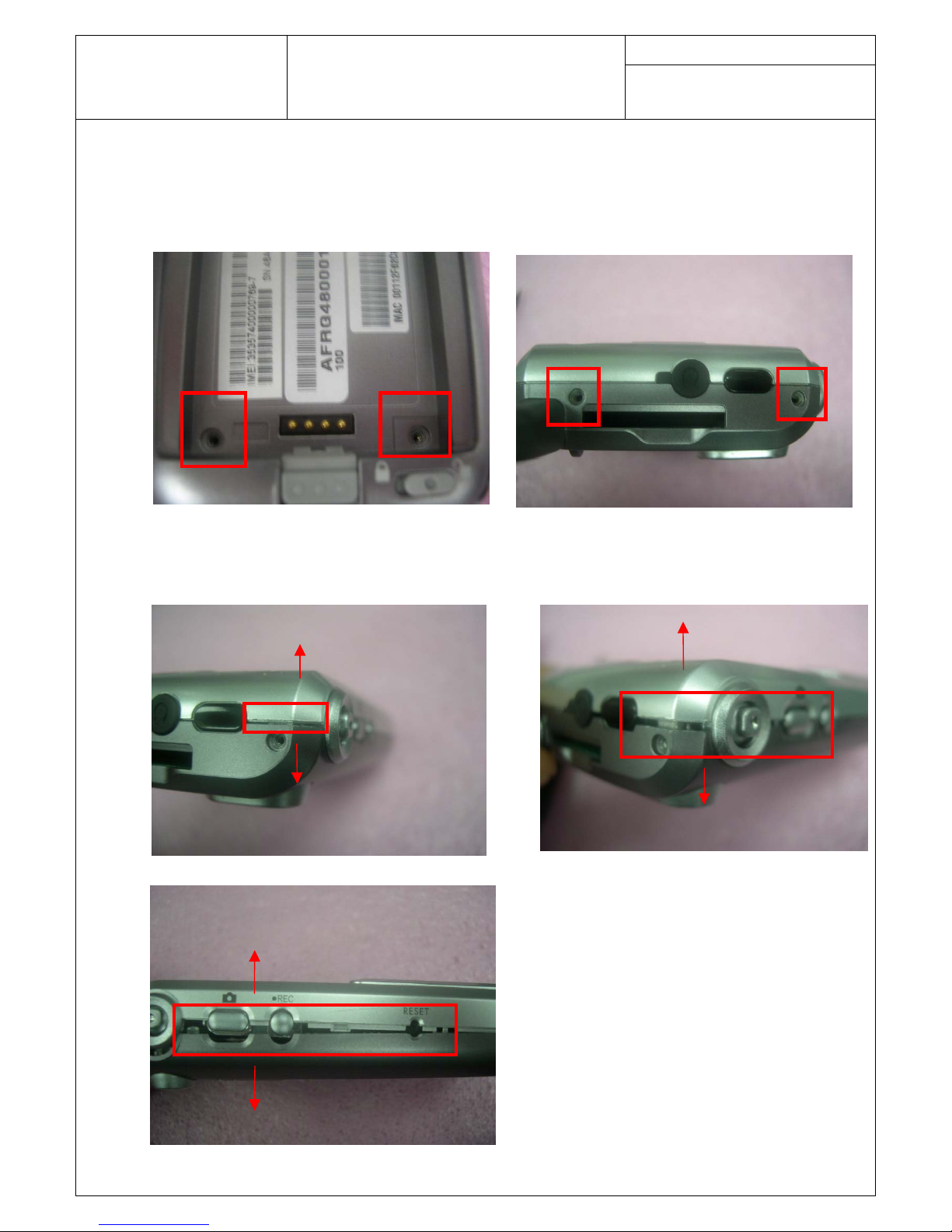

STEPS 3:unload the screw in back cover and the

Top of P505

STEPS 4:To pull open the plastics case by tool

Notice: do not scrape the lacquer

Doc. No:

ASUSTeK COMPUTER INC.

P505 SERVICE GUIDE Date: DEC.02, 2004

Rev.: Page:3

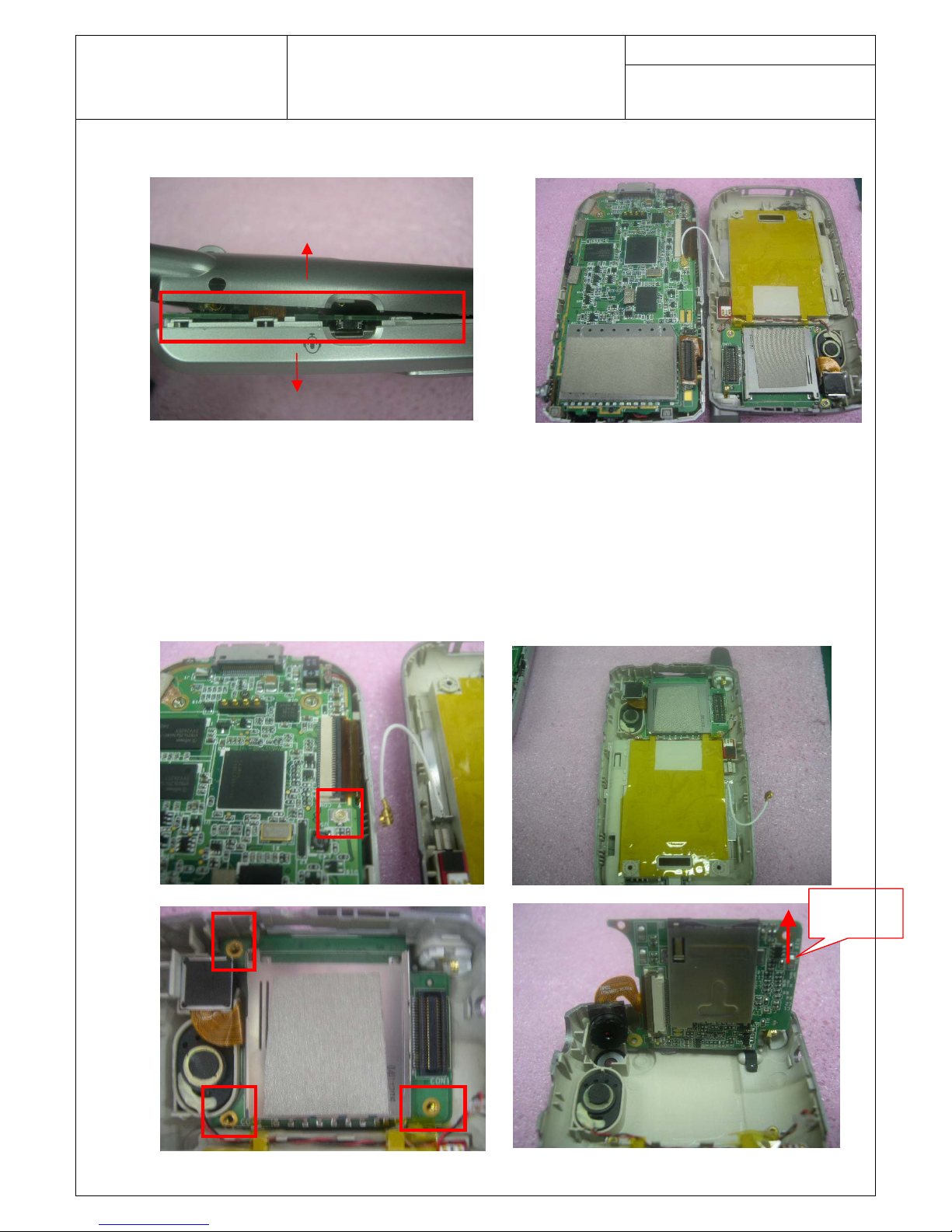

STEPS 5:From another side to open by tool

STEPS 6:1.Remove the lines of BT then make button case

and MAIN_BD separate.

2.Unload the 3 screws from SD_BD and pull up.

3.Then take camera module from SD_BD.

Pull up

Doc. No:

ASUSTeK COMPUTER INC.

P505 SERVICE GUIDE Date: DEC.02, 2004

Rev.: Page:4

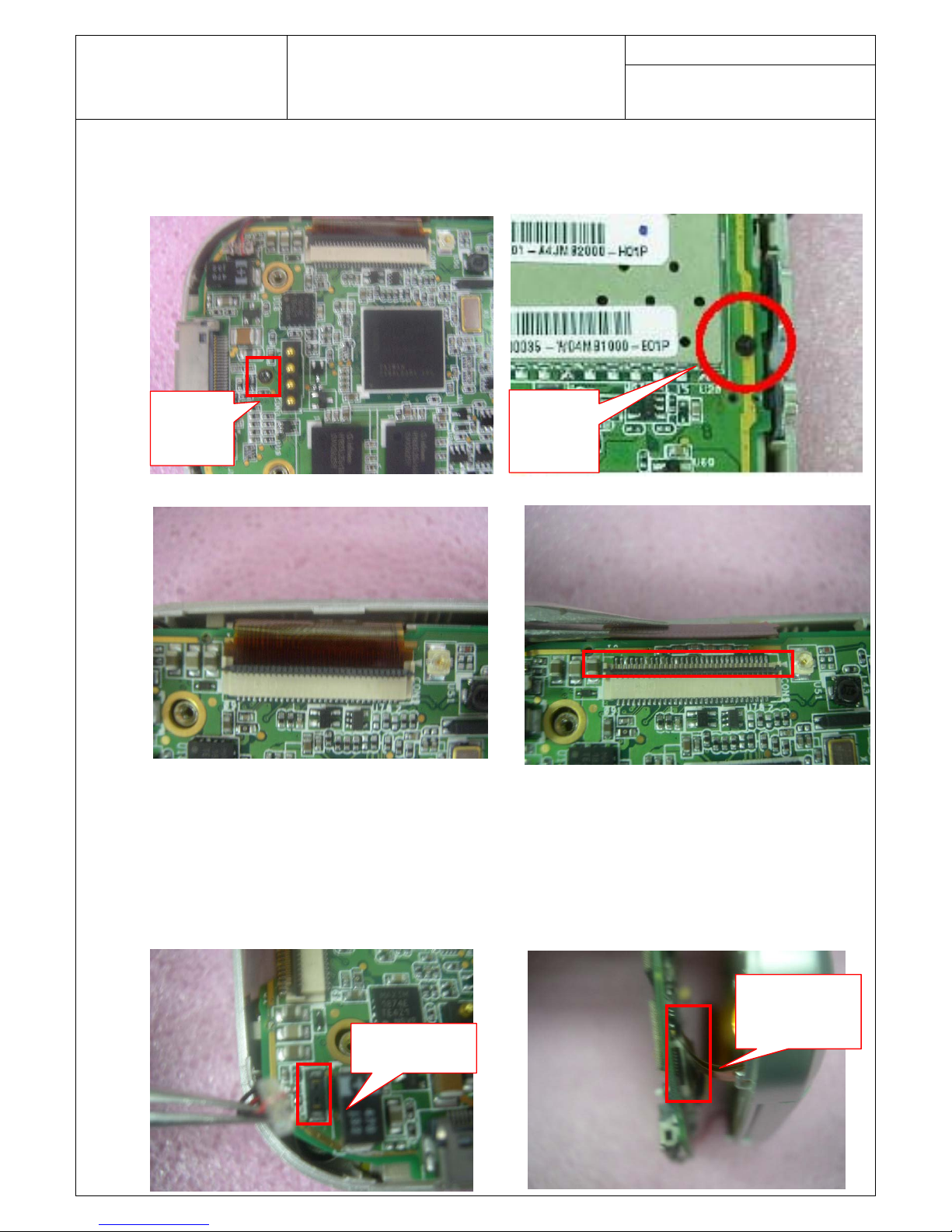

Steps7: Unload the screw from MAIN_BD and remove LCD_

FPC.

Steps 8:1.Pull up MICROPHONE connector.

2.Separate keypad FPC connector and receiver

connector.

3.Unload the SD_FPC connect to the MAIN_BD.

Microphone

connecto

Keypad FPC

connector

Unload

the screw

Unload

the

screw

Doc. No:

ASUSTeK COMPUTER INC.

P505 SERVICE GUIDE Date: DEC.02, 2004

Rev.: Page:5

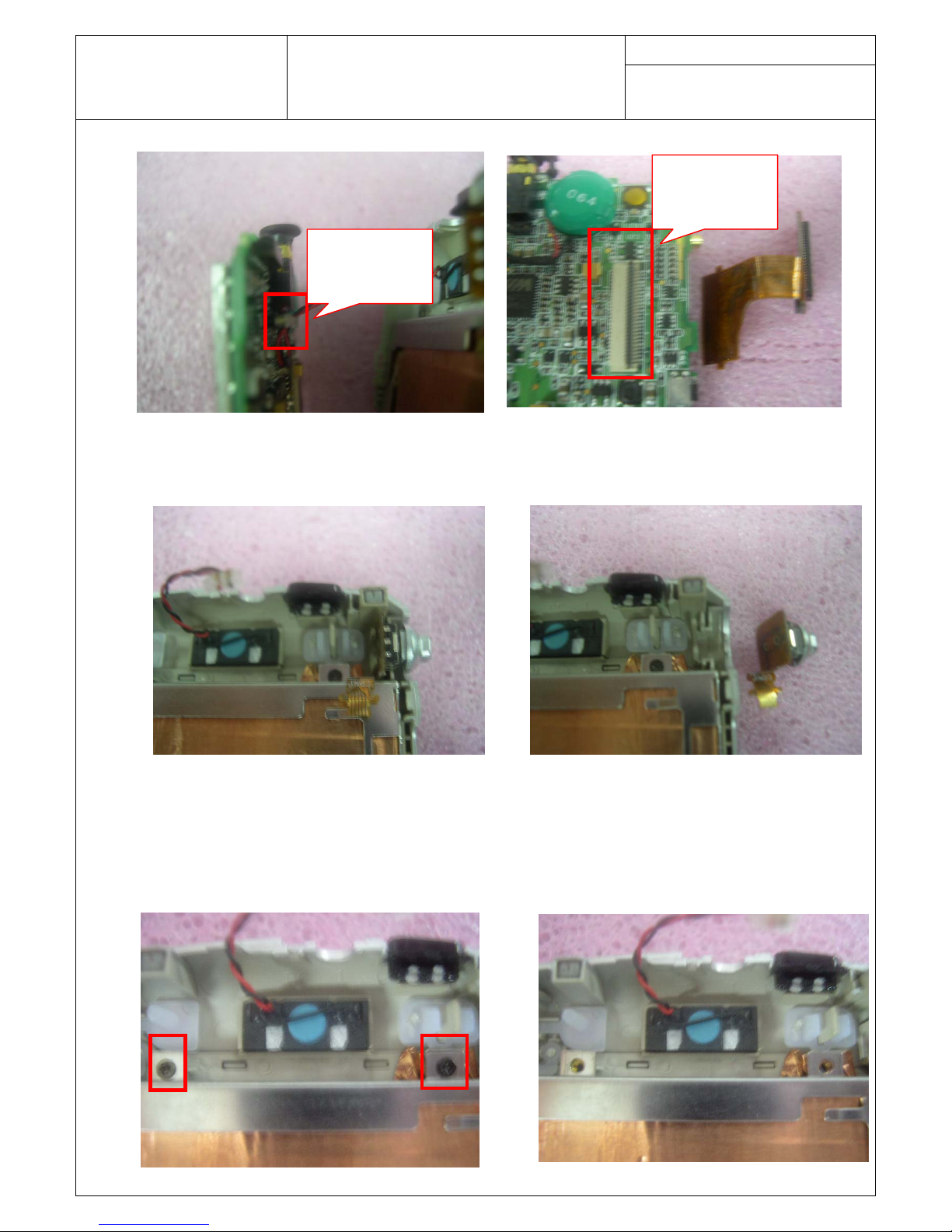

Steps 9:Pick up cursor key

Steps 10:1.Unload 2 screws from LCD and push forward then

pull LCD up.

2.Take apart TFT BRACKET.

Receiver

Connector

Connect to

SD_BD FPC

connector

Doc. No:

ASUSTeK COMPUTER INC.

P505 SERVICE GUIDE Date: DEC.02, 2004

Rev.: Page:6

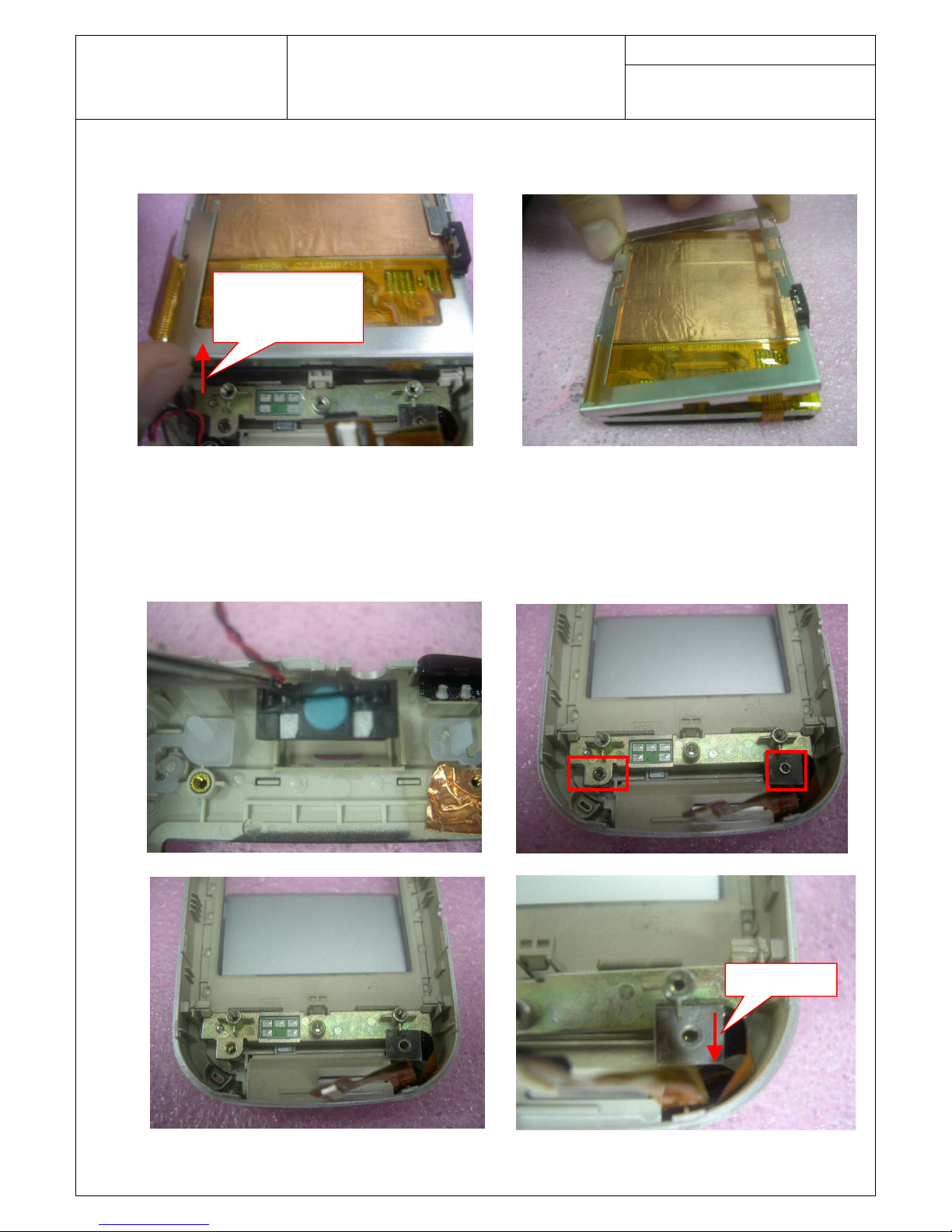

Steps 12:1.Pull up receiver and unload 2 screws from

APKEY HOLDER.

2.Take up APKEY HOLDER and unload 2 screws.

Push down

Push forward

then pull up

Doc. No:

ASUSTeK COMPUTER INC.

P505 SERVICE GUIDE Date: DEC.02, 2004

Rev.: Page:7

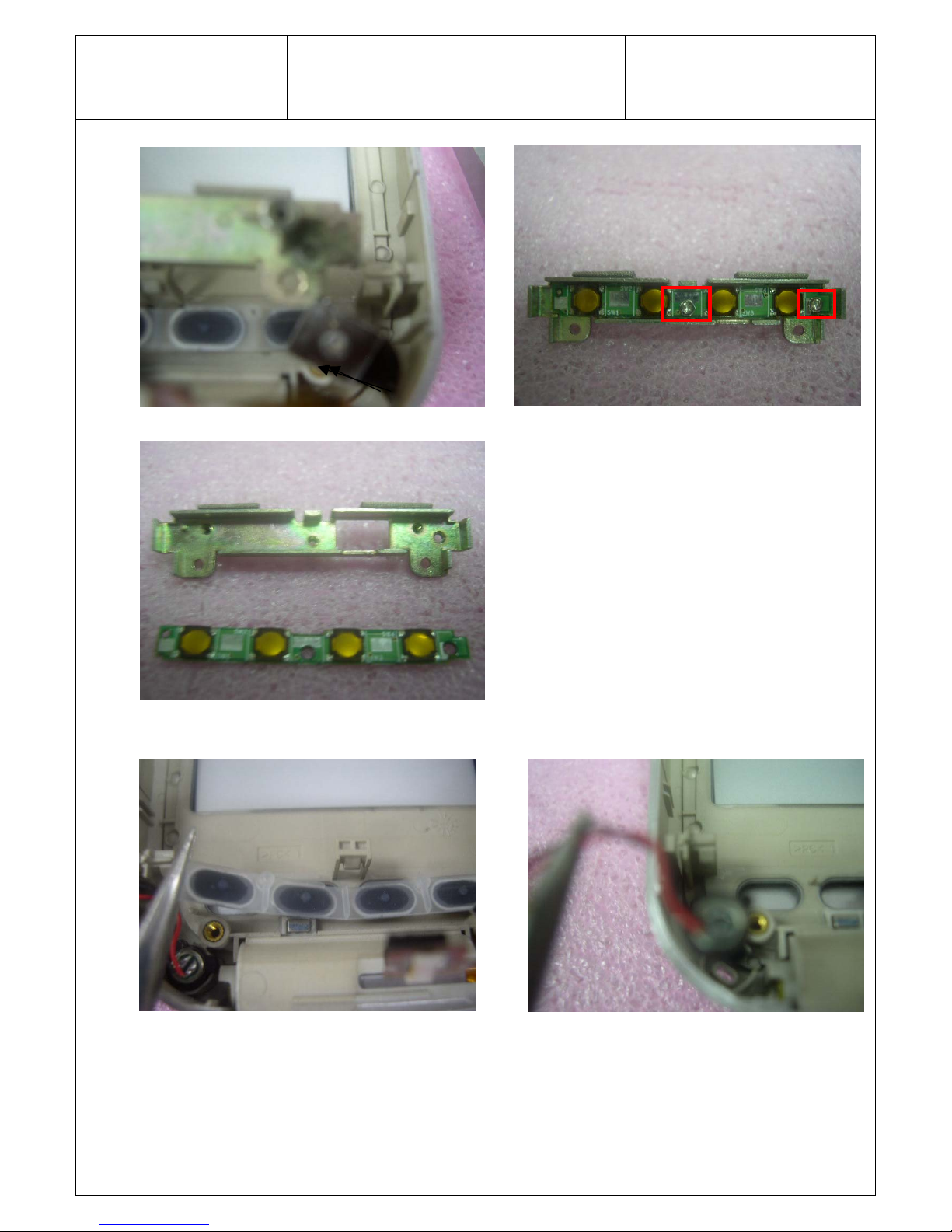

Steps 13:Unload the APKEY_BD and MICROPHONE

Doc. No:

ASUSTeK COMPUTER INC.

P505 SERVICE GUIDE Date: DEC.02, 2004

Rev.: Page:8

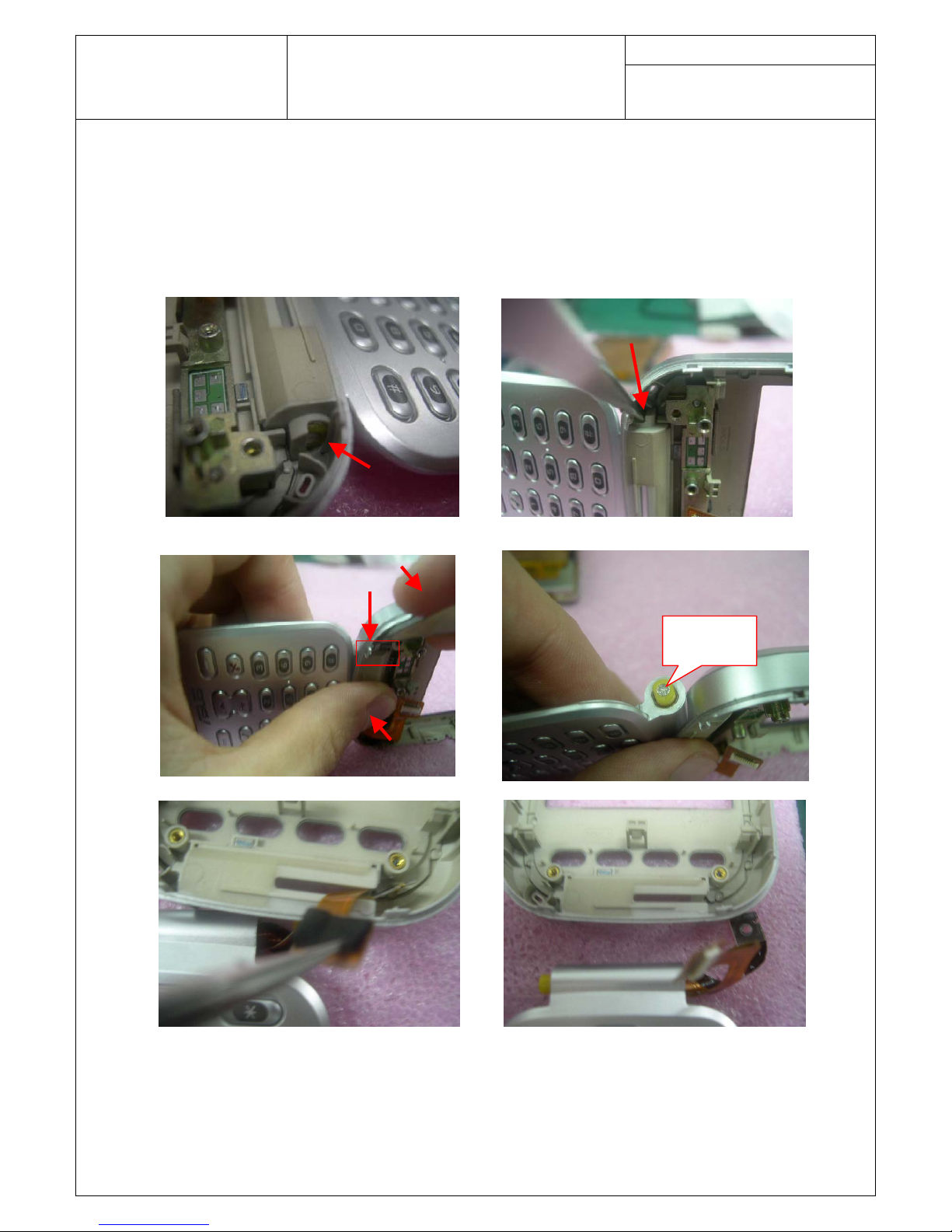

Steps 14:1.Press HING down by tweezers and push out by

left thumb.

2.Remove the cotton then make KEYPAD_FPC

separate with C-PART_ASSY

HING

Doc. No:

ASUSTeK COMPUTER INC.

P505 SERVICE GUIDE Date: DEC.02, 2004

Rev.: Page:9

ASUS P505 FABRICATE PROCEDURE-

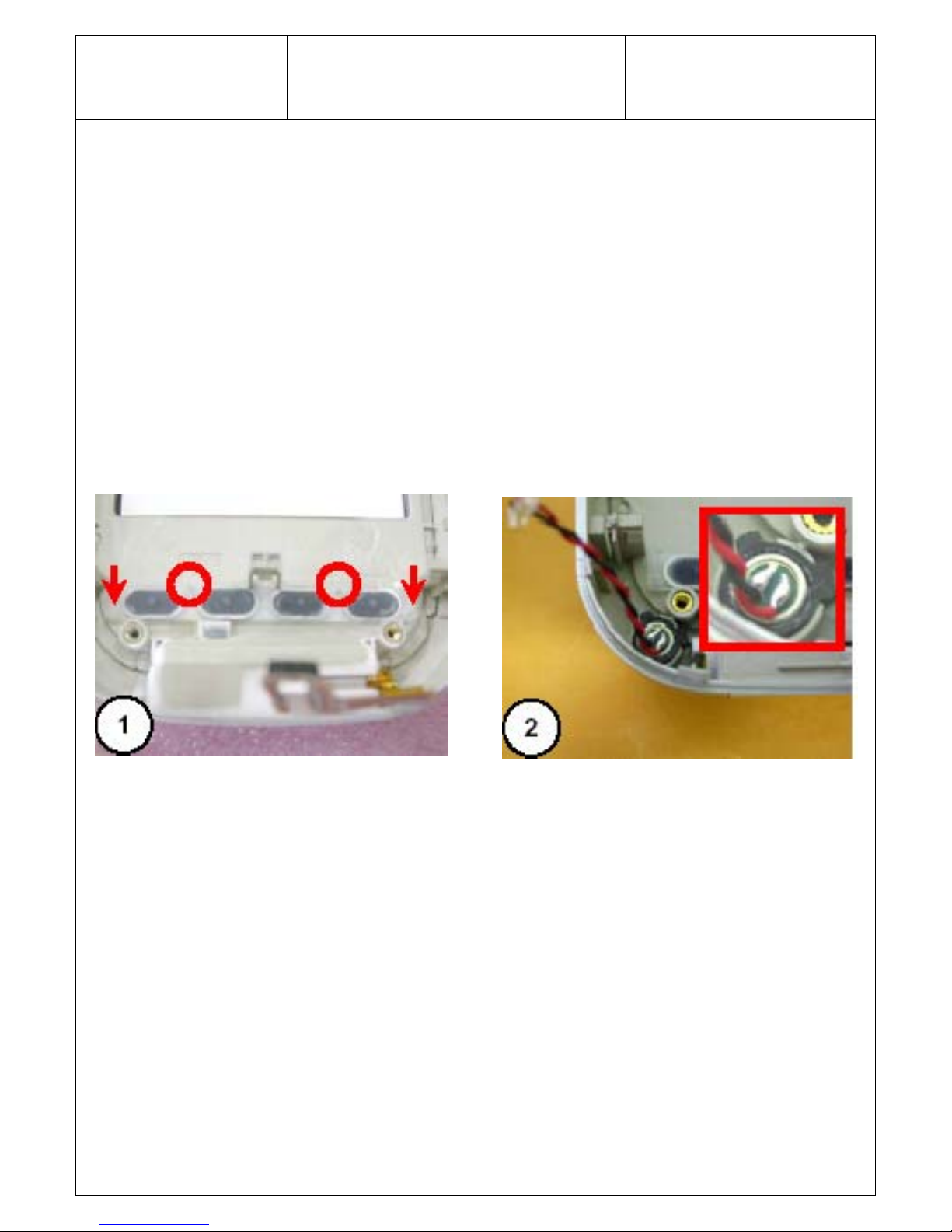

Steps 1:1.Enter the position hole between AP KEY 1,2 and

3,4 KEY

2.Put MICROPNONE into C-PART_ASSY position

Notice: there are 2 position of raised on MICROPHONE

RUBBER .it need locate in trough of 2 open

holes

Steps 2:1.Put APKEY_BD into APKEY HOLDER.

2.Fixed 2 SCREWS on AKEY_BD.

3.Paste 2 PCB ESD GASKET-1 on APKEY.

HOLDER.

4.Ress down whole APKEY HOLDER. Make 3 bolts

lock APKEY HOLDER.

5.Keep the KEYPAD_FPC of KEYPAD_ASSY on APKEY

HOLDER.
