Asus P535 Manuale utente

Quick Start Guide

P535

Check your P535 package for the following items:

PASUS P535 device

PBattery

PAC Adapter

PMini-USB cable

PHeadset

PStylus

PCar cell phone charger*

PCar Kit (PDA holder and windshield suction pedestal)*

PProtection case

PGetting Started CD

PUser Manual

PQuick Start Guide

PWarranty Card

* optional

NOTE:

If any of the above items is damaged or missing, contact your retailer.

CAUTION:

• To reduce risk of re, use only correct battery type. Refer to “Installing the SIM card and battery” section for details.

• Do not attempt to disassemble or service the battery pack.

• Dispose of used batteries properly. Inquire from local authorities for proper disposal of battery.

Package contents

Top features

Left side features

Front features

Layout

Bottom features

Right side features

Rear features

25 26

Getting to know your P535

Device components description

No. Item Description

1MiniSD slot Allows you to insert a MiniSD storage card.

2Power button Press once to set suspend mode or to wake device from sleep mode.

Press and hold to turn the power ON or OFF.

3Stylus Use the stylus to write, draw, or select items on the touch screen.

4Camera/Shutter button Press to launch the camera. In camera mode, half-press to auto-

focus then full-press to take a picture. In video mode,

full-press to start recording video and press again to stop.

5Volume controller Press the arrow buttons to adjust the volume.

6Reset button Using the stylus, press reset button to soft-reset your device.

7Notication LED This multi-color LED noties the following:

• Green - Phone fully charged.

• Flashing green - Network detected.

• Red - Phone is charging.

• Flashing red - Event notication.

• Flashing blue - Bluetooth

or WLAN(IEEE 802.11b/g) ON.

• Flashing blue and green - GPS is ON.

8Earpiece receiver Allows you to listen to incoming/outgoing calls.

9LCD touch screen This 2.8-inch, 65536-color, 240 x 320-resolution, touchscreen TFT

LCD allows you to write, draw, or make selections using the stylus.

10 Call key Press to receive an incoming call or make a call.

11 Left Soft key Performs the command indicated above the button.

12 Mode/Task switcher button Allows you to switch applications and tasks.

Press and hold this button to turn on/off the ashlight.

13 Navigation buttons Use to move through menus. Press the center to run an application

or in camera mode, press to take a picture.

Device components description

No. Item Description

14 Action button Press to carry out the task of selected item.

15 Right Soft key Performs the task indicated above the button.

16 Ok or Close button Press to conrm a command or press to close/exit an open

application.

17 End button Press to end a call.

18 Camera ashlight Allows you to capture images in a dim environment.

Press and hold the mode switcher button to turn this ashlight on/off.

19 Camera lens This 2-megapixel camera comes with Auto-Focus (AF) lens and ash

light features.

20 GPS antenna connector Allows you to install an external GPS antenna for better signal

reception.

21 Speaker Allows you to listen audio media and phone calls.

22 Battery compartment Contains the battery that supplies power to the device.

23 Voice recorder button Press to launch the record application to record voice.

24 Hold button Slide to enable or disable all keys including the LCD touch screen.

25 Earphone port Plug headset accessory to this port.

26 Mini-USB connector Use this connector to synchronize your data or to charge the battery.

27 Mic Used to make or receive phone calls, record sounds, record voice, or

say voice commands.

Before you can start using your device, you need to install a Subscriber Identity Mode (SIM) card

and a charged battery. A SIM card contains your phone number, subscriber details, phonebook,

and additional phone memory.

Installing the SIM card and battery

1. Remove the battery compartment cover then remove battery.

NOTE: To prevent data loss, the device automatically shuts down after you open the battery compartment.

2. Insert the SIM card with its gold contacts facing down and the notched corner oriented to

the upper left corner of the slot.

3. Replace the battery into the compartment with its copper contacts properly aligned to the

copper conductor on the device.

4. Replace battery compartment cover.

CAUTION: Use only an ASUS qualied battery for this device.

Getting your device ready

Charging the battery

The bundled battery pack is shipped only partially charged. Make sure to charge the battery at

least four hours before using it for the rst time.

To charge the battery:

1. Connect the AC adapter plug to the mini-USB connector at the bottom of the device.

2. Connect the AC power plug to a grounded wall socket or power strip.

NOTE:

• The notication LED turns red and the battery icon appears on the status bar while the battery is charging.

•If your battery gets totally discharged, recharge it for at least twenty minutes before you can turn it back on.

Powering your device

After charging the battery, you are now ready to use your device.

To power on your device:

1. Press and hold the power button to turn ON the device.

2. Follow the succeeding screen instructions to setup your Windows Mobile-based device.

The Today screen

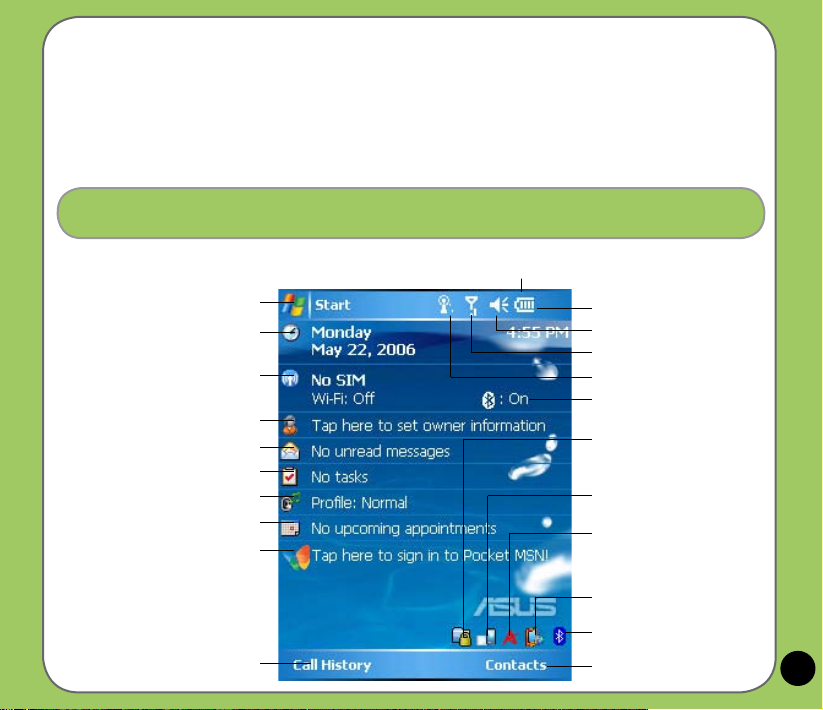

The Today screen displays information useful to you.

Tap to open the Start menu

Tap to setup date, time, and alarm.

Displays the current network

provider and connection status

Tap to set user information

Tap to open messages

Tap to setup tasks

Tap to setup prole

Tap to read or make appointments

Tap to sign in Pocket MSN

Tap to display call history

Indicates the battery status

Tap to adjust volume

Displays the signal status

Tap to view connectivity status

Tap to change WLAN

(IEEE 802.11b/g) settings

Tap to display system CPU,

USB setting, LCD brightness,

battery, memory, and MiniSD

status

Tap to launch Contacts list

Tap to change Bluetooth

settings

Tap to lock, unlock, or change

My Secrets settings

(Appears only when My Secrets is enabled.)

Tap to change screen

orientation

Displays the Bluetooth®

connection status

Status bar

ASUS Status icon

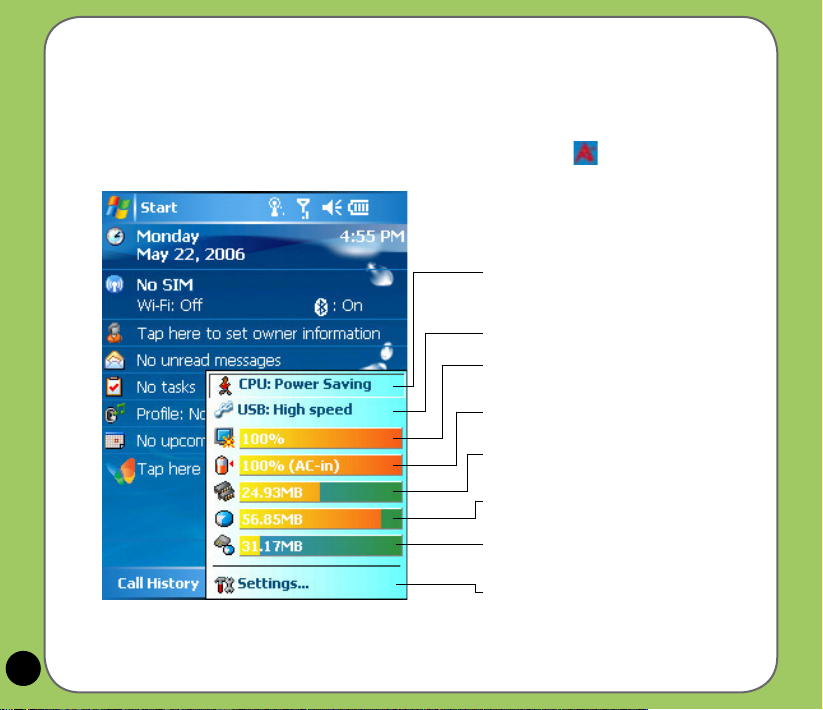

The ASUS status icon allows you to easily check and see the current status of the following

device components: CPU, USB, LCD Brightness, Battery power, Memory, MiniSD card, and

device storage.

To check the status of these components, tap the ASUS Status icon on the Today screen.

CPU: Allows you to set the CPU mode. Set to

Automatic Mode to automatically change the CPU

speed according to the CPU loading.

USB: Allows you to set the USB connection mode.

Brightness: Tap to adjust the LCD brightness on

battery power or external power.

Power: Displays the remaining battery power and

allows you to set advanced power saving features.

Memory: Displays the total, currently used, and

remaining memory available.

Storage card memory: Displays the total, used,

and remaining storage card memory.

MiniSD card: Tap to display the contents of the

miniSD card installed.

Settings: Allows you to select the items to display

in this ASUS Status pop-up menu.

Input panel icon

Keyboard

Block Recognizer Letter Recognizer

Entering information

Using the Input panel

The Input Panel allows you to select various

input methods available on your device

including: Block Recognizer, Keyboard,

Letter Recognizer, and Transcriber.

Tap the Input panel icon to display shortcut

menu and select input method.

Input panel methods

Transcriber

Sending a message

Your device allows you to send and receive email, SMS, MMS, and MSN messages when

connected to a network. The following describes how to compose and send a message.

Composing and sending a message

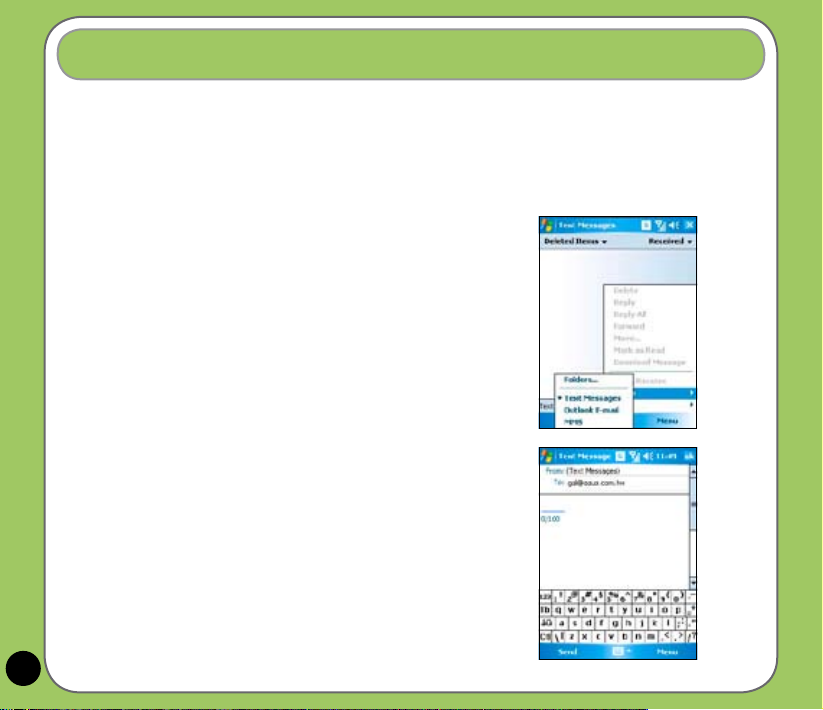

1. Tap Start then Messaging.

2. Tap Menu > Go To then select account:

• Text Messages

• Outlook E-mail or

• MMS

3. Tap New.

4. Key in the email address or phone number of one

or more recipients, separating them with a

semi-colon. To launch Contacts list, tap To.

5. Key in your message.

Messages
