User Guide
15060-0JS00200
E14108
Third Edition/ March 2018
ASUS Phone (Mobile Phone)
Model: ASUS_X00QDA (ZE620KL)
Before you start, ensure that you have read all the
safety information and operating instructions in this
User Guide to prevent injury or damage to your
device.
NOTE: For the complete E-Manual and more
detailed information, refer to https://www.asus.
com/support/.
Front features
Touch screen
display
Receiver
LED indicator
Front camera
Proximity
sensor and
light sensor
Side features
Power key
Audio jack
Volume key
Speaker
Nano SIM/
microSD card
slot
Microphone
Microphone
USB Type-C port
NOTE: The USB Type-C port supports USB 2.0
transfer rate.
Rear features
Rear cameras
Rear cover
Fingerprint sensor
NFC detection area
Camera ash
Charging your ASUS Phone
To charge your ASUS Phone:
1. Connect the USB connector into the power
adapter’s USB port.
2. Connect the other end of the USB Type-C cable
to your ASUS Phone.
3. Plug the power adapter into a wall socket.
IMPORTANT!
• WhenusingyourASUSPhonewhileitis
plugged to a power outlet, the grounded
power outlet must be near to the unit and
easily accessible.
• WhenchargingyourASUSPhonethrough
your computer, ensure that you plug the USB
Type-C cable to your computer’s USB port.
• AvoidchargingyourASUSPhoneinan
environment with ambient temperature of
above 35 °C (95 °F).
2
3
1
NOTES:
• Forsafetypurposes,useONLY the bundled
power adapter and cable to avoid damaging
your device and prevent the risk of injury.
• Forsafetypurposes,useONLY the bundled
power adapter and cable to charge your ASUS
Phone.
• Theinputvoltagerangebetweenthewall
outlet and this adapter is AC 100V - 240V. The
output voltage of the USB Type-C cable is
+5V 2A,10W.
1. Push a pin into the hole on the nano SIM /
microSD card tray to eject it. Insert the nano
SIM or microSD card into the appropriate slot.
Installing a nano SIM / microSD card
To install a nano SIM / microSD card:
2. Push the tray to close it.
CAUTION!
• Donotusesharptoolsorsolventonyour
device to avoid scratches on it.
• UseonlyastandardnanoSIMcardonyour
ASUS Phone.
NOTE: The microSD card slot supports microSD
and microSDXC card formats.
IMPORTANT! You can only use the nano SIM 2 card
or the microSD card at a time.
Nano-SIM1
Nano-SIM2
Micro SD
Nano-SIM1
Using NFC
NOTE: NFC is only available in selected regions/
countries.
You can use NFC in the following three scenarios:
Reader mode: Your phone reads information from a
contactless card, NFC tag, or other NFC devices.
Place the NFC area of your phone on the contactless
card, NFC tag, or NFC device.
Card Emulation mode: Your phone can be used like
a contactless card.
Place the NFC area of your phone on the NFC area of
the NFC reader.

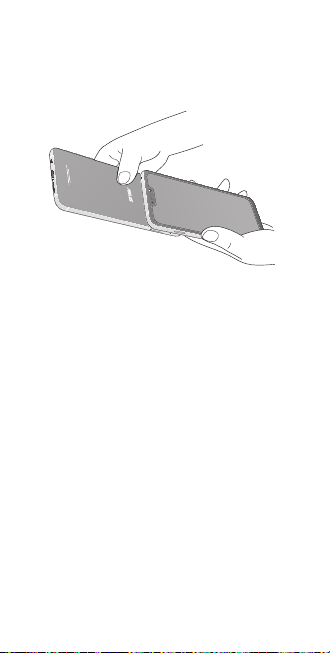

Peer-to-Peer mode: Transfers photos, contacts, or
other data between your phone and an NFC-enabled
smartphone.
Bring the NFC areas of both smartphones together,
without any space between them.
Federal Communications
Commission Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Changes or modications not expressly approved by
the party responsible for compliance could void the
user‘s authority to operate the equipment.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment o and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet on a
circuit dierent from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
The antenna(s) used for this transmitter must not be
co-located or operated in conjunction with any other
antenna or transmitter.
The country code selection is for non-US models
only and is not available to all US models. Per FCC
regulation,allWiFiproductsthataremarketedinUS
must be xed to US-operated channels only.
The responsible party within the USA per 47 CFR Part
2.1077(a)(3):
ASUS COMPUTER INTERNATIONAL (America)
Address: CorporateWay,Fremont,CA94539,USA
Telephone: +1-510-739-3777
RF Exposure Information (SAR)
This device has been tested and meets applicable
limits for Radio Frequency (RF) exposure.
Specic Absorption Rate (SAR) refers to the rate at
which the body absorbs RF energy. SAR limits are
1.6Wattsperkilogram(overavolumecontaining
a mass of 1 gram of tissue) in countries that follow
theUnitedStatesFCClimitand2.0W/kg(averaged
over 10 grams of tissue) in countries that follow the
Council of the European Union limit. Tests for SAR are
conducted using standard operating positions with
the device transmitting at its highest certied power
level in all tested frequency bands.
To reduce exposure to RF energy, use a hands-free
accessory or other similar option to keep this device
away from your head and body. Carry this device
at least 15 mm away from your body to ensure
exposure levels remain at or below the as-tested
levels. Choose the belt clips, holsters, or other
similar body-worn accessories which do not contain
metallic components to support operation in this
manner. Cases with metal parts may change the RF
performance of the device, including its compliance
with RF exposure guidelines, in a manner that has
not been tested or certied, and use such accessories
should be avoided.
The highest FCC SAR values for the device (ASUS_
X00QDA) are as follows:
• 1.04W/Kg@1g(Head)
• 0.37W/Kg@1g(Body)
• 1.17W/Kg@1g(Hotspot)
• 0.96W/Kg@10g(Specicproduct)
The FCC has granted an Equipment Authorization
for this device (ASUS_X00QDA) with all reported SAR
levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this device
is on le with the FCC and can be found under the
Display Grant section of www.fcc.gov/oet/ea/fccid
after searching on FCC ID: MSQX00QSA.
