Asus VW197DR Manuale utente

VW197 Series

LCD Monitor

User Guide

November

2011

No part of this manual, including the products and software described in it, may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any

means, except documentation kept by the purchaser for backup purposes, without the express written

permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless

such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS

DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),

EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY

DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR

INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,

AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO

RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS

MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the

owners’ benet, without intent to infringe.

Table of contents

Notices......................................................................................................... iii

Safety information ...................................................................................... iv

Care & Cleaning........................................................................................... v

1.1 Welcome! ...................................................................................... 1-1

1.2 Package contents......................................................................... 1-1

1.3 Assembling the monitor ............................................................. 1-2

1.4 Monitor introduction .................................................................... 1-3

1.4.1 Front of the LCD monitor.............................................. 1-3

1.4.2 Rear of the LCD monitor............................................... 1-5

1.4.3 WiringtocomplywithTCOCertied

(VW197TR/VW197NR/VW197SR/VW197DR)................1-6

2.1. Detaching the arm/stand

(for VESA wall mount) ................................................................. 2-1

2.2. Adjusting the monitor.................................................................. 2-2

3.1 OSD (On-Screen Display) menu ................................................. 3-1

3.1.1 Howtorecongure ....................................................... 3-1

3.1.2 OSD Function Introduction .......................................... 3-1

3.2 Specications............................................................................... 3-5

3.3 Troubleshooting (FAQ)................................................................ 3-6

3.4 Supported timing list ................................................................... 3-7

iii

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance

with manufacturer’s instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

As an Energy Star® Partner, our company has determined

that this product meets the Energy Star® guidelines for

energyefciency.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio

noise emissions from digital apparatus set out in the Radio Interference

Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

Safety information

• Before setting up the monitor, carefully read all the documentation that

came with the package.

• Topreventreorshockhazard,neverexposethemonitortorainor

moisture.

• Never try to open the monitor cabinet. The dangerous high voltages

inside the monitor may result in serious physical injury.

• Ifthepowersupplyisbroken,donottrytoxitbyyourself.Contacta

qualiedservicetechnicianoryourretailer.

• Before using the product, make sure all cables are correctly connected

and the power cables are not damaged. If you detect any damage,

contact your dealer immediately.

• Slots and openings on the back or top of the cabinet are provided for

ventilation. Do not block these slots. Never place this product near or

over a radiator or heat source unless proper ventilation is provided.

• The monitor should be operated only from the type of power source

indicated on the label. If you are not sure of the type of power supply to

your home, consult your dealer or local power company.

• Use the appropriate power plug which complies with your local power

standard.

• Do not overload power strips and extention cords. Overloading can

resultinreorelectricshock.

• Avoid dust, humidity, and temperature extremes. Do not place the

monitor in any area where it may become wet. Place the monitor on a

stable surface.

• Unplug the unit during a lightning storm or if it will not be used for a

long period of time. This will protect the monitor from damage due to

power surges.

• Never push objects or spill liquid of any kind into the slots on the

monitor cabinet.

• To ensure satisfactory operation, in case use at a PC then it should

use the monitor only with computers which have appropriate

conguredreceptaclesmarkedbetween100-240VAC.

• If you encounter technical problems with the monitor, contact a

qualiedservicetechnicianoryourretailer.

• The wall socket shall be installed near the equipment and shall be easily

accessible.

Care & Cleaning

• Before you lift or reposition your monitor, it is better to disconnect the cables

and power cord. Follow the correct lifting techniques when positioning the

monitor. When lifting or carrying the monitor, grasp the edges of the monitor.

Do not lift the display by the stand or the cord.

• Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor

surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed

with a cloth dampened with mild cleaner.

• Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended

for use with the LCD. Never spray cleaner directly on the screen, as it may drip

inside the monitor and cause an electric shock.

The following symptoms are normal with the monitor:

• Thescreenmayickerduringtheinitialuseduetothenatureoftheuorescent

light. Turn off the Power Switch and turn it on again to make sure that the

ickerdisappears.

• Youmayndslightlyunevenbrightnessonthescreendependingonthe

desktop pattern you use.

• When the same image is displayed for hours, an afterimage of the previous

screen may remain after switching the image. The screen will recover slowly or

you can turn off the Power Switch for hours.

• Whenthescreenbecomesblackorashes,orcannotworkanymore,contact

yourdealerorservicecentertoxit.Donotrepairthescreenbyyourself!

Conventions used in this guide

WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when

trying to complete a task.

IMPORTANT: Information that you MUST follow to complete a task.

NOTE: Tips and additional information to aid in completing a task.

Wheretondmoreinformation

Refer to the following sources for additional information and for product and

software updates.

1. ASUS websites

The ASUS websites worldwide provide updated information on ASUS

hardware and software products. Refer to http://www.asus.com

2. Optional documentation

Your product package may include optional documentation that may have

been added by your dealer. These documents are not part of the standard

package.

1-1ASUS LCD Monitor VW197 Series

1.1 Welcome!

Thank you for purchasing the ASUS®VW197SeriesLCDmonitor!

The latest widescreen LCD monitor from ASUS provides a crisper, broader, and

brighter display, plus a host of features that enhance your viewing experience.

With these features, you can enjoy the convenience and delightful visual

experiencethattheVW197Seriesbringsyou!

1.2 Package contents

Check your VW197 Series LCD Monitor package for the following items:

9LCD monitor

9Monitor stand and base

9User manual CD

9Quick start guide

9Warranty card

9Power cord

9VGA cable

9Audio cable (VW197T/TR/S/SR)

9Cable holder (VW197TR/NR/SR/DR)

• If any of the above items is damaged or missing, contact your retailer

immediately.

1-2 Chapter 1: Product Introduction

1.3 Assembling the monitor

To assemble the monitor:

1. Have the front of the monitor face down on a table.

2. Insert the stand to the monitor which shows as below picture.

3. Connect the base with the monitor. A click indicates that the base has been

connected successfully.

4. Adjust the monitor to the angle that is most comfortable.

• We recommend that you cover the table surface with soft cloth to prevent

damage to the monitor.

12 3

1-3ASUS LCD Monitor VW197 Series

1.4 Monitor introduction

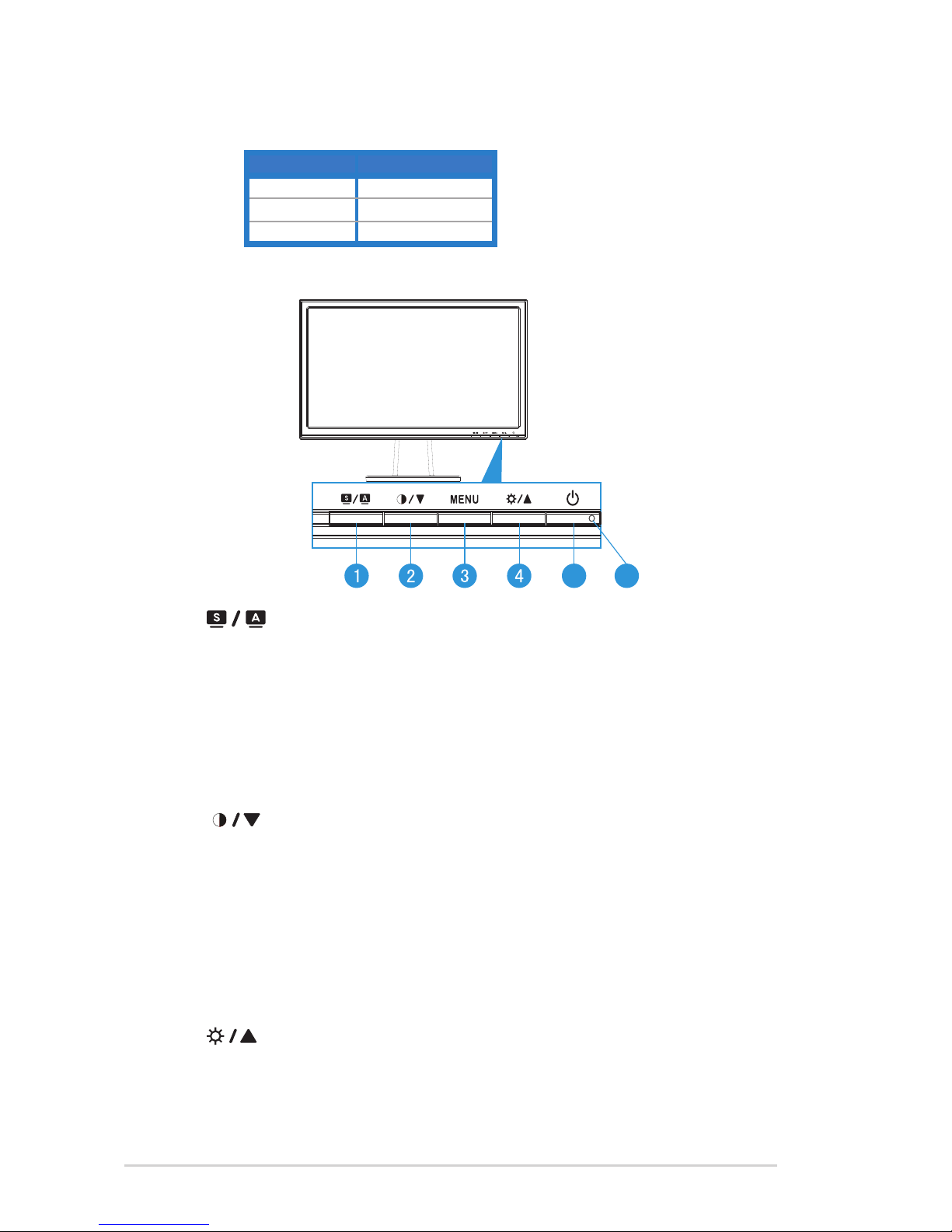

1.4.1 Front of the LCD monitor

1.4.1.1 VW197T/VW197TR/VW197S/VW197SR

5 6

1. Button:

• Automaticallyadjusttheimagetoitsoptimizedposition,clock,and

phasebylongpressingthisbuttonfor2-4seconds(forVGAmodeonly).

• Use this hot key to switch from six video preset modes (Scenery Mode,

Standard Mode, Theater Mode, Game Mode, Night View Mode, and

sRGB Mode) with SPLENDID™ Video Intelligence Technology.

• Exit the OSD menu or go back to the previous menu as the OSD menu

is active.

2. Button:

• Press this button to decrease the value of the function selected or move

to the next function.

• This is also a hot key for Volume adjustment.

3. MENU Button:

• Press this button to enter the OSD menu.

• Press this button to enter/select the icon (function) highlighted while the

OSD is activated.

4. Button:

• Press this button to increase the value of the function selected or move

right/up to the next function.

• This is also a hot key for Brightness adjustment.

5. Power Button:

• Press this button to turn the monitor on/off.

1-4 Chapter 1: Product Introduction

6. Power Indicator

• The color definition of the power indicator is as the below table.

Status Description

Blue ON

Amber Standby mode

OFF OFF

1.4.1.2 VW197N/VW197NR/VW197D/VW197DR

5 6

1. Button:

• Automaticallyadjusttheimagetoitsoptimizedposition,clock,and

phasebylongpressingthisbuttonfor2-4seconds(forVGAmodeonly).

• Use this hot key to switch from six video preset modes (Scenery Mode,

Standard Mode, Theater Mode, Game Mode, Night View Mode, and

sRGB Mode) with SPLENDID™ Video Intelligence Technology.

• Exit the OSD menu or go back to the previous menu as the OSD menu

is active.

2. Button:

• Press this button to decrease the value of the function selected or move

to the next function.

• This is also a hot key for Contrast adjustment.

3. MENU Button:

• Press this button to enter the OSD menu.

• Press this button to enter/select the icon (function) highlighted while the

OSD is activated.

4. Button:

• Press this button to increase the value of the function selected or move

right/up to the next function.

• This is also a hot key for Brightness adjustment.

Questo manuale è adatto per i seguenti modelli

Indice

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione

LG M1950D-PZ Manuale utente
