Asus AX5400 Manuale utente

ASUS ZenWiFi XD6

AX5400 Dual Band WiFi Router

Model: XD6

Quick Start Guide

A18147 / First Edition / April 2021

A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 1A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 1 2021/4/6 16:21:272021/4/6 16:21:27

Table of contents

English................................................................................................................................................................................... 3

繁體中文 ............................................................................................................................................................................12

Bahasa Indonesia.............................................................................................................................................................21

Bahasa Melayu..................................................................................................................................................................30

ไทย.......................................................................................................................................................................................39

Tiếng Việt............................................................................................................................................................................48

A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 2A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 2 2021/4/6 16:21:272021/4/6 16:21:27

English

Hardware Explanations

Plug the adapter into the DCIN port.

The power LED will light up when your hardware is ready.

WAN port

Connect your modem to this port with a network cable.

LAN ports 1~3

Connect your PC to a LAN port with a network cable.

DC Power adapter DC Output: +12V with max 2A current

Operating Temperature 0~40oC Storage 0~70oC

Operating Humidity 50~90% Storage 20~90%

Specications:

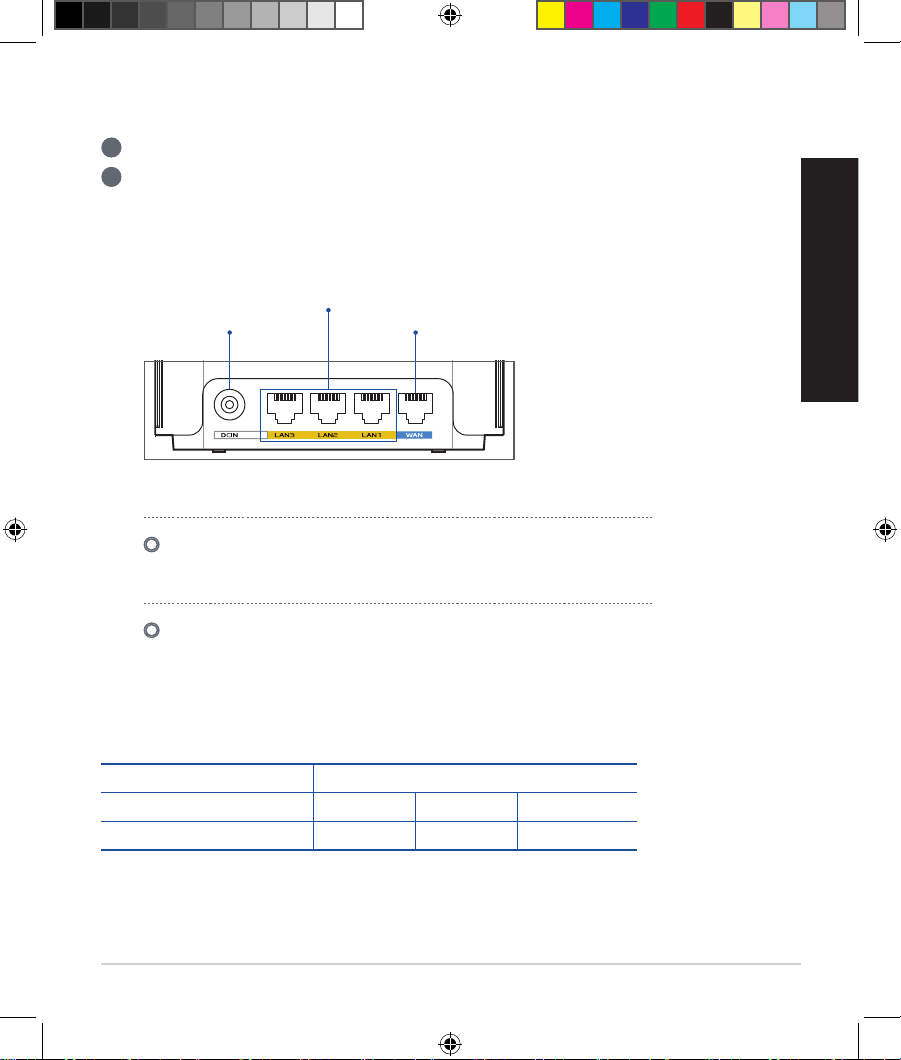

Button and Port Explanations

LAN ports 1~3

DCIN port WAN port

A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 3A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 3 2021/4/6 16:21:282021/4/6 16:21:28

English

Before Setup

Setting up a standalone router

Go to ONE ROUTER SETUP STEPS.

One Router Setup

Setting up an AiMesh WiFi system

Prepare two or more ASUS routers supporting AiMesh.

Assign one as AiMesh router, and another one as AiMesh node.

** If you have multiple AiMesh routers, we recommend using the router with the highest specications

as your AiMesh router and the others as AiMesh nodes.

Go to AiMesh SETUP STEPS.

AiMesh Setup Steps

AiMesh routerAiMesh node

A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 4A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 4 2021/4/6 16:21:282021/4/6 16:21:28

English

ASUS Router App

Download free ASUS Router APP to set up and manage your router(s).

One Router Setup Steps

Prepare your Modem

Unplug the power of cable / DSL modem. If it has a battery backup, remove the

battery.

If you are using DSL for

internet, you will need

your username / password

from your Internet service

provider (ISP) to properly

congure your router.

Modem back

A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 5A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 5 2021/4/6 16:21:292021/4/6 16:21:29

English

Connect your modem to the

router with the network cable

provided.

Power on the modem. Plug modem

to the power outlet and power on.

Check the modem LED lights to ensure the

connection is active.

Modem front

Connect your Device

Plug the adapter into the DC-IN port of

your ZenWiFi XD6.

Check that the LED turns solid blue to

indicate that the hardware connection is

ready for setup.

[Web] Connect your PC to the router using

an additional network cable.

[App] Or you can use a phone or pad to

complete the setup via ASUS Router App.

Modem back

A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 6A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 6 2021/4/6 16:21:292021/4/6 16:21:29

English

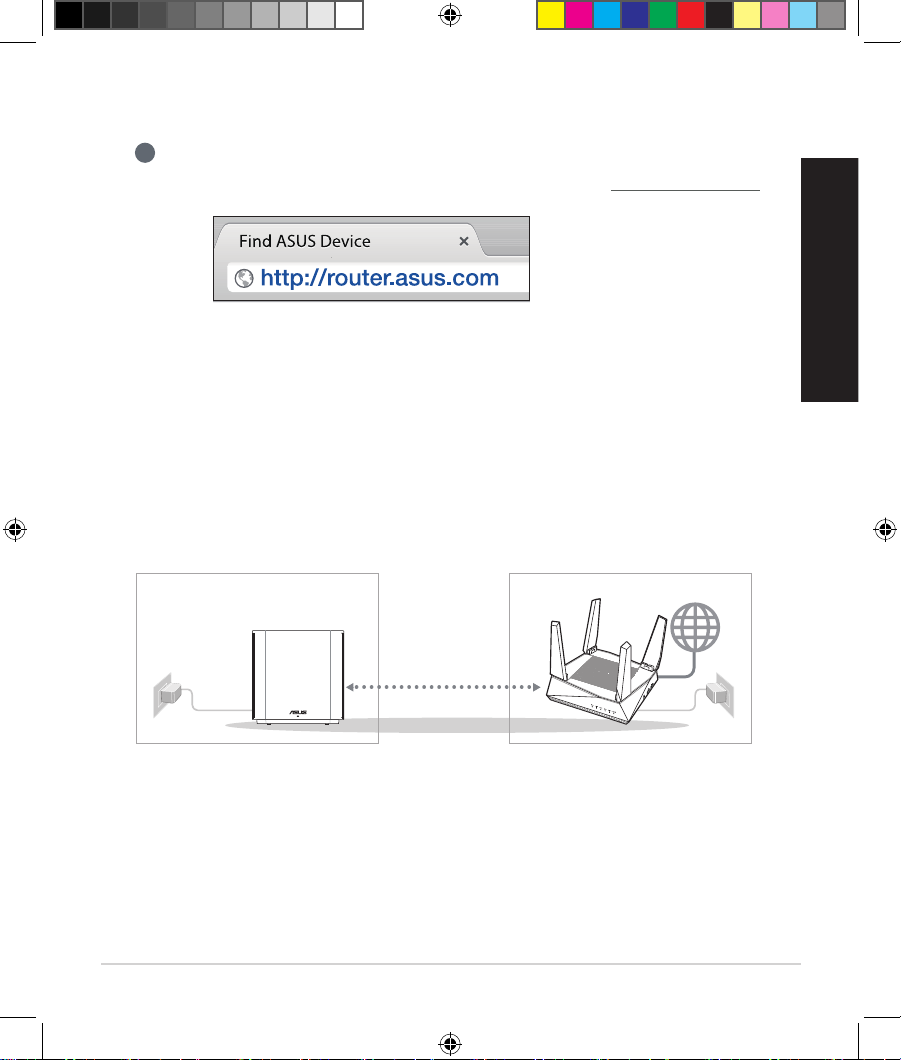

[Web] Open a web browser.

You will be redirected to the ASUS Setup Wizard. If not, navigate to http://router.asus.com.

[App] Launch ASUS Router App and follow the instructions to complete the setup.

AiMesh Setup Steps

Prepare

Place your AiMesh router and node within 3 meters of each other during the

setup process.

AiMesh routerAiMesh node

within 3 meters

A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 7A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 7 2021/4/6 16:21:302021/4/6 16:21:30

English

[Web]

Refer to ONE ROUTER SETUP STEPS to

connect your AiMesh router to your PC and

modem, and then log in into the web GUI.

AiMesh router

Go to Network Map page, click

AiMesh icon and then Search for your

extending AiMesh node.

Keep your AiMesh node powered on and standby for AiMesh

system settings.

02 AiMesh node

A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 8A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 8 2021/4/6 16:21:302021/4/6 16:21:30

English

Click Search, it will automatically

search for your AiMesh node nearby.

When the AiMesh node shows on

this page, click it to add it into the

AiMesh system.

** If you cannot nd any AiMesh

node, please go to TROUBLE

SHOOTING.

A message is displayed when

synchronization is completed.

Congratulations! You will nd the pages

below show up when an AiMesh node

has been successfully added to the

AiMesh network.

[App] Log in to your existing router via ASUS Router App and choose“Add AiMesh Node” to

complete the setup.

A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 9A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 9 2021/4/6 16:21:302021/4/6 16:21:30

English

Solid red:

Your ZenWiFi XD6 router has no Internet connection.

Troubleshooting

If your AiMesh router cannot nd any AiMesh node nearby or synchronization fails,

please check the following and try again.

Move your AiMesh node closer to the AiMesh router ideally. Ensure that it is within 3 meters.

Your AiMesh node is powered on.

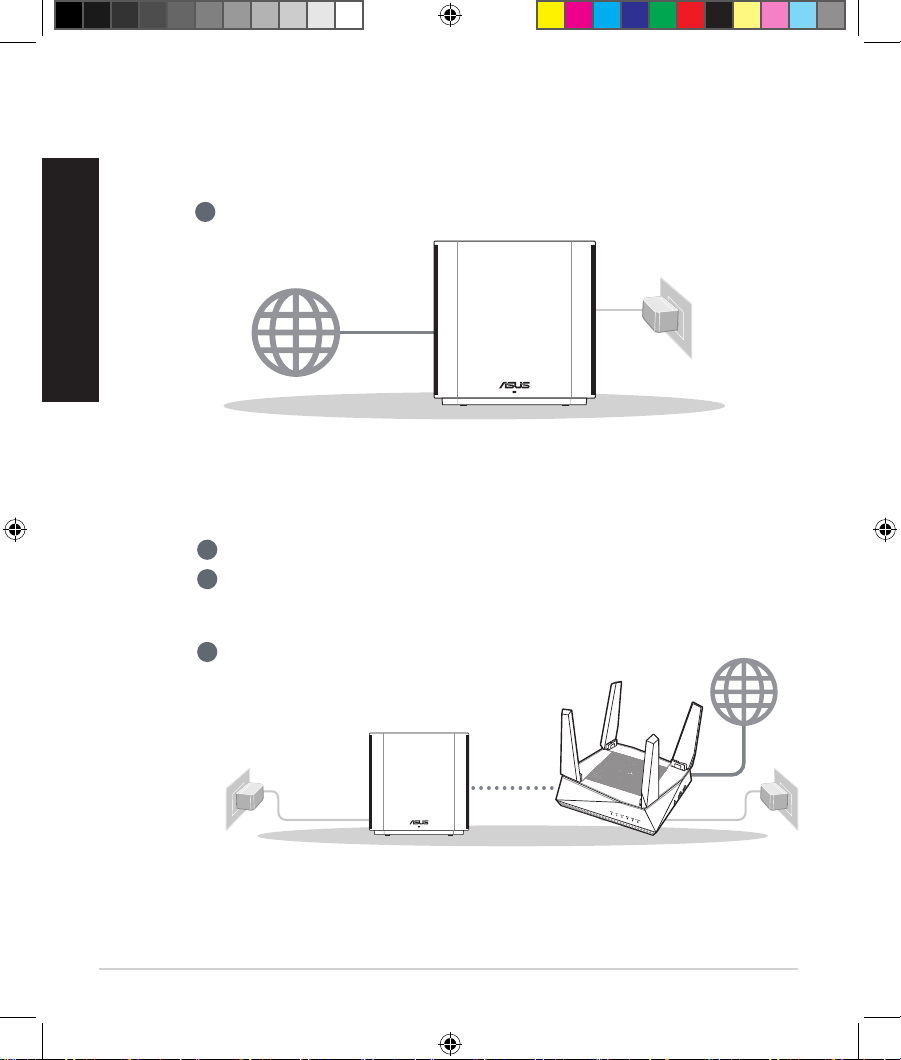

Relocation

Locate the AiMesh router and node at the best place.

THE BEST PERFORMANCE

NOTES: To minimize interference, keep the routers away from devices like cordless phones,

Bluetooth devices and microwave ovens.

We recommend that you place the routers in an open or spacious location.

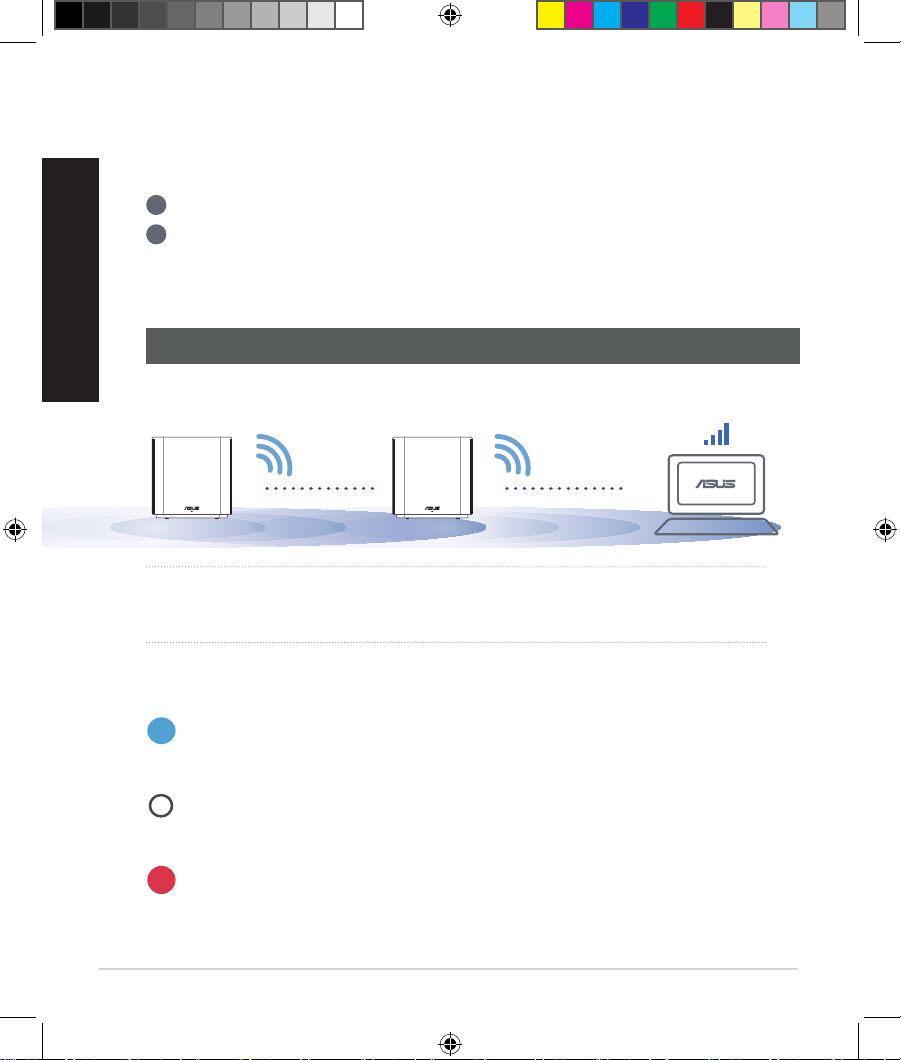

ZenWiFi XD6 LED indications

Solid blue:

Your ZenWiFi XD6 is ready for setup.

Solid white:

Your ZenWiFi XD6 is online and works well.

A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 10A18147_ZenWiFi_XD6_no_wallmount_booklet_1pk_QSG.indb 10 2021/4/6 16:21:312021/4/6 16:21:31
