FCC Warning Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. this device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

- Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Any changes or modications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

Prohibition of Co-location

This device and its antenna(s) must not be co-located or operating in conjunction with any other

antenna or transmitter.

Safety Information

To maintain compliance with FCC’s RF exposure guidelines, this equipment should beinstalled

and operated with minimum distance 20cm between the radiator and your body. Use on the

supplied antenna.

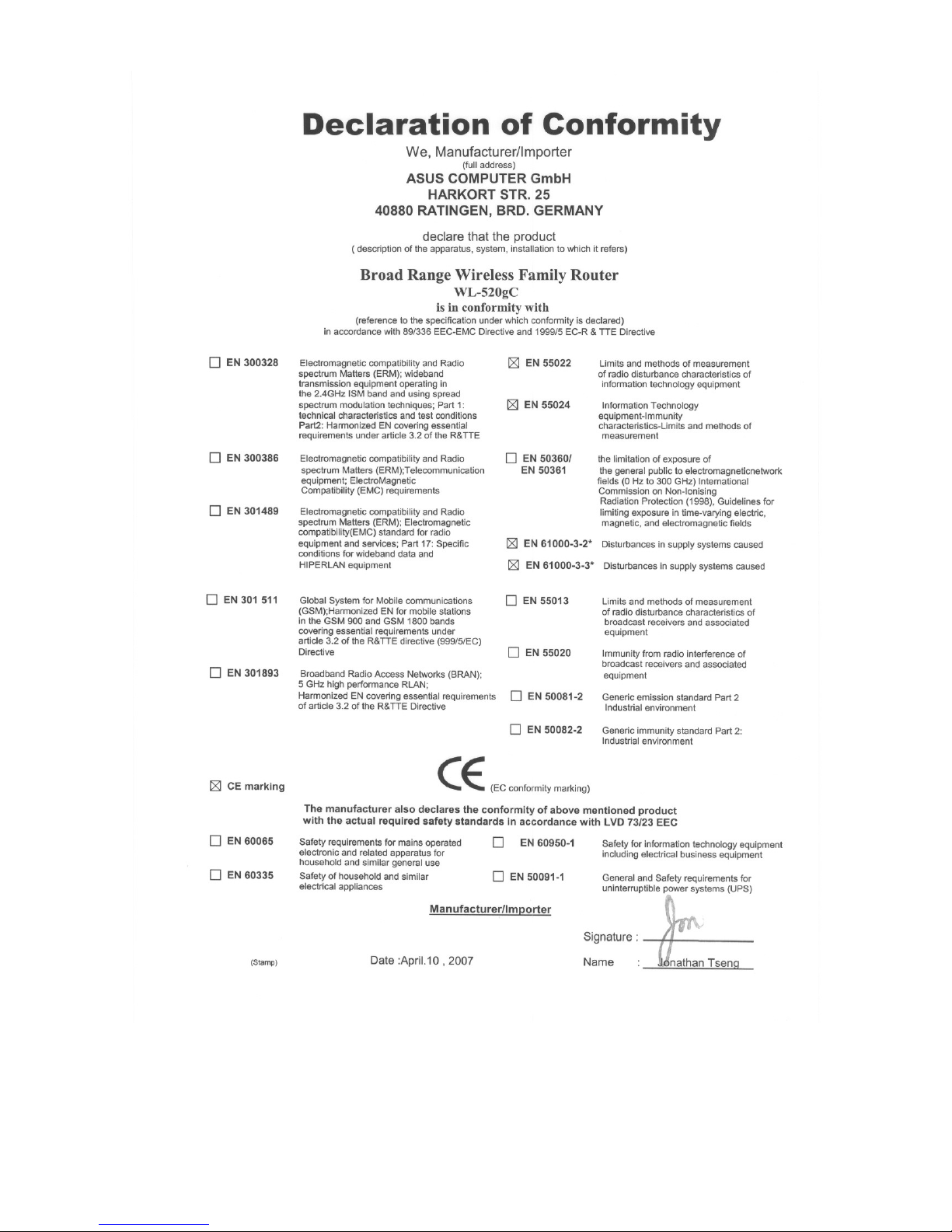

Declaration of Conformity for R&TTE directive 1999/5/EC

Essential requirements – Article 3

Protection requirements for health and safety – Article 3.1a

Testing for electric safety according to EN 60950-1 has been conducted. These are

considered relevant and sufcient.

Protection requirements for electromagnetic compatibility – Article 3.1b

Testing for electromagnetic compatibility according to EN 301 489-1 and EN 301 489-17 has

been conducted. These are considered relevant and sufcient.

Effective use of the radio spectrum – Article 3.2

Testing for radio test suites according to EN 300 328- 2 has been conducted. These are

considered relevant and sufcient.

CE Mark Warning

This is a Class B product, in a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

DGT 警語

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、

加大功率或變更原設計之特性及功能。

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即

停用，並改善至無干擾時方得繼續使用。

前項合法通信，指依電信法規定作業之無線電通信。

低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

WL-520GU/GC Broad Range Wireless Family Router Quick Start Guide

English

1. Package Contents

• WL-520GU/GC wireless router x 1

• Power adapter x 1

• Utility CD x 1

• RJ45 cable x 1

• Quick Start Guide x 1

* Use only the adapter included in the package.

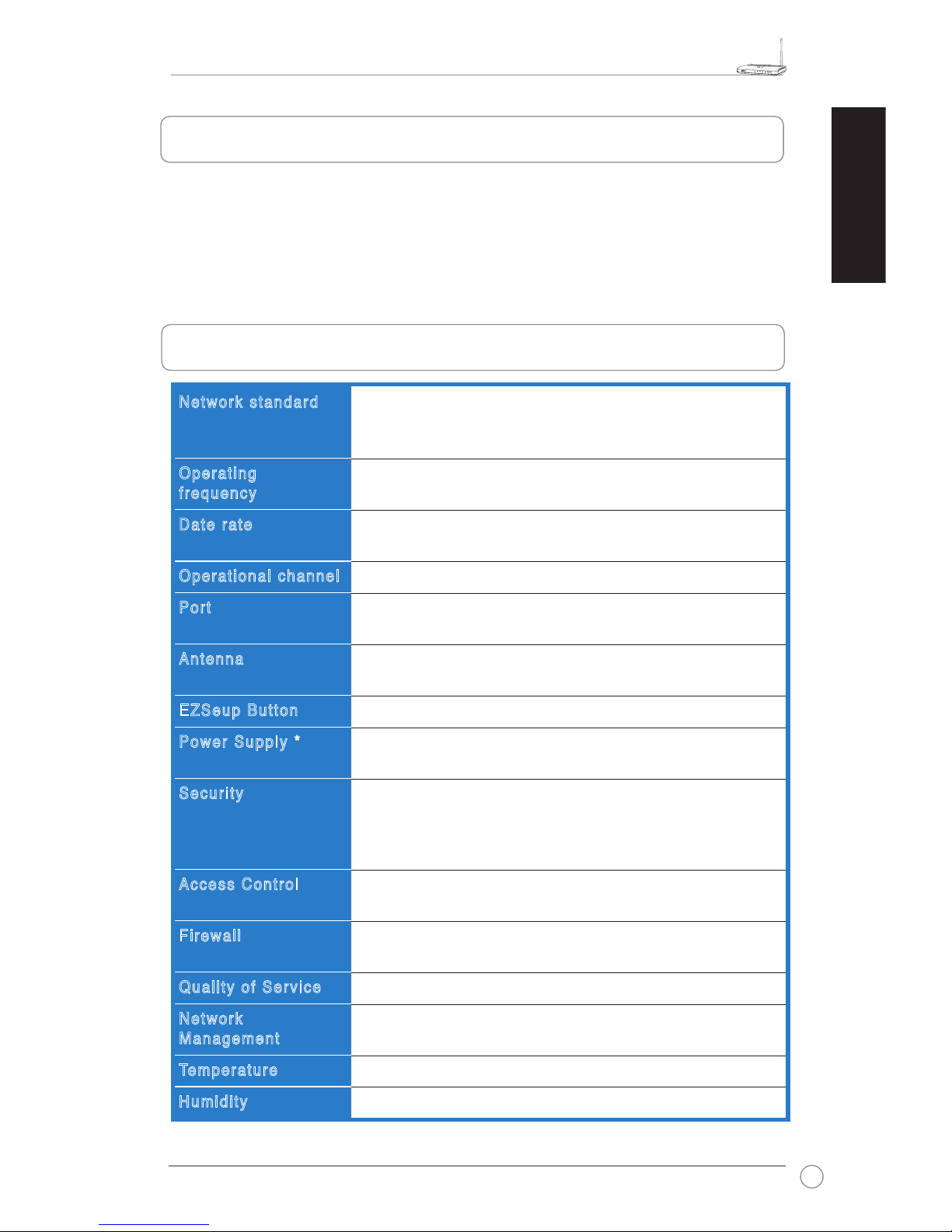

2. Specication summary

IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE802.3x, IEEE

802.3u, IEEE 802.1x, IEEE 802.11i, IPv4, IPv6, CSMA/CA,

CSMA/CD, ICMP

2.4G ~ 2.5GHz

802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

802.11b: 1, 2, 5.5, 11Mbps

11 for N. America, 14 Japan, 13 Europe (ETSI)

WAN x 1, LAN x 4 RJ45 for 10/100 BaseT, 1 x USB2.0 for

printer sharing(

WL-520GU only

)

Support Antenna Diversity, 1 x Reverse-SMA antenna

connector

Automatically SSID and WEP or WPA conguration

WL-520GU: DC: +5V with max. 2A current

WL-520GC: DC EU/UK: +9V/1A; TW/US: +9V/800mA

WEP-64bits, WEP-128bits, WPA-Personal, WPA2-Personal,

WPA-Auto-Personal (TKIP. AES. TKIP+AES), WPA-Enterprise,

WPA2-Enterprise, WPA-Auto-Enterprise (TKIP. AES.

TKIP+AES), Radius with 802.1x

MAC-level Access Control, Inbound/Outbound IP Filter,

Domain Access Control

NAT Firewall, SPI (Stateful Package Inspection) Firewall, WAN

ping control

BOD (

WL-520GU only

), WMM

Support UPnP, DHCP Server, DNS Proxy, NTP Client, DDNS,

Port Trigger, Virtual Server, Virtual DMZ, VPN Pass-Through

Operating: 0~40oC Storage: -30~50oC

Operating: 50~90% Storage: 20~90%

Network standard

Operating

frequency

Date rate

Operational channel

Port

Antenna

EZSeup Button

Power Supply *

Security

Access Control

Firewall

Quality of Service

Network

Management

Temperature

Humidity

WL-520GU/GC Broad Range Wireless Family Router Quick Start Guide

English

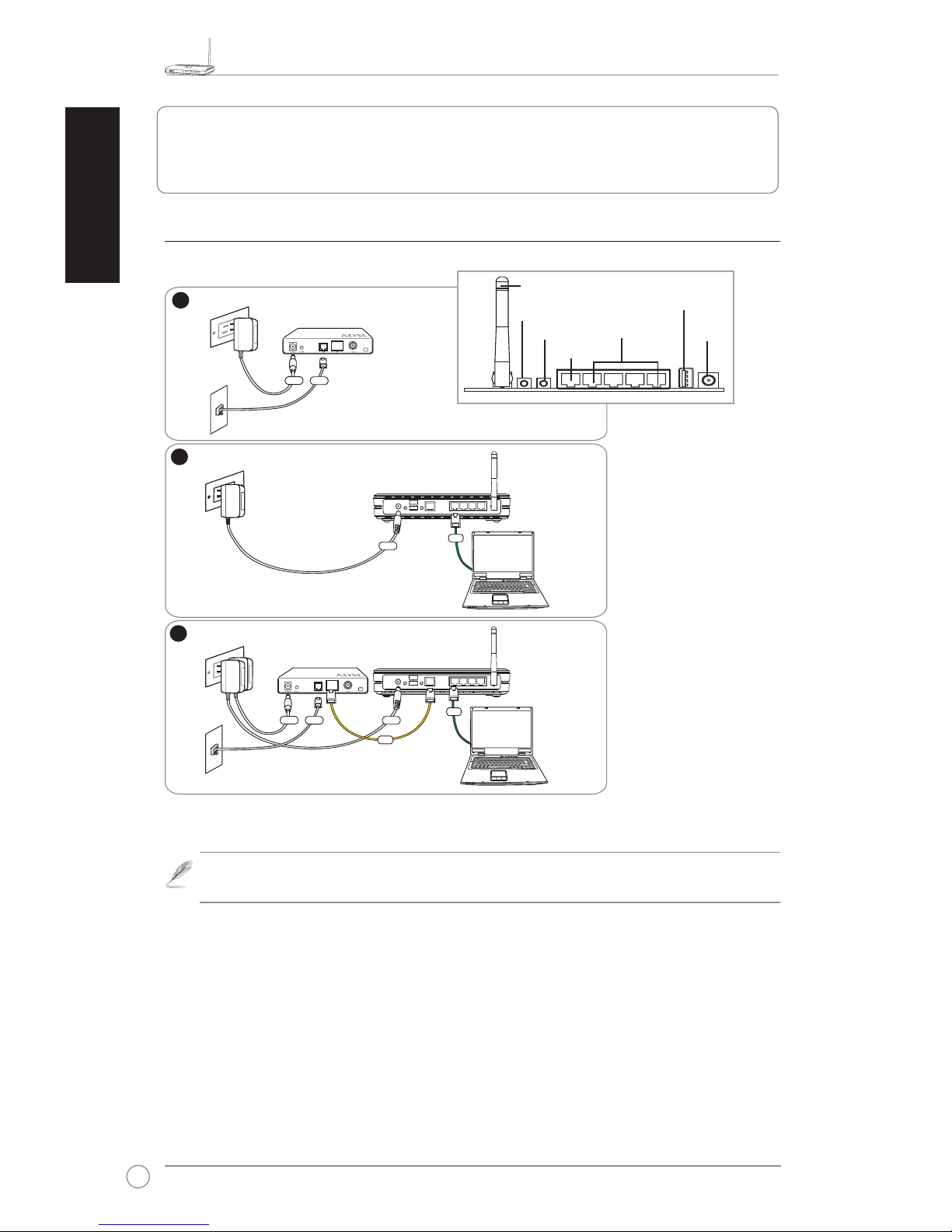

3. Connecting Wireless Router to Cable/DSL/

Satellite Modem

1) Cable connection

Note: Use only the adapter included in the package. Using other adapters may

damage the device.

Modem

Wall Telephone Outlet

Wall Power Outlet

Phone

Power

Wall Power Outlet

ASUS Wireless Router

LAN

Modem

Wall Telephone Outlet

Wall Power Outlet

LAN

Power

Phone

Power

ASUS Wireless Router

WAN

Power

EZ Setup

Reset LAN Power

USB

WAN

Antenna

Rear Panel

WL-520GU/GC Broad Range Wireless Family Router Quick Start Guide

English

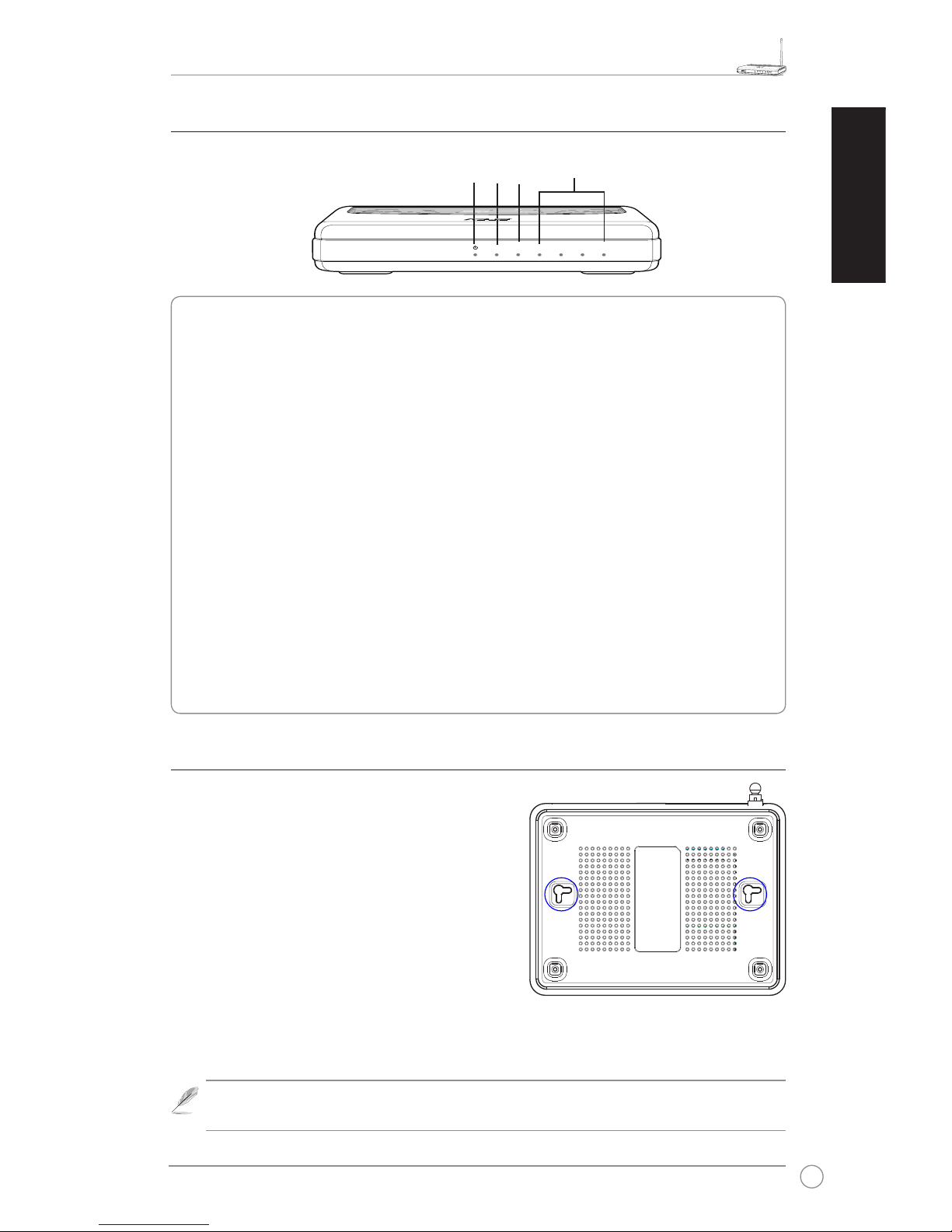

2) Status indicators

PWR (Power)

Off No power

On System ready

Flashing-slow Firmware upgrade failed

Flashing-quick EZsetup processing

AIR (Wireless Network)

Off No power

On Wireless system ready

Flashing Transmitting or receiving data (wireless)

WAN (Wide Area Network)

Off No power or no physical connection

On Has physical connection to an Ethernet network

Flashing Transmitting or receiving data (through Ethernet cable)

LAN 1-4 (Local Area Network)

Off No power or no physical connection

On Has physical connection to an Ethernet network

Flashing Transmitting or receiving data (through Ethernet cable)

3) Mounting options

Out of the box, the ASUS WL-520GU/GC Broad

Range Wireless Router is designed to sit on a

raised at surface like a le cabinet or a book shelf.

The unit may also be converted for mounting to a

wall or ceiling.

To mount the ASUS WL-520GU/GC

1 Look on the underside for the two mounting

hooks.

2. Mark two upper holes on a wall or on a raised at

surface.

3. Tighten two screws until only 1/4'' is showing.

4. Latch the hooks of the ASUS WL520GU/GC onto the screws.

Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the

screws or if it is too loose.

PWR

AIR WAN LAN

WL-520GU

125M High Speed

AIR WAN LAN1 LAN2 LAN3 LAN4

WL-520GU/GC Broad Range Wireless Family Router Quick Start Guide

English

Wireless settings, including network name and network keys, are generated automatically.

You can modify these settings manually. Note if your wireless router is congured before,

select Preserve original wireless router settings to use the current value. Click Next to

continue.

Insert the Utility CD into your PC’s CD drive,

and run Install ASUS Wireless Router

Utilities.

After installing the ASUS Wireless Router

Utilities, run the EZSetup Wizard from

[Startup] -> All Utilities [ASUS Utility] ->

[WL-520GU/GC Wireless Router].

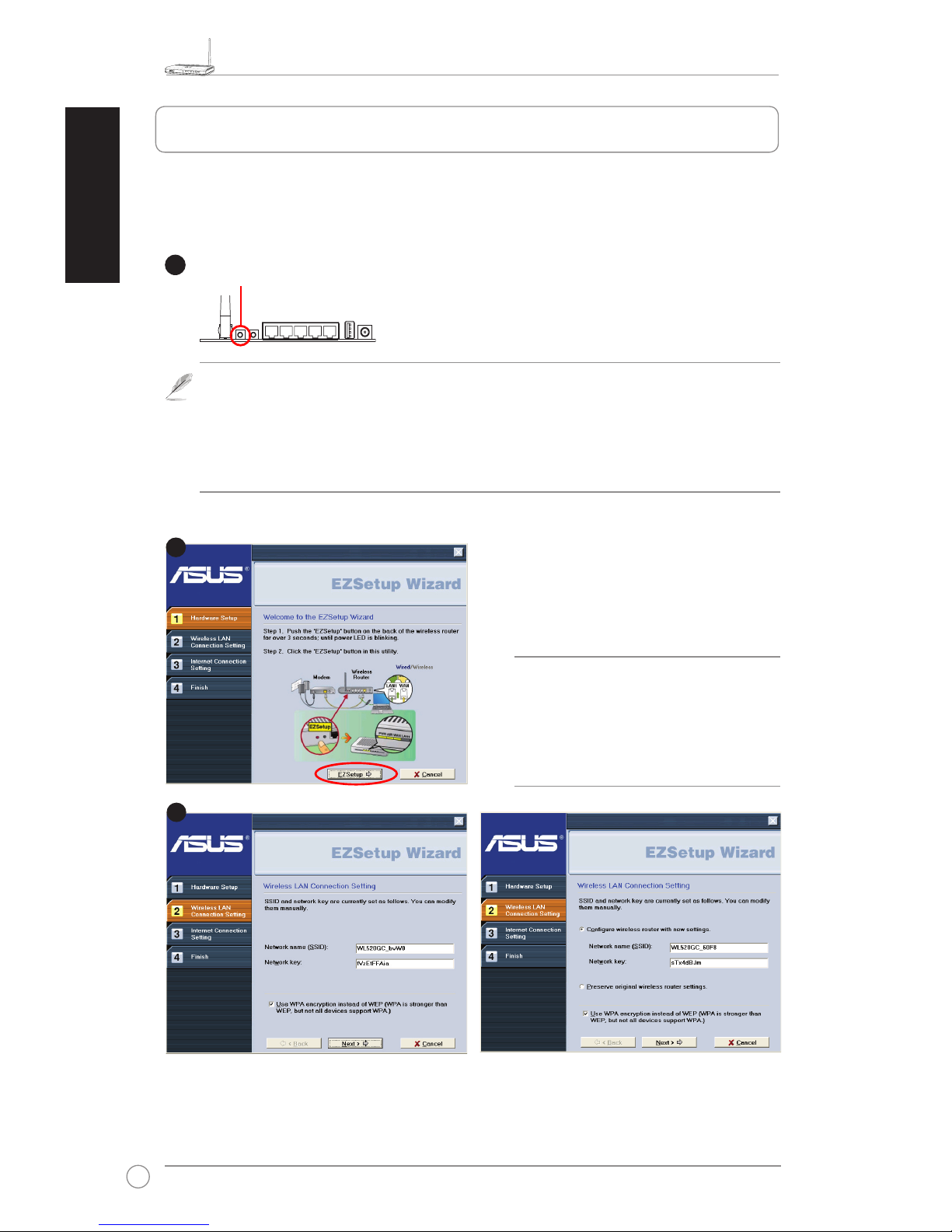

The EZSetup utility enables you to easily complete the wireless LAN setup in just two steps.

First, launch the EZSetup from the Start menu, then push the EZSetup button, located at the

rear panel, for three seconds.

1) If the setup button is pushed without running the EZsetup wizard utility, the PWR

indicator will ash and Internet connections will pause for a short period but will then

return to normal operation without change.

2) To use EZSetup, we recommend using an ASUS wireless adapter such as WL-106gM,

WL-100gE, and WL-169gE.

Note: Use EZSetup Wizard with one

wireless client at a time. If the wireless

client computer cannot discover the

wireless router while in EZSetup

mode, shorten the distance between

the client and the router.

Push EZSetup over

3 sec. and release.

4. EZ Setup

WL-520GU/GC Broad Range Wireless Family Router Quick Start Guide

English

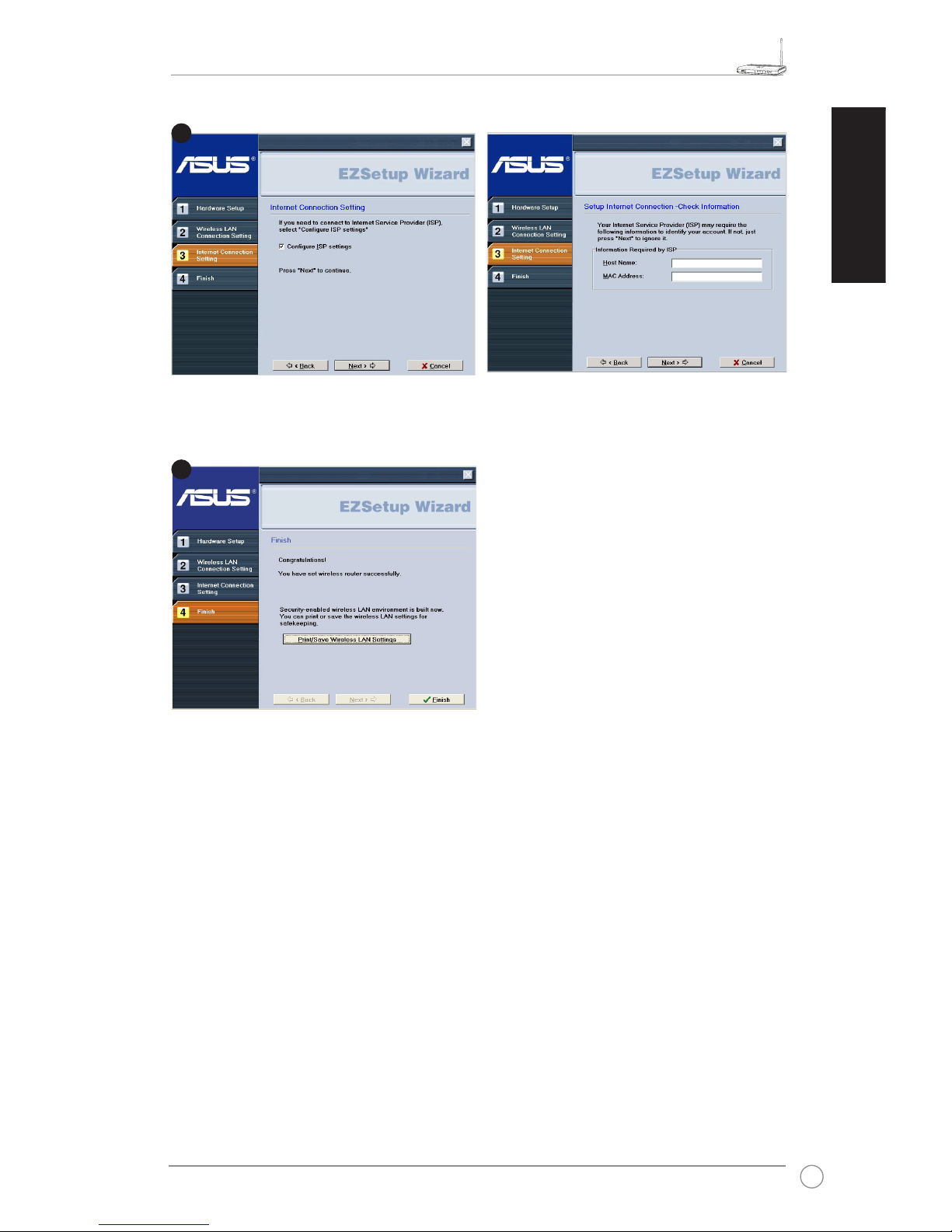

If you need to congure the ISP settings for your wireless router, select Congure ISP

settings, click Next and follow the instructions to complete the settings.

Setup is completed. Press Print/Save

Wireless LAN Settings button for future

reference. Click Finish to exit the EZSetup

utility.
