Asus RT-AC1300UHP Manuale utente

User Guide

RT-AC1300UHP

Wireless-AC1300 Dual Band Gigabit Router

No part of this manual, including the products and software described

in it, may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired,

modied or altered, unless such repair, modication of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or

missing.

ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,

OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR

PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE

FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE

AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY

FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’benet, without intent

to infringe.

E16138

Revised Edition v2

November 2019

Table of contents

1 Getting to know your wireless router

1.1 Welcome! ........................................................................................6

1.2 Package contents.........................................................................6

1.3 Your wireless router.....................................................................7

1.4 Positioning your router..............................................................9

1.5 Setup Requirements ................................................................ 10

1.6 Router Setup............................................................................... 11

1.6.1 Wired connection..................................................................11

1.6.2 Wireless connection.............................................................12

2 Getting started

2.1 Logging into the Web GUI ..................................................... 14

2.2 Quick Internet Setup (QIS) with Auto-detection ........... 15

2.3 Connecting to your wireless network................................ 18

3 Conguring the General settings

3.1 Using the Network Map ......................................................... 19

3.1.1 Setting up the wireless security settings......................20

3.1.2 Managing your network clients.......................................21

3.1.3 Monitoring your USB device.............................................22

3.2 Creating a Guest Network...................................................... 25

3.3 Using the Trac Manager ...................................................... 27

3.3.1 Managing QoS (Quality of Service) Bandwidth..........27

3.3.2 Monitoring Trac .................................................................30

3.4 Setting up Parental Control................................................... 31

3.5 Using the USB Application..................................................... 32

3.5.1 Using AiDisk ............................................................................32

3.5.2 Using Servers Center............................................................34

3.5.3 3G/4G ........................................................................................39

Table of contents

3.6 Using AiCloud............................................................................. 41

3.6.1 Cloud Disk................................................................................42

3.6.2 Smart Access...........................................................................44

3.6.3 AiCloud Sync...........................................................................45

4 Conguring the Advanced Settings

4.1 Wireless......................................................................................... 46

4.1.1 General......................................................................................46

4.1.2 WPS ............................................................................................49

4.1.3 Wireless MAC Filter...............................................................51

4.1.4 RADIUS Setting ......................................................................52

4.1.5 Professional.............................................................................53

4.2 LAN................................................................................................. 55

4.2.1 LAN IP ........................................................................................55

4.2.2 DHCP Server............................................................................56

4.2.3 Route .........................................................................................58

4.2.4 IPTV ............................................................................................59

4.3 WAN ............................................................................................... 60

4.3.1 Internet Connection.............................................................60

4.3.2 Port Trigger..............................................................................63

4.3.3 Virtual Server/Port Forwarding........................................64

4.3.4 DMZ............................................................................................68

4.3.5 DDNS .........................................................................................69

4.3.6 NAT Passthrough...................................................................70

4.4 IPv6................................................................................................. 71

4.5 Firewall.......................................................................................... 72

4.5.1 General......................................................................................72

4.5.2 URL Filter ..................................................................................72

4.5.3 Keyword lter .........................................................................73

4.5.4 Network Services Filter .......................................................74

Table of contents

4.6 Administration ........................................................................... 76

4.6.1 Operation Mode ....................................................................76

4.6.2 System.......................................................................................77

4.6.3 Firmware Upgrade................................................................78

4.6.4 Restore/Save/Upload Setting ...........................................78

4.7 System Log .................................................................................. 79

5 Utilities

5.1 Device Discovery....................................................................... 80

5.2 Firmware Restoration .............................................................. 81

5.3 Setting up your printer server .............................................. 82

5.3.1 ASUS EZ Printer Sharing .....................................................82

5.3.2 Using LPR to Share Printer .................................................86

6 Troubleshooting

6.1 Basic Troubleshooting............................................................. 91

6.2 Frequently Asked Questions (FAQs) .................................. 94

Appendices

Notices .....................................................................................................103

ASUS Contact information..................................................................117

1 Getting to know your wireless

router

NOTES:

• Ifanyoftheitemsaredamagedormissing,contactASUSfor

technical inquiries and support, Refer to the ASUS Support Hotline

list at the back of this user manual.

• Keeptheoriginalpackagingmaterialincaseyouwouldneedfuture

warranty services such as repair or replacement.

RT-AC1300UHP Wireless Router Network cable (RJ-45)

Power adapter Quick Start Guide

Support CD (User Manual)

1.1 Welcome!

Thank you for purchasing an ASUS RT-AC1300UHP Wireless Router!

The ultra-thin and stylish RT-AC1300UHP features both 2.4GHz

and 5GHz dual bands which delivers super fast gigabit wireless-AC

speeds up to 867 Mbps on the 5 GHz band & 300 Mbps on the 2.5

GHz band concurrently.

1.2 Package contents

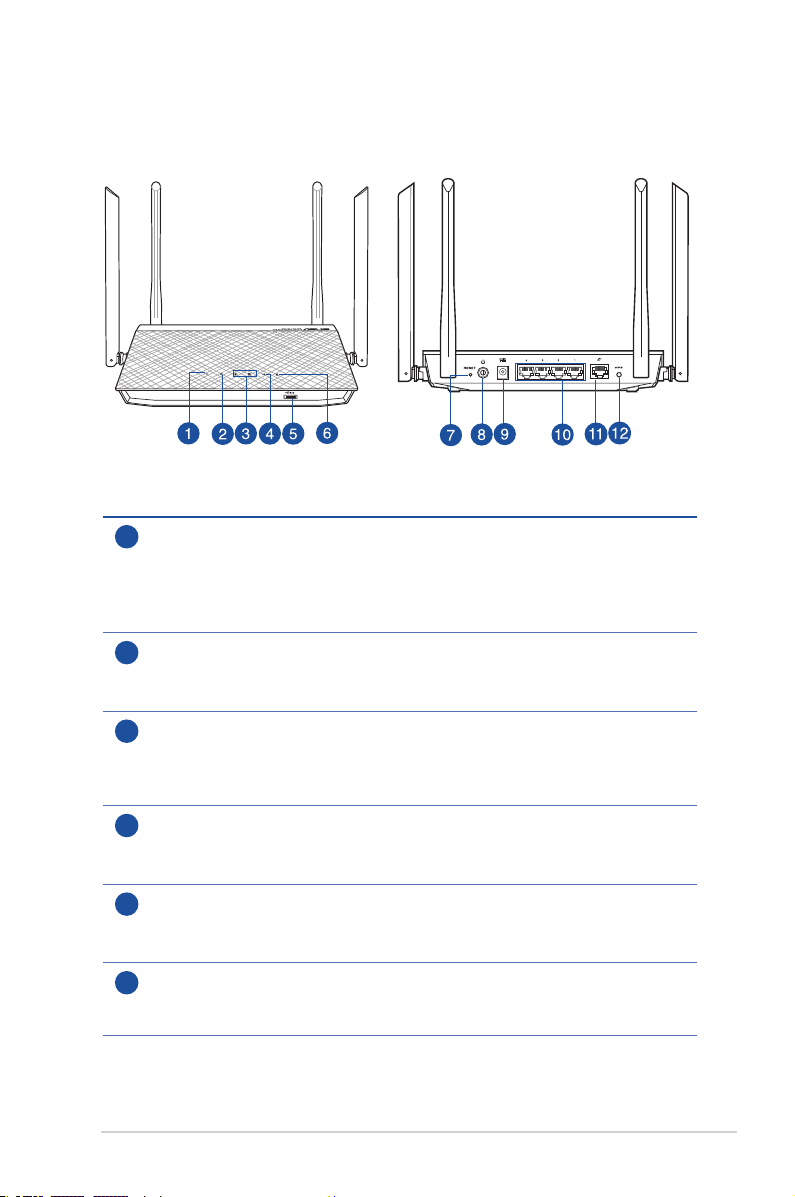

1.3 Your wireless router

1Power LED

O: No power.

On: Device is ready.

Flashing slow: Rescue mode

Flashing quick:WPS is processing.

2WAN (Internet) LED

O: No power or no physical connection.

On: Has physical connection to a wide area network (WAN).

32.4GHz LED / 5GHz LED

O: No 2.4 GHz or 5 GHz signal.

On:Wireless system is ready.

Flashing:Transmitting or receiving data via wireless connection.

4USB LED

O: No power or no physical connection.

On: Has physical connection to USB device.

5USB 3.0 port

Insert a USB device such as USB hard disk or USB flash drive into the port.

Insert your iPad’s USB cable into the port to charge your iPad.

6LAN LED

O: No power or no physical connection.

On: Has physical connection to a local area network (LAN).

NOTES:

• Useonlytheadapterthatcamewithyourpackage.Usingother

adapters may damage the device.

• Specications:

DC Power adapter DC Output: +12V with max 1.5A current;

Operating

Temperature 0~40oCStorage 0~70oC

Operating Humidity 50~90% Storage 20~90%

7Reset button

This button resets or restores the system to its factory default settings.

8Power button

Press this button to power on or off the system.

9Power (DC-IN) port

Insert the bundled AC adapter into this port and connect your router to a power source.

10 LAN 1 ~ 4 ports

Connect network cables into these ports to establish LAN connection.

11 WAN (Internet) port

Connect a network cable into this port to establish WAN connection.

12 WPS button

This button launches the WPS Wizard.

1.4 Positioning your router

For the best wireless signal transmission between the wireless

router and the network devices connected to it, ensure that you:

• Placethewirelessrouterinacentralizedareaforamaximum

wireless coverage for the network devices.

• Keepthedeviceawayfrommetalobstructionsandawayfrom

direct sunlight.

• Keepthedeviceawayfrom802.11b/gor20MHzonlyWi-Fi

devices, 2.4GHz computer peripherals, Bluetooth devices,

cordlessphones,transformers,heavy-dutymotors,fluorescent

lights, microwave ovens, refrigerators, and other industrial

equipment to prevent signal interference or loss.

• Alwaysupdatetothelatestfirmware.VisittheASUSwebsiteat

http://www.asus.com to get the latest firmware updates.

• Toensurethebestwirelesssignal,orientthefourantennasas

shown in the drawing below.

45°45°

1.5 Setup Requirements

To set up your wireless network, you need a computer that meets

the following system requirements:

• EthernetRJ-45(LAN)port(10Base-T/100Base-TX/1000Base-

TX)

• IEEE802.11a/b/g/n/acwirelesscapability

• AninstalledTCP/IPservice

• WebbrowsersuchasInternetExplorer,Firefox,Safari,or

Google Chrome

NOTES:

• Ifyourcomputerdoesnothavebuilt-inwirelesscapabilities,youmay

install an IEEE 802.11a/b/g/n/ac WLAN adapter to your computer to

connect to the network.

• Withitsdualbandtechnology,yourwirelessroutersupports2.4GHz

and 5GHz wireless signals simultaneously. This allows you to do

Internet-related activities such as Internet surng or reading/writing

e-mail messages using the 2.4GHz band while simultaneously

streaming high-denition audio/video les such as movies or music

using the 5GHz band.

• SomeIEEE802.11ndevicesthatyouwanttoconnecttoyournetwork

may or may not support 5GHz band. Refer to the device's manual for

specications.

• TheEthernetRJ-45cablesthatwillbeusedtoconnectthenetwork

devices should not exceed 100 meters.

Indice

Altri manuali Asus Router di rete

Asus

Asus GX-D1051 Manuale utente

Asus

Asus Internet Security Router Manuale utente

Asus

Asus RT-AC85P Manuale utente

Asus

Asus WL 520GU - Wireless Router Manuale utente

Asus

Asus WL-500W SuperSpeed N Manuale utente

Asus

Asus Wireless-N600 Manuale utente

Asus

Asus Zhone 6218-i3 Manuale utente

Asus

Asus RT-AC55U Manuale utente

Asus

Asus AX5400 Manuale utente

Asus

Asus BLUE CAVE Manuale utente

Asus

Asus SL1200 Manuale utente

Asus

Asus RT-AX88U Manuale utente

Asus

Asus DSL-AC51 Manuale utente

Asus

Asus RT-N800HP Manuale di istruzioni

Asus

Asus RT-N65R Manuale utente

Asus

Asus ExpertWiFi EBR63 Manuale utente

Asus

Asus Republic of Gamers GT-AC2900 Manuale utente

Asus

Asus RT-AX1800HP Manuale utente

Asus

Asus DSL-N14U B1 Manuale utente

Asus

Asus WL-AM604 Manuale utente

Asus

Asus RT-AC55U Manuale utente

Asus

Asus RT-AX88U Manuale utente

Asus

Asus RT-AC1750 Manuale utente

Asus

Asus Republic of Gamers Rapture GT-AX11000 Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
