Asus 4G-N12 B1 Manuale utente

Quick Start Guide

APAC15478 / First Edition / June 2019

4G-N12_B1

Wireless-N300 LTE Modem Router

APAC15478_4G-N12_B1_105x105mm_QSG.indb 1 2019/7/4 11:11:44

APAC15478_4G-N12_B1_105x105mm_QSG.indb 2019/7/4 11:11:44

This QSG contains these languages:

English, 繁體中文, 簡體中文, Bahasa Melayu, ˫˶Tiếng Việt

Contents

Package contents .......................................................................................................3

A quick look at your 4G-N12_B1...........................................................................3

Installing your router ................................................................................................5

1.Prepare the setup requirements................................................................................ 5

2.Set up your LTE wireless router .................................................................................. 6

FAQ .................................................................................................................................9

Safety Notices............................................................................................................10

APAC15478_4G-N12_B1_105x105mm_QSG.indb 2 2019/7/4 11:11:44

APAC15478_4G-N12_B1_105x105mm_QSG.indb 2019/7/4 11:11:44

ENGLISH

NOTE: If any of the items is damaged or missing, contact your

retailer.

Package contents

4G-N12_B1 Wi-Fi LTE Router Power adapter

1 x Network cable (RJ-45) Quick Start Guide

2 x detachable LTE antennas Warranty card

A quick look at your 4G-N12_B1

English

APAC15478_4G-N12_B1_105x105mm_QSG.indb 3 2019/7/4 11:11:45

ENGLISH

1. Power LED 7. Ethernet LED

2. 2.4GHz LED 8. LAN port

3. 3G/4G signal LED 9. WPS button

4. Detachable LTE antennas 10. Reset button

5. Power (DC-IN) port 11. Micro SIM card slot

6. Power button

APAC15478_4G-N12_B1_105x105mm_QSG.indb 4 2019/7/4 11:11:46

ENGLISH

Installing your router

1. Prepare the setup requirements.

To set up your wireless network, you need to meet the following

requirements:

t ".JDSP4*.64*.DBSEXJUI8$%."BOE-5&TVCTDSJQUJPO

IMPORTANT&OTVSFUIBUZPVS.JDSP4*.64*.DBSEJTTVCTDSJCFE

to WCDMA and LTE services. Contact your mobile service provider

about these services.

CAUTION!

t 6TFPOMZBTUBOEBSE.JDSP4*.64*.DBSEPOZPVSSPVUFS

t Always insert the Micro SIM adapter with Nano SIM card. The

Micro SIM adapter might get stuck if it is inserted alone.

t "DPNQVUFSXJUI&UIFSOFU3+-"/QPSU#BTF5#BTF59

or a Wi-Fi-enabled device with a 2.4 GHz 802.11 b/g/n wireless

interface

t 8FCCSPXTFSTVDIBT*OUFSOFU&YQMPSFS'JSFGPY4BGBSJPS(PPHMF

Chrome

Mini SIM card

Micro SIM

card

Nano SIM

card

Nano SIM

adapter

Nano SIM card

with adapter

APAC15478_4G-N12_B1_105x105mm_QSG.indb 5 2019/7/4 11:11:46

ENGLISH

2. Set up your LTE wireless router.

1. Insert your Micro SIM card and install the LTE antennas before

powering on your router. Connect the network cable from your

computer to the yellow Ethernet port on your router.

Wall Power Outlet

Power 3

Laptop

LAN

APAC15478_4G-N12_B1_105x105mm_QSG.indb 6 2019/7/4 11:11:46

ENGLISH

2. Your router will automatically detect your ISP’s settings and APN

prole. If the 3G/4G signal LEDs become solid green, you can start

surng the Internet.

3. The 3G/4G signal LEDs will not blink if your router fails to detect

your ISP’s settings successfully. Please key in the wireless router’s

default IP address 192.168.1.1/ on your web browser.

APAC15478_4G-N12_B1_105x105mm_QSG.indb 7 2019/7/4 11:11:47

ENGLISH

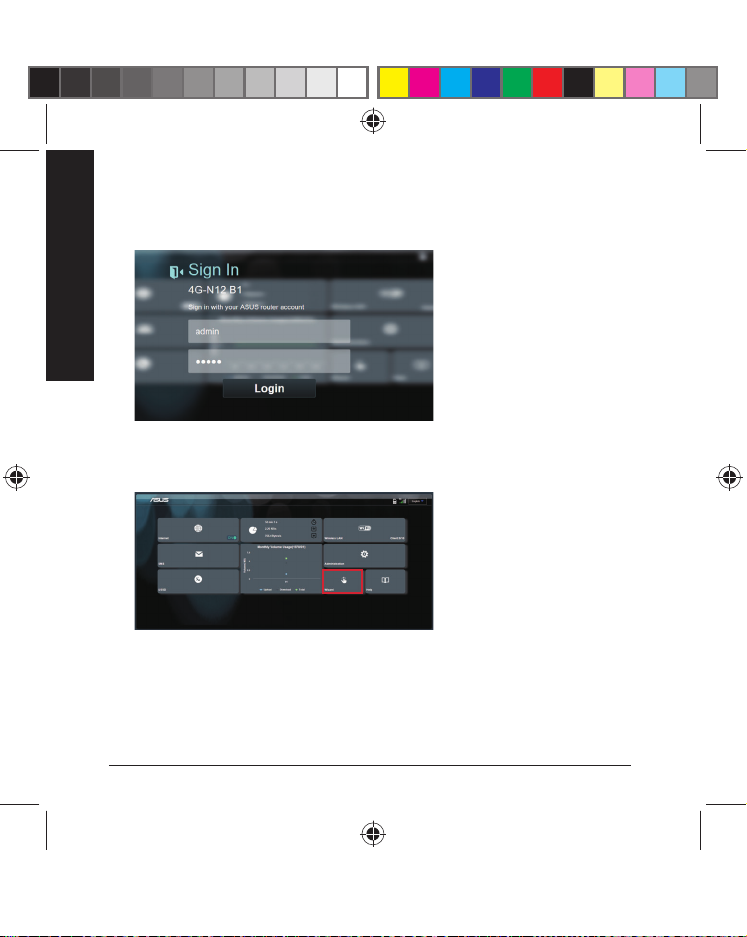

3. On the login page, key in the default user name (admin) and

password (admin).

4. From the main dashboard, click Wizard and follow the on-screen

instructions to nish the setup process.

APAC15478_4G-N12_B1_105x105mm_QSG.indb 8 2019/7/4 11:11:47
